WIRING & CLAMP

0001 1ENGINE ROOM WIRE 0002 1ENGINE ROOM 0003 1ENGINE ROOM 0004 1ENGINE WIRE 0005 1ENGINE WIRE 0006 1ENGINE WIRE 0007 1ENGINE 0008 1COWL WIRE 0009 1ROOF,DOOR & FLOOR WIRE 0010 1CLAMP 0011 1CLAMP 0012 1CLAMP 0013 1DIODES 0014 1CONNECTOR

82001CABLE, BOND, NO.1

main90980-07380iRZN18#199511

main90980-07381iVZN18#199511

82111WIRE, ENGINE ROOM MAIN

main82111-3D610iKZN185199511-199606

main82111-3D611iKZN185199606-199708

main82111-3D612iKZN185199708-199807

main82111-3D620iKZN185199511-199606

W(*ADD)

main82111-3D621iKZN185199606-199708

W(*ADD)

main82111-3D622iKZN185199708-199807

W(*ADD)

main82111-3D630iRZN185199511-199708

main82111-3D631iRZN185199708-199807

main82111-3D650iRZN185; VZN185199511-199708

W(*ADD)

main82111-3D651iRZN185,VZN185199708-199807

W(*ADD)

main82111-3G460iKZN185199807-200008

main82111-3G470iKZN185199807-200008

W(ABS)

main82111-3G480iKZN185199807-200008

W(*ADD)

main82111-3G490iKZN185199807-200008

W(ABS & *ADD)

main82111-3G500iRZN185199807-200008

main82111-3G520iRZN185,VZN185199807-200008

W(*ADD)

main82111-3G530iVZN185199807-200008

W(ABS & *ADD)

main82115-35140iKZN185200008

main82115-35150iKZN185200008

W(ABS)

main82115-35160iRZN18#,VZN18#200008

main82115-35170iVZN18#200008

W(ABS)

82210CFUSIBLE LINK

main90982-08202iVZN18#199807

60A,TERM.:MALE,YEL

main90982-08203×2iKZN185199511

80A,TERM.:MALE,BLK

main90982-08246iRZN185,VZN185199511-199807

100A,TERM.:MALE,BLUE,TAIHEIYO

main90982-08254iRZN18#,VZN18#199807

120A,TERM.:MALE,WHT,TAIHEIYO

main90982-08273iRZN185,VZN185199511-199807

100A,TERM.:MALE,BLUE,YAZAKI

main90982-08274iRZN18#,VZN18#199807

120A,TERM.:MALE,WHT,YAZAKI

main90982-08280iRZN185,VZN185199511-199708

30A,TERM.:FEMALE,PNK,YAZAKI

main90982-08281iKZN185,RZN18#,VZN18#199511

40A,TERM.:FEMALE,GRN,YAZAKI

main90982-08282iKZN185,RZN185,VZN185199511-199807

50A,TERM.:FEMALE,RED,YAZAKI

main90982-08283iKZN185,RZN18#,VZN18#199708

30A,TERM.:FEMALE,PNK,TAIHEIYO

main90982-08284iKZN185,RZN18#,VZN18#199511

40A,TERM.:FEMALE,GRN,TAIHEIYO

main90982-08285iKZN185,RZN185,VZN185199511-199807

50A,FEMALE,RED,32VDC,TAIHEIYO

8401SWITCH & RELAY & COMPUTER

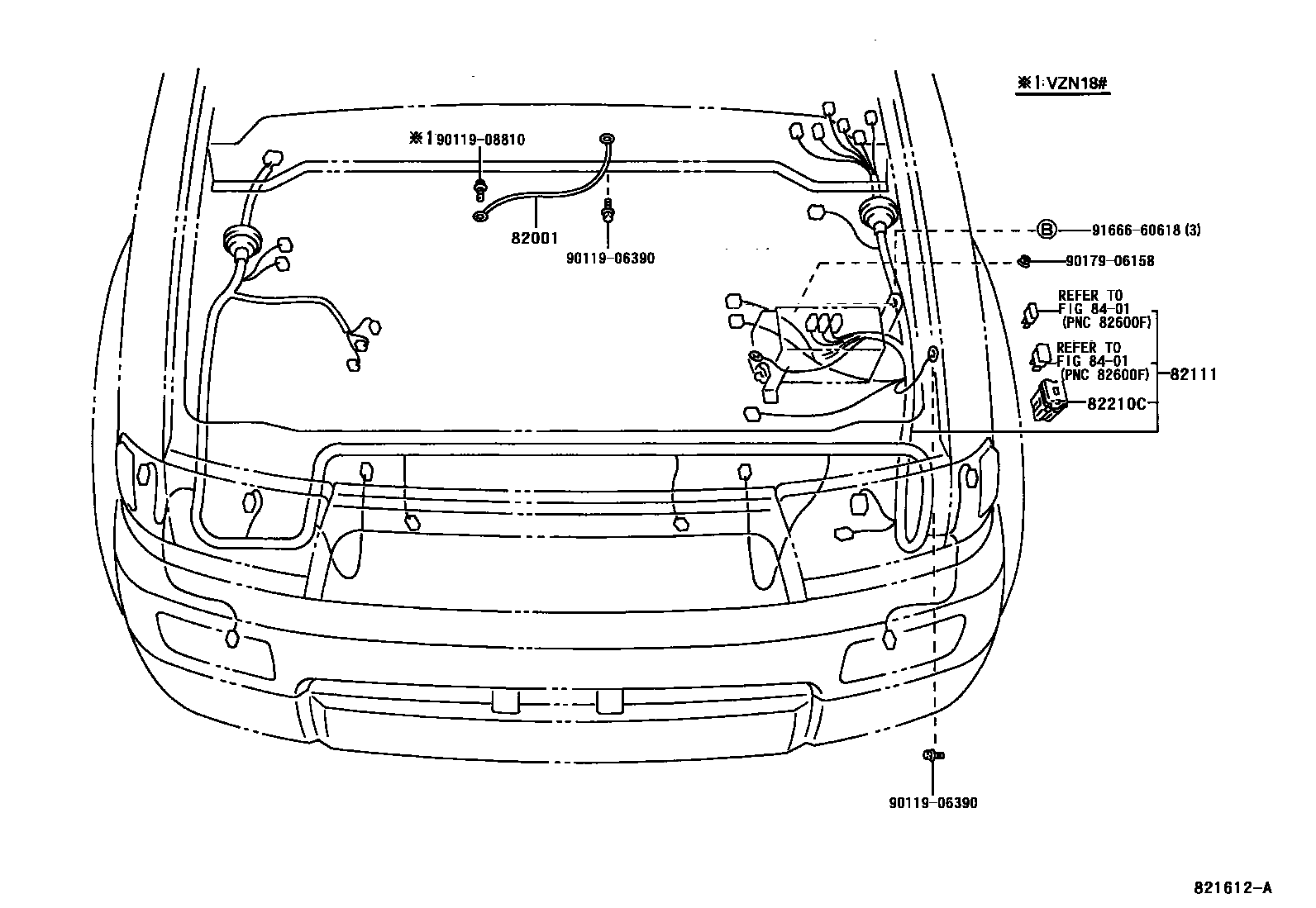

→ Go to FIG 84-01

9011906390

main90119-06390

9011908810

main90119-08810

9017906158

main90179-06158

9166660618

main91666-60618

8 parts on this diagram · 14 diagrams in section
