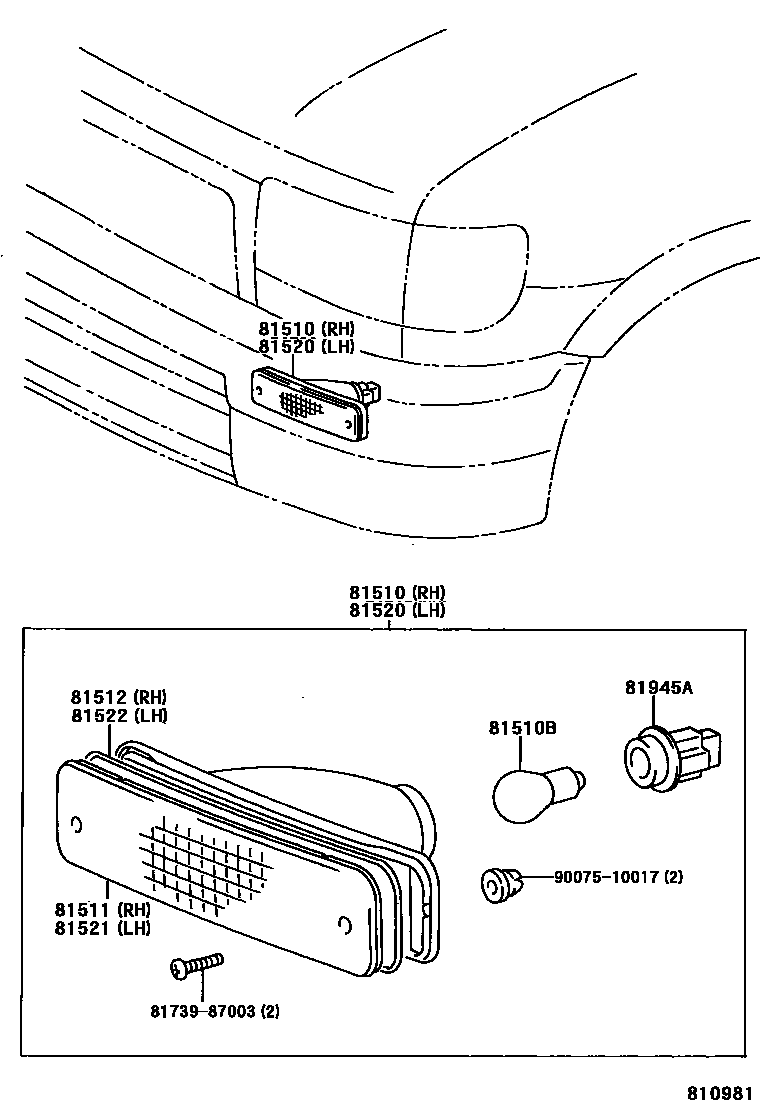

FRONT TURN SIGNAL LAMP

0001 1 0002 1

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-35120iKZN185,RZN185,VZN185199511-199807

main81510-35260iKZN185,RZN18#,VZN18#199807

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-13043iKZN185,RZN18#,VZN18#199807

12V 21W

main99132-11270iKZN185,RZN185,VZN185199511-199807

12V 27W

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-35130iKZN185,RZN185,VZN185199511-199807

main81511-35260iKZN185,RZN18#,VZN18#199807

81512GASKET, FRONT TURN SIGNAL LAMP LENS, RH

main81512-35130iKZN185,RZN185,VZN185199511-199807

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-35120iKZN185,RZN185,VZN185199511-199807

main81520-35250iKZN185,RZN18#,VZN18#199807

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-35130iKZN185,RZN185,VZN185199511-199807

main81521-35250iKZN185,RZN18#,VZN18#199807

81522GASKET, FRONT TURN SIGNAL LAMP LENS, LH

main81512-35130iKZN185,RZN185,VZN185199511-199807

81945ASOCKET, BULB

main81945-12010iKZN185,RZN185,VZN185199511-199807

8173987003

main81739-87003

9007510017

main90075-10017

10 parts on this diagram · 2 diagrams in section
