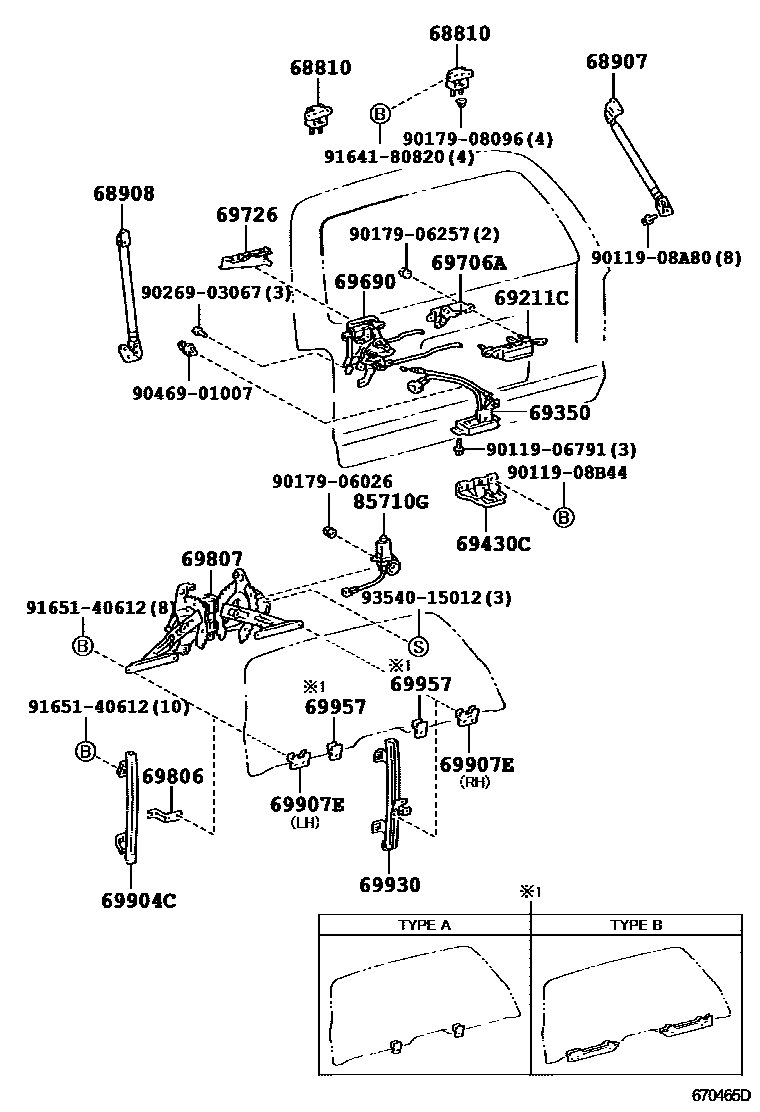

BACK DOOR LOCK & HINGE

68810HINGE ASSY, BACK DOOR, UPPER

main68810-35010iKZN185,RZN18#,VZN18#199511

RH

main68820-35010iKZN185,RZN18#,VZN18#199511

LH

68907STAY SUB-ASSY, BACK DOOR DAMPER, RH

main68907-35010iKZN185,RZN18#,VZN18#199511

68908STAY SUB-ASSY, BACK DOOR DAMPER, LH

main68908-35010iKZN185,RZN18#,VZN18#199511

69211CHANDLE, BACK DOOR OUTSIDE

main69023-35010iKZN185,RZN18#,VZN18#199511

69350LOCK ASSY, BACK DOOR

main69350-35010iKZN185,RZN185,VZN185199511-199807

main69350-35020iKZN185,RZN18#,VZN18#199807

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-35010iKZN185,RZN18#,VZN18#199511

69690CONTROL ASSY, BACK DOOR REMOTE

main69690-35010iKZN185,RZN185,VZN185199511-199706

main69690-35011iKZN185,RZN185,VZN185199706-199807

main69690-35030iKZN185,RZN18#,VZN18#199807

69706AROD SUB-ASSY, BACK DOOR LOCK REMOTE CONTROL

main69706-35010iKZN185,RZN185,VZN185199511-199708

main69706-35030iKZN185,RZN18#,VZN18#199708

69726PROTECTOR, BACK DOOR LOCK CONTROL

main69726-35020iKZN185,RZN18#,VZN18#199511

69806BRACKET SUB-ASSY, BACK DOOR GLASS GUIDE

main69806-35010iKZN185,RZN18#,VZN18#199511

69807REGULATOR SUB-ASSY, BACK DOOR POWER WINDOW

main69807-35010iKZN185,RZN18#,VZN18#199511

69904CRAIL SUB-ASSY, BACK DOOR GLASS GUIDE, LH

main69904-35010iKZN185,RZN18#,VZN18#199511

69907ECHANNEL SUB-ASSY, BACK DOOR GLASS

main69907-35030iKZN185,RZN185,VZN185199511-199711

RH,TYPE A:REF.ILL.

main69907-35031iRZN18#199711-199807

RH,TYPE A:REF.ILL.

main69907-35041iKZN185,RZN18#,VZN18#199807

W(REAR WINDOW DEFOGGER),RH,TYPE B:REF.ILL.

main69908-35010iKZN185,RZN185,VZN185199511-199807

LH,TYPE A:REF.ILL.

main69908-35020iKZN185,RZN18#,VZN18#199807

W(REAR WINDOW DEFOGGER),LH,TYPE B:REF.ILL.

69930RAIL ASSY, BACK DOOR GLASS GUIDE, RH

main69930-35010iKZN185,RZN18#,VZN18#199511

69957CHANNEL, BACK DOOR GLASS

main69957-35010iKZN185,RZN185,VZN185199511-199807

TYPE A:REFER ILLUST.

85710GMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-35090iKZN185,RZN18#,VZN18#199511

9011906791

main90119-06791

9011908A80

main90119-08A80

9011908B44

main90119-08B44

9017906026

main90179-06026

9017906257

main90179-06257

9017908096

main90179-08096

9026903067

main90269-03067

9046901007

main90469-01007

9164180820

main91641-80820

9165140612

main91651-40612

9354015012

main93540-15012

27 parts on this diagram · 1 diagram in section
