REAR DOOR LOCK & HANDLE

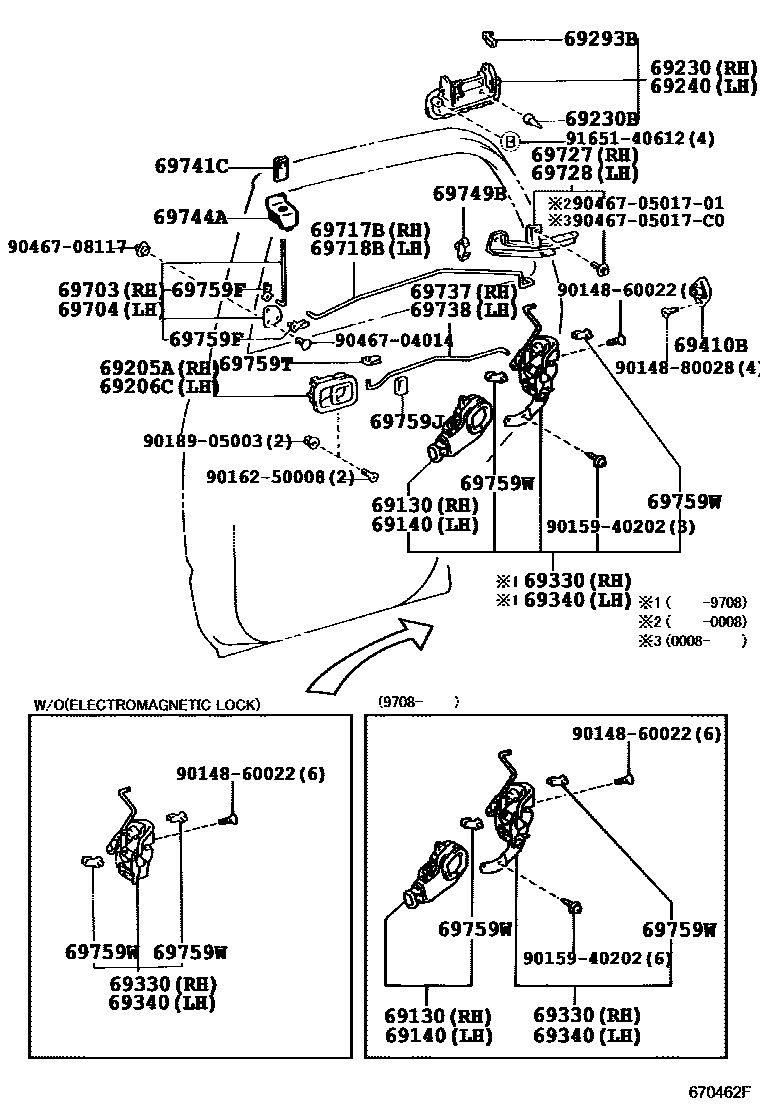

Parts diagram
69130ACTUATOR ASSY, REAR DOOR LOCK, RH
main69130-35030i199511-199807
main69130-35060i199807
69140ACTUATOR ASSY, REAR DOOR LOCK, LH
main69140-35030i199511-199807
main69140-35060i199807
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
main69205-10070-B1i199511-200008
MD.MOON MIST,TRIM1#
sub69205-10070
main69205-10070-B3i200008
DK.CHARCOAL,TRIM1#
sub69205-10070
main69205-10070-E0i199511-199807
OAK,TRIM4#
sub69205-10070
main69205-10070-E2i199807
MD.OAK,TRIM4#
sub69205-10070
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
main69206-10070-B1i199511-200008
MD.MOON MIST,TRIM1#
sub69206-10070
main69206-10070-B3i200008
DK.CHARCOAL,TRIM1#
sub69206-10070
main69206-10070-E0i199511-199807
OAK,TRIM4#
sub69206-10070
main69206-10070-E2i199807
MD.OAK,TRIM4#
sub69206-10070
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
main69230-35010i199511-199708
NO PAINT REQ.
main69230-35030-A0i199511-199708
WHITE,056
main69230-35030-B0i199511-199708
DK BROWNISH GRAY MM,1A1
main69230-35030-B1i199511-199708
WARM GRAY PEARL ME,1A5
main69230-35030-C0i199511-199708
BLACK,202
main69230-35030-D0i199511-199608
RED,3H7
main69230-35030-D1i199511-199708
RED MM,3K4
main69230-35030-D2i199608-199708
RED,3L5
main69230-35030-H0i199511-199708
DK.TEAL GREEN MC.,751
main69230-35030-J0i199511-199708
LT.BLUE M.M.,8L6
main69230-35030-J1i199511-199708
DK.BLUE M.M.,8L7
main69230-35030-K0i199511-199708
GRAYISH PURPLE M.M.,926
main69230-35050i199708-199807
NO PAINT REQ.
main69230-35060-A0i199708-199807
WHITE,056
main69230-35060-B0i199708-199807
DK BROWNISH GRAY MM,1A1
main69230-35060-B1i199708-199807
WARM GRAY PEARL ME.,1A5
main69230-35060-C0i199708-199807
BLACK,202
main69230-35060-D0i199708-199807
RED MM,3K4
main69230-35060-D1i199708-199807
RED,3L5
main69230-35060-H0i199708-199807
DK.TEAL GREEN MC.,751
main69230-35060-J0i199708-199807
LT.BLUE M.M.,8L6
main69230-35060-J1i199708-199807
DK.BLUE M.M.,8L7
main69230-35060-K0i199708-199807
GRAYISH PURPLE ME.,926
main69230-35100i199807
NO PAINT REQ.
main69230-35110-A0i199807-200008
WHITE,056
main69230-35110-A0i199910-199911
SPORTY VERSION(CENTRAL AMERICA),WHITE,K82
main69230-35110-A0i200008
WHITE,K72 ,056
main69230-35110-B0i199807-200008
WARM GRAY PEARL ME.,1A5
main69230-35110-B1i199910-199911
SPORTY VERSION(CENTRAL AMERICA),SILVER ME.,K85
main69230-35110-B1i200008
SILVER ME.,KF8 ,K73 ,1C0
main69230-35110-B1i199807-200008
SILVER ME.,1C0
main69230-35110-B2i200008
GRAY ME.,KF9 ,KG0 ,1D2
main69230-35110-C0i200008
BLACK,KA3 ,KG1 ,202
main69230-35110-C0i199807-200008
BLACK,202
main69230-35110-D0i200107
RED MM,KG2 ,KH6 ,3K4
main69230-35110-D0i200008-200107
RED MM,KG2 ,3K4
main69230-35110-D0i199807-200008
RED MM,3K4
main69230-35110-D1i199807-200008
RED,3L5
main69230-35110-E0i199807-199906
COPPER ME.,4P5
main69230-35110-F1i200008
CHAMPAGNE M.M.,KG4 ,KG5 ,587
main69230-35110-G0i199910-199911
SPORTY VERSION(CENTRAL AMERICA),DK.GREEN MC.,K91
main69230-35110-G0i199807-200008
DK. GREEN MC.,6Q7
main69230-35110-G0i200008-200107
DK. GREEN MC.,KG6 ,K79 ,6Q7
main69230-35110-G0i200107
DK. GREEN MC.,KG6 ,6Q7
main69230-35110-H0i200008
AQUA ME.,KG7 ,768
main69230-35110-J0i200008-200107
DK.BLUE M.M.,KG9 ,8L7
main69230-35110-J0i199807-200008
DK.BLUE M.M.,8L7
main69230-35110-J0i200107
DK.BLUE M.M.,KG9 ,KH7 ,8L7
main69230-35110-J1i199807-200008
BLUE ME.,8N1
69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)
main90541-04014i199511
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
main69240-35010i199511-199708
NO PAINT REQ.
main69240-35030-A0i199511-199708
WHITE,056
main69240-35030-B0i199511-199708
DK BROWNISH GRAY MM,1A1
main69240-35030-B1i199511-199708
WARM GRAY PEARL ME,1A5
main69240-35030-C0i199511-199708
BLACK,202
main69240-35030-D0i199511-199608
RED,3H7
main69240-35030-D1i199511-199708
RED MM,3K4
main69240-35030-D2i199608-199708
RED,3L5
main69240-35030-H0i199511-199708
DK.TEAL GREEN MC.,751
main69240-35030-J0i199511-199708
LT.BLUE M.M.,8L6
main69240-35030-J1i199511-199708
DK.BLUE M.M.,8L7
main69240-35030-K0i199511-199708
GRAYISH PURPLE M.M.,926
main69240-35050i199708-199807
NO PAINT REQ.
main69240-35060-A0i199708-199807
WHITE,056
main69240-35060-B0i199708-199807
DK BROWNISH GRAY MM,1A1
main69240-35060-B1i199708-199807
WARM GRAY PEARL ME.,1A5
main69240-35060-C0i199708-199807
BLACK,202
main69240-35060-D0i199708-199807
RED MM,3K4
main69240-35060-D1i199708-199807
RED,3L5
main69240-35060-H0i199708-199807
DK.TEAL GREEN MC.,751
main69240-35060-J0i199708-199807
LT.BLUE M.M.,8L6
main69240-35060-J1i199708-199807
DK.BLUE M.M.,8L7
main69240-35060-K0i199708-199807
GRAYISH PURPLE ME.,926
main69240-35100i199807
NO PAINT REQ.
main69240-35110-A0i200008
WHITE,K72 ,056
main69240-35110-A0i199910-199911
SPORTY VERSION(CENTRAL AMERICA),WHITE,K82
main69240-35110-A0i199807-200008
WHITE,056
main69240-35110-B0i199807-200008
WARM GRAY PEARL ME.,1A5
main69240-35110-B1i199807-200008
SILVER ME.,1C0
main69240-35110-B1i200008
SILVER ME.,KF8 ,K73 ,1C0
main69240-35110-B1i199910-199911
SPORTY VERSION(CENTRAL AMERICA),SILVER ME.,K85
main69240-35110-B2i200008
GRAY ME.,KF9 ,KG0 ,1D2
main69240-35110-C0i199807-200008
BLACK,202
main69240-35110-C0i200008
BLACK,KA3 ,KG1 ,202
main69240-35110-D0i199807-200008
RED MM,3K4
main69240-35110-D0i200107
RED MM,KG2 ,KH6 ,3K4
main69240-35110-D0i200008-200107
RED MM,KG2 ,3K4
main69240-35110-D1i199807-200008
RED,3L5
main69240-35110-E0i199807-199906
COPPER ME.,4P5
main69240-35110-F1i200008
CHAMPAGNE M.M.,KG4 ,KG5 ,587
main69240-35110-G0i200008-200107
DK. GREEN MC.,KG6 ,K79 ,6Q7
main69240-35110-G0i199910-199911
SPORTY VERSION(CENTRAL AMERICA),DK.GREEN MC.,K91
main69240-35110-G0i199807-200008
DK. GREEN MC.,6Q7
main69240-35110-G0i200107
DK. GREEN MC.,KG6 ,6Q7
main69240-35110-H0i200008
AQUA ME.,KG7 ,768
main69240-35110-J0i200107
DK.BLUE M.M.,KG9 ,KH7 ,8L7
main69240-35110-J0i199807-200008
DK.BLUE M.M.,8L7
main69240-35110-J0i200008-200107
DK.BLUE M.M.,KG9 ,8L7
main69240-35110-J1i199807-200008
BLUE ME.,8N1
69293BSNAP, REAR DOOR OUTSIDE HANDLE
main69293-12030i200008
RH
main69293-12030i199511
NATURAL
main69293-12040i199511
YELLOW
main69293-12040i200008
LH
69330LOCK ASSY, REAR DOOR, RH
main69050-35060i199511-199708
W(POWER WINDOW)
main69330-35080i199511-199708
main69330-35140i200008
W(POWER DOOR LOCK)
main69330-35140i199708
W(POWER WINDOW)
main69330-35150i199708
69340LOCK ASSY, REAR DOOR, LH
main69060-35060i199511-199708
W(POWER WINDOW)
main69340-35050i199511-199708
main69340-35140i199708
W(POWER WINDOW)
main69340-35140i200008
W(POWER DOOR LOCK)
main69340-35150i199708
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
main69410-20070i199511
69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH
main69703-35030i199511
69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH
main69704-35030i199511
69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH
main69713-35040i199511
69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH
main69714-35040i199511
69727PROTECTOR, REAR DOOR INSIDE LOCKING LINK, RH
main69727-35010i199511-199807
sub69727-35030
main69727-35030i199807
69728PROTECTOR, REAR DOOR INSIDE LOCKING LINK, LH
main69728-35010i199511-199807
sub69728-35030
main69728-35030i199807
69737LINK, REAR DOOR INSIDE LOCKING, RH
main69737-35020i199511
69738LINK, REAR DOOR INSIDE LOCKING, LH
main69738-35020i199511
69741CKNOB, REAR DOOR LOCK CONTROL
main69741-12040-B1i199511-200008
MD.MOON MIST,TRIM1#
sub69741-12040
main69741-12040-B6i200008
DK.CHARCOAL,TRIM1#
sub69741-12040
main69741-12040-E0i199511
OAK,TRIM4#
sub69741-12040
69744ACOVER, DOOR LOCK CONTROL KNOB
main69744-35010i199811
69749BCLAMP, REAR DOOR LOCK LINK
main69749-12040i199511
69759FSNAP, REAR DOOR LOCK CONTROL LINK
main69759-20020i199511
NATURAL
main69759-20030i199511
LIGHT BLUE
main69759-24030i199511
RED
main69759-24040i199511
PINK
69759JSILENCER, DOOR LOCK LINK
main69759-12060i199604
main69759-35010i199511-199604
69759TSNAP, REAR DOOR INSIDE HANDLE
main69759-20060i200008
LH
main69759-20060i199511
GRAY
main69759-20070i199511
GREEN
main69759-20070i200008
RH
69759WSNAP, REAR DOOR LOCK CONTROL LINK
main69759-20040i199511
YELLOW
main69759-20050i199511
BROWN
9014860022
main90148-60022
9014880028
main90148-80028
9015940202
main90159-40202
9016250008
main90162-50008
9018905003
main90189-05003
9046704014
main90467-04014
904670501701
main90467-0501701
9046705017C0
main90467-05017C0
9046708117
main90467-08117
9165140612
main91651-40612

36 parts on this diagram · 1 diagram in section
