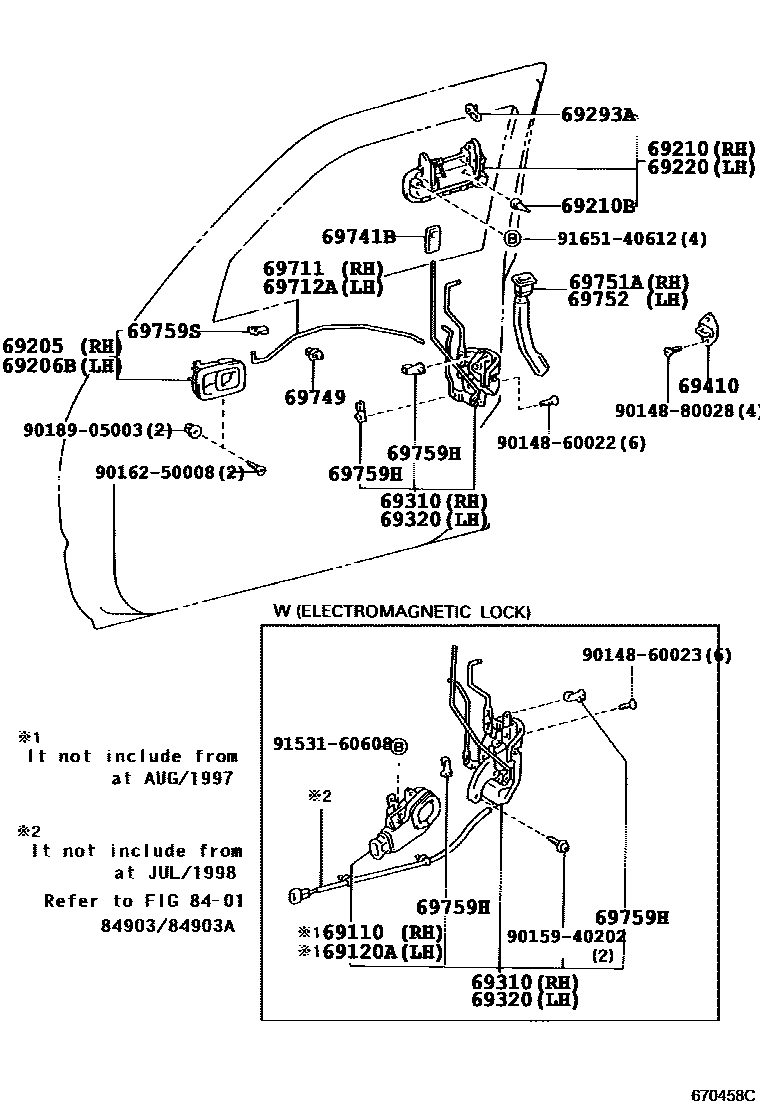

FRONT DOOR LOCK & HANDLE

69110ACTUATOR ASSY, FRONT DOOR LOCK, RH

main69110-35050iKZN185,RZN18#,VZN18#199511

69120AACTUATOR ASSY, FRONT DOOR LOCK, LH

main69120-35050iKZN185,RZN18#,VZN18#199511

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-10070-B1iKZN185,RZN185,VZN185199511-200008

MD.MOON MIST,TRIM1#

sub69205-10070

main69205-10070-B3iKZN185,RZN18#,VZN18#200008

DK.CHARCOAL,TRIM1#

sub69205-10070

main69205-10070-E0iKZN185,RZN185,VZN185199511-199807

OAK,TRIM4#

sub69205-10070

main69205-10070-E2iKZN185,RZN18#,VZN18#199807

MD.OAK,TRIM4#

sub69205-10070

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-10070-B1iKZN185,RZN185,VZN185199511-200008

MD.MOON MIST,TRIM1#

sub69206-10070

main69206-10070-B3iKZN185,RZN18#,VZN18#200008

DK.CHARCOAL,TRIM1#

sub69206-10070

main69206-10070-E0iKZN185,RZN185,VZN185199511-199807

OAK,TRIM4#

sub69206-10070

main69206-10070-E2iKZN185,RZN18#,VZN18#199807

MD.OAK,TRIM4#

sub69206-10070

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-35040-A0iKZN185,VZN185199511-199708

WHITE,056

main69210-35040-B0iKZN185,VZN185199511-199708

DK BROWNISH GRAY MM,1A1

main69210-35040-B1iKZN185,VZN185199511-199708

WARM GRAY PEARL ME,1A5

main69210-35040-C0iKZN185,VZN185199511-199708

BLACK,202

main69210-35040-D0iKZN185,VZN185199511-199608

RED,3H7

main69210-35040-D1iKZN185,VZN185199511-199708

RED MM,3K4

main69210-35040-D2iKZN185,VZN185199608-199708

RED,3L5

main69210-35040-H0iKZN185,VZN185199511-199708

DK.TEAL GREEN MC.,751

main69210-35040-J0iKZN185,VZN185199511-199708

LT.BLUE M.M.,8L6

main69210-35040-J1iKZN185,VZN185199511-199708

DK.BLUE M.M.,8L7

main69210-35040-K0iKZN185,VZN185199511-199708

GRAYISH PURPLE M.M.,926

main69210-35050iKZN185,RZN185199708-199807

NO PAINT REQ.

main69210-35060-A0iKZN185,VZN185199708-199807

WHITE,056

main69210-35060-B0iKZN185,VZN185199708-199807

DK BROWNISH GRAY MM,1A1

main69210-35060-B1iKZN185,VZN185199708-199807

WARM GRAY PEARL ME.,1A5

main69210-35060-C0iKZN185,VZN185199708-199807

BLACK,202

main69210-35060-D0iKZN185,VZN185199708-199807

RED MM,3K4

main69210-35060-D1iKZN185,VZN185199708-199807

RED,3L5

main69210-35060-H0iKZN185,VZN185199708-199807

DK.TEAL GREEN MC.,751

main69210-35060-J0iKZN185,VZN185199708-199807

LT.BLUE M.M.,8L6

main69210-35060-J1iKZN185,VZN185199708-199807

DK.BLUE M.M.,8L7

main69210-35060-K0iKZN185,VZN185199708-199807

GRAYISH PURPLE ME.,926

main69210-35090iKZN185,RZN18#199807

NO PAINT REQ.

main69210-35100-A0iKZN185,VZN185199807-200008

WHITE,056

main69210-35100-A0iKZN185,VZN18#200008

WHITE,K72 ,056

main69210-35100-A0iKZN185,VZN185199910-199911

SPORTY VERSION(CENTRAL AMERICA),WHITE,K82

main69210-35100-B0iKZN185,VZN185199807-200008

WARM GRAY PEARL ME.,1A5

main69210-35100-B1iKZN185,VZN185199910-199911

SPORTY VERSION(CENTRAL AMERICA),SILVER ME.,K85

main69210-35100-B1iKZN185,VZN185199807-200008

SILVER ME.,1C0

main69210-35100-B1iKZN185,VZN18#200008

SILVER ME.,KF8 ,K73 ,1C0

main69210-35100-B2iKZN185,VZN18#200008

GRAY ME.,KF9 ,KG0 ,1D2

main69210-35100-C0iKZN185,VZN18#200008

BLACK,KA3 ,KG1 ,202

main69210-35100-C0iKZN185,VZN185199807-200008

BLACK,202

main69210-35100-D0iKZN185,VZN185199807-200008

RED MM,3K4

main69210-35100-D0iKZN185,VZN18#200107

RED MM,KG2 ,KH6 ,3K4

main69210-35100-D0iKZN185,VZN18#200008-200107

RED MM,KG2 ,3K4

main69210-35100-D1iKZN185,VZN185199807-200008

RED,3L5

main69210-35100-E0iKZN185,VZN185199807-199906

COPPER ME.,4P5

main69210-35100-F1iKZN185,VZN18#200008

CHAMPAGNE M.M.,KG4 ,KG5 ,587

main69210-35100-G0iKZN185,VZN185199910-199911

SPORTY VERSION(CENTRAL AMERICA),DK.GREEN MC.,K91

main69210-35100-G0iKZN185,VZN185199807-200008

DK. GREEN MC.,6Q7

main69210-35100-G0iKZN185,VZN18#200008-200107

DK. GREEN MC.,KG6 ,K79 ,6Q7

main69210-35100-G0iKZN185,VZN18#200107

DK. GREEN MC.,KG6 ,6Q7

main69210-35100-H0iKZN185,VZN18#200008

AQUA ME.,KG7 ,768

main69210-35100-J0iKZN185,VZN18#200107

DK.BLUE M.M.,KG9 ,KH7 ,8L7

main69210-35100-J0iKZN185,VZN18#200008-200107

DK.BLUE M.M.,KG9 ,8L7

main69210-35100-J0iKZN185,VZN185199807-200008

DK.BLUE M.M.,8L7

main69210-35100-J1iKZN185,VZN185199807-200008

BLUE ME.,8N1

main69210-89110iKZN185,RZN185199511-199708

NO PAINT REQ.

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-04014iKZN185,RZN18#,VZN18#199511

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-35040-A0iKZN185,VZN185199511-199708

WHITE,056

main69220-35040-B0iKZN185,VZN185199511-199708

DK BROWNISH GRAY MM,1A1

main69220-35040-B1iKZN185,VZN185199511-199708

WARM GRAY PEARL ME,1A5

main69220-35040-C0iKZN185,VZN185199511-199708

BLACK,202

main69220-35040-D0iKZN185,VZN185199511-199608

RED,3H7

main69220-35040-D1iKZN185,VZN185199511-199708

RED MM,3K4

main69220-35040-D2iKZN185,VZN185199608-199708

RED,3L5

main69220-35040-H0iKZN185,VZN185199511-199708

DK.TEAL GREEN MC.,751

main69220-35040-J0iKZN185,VZN185199511-199708

LT.BLUE M.M.,8L6

main69220-35040-J1iKZN185,VZN185199511-199708

DK.BLUE M.M.,8L7

main69220-35040-K0iKZN185,VZN185199511-199708

GRAYISH PURPLE M.M.,926

main69220-35050iKZN185,RZN185199708-199807

NO PAINT REQ.

main69220-35060-A0iKZN185,VZN185199708-199807

WHITE,056

main69220-35060-B0iKZN185,VZN185199708-199807

DK BROWNISH GRAY MM,1A1

main69220-35060-B1iKZN185,VZN185199708-199807

WARM GRAY PEARL ME.,1A5

main69220-35060-C0iKZN185,VZN185199708-199807

BLACK,202

main69220-35060-D0iKZN185,VZN185199708-199807

RED MM,3K4

main69220-35060-D1iKZN185,VZN185199708-199807

RED,3L5

main69220-35060-H0iKZN185,VZN185199708-199807

DK.TEAL GREEN MC.,751

main69220-35060-J0iKZN185,VZN185199708-199807

LT.BLUE M.M.,8L6

main69220-35060-J1iKZN185,VZN185199708-199807

DK.BLUE M.M.,8L7

main69220-35060-K0iKZN185,VZN185199708-199807

GRAYISH PURPLE ME.,926

main69220-35090iKZN185,RZN18#199807

NO PAINT REQ.

main69220-35100-A0iKZN185,VZN18#200008

WHITE,K72 ,056

main69220-35100-A0iKZN185,VZN185199910-199911

SPORTY VERSION(CENTRAL AMERICA),WHITE,K82

main69220-35100-A0iKZN185,VZN185199807-200008

WHITE,056

main69220-35100-B0iKZN185,VZN185199807-200008

WARM GRAY PEARL ME.,1A5

main69220-35100-B1iKZN185,VZN18#200008

SILVER ME.,KF8 ,K73 ,1C0

main69220-35100-B1iKZN185,VZN185199910-199911

SPORTY VERSION(CENTRAL AMERICA),SILVER ME.,K85

main69220-35100-B1iKZN185,VZN185199807-200008

SILVER ME.,1C0

main69220-35100-B2iKZN185,VZN18#200008

GRAY ME.,KF9 ,KG0 ,1D2

main69220-35100-C0iKZN185,VZN18#200008

BLACK,KA3 ,KG1 ,202

main69220-35100-C0iKZN185,VZN185199807-200008

BLACK,202

main69220-35100-D0iKZN185,VZN18#200107

RED MM,KG2 ,KH6 ,3K4

main69220-35100-D0iKZN185,VZN185199807-200008

RED MM,3K4

main69220-35100-D0iKZN185,VZN18#200008-200107

RED MM,KG2 ,3K4

main69220-35100-D1iKZN185,VZN185199807-200008

RED,3L5

main69220-35100-E0iKZN185,VZN185199807-199906

COPPER ME.,4P5

main69220-35100-F1iKZN185,VZN18#200008

CHAMPAGNE M.M.,KG4 ,KG5 ,587

main69220-35100-G0iKZN185,VZN185199910-199911

SPORTY VERSION(CENTRAL AMERICA),DK.GREEN MC.,K91

main69220-35100-G0iKZN185,VZN185199807-200008

DK. GREEN MC.,6Q7

main69220-35100-G0iKZN185,VZN18#200107

DK. GREEN MC.,KG6 ,6Q7

main69220-35100-G0iKZN185,VZN18#200008-200107

DK. GREEN MC.,KG6 ,K79 ,6Q7

main69220-35100-H0iKZN185,VZN18#200008

AQUA ME.,KG7 ,768

main69220-35100-J0iKZN185,VZN185199807-200008

DK.BLUE M.M.,8L7

main69220-35100-J0iKZN185,VZN18#200008-200107

DK.BLUE M.M.,KG9 ,8L7

main69220-35100-J0iKZN185,VZN18#200107

DK.BLUE M.M.,KG9 ,KH7 ,8L7

main69220-35100-J1iKZN185,VZN185199807-200008

BLUE ME.,8N1

main69220-89110iKZN185,RZN185199511-199708

NO PAINT REQ.

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iKZN185,RZN185,VZN185..EFI,TBO199511

NATURAL,RH

main69293-12030iKZN185,RZN180,VZN180200008

RH

main69293-12040iKZN185,RZN185,VZN185..EFI,TBO199511

YELLOW,LH

main69293-12040iKZN185,RZN180,VZN180200008

LH

69310LOCK ASSY, FRONT DOOR, RH

main69030-35160iKZN185,VZN185199511-199708

W(POWER WINDOW)

main69310-35150iRZN185199511-199708

main69310-35460iKZN185,RZN185,VZN185199708-199807

W(POWER WINDOW)

main69310-35480iKZN185,RZN185199708-199807

main69310-35520iKZN185,RZN18#,VZN18#199807

W(POWER WINDOW)

main69310-35530iKZN185,RZN18#199807

69320LOCK ASSY, FRONT DOOR, LH

main69040-35150iKZN185,VZN185199511-199708

W(POWER WINDOW)

main69320-35210iRZN185199511-199708

main69320-35460iKZN185,RZN185,VZN185199708-199807

W(POWER WINDOW)

main69320-35480iKZN185,RZN185199708-199807

main69320-35500iKZN185,RZN18#,VZN18#199807

W(POWER WINDOW)

main69320-35510iKZN185,RZN18#199807

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20070iKZN185,RZN18#,VZN18#199511

69711LINK, FRONT SLIDE DOOR KEY CYLINDER

main69711-35040iKZN185,RZN18#,VZN18#199511

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-35040iKZN185,RZN18#,VZN18#199511

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-12040-B1iKZN185,RZN185,VZN185199511-200008

MD.MOON MIST,TRIM1#

sub69741-12040

main69741-12040-B6iKZN185,RZN18#,VZN18#200008

DK.CHARCOAL,TRIM1#

sub69741-12040

main69741-12040-E0iKZN185,RZN18#,VZN18#199511

OAK,TRIM4#

sub69741-12040

69749CLAMP, FRONT DOOR LOCK LINK

main69749-35010iKZN185,RZN185,VZN185199702-199703

sub69749-89101

main69749-35020iKZN185,RZN18#,VZN18#199807

main69749-89101iKZN185,RZN185,VZN185199511-199807

69751AHOLDER, DOOR LOCKING(FOR FRONT DOOR)

main69751-35020iKZN185,RZN18#,VZN18#199511

69752HOLDER, FRONT DOOR LOCK CONTROL KNOB, LH

main69752-35020iKZN185,RZN18#,VZN18#199511

69759HSNAP, DOOR LOCK CONTROL LINK, NO.2

main69759-20040iKZN185,RZN18#,VZN18#199511

YELLOW

main69759-20050iKZN185,RZN18#,VZN18#199511

BROWN

main69759-24010iKZN185,RZN18#,VZN18#199511

NATURAL

main69759-24020iKZN185,RZN18#,VZN18#199511

BLUE

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-20060iKZN185,RZN18#,VZN18#199511

GRAY

main69759-20070iKZN185,RZN18#,VZN18#199511

GREEN

9014860022

main90148-60022

9014860023

main90148-60023

9014880028

main90148-80028

9015940202

main90159-40202

9016250008

main90162-50008

9018905003

main90189-05003

9153160608

main91531-60608

9165140612

main91651-40612

27 parts on this diagram · 1 diagram in section
