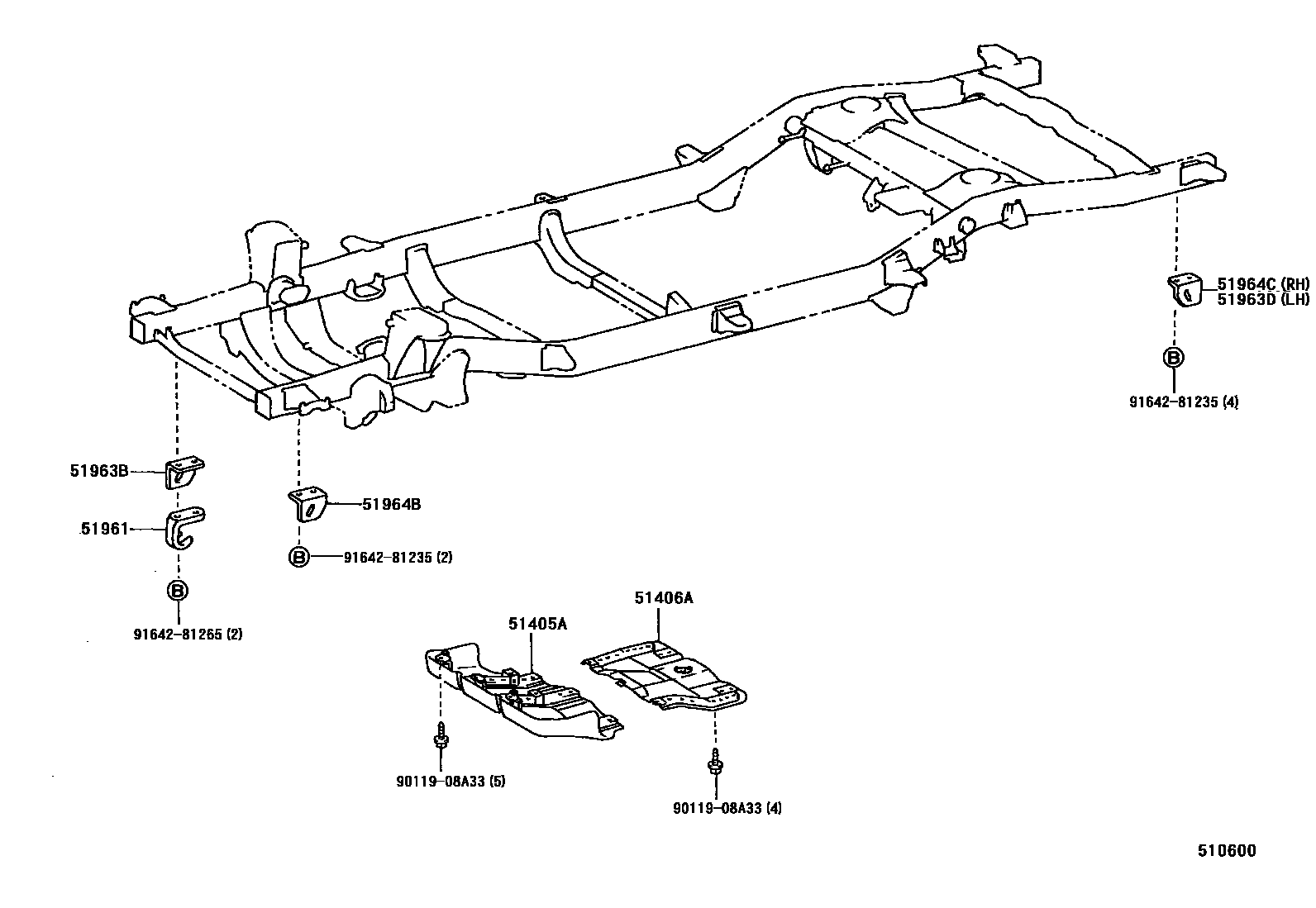

SUSPENSION CROSSMEMBER & UNDER COVER

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

main51405-35070iKZN185,RZN185,VZN185199511-199807

main51405-35071iKZN185,RZN18#,VZN18#199807

51406ACOVER SUB-ASSY, ENGINE UNDER, NO.2

main51406-35010iKZN185,RZN18#,VZN18#199511

51961HOOK, NO.1

main51961-35050iKZN185,RZN185,VZN185199511-199709

main51961-35051iKZN185,RZN18#,VZN18#199709

51963BHOOK, TRANSPORT, FRONT RH

main51963-35070iKZN185,RZN18#,VZN18#199511

51963DHOOK, TRANSPORT, REAR LH

main51964-35060iKZN185,RZN18#,VZN18#199511

51964BHOOK, TRANSPORT, FRONT LH

main51964-35050iKZN185,RZN18#,VZN18#199511

51964CHOOK, TRANSPORT, REAR LH

main51963-35090iKZN185,RZN18#,VZN18#199511

9011908A33

main90119-08A33

9164281235

main91642-81235

9164281265

main91642-81265

10 parts on this diagram · 1 diagram in section
