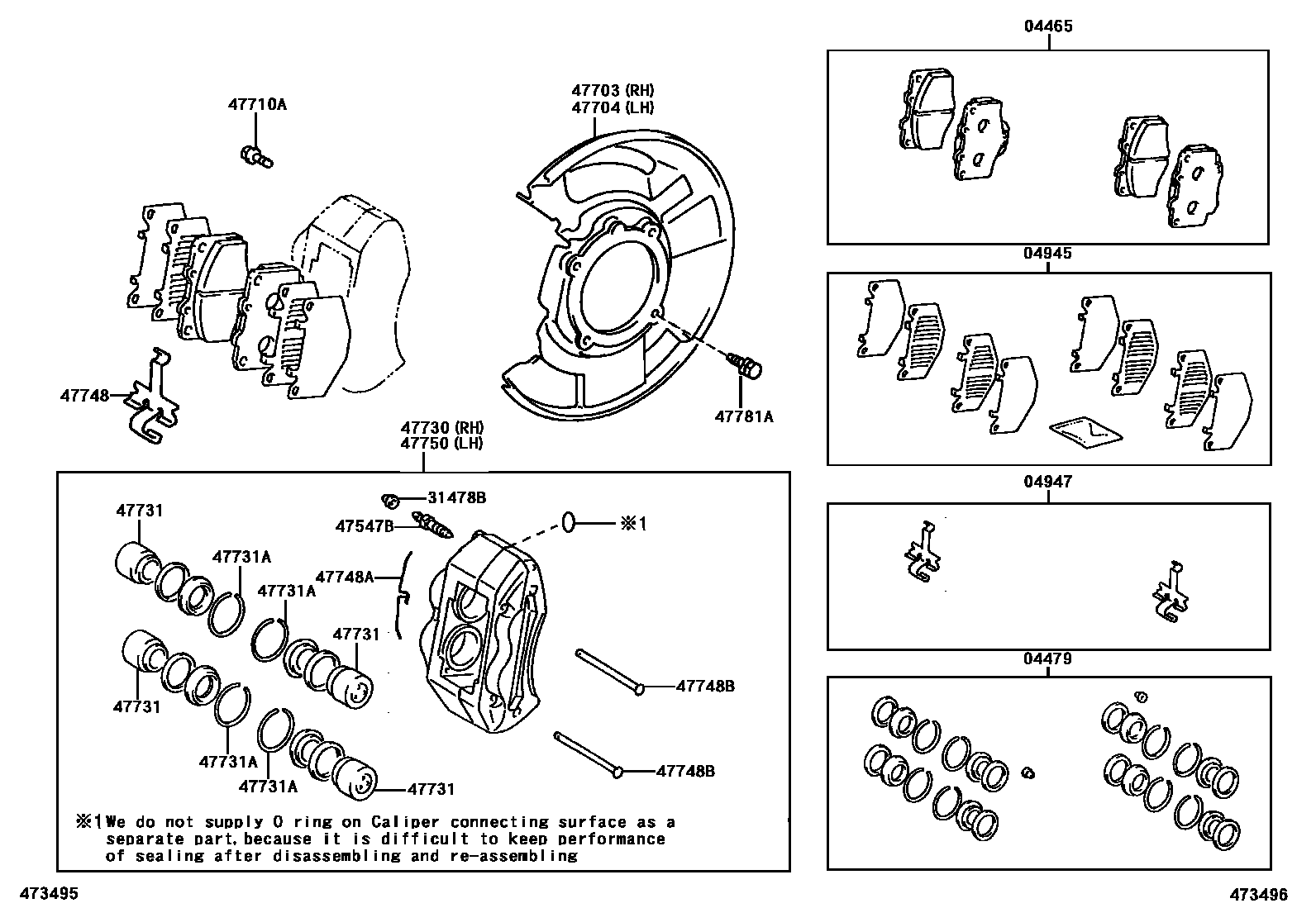

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-35080iKZN185,RZN185,VZN185199511-199807

main04465-35230iKZN185,RZN185,VZN185199807-200008

main04465-35240iKZN185,RZN18#,VZN18#200008

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-35020iKZN185,RZN185,VZN185199511-199610

main04479-35021iKZN185,RZN18#,VZN18#199610

main04479-35040iKZN185,VZN185199807-200008

W(265/70R16 TIRE)

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-35040iKZN185,RZN18#,VZN18#199511

04947FITTING KIT, DISC BRAKE, FRONT

main04947-60080iKZN185,RZN18#,VZN18#199511

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010×2iKZN185,RZN18#,VZN18#199511-200211

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20030×2iKZN185,RZN18#,VZN18#199511

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47703-35090iKZN185,RZN185,VZN185199511-199703

main47703-35091iKZN185,RZN18#,VZN18#199703

main47703-35100iKZN185,RZN185,VZN185199511-199703

W(265/70R16 TIRE)

main47703-35101iKZN185,VZN185199807-200008

W(265/70R16 TIRE)

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47704-35090iKZN185,RZN185,VZN185199511-199703

main47704-35091iKZN185,RZN18#,VZN18#199703

main47704-35100iKZN185,RZN185,VZN185199511-199703

W(265/70R16 TIRE)

main47704-35101iKZN185,VZN185199807-200008

W(265/70R16 TIRE)

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12175×4iKZN185,RZN18#,VZN18#199511

*12-1.25PX35-27

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-35110iKZN185,RZN18#,VZN18#199511

main47730-35120iKZN185,RZN18#,VZN18#200008

W(265/70R16 TIRE)

47731PISTON, FRONT DISC BRAKE

main47731-14110×8iKZN185,RZN18#,VZN18#199511

main47731-35040×8iKZN185,RZN185,VZN185199511-199807

W(265/70R16 TIRE)

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-48044×8iKZN185,RZN18#,VZN18#199511

main90522-50003×8iKZN185,VZN185199807-200008

W(265/70R16 TIRE)

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-60030×2iKZN185,RZN18#,VZN18#199511

47748ACLIP(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90468-12015×2iKZN185,RZN18#,VZN18#199511

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90240-06014×4iKZN185,RZN18#,VZN18#199511

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-35110iKZN185,RZN18#,VZN18#199511

main47750-35120iKZN185,VZN185199807-200008

W(265/70R16 TIRE)

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-08571×8iKZN185,RZN18#,VZN18#199511

17 parts on this diagram · 1 diagram in section
