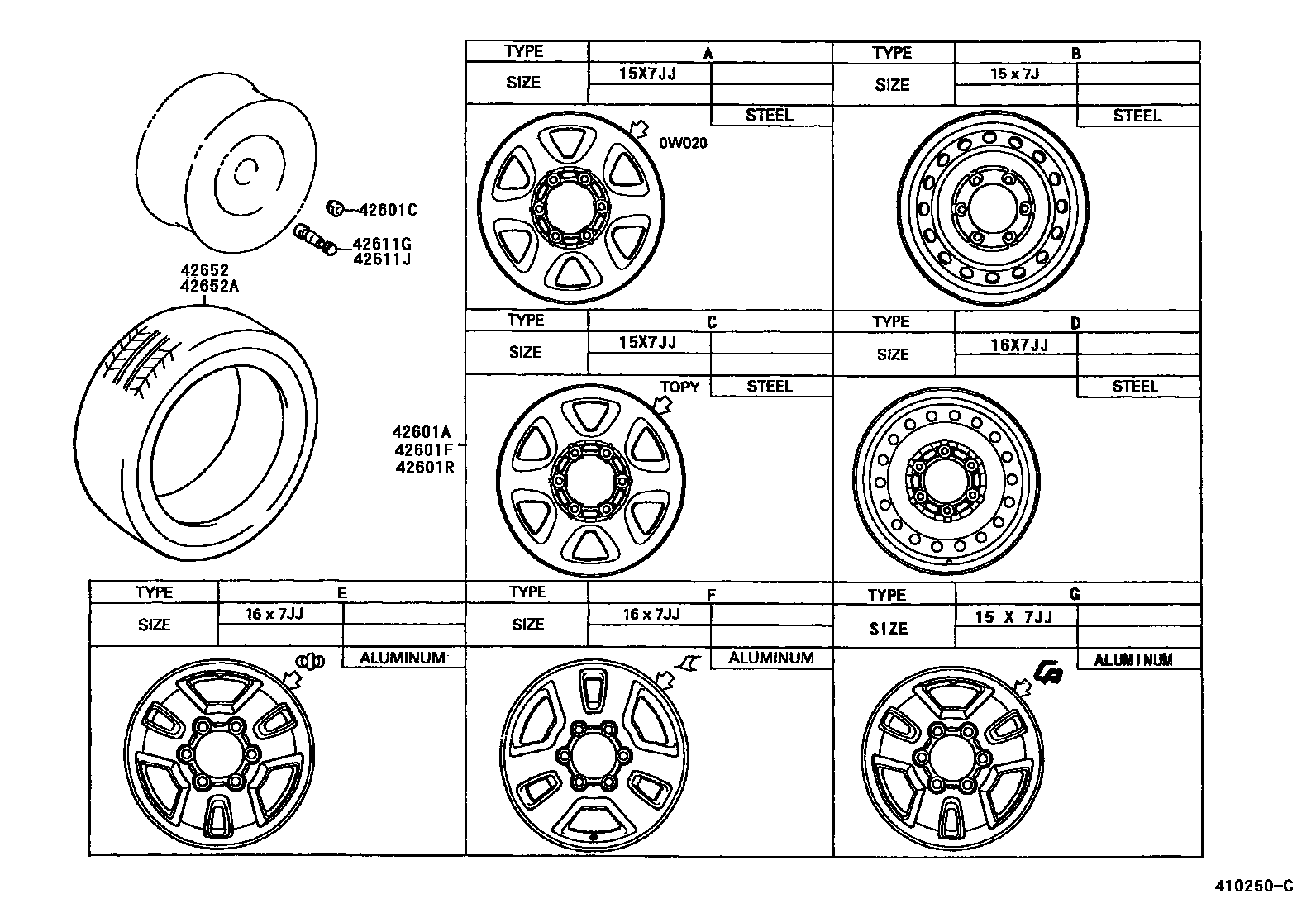

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1 0004 1

42601AWHEEL, DISC (FOR SPARE)

main42601-04130iKZN185,RZN185,VZN185199511-200008

15X7JJ,#,TYPE B:REFER TO ILLUSTRATION

main42601-35750iKZN185,RZN185,VZN185199511-199807

16X7JJ, #,TYPE D:REFER TO ILLUSTRATION

main42611-35200iKZN185,RZN18#,VZN18#200008

16X7JJ,#,TYPE F:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01075×24iKZN185,RZN18#,VZN18#199511

main90942-01095×24iKZN185,RZN18#,VZN18#199511

W(ALUMINUM WHEEL)

42601FWHEEL, DISC (FOR FRONT)

main42601-0W020×2iKZN185,RZN18#,VZN18#199511

15X7JJ,#,TYPE A:REFER TO ILLUSTRATION

main42601-35720×2iKZN185,RZN18#,VZN18#199511

15X7JJ, #,TYPE C:REFER TO ILLUSTRATION

main42601-35750×2iKZN185,VZN185199807-200008

16X7JJ, #,TYPE D:REFER TO ILLUSTRATION

main42611-04040×2iKZN185,RZN185,VZN185199607-199609

15X7JJ,#,TYPE G:REFER TO ILLUSTRATION

main42611-04041×2iKZN185,RZN18#,VZN18#199609

15X7JJ,#,TYPE G:REFER TO ILLUSTRATION

main42611-35130×2iKZN185,RZN185,VZN185199511-199807

16X7JJ, #,TYPE E:REFER TO ILLUSTRATION

main42611-35140×2iKZN185,RZN185,VZN185199511-199807

16X7JJ, #,TYPE F:REFER TO ILLUSTRATION

main42611-35160×2iKZN185,VZN185199807-200008

16X7JJ, #,TYPE H:REFER TO ILLUSTRATION

main42611-35180×2iKZN185,RZN18#,VZN18#200008

16X7JJ, #,TYPE J:REFER TO ILLUSTRATION

main42611-35190×2iKZN185,RZN18#,VZN18#200008

16X7JJ, #,TYPE I:REFER TO ILLUSTRATION

42601RWHEEL, DISC (FOR REAR)

main42601-0W020×2iKZN185,RZN18#,VZN18#199511

15X7JJ,#,TYPE A:REFER TO ILLUSTRATION

main42601-35720×2iKZN185,RZN18#,VZN18#199511

15X7JJ, #,TYPE C:REFER TO ILLUSTRATION

main42601-35750×2iKZN185,VZN185199807-200008

16X7JJ, #,TYPE D:REFER TO ILLUSTRATION

main42611-04040×2iKZN185,RZN185,VZN185199607-199609

15X7JJ,#,TYPE G:REFER TO ILLUSTRATION

main42611-04041×2iKZN185,RZN18#,VZN18#199609

15X7JJ,#,TYPE G:REFER TO ILLUSTRATION

main42611-35130×2iKZN185,RZN185,VZN185199511-199807

16X7JJ, #,TYPE E:REFER TO ILLUSTRATION

main42611-35140×2iKZN185,RZN185,VZN185199511-199807

16X7JJ, #,TYPE F:REFER TO ILLUSTRATION

main42611-35160×2iKZN185,VZN185199807-200008

16X7JJ, #,TYPE H:REFER TO ILLUSTRATION

main42611-35180×2iKZN185,RZN18#,VZN18#200008

16X7JJ, #,TYPE J:REFER TO ILLUSTRATION

main42611-35190×2iKZN185,RZN18#,VZN18#200008

16X7JJ, #,TYPE I:REFER TO ILLUSTRATION

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009×4iKZN185,RZN18#,VZN18#199511

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iKZN185,RZN18#,VZN18#199511

42652TIRE

main42652-04090×4iKZN185,RZN185,VZN185199511-199702

P225/75R15,USA,*B/S

main42652-35460×4iKZN185,RZN18#,VZN18#199702

P225/75R15,*B/S

main42652-35550×4iKZN185,RZN185,VZN185199511-199708

P225/75R15,USA,*D/L

main42652-35600×4iKZN185,RZN18#,VZN18#199708

P225/75R15,*D/L

main42652-35860×4iKZN185,RZN185,VZN185199511-199807

265/70R16,*D/L,W(16 INCH ALUMINUM WHEEL)

main42652-35870×4iKZN185,VZN185..EFI,TBO199807

265/70R16,*B/S,W(16 INCH ALUMINUM WHEEL)

main42652-60550×4iKZN185,RZN18#,VZN18#200008

265/70R16,*D/L

42652ATIRE (FOR SPARE)

main42652-04090iKZN185,RZN185,VZN185199511-199702

P225/75R15,USA,*B/S

main42652-35460iKZN185,RZN18#,VZN18#199702

P225/75R15,*B/S

main42652-35550iKZN185,RZN185,VZN185199511-199708

P225/75R15,USA,*D/L

main42652-35600iKZN185,RZN18#,VZN18#199708

P225/75R15,*D/L

main42652-35860iKZN185,VZN185199807-200008

265/70R16,*D/L,W(16 INCH ALUMINUM WHEEL)

main42652-35870iKZN185,RZN185,VZN185199511-199807

265/70R16,*B/S,W(16 INCH ALUMINUM WHEEL)

main42652-60550iKZN185,RZN18#,VZN18#200008

265/70R16,*D/L

8 parts on this diagram · 4 diagrams in section
