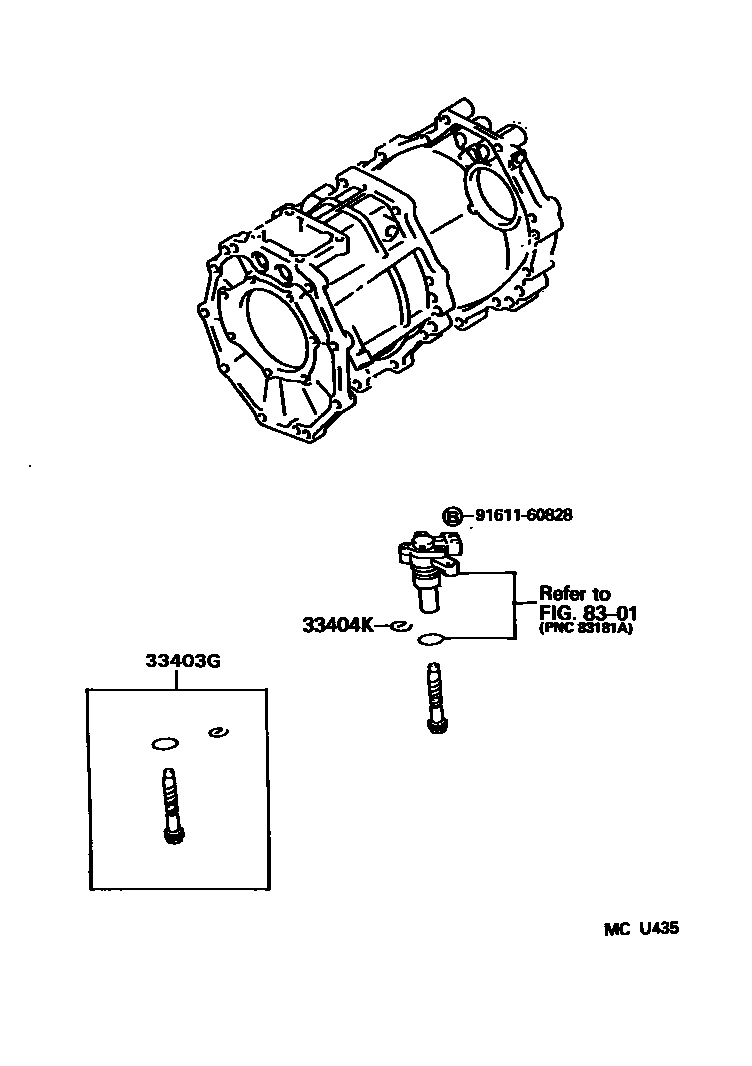

SPEEDOMETER DRIVEN GEAR (ATM)

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-39345iVZN185199511-200008

N=31,MARK 31:11

main33403-39365iKZN185200008

N=30,MARK 30:11

main33403-39365iVZN185199605

N=30,MARK 30:11,W(265/70R16 TIRE)

main33403-39525iVZN185199511-199605

N=30,MARK 30:11,W(265/70R16 TIRE)

sub33403-39365

main33482-39405iVZN180200008

N=16,MARK 16:6

sub33482-39900

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iVZN185199511-200008

8301

9161160828

main91611-60828

4 parts on this diagram · 1 diagram in section
