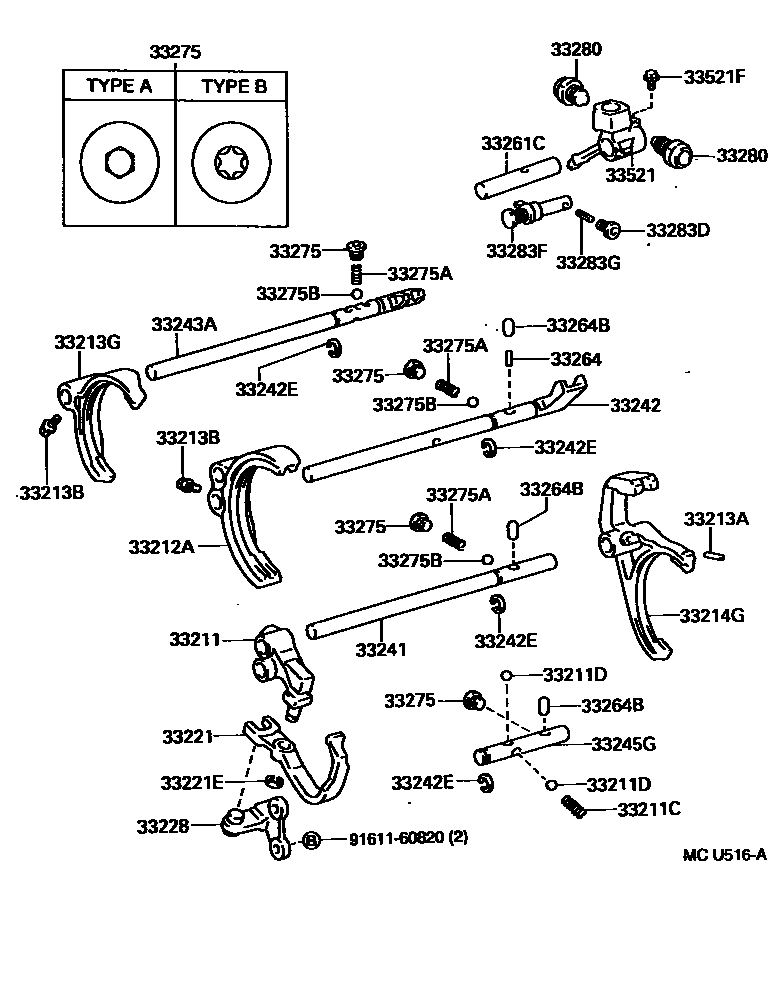

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33211FORK, REVERSE SHIFT
33211CSPRING, COMPRESSION(FOR REVERSE SHIFT FORK RETURN)
33211DBALL(FOR REVERSE SHIFT FORK)
OD=9.52,STEEL
33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)
33213BBOLT(FOR SHIFT FORK SET)
33221ARM, REVERSE SHIFT
33221ERING(FOR REVERSE SHIFT ARM END SHAFT)
33228BRACKET, REVERSE SHIFT ARM
33241SHAFT, REVERSE SHIFT FORK
33242SHAFT, GEAR SHIFT FORK, NO.1
33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33245GSHAFT, GEAR SHIFT FORK, NO.4
33261CSHAFT, SHIFT & SELECT LEVER
sub33261-35131
33264PIN, OR BALL, SHIFT INTERLOCK, NO.1
L=11.5,OD=4.8
33264BROLLER, NO.1 (FOR SHIFT INTERLOCK )
L=13.6,OD=9.5
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
OD=18
OD=18,TYPE B
OD=17,TYPE A
OD=17
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
L=20.2
L=19.9
L=33.8
33275BBALL, SHAFT DETENT
33280PIN ASSY, REVERSE RESTRICT
LH
RH
LH
RH
LH
LH
33283DPLUG (FOR REVERSE RESTRICT PIN)
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33521FPIN OR BOLT (FOR SHIFT LEVER HOUSING)
9161160820
main91611-60820
29 parts on this diagram · 2 diagrams in section
