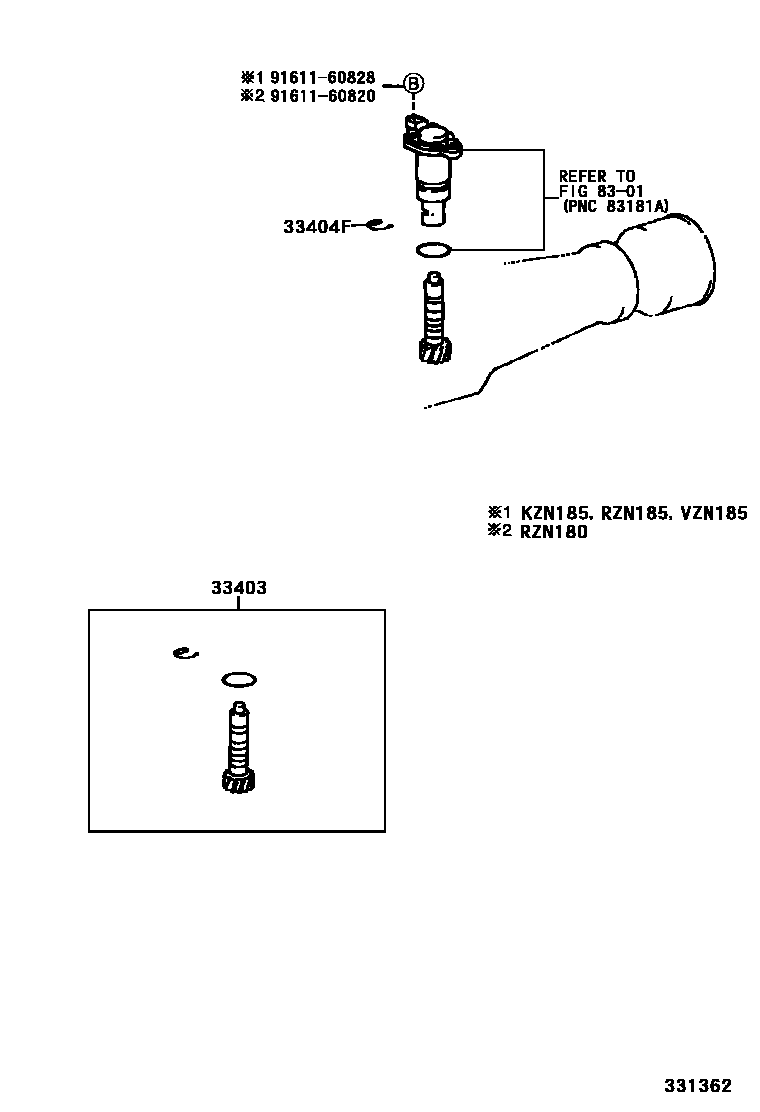

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-39345iKZN185,RZN185199511-200008

N=31,MARK 31:11

main33403-39365iKZN185199605-200008

N=30,MARK 30:11,W(265/70R16 TIRE)

main33403-39365iKZN185,RZN180,VZN185200008

N=30,MARK 30:11

main33403-39515iRZN180200008

N=29,MARK 29:11

main33403-39525iKZN185199511-199605

N=30,MARK 30:11,W(265/70R16 TIRE)

sub33403-39365

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iKZN185,RZN185199511-200008

8301

9161160820

main91611-60820

9161160828

main91611-60828

5 parts on this diagram · 1 diagram in section
