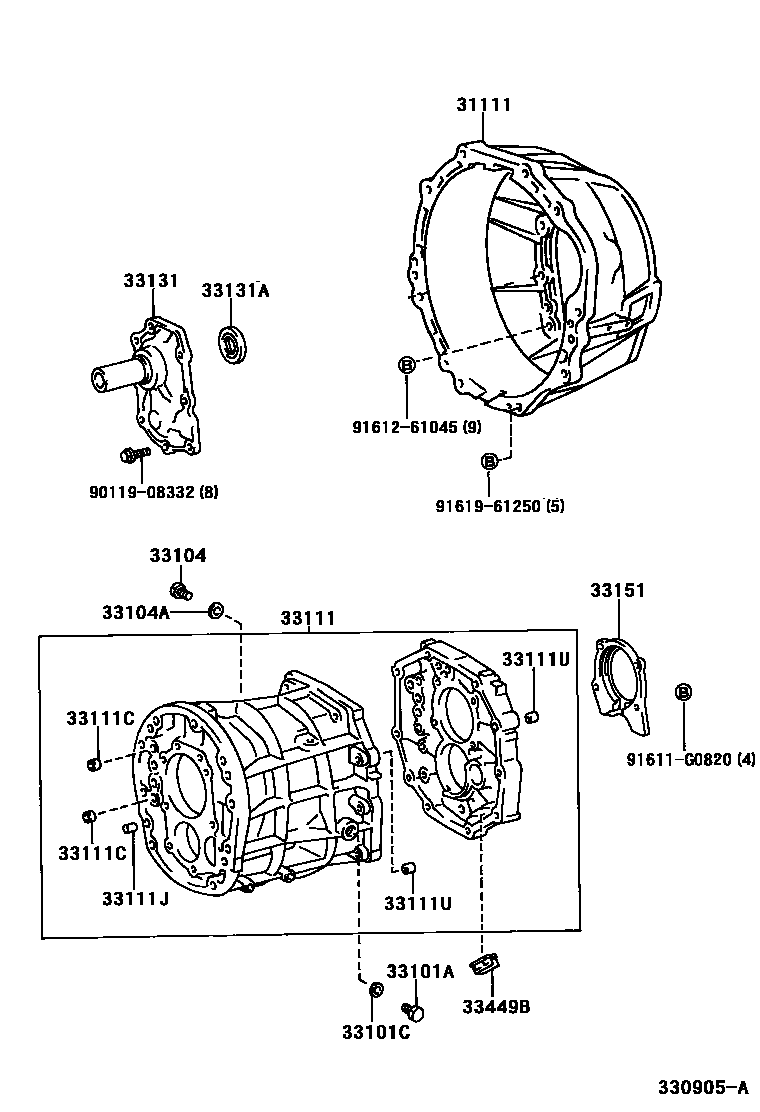

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1R150F 0002 1W59

31111HOUSING, CLUTCH

main31111-35070iRZN18#199511-200211

main31111-35100iKZN185199511-199608

main31111-35101iKZN185199608-200211

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iKZN185,RZN18#199511-200211

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iKZN185,RZN18#199511-200211

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iKZN185,RZN18#199511-200211

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iKZN185,RZN18#199511-200211

33111CASE, MANUAL TRANSMISSION

main33101-30071iRZN18#199511-200211

main33101-35080iKZN185200008-200202

main33101-35100iKZN185199511-200008

main33101-60050iKZN185200202-200211

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iKZN185199511-200211

OD=14

main96411-41800×2iKZN185; RZN18#199511-200211

OD=18

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002×2iKZN185; RZN18#199511-200211

L=16,OD=12

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-15001×4iKZN185199511-200211

L=14,OD=15

33131RETAINER, BEARING, FRONT(MTM)

main33131-30080iRZN18#199511-200211

main33131-35031iKZN185199511-200211

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-30014iRZN18#199511-200211

main90311-32012iKZN185199511-200211

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33107-30020iRZN18#199511-200010

main33151-30051iRZN18#200010-200211

main33151-35020iKZN185199511-200211

33449BMAGNET, TRANSMISSION

main33449-30010iRZN18#199511-200211

RR

main33449-30020iRZN18#199511-200211

FR

main33449-35030iKZN185199511-200211

9011908332

main90119-08332

91611G0820

main91611-G0820

9161261045

main91612-61045

9161961250

main91619-61250

17 parts on this diagram · 2 diagrams in section
