TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

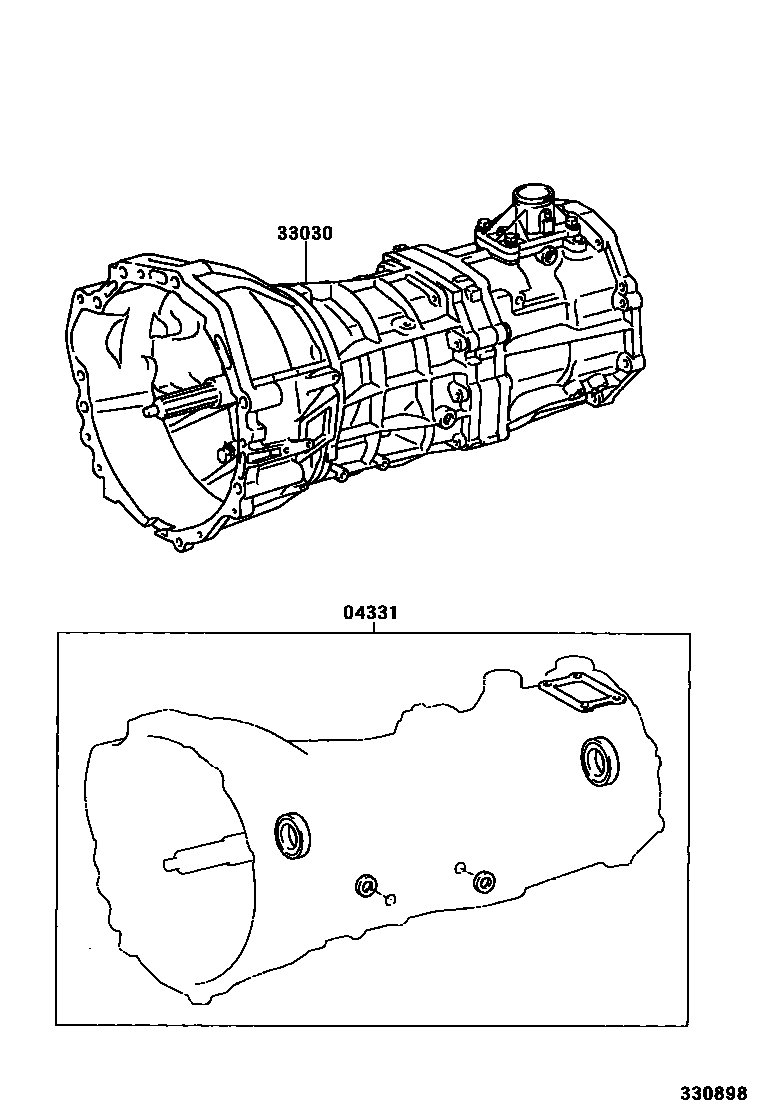

Parts diagram

04331GASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-35250i199511-200211

main04331-35260i200008-200211

main04331-35270i199511-199906

main04331-35271i199906-200211

33030TRANSMISSION UNIT ASSY, MANUAL

main33030-3D420i199511-200211

main33030-3D670i199511-199607

main33030-3D673i199607-199608

main33030-3D674i199608-200008

main33030-3D700i200008-200211

main33030-3G090i200008-200211

2 parts on this diagram · 2 diagrams in section
