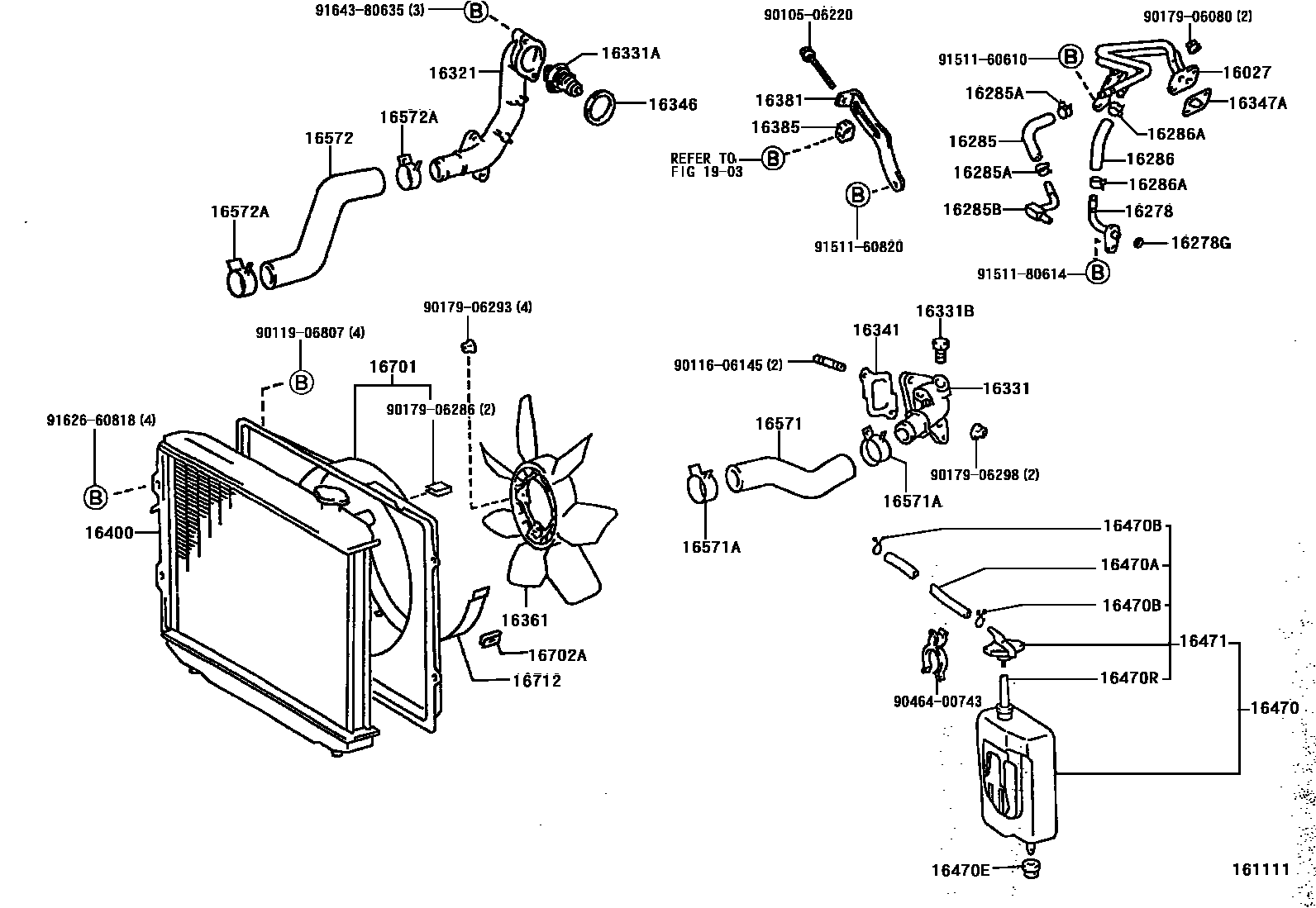

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0006 1 0007 1

16027PIPE SUB-ASSY, TURBO WATER, NO.1

main16027-67010i1KZT..KZN185199511-199905

sub16027-67011

sub16284-67020

main16027-67011i1KZ#..KZN185199905

16278PIPE, WATER BY-PASS, NO.2

main16278-67010i1KZ#..KZN185199511

16278GRING, O(FOR WATER BY-PASS NO.2 PIPE)

main96761-24010i1KZ#..KZN185199511

16285HOSE, TURBO WATER, NO.2

main16285-67010i1KZ#..KZN185199511

16285ACLIP(FOR TURBO WATER HOSE NO.2)

main90467-15022i1KZ#..KZN185199511

16285BUNION(FOR TURBO WATER HOSE NO.2)

main90405-10044i1KZ#..KZN185199511

16286HOSE, TURBO WATER, NO.3

main16284-67020i1KZ#..KZN185199905

main16285-67010i1KZT..KZN185199511-199905

16286ACLIP(FOR TURBO WATER HOSE NO.3)

main90467-15022i1KZ#..KZN185199511

16321INLET, WATER

main16321-0K010i1KZTE..KZN185200107

(L)

main16321-0W010i3RZFE..RZN18#199511

main16321-62020i5VZFE..VZN18#199511

main16321-67011i1KZ#..KZN185199511-200107

sub16321-0K010

main16321-67011i1KZTE..KZN185200107

(J)

sub16321-0K010

16331OUTLET, WATER

main16331-0W010i3RZFE..RZN18#199511

main16331-62040i5VZFE..VZN18#199511

main16331-67020i1KZTE..KZN185200008

main16331-67030i1KZT..KZN185199511-200008

16331ATHERMOSTAT

main90916-03075i5VZFE..VZN18#199511

*WAX 82-95

main90916-03097i1KZT..KZN185199511-199709

*WAX 82-95

sub90916-03118

main90916-03101i3RZFE..RZN185199511-199709

*WAX 82-95

sub90916-03120

main90916-03118i1KZ#..KZN185199709

*WAX 82-95

main90916-03120i3RZFE..RZN18#199709

*WAX 82-95

16331BPLUG(FOR WATER OUTLET)

main90341-16094i1KZT..KZN185199511-200008

16341GASKET, WATER OUTLET

main16341-62040i5VZFE..VZN18#199511

main16341-67020i1KZ#..KZN185199511

main16341-75020i3RZFE..RZN18#199511

16346GASKET, THERMOSTAT

main16346-67010i1KZ#..KZN185199511

sub16346-30010

16347AGASKET(FOR TURBO WATER PIPE)

main16347-67010i1KZ#..KZN185199511

16361FAN

main16361-62010i5VZFE..VZN18#199511

main16361-67020i1KZ#..KZN185199511

main16361-75020i3RZFE..RZN18#199511

sub16361-75021

16381BAR, FAN BELT ADJUSTING

main16381-62041i5VZFE..VZN18#199511

main16381-67020i1KZ#..KZN185199511

main16381-75030i3RZFE..RZN185199511-199704

main16381-75040i3RZFE..RZN185199704-199908

sub16381-75050

main16381-75050i3RZFE..RZN18#199908

16385SLIDER, FAN BELT ADJUSTING

main16385-62020i5VZFE..VZN18#199511

main16385-67010i1KZ#..KZN185199511

main16385-75030i3RZFE..RZN18#199511

16400RADIATOR ASSY

main16400-67130i1KZT..KZN185199511-199807

main16400-67180i1KZT..KZN185199807-200008

sub16400-67140

main16400-67181i1KZTE..KZN185200008

main16400-75160i3RZFE..RZN185199511-200008

sub16400-75180

main16400-75161i3RZFE..RZN18#200008

sub16400-75181

main16400-75180i5VZFE..VZN185199511-200008

main16400-75181i5VZFE..VZN18#200008

16470TANK ASSY, RADIATOR RESERVE

main16470-75030i5VZFE..VZN18#199511

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12078i1KZ#..KZN185199511

*H,L=390

main90445-12078i1KZT..KZN185199511-199807

L=600(*H,L=410)

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i1KZ#..KZN185199511

16470EGROMMET, RADIATOR RESERVE TANK HOSE

main90480-25025i1KZ#..KZN185199511

16470RHOSE, NO.2(FOR RADIATOR RESERVE TANK)

main90445-12078i5VZFE..VZN18#199511

*H,L=240

16471CAP SUB-ASSY, RESERVE TANK

main16405-75020i1KZ#..KZN185199511

16571HOSE, RADIATOR, INLET

main16571-07030i5VZFE..VZN185199511-200008

sub16571-62070

main16571-62070i5VZFE..VZN18#200008

main16571-67070i1KZ#..KZN185199511

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-41006i1KZT..KZN185199511-199909

sub90467-41002

main90467-41007i1KZ#..KZN185199909

sub90467-41002

16572HOSE, RADIATOR, OUTLET

main16572-67070i1KZ#..KZN185199511

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-41006i1KZT..KZN185199511-199909

sub90467-41002

main90467-41007i1KZ#..KZN185199909-200004

sub90467-41002

16701SHROUD SUB-ASSY, FAN

main16711-62040i5VZFE..VZN18#199511

main16711-67080i1KZ#..KZN185199511

16702SHROUD SUB-ASSY, FAN, NO.2

main16702-62030i5VZFE..VZN18#199511

16702ACLIP(FOR FAN SHROUD NO.2)

main90468-06092i1KZ#..KZN185199511

16712SHROUD, FAN, NO.2

main16712-0C011i3RZFE..RZN18#199511

main16712-67050i1KZ#..KZN185199511

1903

9010506220

main90105-06220

9011606145

main90116-06145

9011906807

main90119-06807

9017906080

main90179-06080

9017906286

main90179-06286

9017906293

main90179-06293

9017906298

main90179-06298

9046400743

main90464-00743

9151160610

main91511-60610

9151160820

main91511-60820

9151180614

main91511-80614

9162660818

main91626-60818

9164380635

main91643-80635

47 parts on this diagram · 6 diagrams in section
