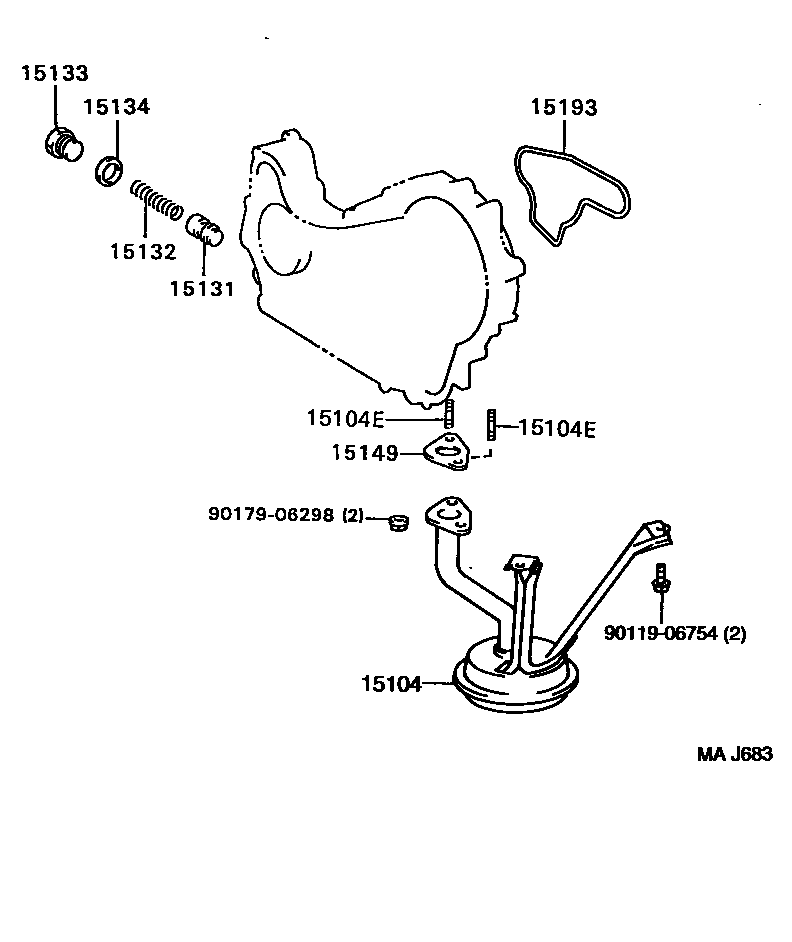

ENGINE OIL PUMP

0001 1 0002 1 0003 1

15104STRAINER SUB-ASSY, OIL

main15104-62040i5VZFE..VZN18#199511

main15104-67080i1KZ#..KZN185199511

main15104-75050i3RZFE..RZN18#199511

15104EBOLT, STUD(FOR OIL STRAINER)

main90116-06140×2i1KZ#..KZN185199511

15131VALVE, OIL PUMP RELIEF

main15131-24010i3RZFE..RZN18#; 5VZFE..VZN18#199511

main15131-46040i1KZ#..KZN185199511

15132SPRING, OIL PUMP RELIEF VALVE

main15132-17010i1KZ#..KZN185199511

main15132-20020i5VZFE..VZN18#199511

main15132-75020i3RZFE..RZN18#199511

NO.1

main15132-75021i3RZFE..RZN18#199511

NO.2

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i1KZ#..KZN185199511

main15133-24010i5VZFE..VZN18#199511

15134GASKET, OIL PUMP RELIEF VALVE

main15134-67020i1KZ#..KZN185199511

15149GASKET, OIL STRAINER FLANGE

main15149-67010i1KZ#..KZN185199511

15193GASKET, OIL PUMP

main15193-67010i1KZT..KZN185199511-199807

main15193-67011i1KZ#..KZN185199807

9011906754

main90119-06754

9017906298

main90179-06298

10 parts on this diagram · 3 diagrams in section
