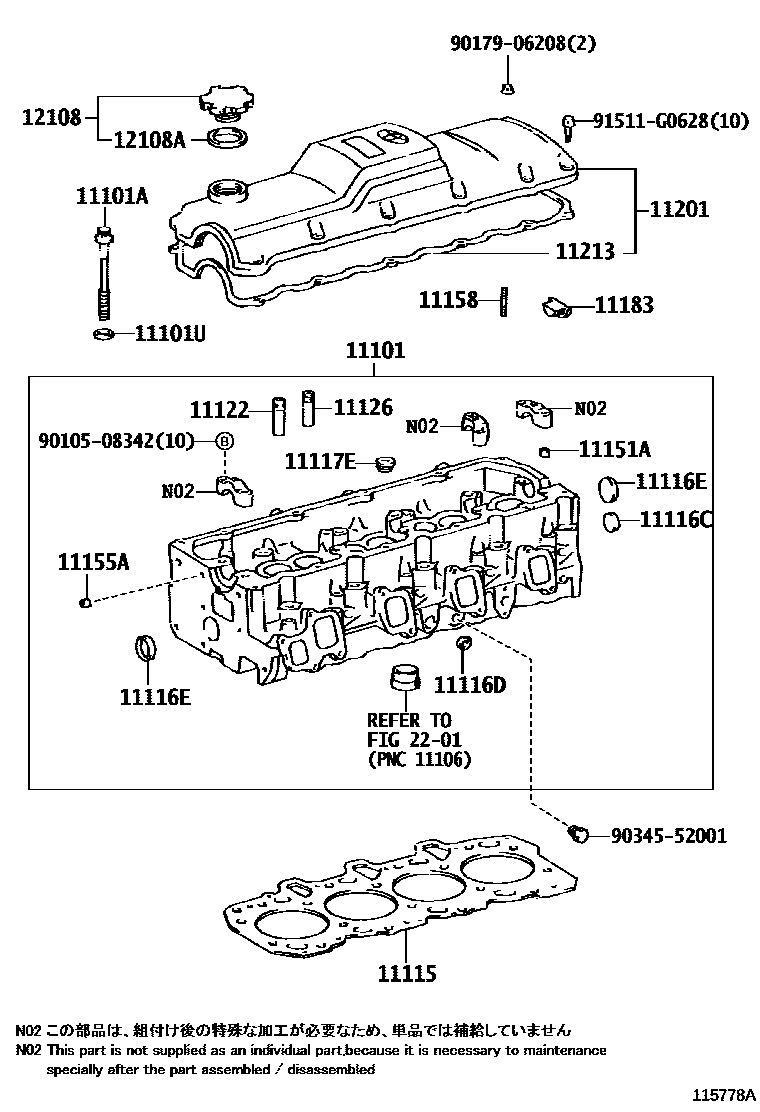

CYLINDER HEAD

0001 1 0002 1 0003 1

11101HEAD SUB-ASSY, CYLINDER

main11101-69126i1KZT..KZN185199511-199905

sub11101-69128

sub11176-67011

sub12281-67070

sub12282-67030

sub90119-10907

sub91512-81025

sub91552-81020

sub91651-61016

main11101-69127i1KZT..KZN185199905-199909

sub11101-69128

sub11176-67011

main11101-69128i1KZT..KZN185199909-200008

main11101-69135i5VZFE..VZN18#199511-200208

sub11101-69136

main11101-69136i5VZFE..VZN18#200208

main11101-69175i1KZTE..KZN185200008

main11101-79105i3RZFE..RZN185199511-199704

sub11101-79106

main11101-79106i3RZFE..RZN185199704-199812

sub11101-79275

sub11444-75030

sub91511-A0612

main11101-79275i3RZFE..RZN185199812-200005

sub11101-79276

sub13715-75050

main11101-79276i3RZFE..RZN18#200005

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02077i5VZFE..VZN18#199511

main90910-02091i3RZFE..RZN18#199511

sub90910-02187

main90910-02112i1KZ#..KZN185199511

11101USPACER(FOR CYLINDER HEAD SET BOLT)

main90560-13023i1KZ#..KZN185199511

11115GASKET, CYLINDER HEAD

main11115-62070i5VZFE..VZN185199511-199608

sub11115-62071

main11115-62071i5VZFE..VZN185199608-199901

main11115-62080i5VZFE..VZN18#199901

sub11115-62081

main11115-67040-01i1KZ#..KZN185199511

MARK 1

sub11115-67050

main11115-67040-03i1KZT..KZN185199511-199512

MARK 3

sub11115-67050

main11115-67040-05i1KZ#..KZN185199511

MARK 5

sub11115-67050

main11115-67050-03i1KZ#..KZN185199512

MARK 3

main11115-75030i3RZFE..RZN185199511-199903

T=1.25

sub11115-75031

main11115-75031i3RZFE..RZN18#199903

11116GASKET, CYLINDER HEAD, NO.2

main11116-62070i5VZFE..VZN185199511-199608

sub11116-62071

main11116-62071i5VZFE..VZN185199608-199901

main11116-62080i5VZFE..VZN18#199901

sub11116-62081

11116CPLUG, TIGHT, NO.3

main96411-63000i1KZ#..KZN185199511

11116DPLUG, TIGHT, NO.4

main96411-62000i1KZ#..KZN185199511

11116EPLUG, TIGHT, NO.5

main96411-63500i1KZ#..KZN185199511

11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1

main90341-22008i1KZ#..KZN185199511

main90341-24011i5VZFE..VZN18#199511

main90341-27006i3RZFE..RZN18#199511

11122BUSH, INTAKE VALVE GUIDE

main11122-16010i3RZFE..RZN18#199704-199807

STD

sub11122-16020

main11122-16020i5VZFE..VZN18#199511-200008

STD

main11122-67020i1KZ#..KZN185199511

STD

main11123-16010i3RZFE..RZN18#199704-199807

O/S 0.05

main11123-16020i5VZFE..VZN18#199511-200008

O/S 0.05

main11123-67020i1KZ#..KZN185199511

O/S 0.05

11126BUSH, EXHAUST VALVE GUIDE

main11122-16020i5VZFE..VZN18#199511

STD

main11122-67020i1KZ#..KZN185199511

STD

main11123-16020i5VZFE..VZN18#199511

O/S 0.05

main11123-67020i1KZ#..KZN185199511

O/S 0.05

main11126-50040i3RZFE..RZN185199511-199704

STD

main11126-50050i3RZFE..RZN18#199704

STD

main11127-50040i3RZFE..RZN185199511-199704

O/S 0.05

main11127-50050i3RZFE..RZN18#199704

O/S 0.05

11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)

main90253-10006i3RZFE..RZN185199511-199812

L=7,OD=10

main90253-11021i1KZ#..KZN185199511

L=8,OD=11

11155APIN, RING W/HEAD

main90253-10004i5VZFE..VZN18#199511

11158BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)

main90116-06149i1KZ#..KZN185199511

S=9 & 16,L=37

11183PLUG, SEMICIRCULAR

main11183-20010i5VZFE..VZN18#200009

main11183-50010i3RZFE..RZN18#199511

main11183-54020i1KZT..KZN185199511-199910

main11183-62010i5VZFE..VZN18#199511-200009

main11183-67020i1KZ#..KZN185199910

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-62040i5VZFE..VZN18#199511

main11201-75020i3RZFE..RZN18#199511

main11210-67020i1KZ#..KZN185199511

11213GASKET, CYLINDER HEAD COVER

main11213-62020i5VZFE..VZN18#199511

main11213-67010i1KZ#..KZN185199511

main11213-75030i3RZFE..RZN18#199511

12108CAP SUB-ASSY, OIL FILLER

main12180-55010i1KZ#..KZN185199511

main12180-65011i3RZFE..RZN18#199511

12108AGASKET(FOR OIL FILLER CAP)

main90430-37004i1KZ#..KZN185199511

main90430-37140i5VZFE..VZN185199511-199512

2201

9010508342

main90105-08342

9017906208

main90179-06208

9034552001

main90345-52001

91511G0628

main91511-G0628

24 parts on this diagram · 3 diagrams in section
