ENGINE OVERHAUL GASKET KIT

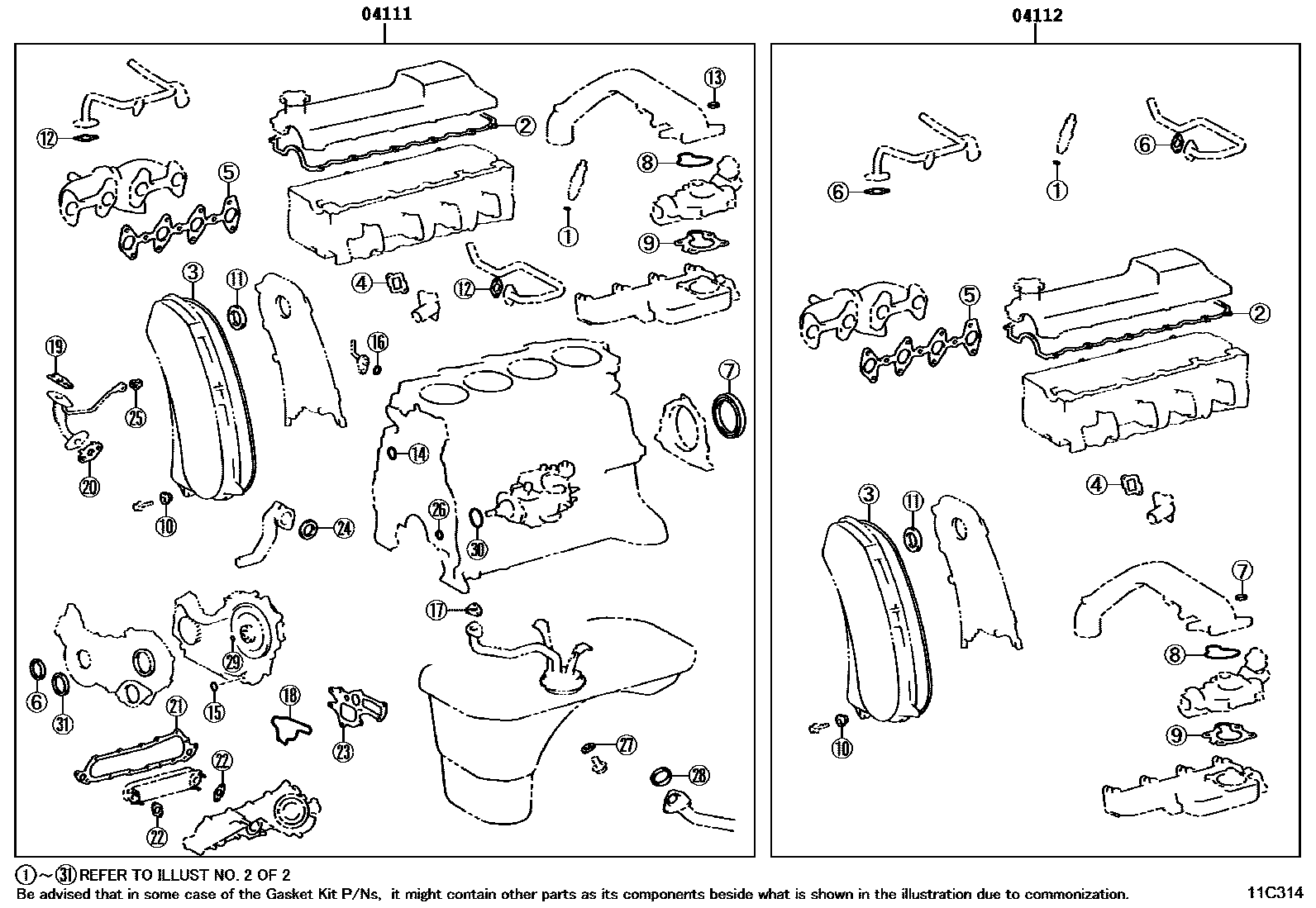

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-62080i199511-199608

main04111-62081i199608-199807

main04111-62120i199807-199901

main04111-62170i199901

main04111-67020i199511-199607

main04111-67022i199607-199805

main04111-67024i199805-200002

main04111-67025i200002-200008

main04111-67050i200008

main04111-75100i199511-199807

main04111-75170i199807-199903

main04111-75171i199903-200009

main04111-75172i200009

04112GASKET KIT, ENGINE VALVE GRIND

main04112-62070i199511-199608

main04112-62071i199608-199807

main04112-62100i199807-199901

main04112-62140i199901

main04112-67020i199511-199607

main04112-67021i199607-200002

main04112-67022i200002-200008

main04112-67050i200008

main04112-75100i199511-199807

main04112-75170i199807-199903

main04112-75171i199903

2 parts on this diagram · 16 diagrams in section
