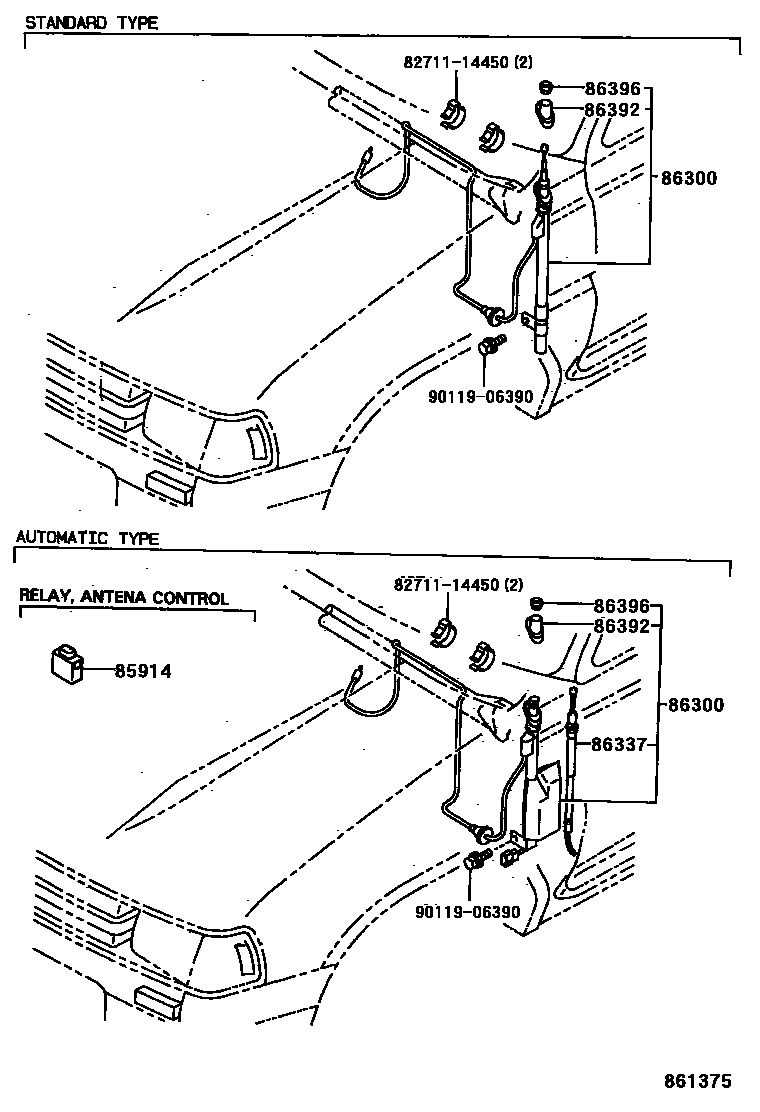

ANTENNA

0001 1 0002 1

85914RELAY, MOTOR ANTENNA CONTROL

main85914-33010iLN107,111,RN106,110,135,VZN130..ARL,V199108-199505

main85914-33020iRN135..V199505-199511

main85914-35030iLN107,111,RN106,110,VZN130..ARL199508-199812

86300ANTENNA ASSY, W/HOLDER

main86300-35040iLN10#,111,RN10#,110,VZN130..SR5..ARL199008-199408

AUTOMATIC ANTENNA

sub86300-35060

main86300-35050iRN135..V199008-199408

AUTOMATIC ANTENNA

sub86300-35070

main86300-35060iLN107,111,RN106,110,VZN130..ARL199408-199812

AUTOMATIC ANTENNA

main86300-35070iRN135..V199408-199511

AUTOMATIC ANTENNA

main86300-89123iLN107..DLX,SR5;LN106,111,13#,RN10#,110,13#,VZN130,YN106198808-200106

main86300-89123iVZN130199008-199108

MANUAL ANTTENA

main86300-89125iLN106,111,130,RN105,110,130,YN130..SR5198808-199008

AUTOMATIC ANTENNA

main86300-89126iRN135198907-199008

AUTOMATIC ANTENNA

86337ROD & PIPE, SEALED W/CABLE

main86337-34030iRN135..V199408-199511

main86337-35060iLN107,111,RN106,110,VZN130..ARL199408-199812

main86337-89125iLN106,111,130,RN105,110,130,YN130..SR5198808-199408

sub86337-35060

main86337-89126iRN135..V198907-199408

sub86337-34030

86392ORNAMENT, ANTENNA

main86392-89105iLN106,111,13#,RN105,110,13#,YN106,13#198808-200106

main86392-89105iVZN130199008-199108

MANUAL ANTTENA

main86392-89107iLN106,111,130,RN105,110,13#,YN130..SR5198808-199812

AUTOMATIC ANTENNA

86396NUT, ANTENNA

main86396-16020iLN107..DLX,SR5;LN106,111,13#,RN10#,110,13#,VZN130,YN106198808-200106

main86396-16020iVZN130199008-199108

MANUAL ANTTENA

main86396-89102iLN10#,111,RN10#,110,135,VZN130..SR5..(ARL,V)198808-199812

AUTOMATIC ANTENNA

8271114450WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14450

9011906390

main90119-06390

7 parts on this diagram · 2 diagrams in section
