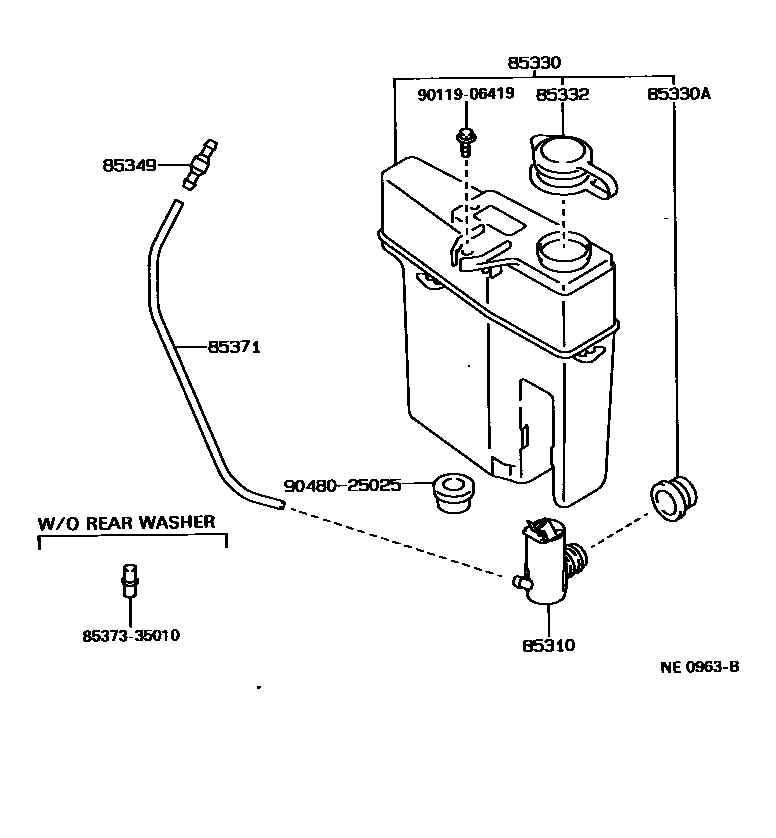

WINDSHIELD WASHER

0001 1JAR & HOSE, W/O(REAR WINDOW W0002 1JAR & HOSE, W(REAR WINDOW WIP0003 1NOZZLE & HOSE 0004 1NOZZLE & HOSE

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-22080iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-199208

main85330-35040iLN13#..LHD199208-199511

W(RR WIPER)

main85330-35060iLN13#,RN13#..LHD199208-199511

W(RR WIPER)

85330JAR ASSY, WINDSHIELD WASHER

main85315-35030iLN13#..LHD; LN130,RN130,VZN130..ARL; LN135,RN135..RHD199108-199511

W(REAR WINDOW WIPER); W(REAR WINDOW WIPER) & W(WINCH)

main85315-35110iLN13#,RN13#..LHD199108-199511

W(REAR WINDOW WIPER)

main85331-89136iLN130,RN130..GEN;LN10#,111,135,RN10#,110,135,YN106,135198808-200106

main85331-89141iLN135,YN135..LHD; LN135,YN135..RHD198904-199108

W(REAR WINDOW WIPER); W(REAR WINDOW WIPER) & W(WINCH)

main85331-89142iLN135,RN135,YN135..LHD198904-199108

W(REAR WINDOW WIPER)

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-200106

85332CAP, WINDSHIELD WASHER JAR

main85332-12650iLN13#,RN13#..GEN,V; LN130,RN130,VZN130..ARL199108-199511

W(REAR WINDOW WIPER)

main85332-89133iLN130,RN130..GEN;LN10#,111,135,RN10#,110,135,YN106,135198808-200106

main85332-89134iLN135,RN135,YN135198904-199108

W(REAR WINDOW WIPER)

85349JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-200106

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33656iLN13#,RN13#,YN135..LHD198904-199405

L=1800(*H,L=540),W(RR WIPER)

main90446-06013iLN13#..GEN;RN135..RHD; LN130,RN130,VZN130..ARL199305-199511

L=1000(*H,L=430); L=1000(*H,L=430),W(RR WIPER)

main90446-07001iLN13#,RN13#..LHD199405-199511

L=1800(*H,L=1070),W(RR WIPER)

8537335010HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-35010

9011906419

main90119-06419

9048025025

main90480-25025

9 parts on this diagram · 4 diagrams in section
