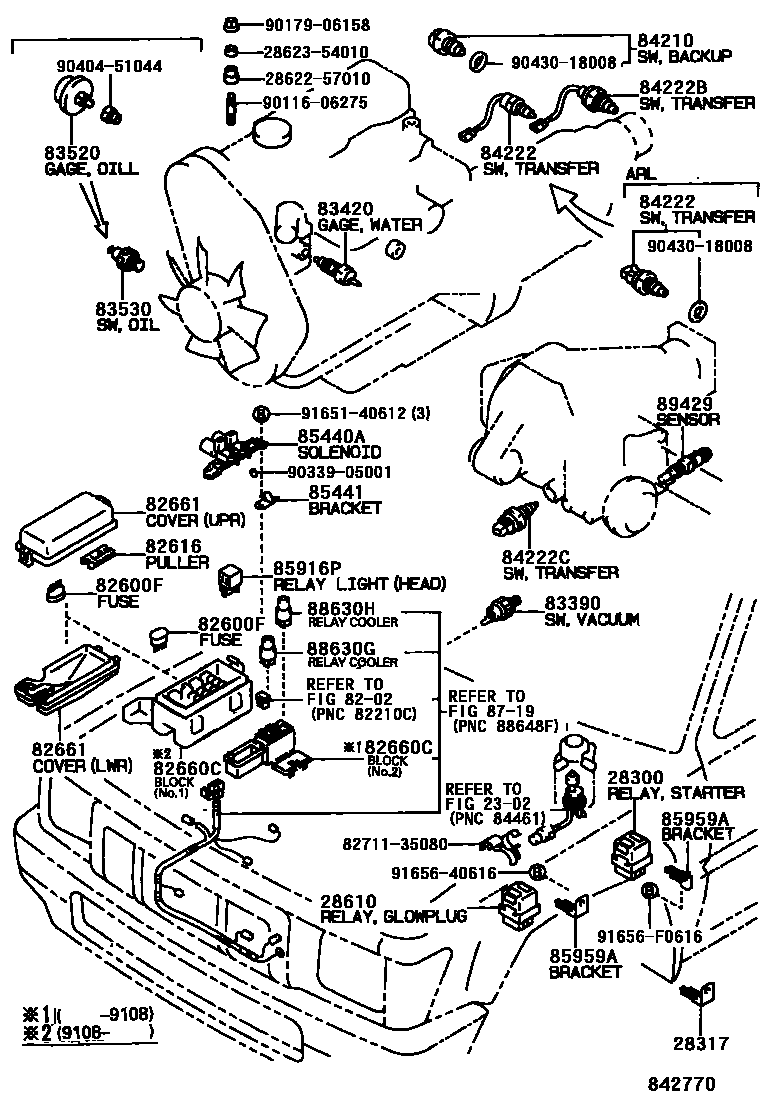

SWITCH & RELAY & COMPUTER

0001 1ENGINE,TRANSFER & ENGINE ROOM0002 1ENGINE & ENGINE ROOM 0003 1ENGINE & ENGINE ROOM 0004 1ENGINE & ENGINE ROOM 0005 1ENGINE & TRANSMISSION 0006 1ENGINE & TRASMISSION 0007 1INSTRUMENT PANEL & COMBINATIO0008 1INSTRUMENT PANEL & COMBINATIO0009 1INSTRUMENT PANEL & COWL RELAY0010 1INSTRUMENT PANEL & COWL RELAY0011 1DOOR,FLOOR & REAR BUMPER 0012 1ROOF,CONSOLE,DOOR & FLOOR 0013 1ROOF,CONSOLE,DOOR & FLOOR 0014 1ENGINE ROOM

2302

28300RELAY ASSY, STARTER

main28300-10020i22R#,3VZE,4Y..RN10#,110,13#,VZN130,YN106199202-199909

main28300-46010i1KZTE,5L..KZN205,LN205200106

main28300-54070i3L..LN106,111,13#198808-199108

main28300-54110i3L..LN10#,111,13#199108-200106

main28341-11010i22R#,3VZE,4Y..RN10#,110,13#,VZN130,YN106..5F199208-199505

sub28300-10020

main28341-11040i3L..LN10#,111,13#199208-199508

sub28300-54110

main90987-02009i22R,3VZE,4Y..RN10#,110,13#,VZN130,YN106199108-199202

28317BRACKET, STARTER RELAY

main85959-35020i3L..LN10#,111,13#199108-200106

28610RELAY ASSY, INTAKE HEATER OR GLOW PLUG

main28610-54300i3L..LN106,111,13#198808-199108

main28610-64110i3L..LN10#,111,13#199108-200106

8202

82600FFUSE, FUSE BLOCK

main90080-82012iLN205200108-200412

10A,RED,(L)

main90080-82013iLN205200108-200412

15A,BLUE,(L)

main90080-82015iKZN205200108-200412

7.5A,BROWN

main90982-07011iLN106,YN106..RHD..GEN199308-199909

30A,GREEN

main90982-09002iKZN205200202-200412

10A,(J)

main90982-09002iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-200202

10A

main90982-09003iKZN205200202-200412

15A,(J)

main90982-09003iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-200202

15A

main90982-09004iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-200106

20A,YELLOW

main90982-09005iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-200106

7.5A

82616PULLER, FUSE

main82616-89102iLN106,111,13#,RN105,110,13#,VZN130,YN106,13#198808-200106

82660CBLOCK ASSY, RELAY

main82660-35030iRN105..ARL,V;LN10#,111,RN106,110199108-200412

main82660-35030iYN106199511-199708

NO.1

main82660-35100iYN106;RN10#,13#..(DLX,SR5)..(GEN,V)199208-199511

NO.1

main82660-35100iRN106..STD..CBR199512-199708

CHINA SPEC,NO.1

main82660-89131iLN13#,RN13#,VZN130,YN135199008-199108

W(AUTOMATIC AIR CONDITIONER),NO.2

main82660-89131iLN13#,RN13#,YN13#198904-199008

NO.2

main82660-89136iLN13#,RN13#,VZN130,YN135199008-199108

W(MANUAL AIR CONDITIONER),NO.2

82661COVER, RELAY BLOCK, NO.1

main82662-35010iRN106..EFI199401-199408

UPR

main82662-35020iLN106,111,13#,RN13#,YN106..GEN,V199108-199408

UPR

main82662-35140iLN10#,111,130..ARL199108-199308

UPR

main82662-35150iVZN130199108-199511

UPR

main82662-35160iRN105..GEN199108-199208

UPR

main82662-35180iLN106,111,13#,RN105,110,13#,YN106,135199102-199108

UPR

main82662-35250iVZN130199102-199108

UPR

main82662-35330iRN135..V;RN10#,110,130..ARL199108-199708

UPR

main82662-35340iLN10#,111,130..ARL199308-199812

UPR

main82662-35370iRN13#..GEN199408-199511

UPR

main82662-35380iRN106..EFI199408-199607

UPR

main82662-35381iRN106..EFI199607-199909

UPR

main82662-35390iLN106,111,13#,YN106..GEN199408-199607

UPR

main82662-35391iLN10#,111,YN106..GEN199607-200106

UPR

main82662-35400iRN10#..LHD..CBR199408-199909

UPR

main82662-35780iKZN205200205-200412

UPPER

main82662-3D030iLN205200106-200108

main82662-3D070iLN205200108-200202

main82662-3D070iLN205200202-200412

UPPER

main82662-89101iYN130198908-199008

UPR

sub82662-35170

main82662-89102iLN106,111,13#,RN105,110,13#,YN106,135198808-199102

UPR

sub82662-35180

main82662-89116iVZN130199008-199102

UPR

sub82662-35250

main82663-35010iLN205200108-200412

LOWER

main82663-35010iRN10#..LHD199108-200106

LWR

main82663-89101iLN106,111,13#,RN105,110,13#,VZN130,YN106,13#198808-199108

LWR

83390SWITCH ASSY, VACUUM WARNING

main83390-30020iLN106,111,13#198808-199108

main83390-30100iLN10#,111,13#199108-200412

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iVZN130199108-199511

main83420-16040iLN205199208-200412

main83420-20020iLN10#,111,13#,RN10#,110,13#,YN106198808-199208

83520GAGE ASSY,OIL PRESSURE SENDER

main83520-14023iRN10#,110,13#,VZN130,YN130..SR5198808-199208

DENSO

sub83520-35030

main83520-34010iRN106,110,135,VZN130..SR5199208-199909

main83520-35030iLN107,111..ARL199508-199812

sub83520-35031

main83520-55011iRN10#,110,13#,VZN130,YN130..SR5198808-199208

YAZAKI

main83520-55011iLN10#,111,130..SR5198808-199508

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14030iLN130,RN105,130,YN106,135..DLX,STD198808-199208

sub83530-28030

main83530-14070iRN10#,13#,YN106..DLX,STD199208-199708

sub83530-28010

main83530-30060iLN10#,13#;LN111..GEN198808-199803

sub83530-60030

main83530-30090iYN106199601-199708

sub83530-60020

main83530-60010iKZN205200111

main83530-60030iLN10#199803-200106

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,135..5F198808-200412

sub84210-52050

84222SWITCH, TRANSFER INDICATOR, NO.1

main84222-12010iLN107,111,RN106,110,VZN130..(2D,T1,TW1)..ARL..CBU198908-199812

main84222-12010iVZN130..4D..5F199008-199511

SR LIMITED PACKAGE

main84222-35050iLN111..IV3;LN106,RN105,YN106;LN107,111,RN106..GEN..CBU198808-200106

main84222-35050iLN107..ARL199508-199812

W/O(*ADD)

main84222-35060iVZN130..4D..5F;LN13#,RN13#,YN135198808-199511

84222BSWITCH, TRANSFER INDICATOR, NO.2

main84222-35050iLN205..DLX200111-200412

main84222-35060iLN205200106-200412

main84222-35080iLN111,130,RN110,130..SR5198908-199812

84222CSWITCH, TRANSFER INDICATOR, NO.3

main84222-35070iLN111,130,RN110,130,YN130..SR5198808-199812

main84222-35080iKZN205200111-200412

85440ASOLENOID ASSY, FOUR WHEEL DRIVE CONTROL

main85440-35010iVZN130;RN135..LHD..GEN199008-199511

main85440-35020iRN130..GEN;LN107,111,135,RN106,110,135..RHD..CBU198808-199812

main85440-35030iLN13#..LHD199308-199511

main85440-35090iKZN205200111

85441BRACKET, FOUR WHEEL DRIVE CONTROL SOLENOID

main85441-35010iLN107,111,130..SR5198808-199812

85916PRELAY, HEADLAMP

main90987-02006iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-200106

85959AHOLDER, RELAY

main85959-35020iLN10#,111,13#199108-200106

8719

88630GRELAY ASSY, COOLER

main90987-02004iLN13#,RN13#,VZN130,YN13#198904-199108

main90987-02009iRN135..V;LN13#..GEN;RN135,VZN130..RHD199108-199511

88630HRELAY ASSY, COOLER

main90987-03001iLN13#,RN13#,VZN130,YN13#198904-199108

main90987-03003iRN135..V;LN13#..GEN;RN135,VZN130..RHD199108-199511

89429SENSOR, OIL TEMPERATURE

main89422-20010iLN111..ARL..CBU199611-200106

main89429-35060iLN111,130,RN110,130..SR5198908-199108

TRANSMISSION

main89429-35060iLN111,RN110,VZN130..(2D,T1)..ARL199008-199108

SR LIMITED PACKAGE,TRANSMISSION

main89429-35060iVZN130..5F199108-199511

SR LIMITED PACKAGE

main89429-35060iLN107,111,RN106,110..ARL..CBU199108-199609

2862257010INSULATOR, GLOW PLUG RESISTOR, NO.1

main28622-57010

2862354010INSULATOR, GLOW PLUG RESISTOR, NO.2

main28623-54010

8271135080WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35080

9011606275

main90116-06275

9017906158

main90179-06158

9033905001

main90339-05001

9040451044

main90404-51044

9043018008

main90430-18008

9165140612

main91651-40612

9165640616

main91656-40616

91656F0616

main91656-F0616

36 parts on this diagram · 14 diagrams in section
