EPC Data

ARMREST & VISOR

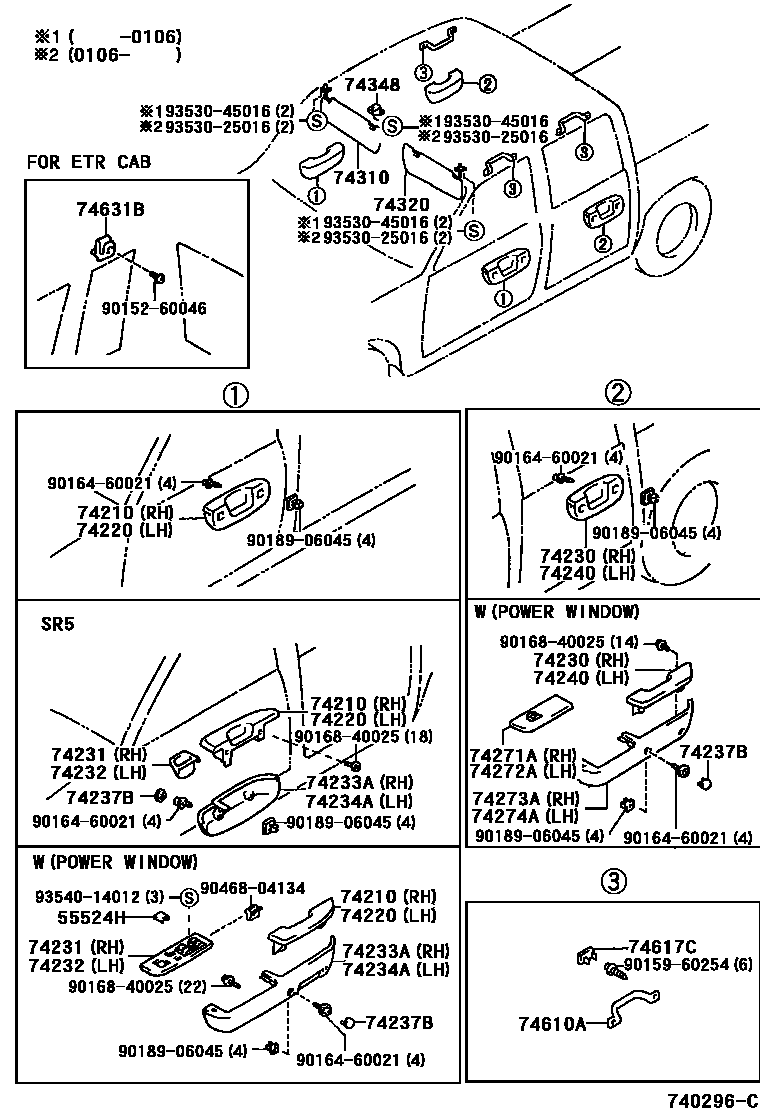

Parts diagram
55524HCOVER, SWITCH BASE HOLE
main55524-35010-03i199508-200106
GRAY,TRIM1#
74210ARMREST ASSY, FRONT, RH
main74210-89105-02i199204-199208
W(VINYL SEAT),RED,TRIM3#
main74210-89105-03i198808-198901
GRAY,TRIM1#
main74210-89105-04i198808-198901
BLUE,TRIM8#
main74210-89105-06i198808-198901
BROWN,TRIM4#
main74210-89105-B0i199204-199708
W(VINYL LEATHER SEAT),MEDIUM GRAY,TRIM1#; W(VINYL SEAT),MEDIUM GRAY,TRIM1#
main74210-89105-E0i198901-199108
BROWN,TRIM4#
main74210-89105-J0i199204-199708
W(VINYL LEATHER SEAT),MEDIUM BLUE,TRIM8#; W(VINYL SEAT),MEDIUM BLUE,TRIM8#
main74210-89106-02i199108-199708
RED,TRIM3#
main74210-89106-03i198808-198901
DLX PACKAGE,GRAY,TRIM1#; GRAY,TRIM1#
main74210-89106-04i198808-198901
BLUE,TRIM8#; DLX PACKAGE,BLUE,TRIM8#
main74210-89106-06i198808-198901
BROWN,TRIM4#; DLX PACKAGE,BROWN,TRIM4#
main74210-89106-B0i199108-200106
DLX PACKAGE,MEDIUM GRAY,TRIM1#
main74210-89106-E0i198901-199108
BROWN,TRIM4#; DLX PACKAGE,BROWN,TRIM4#
main74210-89106-J0i198901-199408
MEDIUM BLUE,TRIM8#
main74210-89107-02i199008-199108
POWER PACKAGE,RED,TRIM3#
main74210-89107-03i199508-199708
DLX PACKAGE & W(POWER WINDOW),GRAY,TRIM1#
main74210-89107-04i199408-199511
BLUE,TRIM8#
main74210-89107-06i198904-199108
POWER PACKAGE,BROWN,TRIM4#
74220ARMREST ASSY, FRONT, LH
main74210-89105-02i199208-199708
W(VINYL SEAT),RED,TRIM3#
main74210-89105-03i198808-198901
GRAY,TRIM1#
main74210-89105-04i198808-198901
BLUE,TRIM8#
main74210-89105-06i198808-198901
BROWN,TRIM4#
main74210-89105-B0i198901-200106
MEDIUM GRAY,TRIM1#
main74210-89105-E0i198901-199108
BROWN,TRIM4#
main74210-89105-J0i199204-199708
W(VINYL LEATHER SEAT),MEDIUM BLUE,TRIM8#; W(VINYL SEAT),MEDIUM BLUE,TRIM8#
main74210-89106-02i199008-199108
RED,TRIM3#
main74210-89106-03i198808-198901
DLX PACKAGE,GRAY,TRIM1#; GRAY,TRIM1#
main74210-89106-04i198808-198901
BLUE,TRIM8#; DLX PACKAGE,BLUE,TRIM8#
main74210-89106-06i198808-198901
BROWN,TRIM4#; DLX PACKAGE,BROWN,TRIM4#
main74210-89106-B0i199108-200106
DLX PACKAGE,MEDIUM GRAY,TRIM1#
main74210-89106-E0i198901-199108
BROWN,TRIM4#; DLX PACKAGE,BROWN,TRIM4#
main74210-89106-J0i198901-199408
MEDIUM BLUE,TRIM8#
main74220-89103-02i199008-199108
POWER PACKAGE,RED,TRIM3#
main74220-89103-03i200106-200412
W(POWER WINDOW),GRAY,TRIM1#
main74220-89103-04i199408-199511
BLUE,TRIM8#
main74220-89103-06i198910-199108
BROWN,TRIM4#
74230ARMREST ASSY, REAR, RH
main74210-89105-02i199108-199708
RED,TRIM3#
main74210-89105-03i198808-198901
GRAY,TRIM1#
main74210-89105-04i198808-198901
BLUE,TRIM8#
main74210-89105-06i198808-198901
BROWN,TRIM4#
main74210-89105-B0i198901-200106
MEDIUM GRAY,TRIM1#
main74210-89105-E0i198901-199108
BROWN,TRIM4#
main74210-89105-J0i198901-199408
MEDIUM BLUE,TRIM8#
main74210-89106-02i199008-199108
RED,TRIM3#
main74210-89106-B0i199709-199909
MEDIUM GRAY,TRIM1#,(J)
main74210-89106-E0i199008-199108
BROWN,TRIM4#
main74210-89106-J0i198904-199408
MEDIUM BLUE,TRIM8#
main74210-89108-02i199008-199108
POWER PACKAGE,RED,TRIM3#
main74210-89108-03i199008-199511
SR LIMITED PACKAGE,GRAY,TRIM1#
main74210-89108-04i198908-199511
ILLUMINATION PACKAGE,BLUE,TRIM8#
main74210-89108-06i199008-199108
SR LIMITED PACKAGE,BROWN,TRIM4#
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-89102-03i199501-200106
GRAY,TRIM1#
main74231-89102-04i198808-199408
BLUE,TRIM8#
main74231-89102-06i198808-199108
BROWN,TRIM4#
main74231-89105-03i199008-199511
SR LIMITED PACKAGE,GRAY,TRIM1#
main74231-89105-04i199108-199511
SR LIMITED PACKAGE,BLUE,TRIM8#
main74231-89105-06i199008-199108
SR LIMITED PACKAGE,BROWN,TRIM4#
main74231-89106-02i199008-199108
POWER PACKAGE,RED,TRIM3#
main74231-89106-03i200106-200412
W(POWER WINDOW),GRAY,TRIM1#
main74231-89106-04i198904-199511
POWER PACKAGE,BLUE,TRIM8#
main74231-89106-06i198904-199108
POWER PACKAGE,BROWN,TRIM4#
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-89102-03i198808-199408
GRAY,TRIM1#
main74232-89102-04i198808-199408
BLUE,TRIM8#
main74232-89102-06i199008-199108
BROWN,TRIM4#
main74232-89103-03i199608-199909
GRAY,TRIM1#
main74232-89103-04i198907-198908
W(REMOTE CONTROL MIRROR),BLUE,TRIM8#
main74232-89103-06i198907-198908
W(REMOTE CONTROL MIRROR),BROWN,TRIM4#
main74232-89105-03i199008-199511
SR LIMITED PACKAGE,GRAY,TRIM1#
main74232-89105-04i199008-199511
SR LIMITED PACKAGE,BLUE,TRIM8#
main74232-89105-06i199008-199108
SR LIMITED PACKAGE,BROWN,TRIM4#
main74232-89106-02i199008-199108
POWER PACKAGE,RED,TRIM3#
main74232-89106-03i198908-199511
ILLUMINATION PACKAGE,GRAY,TRIM1#
main74232-89106-04i198904-199511
POWER PACKAGE,BLUE,TRIM8#
main74232-89106-06i198907-198908
W(POWER WINDOW & MAGNET DOOR LOCK & REMOTE CONTROL MIRROR,BROWN,TRIM4#
74233APANEL, FRONT DOOR ARMREST BASE, LOWER RH
main74233-89101-03i198808-200106
GRAY,TRIM1#
main74233-89101-04i199408-199511
BLUE,TRIM8#
main74233-89101-06i198808-199108
BROWN,TRIM4#
main74233-89102-02i199008-199108
ILLUMINATION PACKAGE,RED; POWER PACKAGE,RED,TRIM3#; SR LIMITED PACKAGE,RED
main74233-89102-03i200106-200412
W(POWER WINDOW),GRAY,TRIM1#
main74233-89102-04i198907-198908
W(POWER WINDOW & MAGNET DOOR LOCK),BLUE,TRIM8#
main74233-89102-06i199008-199108
SR LIMITED PACKAGE,BROWN,TRIM4#
74234APANEL, FRONT DOOR ARMREST BASE, LOWER LH
main74234-89101-03i198808-200106
GRAY,TRIM1#
main74234-89101-04i198808-199408
BLUE,TRIM8#
main74234-89101-06i198808-199108
BROWN,TRIM4#
main74234-89102-02i199008-199108
POWER PACKAGE,RED,TRIM3#
main74234-89102-03i198904-199511
POWER PACKAGE,GRAY,TRIM1#
main74234-89102-04i198907-198908
W(POWER WINDOW & MAGNET DOOR LOCK),BLUE,TRIM8#
main74234-89102-06i199008-199108
SR LIMITED PACKAGE,BROWN,TRIM4#
74237BCAP, DOOR ARMREST BASE
main74237-89101-02×8i199008-199108
POWER PACKAGE,RED,TRIM3#
main74237-89101-03×8i199008-199511
SR LIMITED PACKAGE,GRAY,TRIM1#
main74237-89101-04×8i199008-199511
SR LIMITED PACKAGE,BLUE,TRIM8#
main74237-89101-06×8i199008-199108
SR LIMITED PACKAGE,BROWN,TRIM4#
74240ARMREST ASSY, REAR, LH
main74210-89105-02i199108-199708
RED,TRIM3#
main74210-89105-03i198808-198901
GRAY,TRIM1#
main74210-89105-04i198808-198901
BLUE,TRIM8#
main74210-89105-06i198808-198901
BROWN,TRIM4#
main74210-89105-B0i198901-200106
MEDIUM GRAY,TRIM1#
main74210-89105-E0i198901-199108
BROWN,TRIM4#
main74210-89105-J0i199408-199708
MEDIUM BLUE,TRIM8#
main74210-89106-02i199008-199108
RED,TRIM3#
main74210-89106-B0i199709-199909
MEDIUM GRAY,TRIM1#,(J)
main74210-89106-E0i198904-199008
BROWN,TRIM4#
main74210-89106-J0i198904-199408
MEDIUM BLUE,TRIM8#
main74220-89104-02i199008-199108
POWER PACKAGE,RED,TRIM3#
main74220-89104-03i198904-199511
POWER PACKAGE,GRAY,TRIM1#
main74220-89104-04i198907-198908
W(POWER WINDOW & MAGNET DOOR LOCK),BLUE,TRIM8#
main74220-89104-06i198908-199108
ILLUMINATION PACKAGE,BROWN,TRIM4#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
main74271-89101-02i199008-199108
RED,TRIM3#
main74271-89101-03i199508-200106
GRAY,TRIM1#
main74271-89101-04i198904-199511
BLUE,TRIM8#
main74271-89101-06i198904-199108
BROWN,TRIM4#
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
main74272-89101-02i199008-199108
RED,TRIM3#
main74272-89101-03i199508-200106
GRAY,TRIM1#
main74272-89101-04i198904-199511
BLUE,TRIM8#
main74272-89101-06i198904-199108
BROWN,TRIM4#
74273APANEL, REAR DOOR ARMREST BASE, LOWER RH
main74273-89101-02i199008-199108
RED,TRIM3#
main74273-89101-03i199508-200106
GRAY,TRIM1#
main74273-89101-04i198904-199511
BLUE,TRIM8#
main74273-89101-06i198904-199008
BROWN,TRIM4#
74274APANEL, REAR DOOR ARMREST BASE, LOWER LH
main74274-89101-02i199008-199108
RED,TRIM3#
main74274-89101-03i200106-200412
GRAY,TRIM1#
main74274-89101-04i198904-199511
BLUE,TRIM8#
main74274-89101-06i198904-199108
BROWN,TRIM4#
74310VISOR ASSY, RH
main74310-35010-B0i199108-199308
GRAY,TRIM1#
main74310-35010-J0i199108-199308
BLUE,TRIM8#
main74310-35050-B0i199308-199909
GRAY,TRIM1#
main74310-35050-J0i199408-199511
BLUE,TRIM8#
main74310-35060-B0i199308-199511
GRAY,TRIM1#
main74310-35060-J0i199308-199511
BLUE,TRIM8#
main74310-89129-03i199108-199812
GRAY,TRIM1#
main74310-89129-04i198808-199108
BLUE,TRIM8#
main74310-89129-06i198808-199108
BROWN,TRIM4#
main74310-89129-J0i199108-199408
BLUE,TRIM8#
main74310-89132-03i199608-200106
GRAY,TRIM1#
main74310-89132-04i198907-199108
BLUE,TRIM8#
main74310-89132-06i198907-199108
BROWN,TRIM4#
main74310-89132-J1i199108-199511
BLUE,TRIM8#
main74310-89133-02i199108-199109
RED,TRIM3#
main74310-89133-03i198808-199109
GRAY,TRIM1#
main74310-89133-04i198808-199108
BLUE,TRIM8#
main74310-89133-06i198808-199108
BROWN,TRIM4#
main74310-89133-B0i199109-199608
SLATE GRAY,TRIM1#
main74310-89133-D0i199109-199708
RED,TRIM3#
main74310-89133-J1i199108-199408
LIGHT BLUE,TRIM8#
main74310-89134-02i199008-199108
RED,TRIM3#
main74310-89134-03i198808-199308
GRAY,TRIM1#
main74310-89134-04i198808-199108
BLUE,TRIM8#
main74310-89134-06i198808-199108
BROWN,TRIM4#
main74310-89134-J1i199108-199308
BLUE,TRIM8#
74320VISOR ASSY, LH
main74320-35040-B0i199308-200106
GRAY,TRIM1#
main74320-35040-D0i199308-199708
RED,TRIM3#
main74320-35040-J0i199408-199708
BLUE,TRIM8#
main74320-89124-02i199008-199108
RED,TRIM3#
main74320-89124-03i198808-199109
GRAY,TRIM1#
main74320-89124-04i198808-199108
BLUE,TRIM8#
main74320-89124-06i198808-199108
BROWN,TRIM4#
main74320-89124-B0i199109-199909
SLATE GRAY,TRIM1#
main74320-89124-J1i199108-199408
LIGHT BLUE,TRIM8#
main74320-89130-03i198808-199812
GRAY,TRIM1#
main74320-89130-04i198808-199108
BLUE,TRIM8#
main74320-89130-06i198808-199108
BROWN,TRIM4#
main74320-89130-J0i199408-199511
BLUE,TRIM8#
main74320-89131-02i199108-199308
RED,TRIM3#
main74320-89131-03i198808-199308
GRAY,TRIM1#
main74320-89131-04i198808-199108
BLUE,TRIM8#
main74320-89131-06i198808-199108
BROWN,TRIM4#
main74320-89131-J0i199108-199308
BLUE,TRIM8#
74348HOLDER, VISOR
main74348-14010-06×2i198808-198901
BROWN,TRIM4#
main74348-14010-24×2i198808-198901
BLUE,TRIM8#
main74348-14010-43×2i198808-198901
GRAY,TRIM1#
main74348-14010-B0×2i198901-199108
SLATE GRAY,TRIM1#
main74348-14010-E0×2i198901-199108
LIGHT BROWN,TRIM4#
main74348-14010-J0×2i198901-199108
LIGHT BLUE,TRIM8#
main74348-35010-B0×2i199108-199308
GRAY,TRIM1#
main74348-35010-D0i199308-199708
RED,TRIM3#
main74348-35010-J0i199408-199708
BLUE,TRIM8#
main74348-89102-02×2i199008-199108
RED,TRIM3#
main74348-89102-03i199308-199511
GRAY,TRIM1#
main74348-89102-04×2i198904-199108
BLUE,TRIM8#
main74348-89102-06×2i198904-199108
BROWN,TRIM4#
main74348-89102-J0i199308-199511
BLUE,TRIM8#
74610AGRIP SUB-ASSY, ASSIST
main74603-89101-03i198808-198901
GRAY,TRIM1#
main74603-89101-04i198808-198901
BLUE,TRIM8#
main74603-89101-06i198808-198901
BROWN,TRIM4#
main74603-89101-B0×3i198907-199108
SLATE GRAY,TRIM1#
main74603-89101-B1i199108-199708
MEDIUM GRAY,TRIM1#
main74603-89101-E0i198901-199108
LIGHT BROWN,TRIM4#
main74603-89101-J0i198901-199108
LIGHT BLUE,TRIM8#
main74603-89101-J2i199108-199408
MEDIUM BLUE,TRIM8#
main74610-16010-06×3i199008-199108
BROWN,TRIM1#,4#; BROWN,TRIM4#
main74610-16010-12×3i199108-199708
RED,TRIM3#
main74610-16010-13×3i198808-199108
GRAY,TRIM1#
main74610-16010-14×3i198808-199108
BLUE,TRIM8#
main74610-16010-B1×3i200106-200412
SLATE GRAY,TRIM1#
main74610-16010-B2i199108-200106
MEDIUM GRAY,TRIM1#
main74610-16010-J3i199408-199708
MEDIUM BLUE,TRIM8#
74617CPLUG, ASSIST GRIP
main74617-16010-12×6i199408-199708
RED,TRIM3#
main74617-16010-50×6i198808-198901
BROWN,TRIM4#
main74617-16010-57×2i198808-198901
GRAY,TRIM1#
main74617-16010-59×2i198808-198901
BLUE,TRIM8#
main74617-16010-B1×6i198901-199108
SLATE GRAY,TRIM1#
main74617-16010-B3×2i199108-200106
MEDIUM GRAY,TRIM1#
main74617-16010-E1×6i198901-199108
LIGHT BROWN,TRIM4#
main74617-16010-J1×2i198901-199108
LIGHT BLUE,TRIM8#
main74617-16010-J3×2i199108-199408
BLUE,TRIM8#
74631BHOOK, COAT
main74631-12070-06×2i198808-199108
BROWN,TRIM4#
main74631-12070-23×2i198808-199303
GRAY,TRIM1#
main74631-12070-24×2i198808-199303
BLUE,TRIM8#
main74631-12070-R9×2i199303-199408
BLUE,TRIM8#
main74631-12070-S4×2i199303-199708
GRAY,TRIM1#
main74631-89102-02×2i199008-199108
RED,TRIM3#
main74631-89102-03×2i198904-199511
GRAY,TRIM1#
main74631-89102-04×2i198904-199511
BLUE,TRIM8#
main74631-89102-06×2i198904-199108
BROWN,TRIM4#
9015260046
main90152-60046
9015960254
main90159-60254
9016460021
main90164-60021
9016840025
main90168-40025
9018906045
main90189-06045
9046804134
main90468-04134
9353025016
main93530-25016
9353045016
main93530-45016
9354014012
main93540-14012

29 parts on this diagram · 2 diagrams in section

ARMREST & VISOR — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
