EPC Data

SEAT BELT

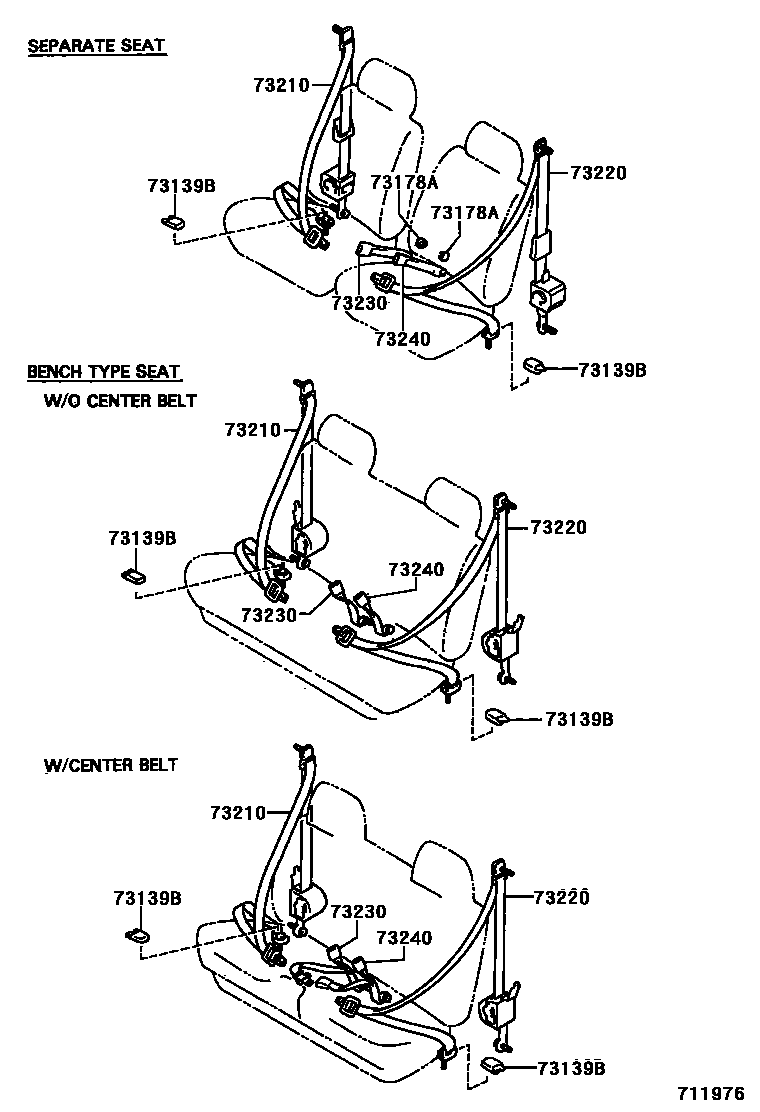

Parts diagram
73139BCOVER, SEAT BELT ANCHOR
main73139-89101-02×2i199108-199708
RED,TRIM3#
main73139-89101-03×2i198908-199303
GRAY,TRIM1#
main73139-89101-04×2i198908-199303
BLUE,TRIM8#
main73139-89101-06×2i198908-199108
BROWN,TRIM4#
main73139-89101-R9×2i199303-199408
BLUE,TRIM8#
main73139-89101-S4×2i200108-200412
GRAY,TRIM1#
73178ACAP, SEAT BELT ANCHOR COVER
main73178-89101-02×2i199008-199108
RED,TRIM3#
main73178-89101-03×2i198808-199303
GRAY,TRIM1#
main73178-89101-04×2i198808-199303
BLUE,TRIM8#
main73178-89101-06×2i198808-199108
BROWN,TRIM4#
main73178-89101-R9×2i199303-199311
BLUE,TRIM8#
main73178-89101-S4×2i199303-199311
GRAY,TRIM1#
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-35040-B0i199108-199208
GRAY,TRIM1#
main73210-35040-J0i199108-199208
BLUE,TRIM8#
main73210-35041-B0i199301-199312
TURKEY SPEC,GRAY,TRIM1#
main73210-35041-J0i199208-199312
BLUE,TRIM8#
main73210-35042-B0i199312-199408
GRAY,TRIM1#; TURKEY SPEC,GRAY,TRIM1#
main73210-35042-J0i199312-199408
BLUE,TRIM8#; TURKEY SPEC,BLUE,TRIM8#
main73210-35050-B0i199108-199408
GRAY,TRIM1#
main73210-35050-J0i199108-199408
BLUE,TRIM8#
main73210-35060-B1i199204-199408
W(*ELR),GRAY,TRIM1#
main73210-35060-D0i199308-199408
W(*ELR),OAK,TRIM3#
main73210-35060-J1i199204-199408
W(*ELR),BLUE,TRIM8#
main73210-35070-B1i199108-199408
GRAY,TRIM1#; W(*ELR),GRAY,TRIM1#
main73210-35070-D1i199108-199408
RED,TRIM3#
main73210-35070-J1i199108-199408
BLUE,TRIM8#; W(*ELR),BLUE,TRIM8#
main73210-35110-B1i199204-199312
W(SEPARATE SEAT & *ELR),GRAY,TRIM1#
main73210-35110-D1i199308-199312
W(SEPARATE SEAT & *ELR),RED,TRIM3#
main73210-35110-J1i199108-199312
BLUE,TRIM8#
main73210-35111-B1i199312-199408
W(SEPARATE SEAT & *ELR),GRAY,TRIM1#
main73210-35111-D1i199312-199408
W(SEPARATE SEAT & *ELR),RED,TRIM3#
main73210-35111-J1i199312-199408
BLUE,TRIM8#
main73210-35140-B0i199208-199312
GRAY,TRIM1#
main73210-35140-J0i199208-199312
BLUE,TRIM8#
main73210-35141-B0i199312-199408
GRAY,TRIM1#
main73210-35141-J0i199312-199408
BLUE,TRIM8#
main73210-35160-B0i199208-199312
GRAY,TRIM1#; W(DUAL SENSOR TYPE *ELR),GRAY,TRIM1#
main73210-35160-J0i199208-199312
BLUE,TRIM8#; W(DUAL SENSOR TYPE *ELR),BLUE,TRIM8#
main73210-35161-B0i199312-199408
GRAY,TRIM1#; W(DUAL SENSOR TYPE *ELR),GRAY,TRIM1#
main73210-35161-J0i199312-199408
BLUE,TRIM8#; W(DUAL SENSOR TYPE *ELR),BLUE,TRIM8#
main73210-35170-B0i199208-199312
GRAY,TRIM1#; W(DUAL SENSOR TYPE *ELR),GRAY,TRIM1#
main73210-35170-J0i199208-199312
BLUE,TRIM8#; W(DUAL SENSOR TYPE *ELR),BLUE,TRIM8#
main73210-35171-B0i199312-199408
GRAY,TRIM1#; W(DUAL SENSOR TYPE *ELR),GRAY,TRIM1#
main73210-35171-J0i199312-199408
BLUE,TRIM8#; W(DUAL SENSOR TYPE *ELR),BLUE,TRIM8#
main73210-35210-B0i199408-199909
W(*ELR),GRAY,TRIM1#
main73210-35220-B0i199408-199909
GRAY,TRIM1#; W(*ELR),GRAY,TRIM1#
main73210-35220-J0i199408-199708
BLUE,TRIM8#
main73210-35220-K0i199408-199708
RED,TRIM3#
main73210-35240-B0i199408-199511
GRAY,TRIM1#
main73210-35240-J0i199408-199511
BLUE,TRIM8#
main73210-35290-B0i199408-199605
GRAY,TRIM1#; W(*ELR) OR W(DUAL SENSOR TYPE *ELR),GRAY,TRIM1#; W(DUAL SENSOR TYPE *ELR),GRAY,TRIM1#
main73210-35291-B0i199605-200106
GRAY,TRIM1#
main73210-35300-B0i199408-199605
GRAY,TRIM1#
main73210-35301-B0i199605-199708
GRAY,TRIM1#
main73210-35310-B0i199408-199605
GRAY,TRIM1#; W(*ELR) OR W(DUAL SENSOR TYPE *ELR),GRAY,TRIM1#; W(DUAL SENSOR TYPE *ELR),GRAY,TRIM1#
main73210-35311i200108-200412
main73210-35311-B0i199605-199708
W(*ELR) OR W(DUAL SENSOR TYPE *ELR),GRAY,TRIM1#
main73210-35320-B0i199408-199511
GRAY,TRIM1#; TURKEY SPEC,GRAY,TRIM1#
main73210-35320-J0i199408-199511
BLUE,TRIM8#; TURKEY SPEC,BLUE,TRIM8#
main73210-35330-B0i199408-199708
W(SEPARATE SEAT & *ELR),GRAY,TRIM1#
main73210-35330-J0i199408-199708
BLUE,TRIM8#
main73210-35330-K0i199408-199708
RED,TRIM3#
main73210-89184-03i198808-199108
W(*ELR),GRAY,TRIM1#
main73210-89184-04i198808-199108
W(*ELR),BLUE,TRIM8#
main73210-89184-06i198808-199108
W(*ELR),BROWN,TRIM4#
main73210-89185-03i198808-198901
GRAY,TRIM1#; W(DUAL SENSOR TYPE *ELR),GRAY,TRIM1#
main73210-89185-04i198808-198901
BLUE,TRIM8#; W(DUAL SENSOR TYPE *ELR),BLUE,TRIM8#
main73210-89185-06i198808-198901
BROWN,TRIM4#; W(DUAL SENSOR TYPE *ELR),BROWN,TRIM4#
main73210-89185-B0i198901-199208
MEDIUM GRAY,TRIM1#; W(DUAL SENSOR TYPE *ELR),MEDIUM GRAY,TRIM1#
main73210-89185-E0i198901-199108
BROWN,TRIM4#; W(DUAL SENSOR TYPE *ELR),BROWN,TRIM4#
main73210-89185-J0i198901-199208
MEDIUM BLUE,TRIM8#; W(DUAL SENSOR TYPE *ELR),MEDIUM BLUE,TRIM8#
main73210-89186-03i198808-199108
GRAY,TRIM1#
main73210-89186-04i198808-199108
BLUE,TRIM8#
main73210-89186-06i198808-199108
BROWN,TRIM4#
main73210-89187-03i198808-198908
GRAY,TRIM1#; W(*ELR),GRAY,TRIM1#
main73210-89187-04i198808-198908
BLUE,TRIM8#; W(*ELR),BLUE,TRIM8#
main73210-89187-06i198808-198908
BROWN,TRIM4#; W(*ELR),BROWN,TRIM4#
main73210-89189-03i198808-198908
GRAY,TRIM1#; W(DUAL SENSOR TYPE *ELR),GRAY,TRIM1#
main73210-89189-04i198808-198908
BLUE,TRIM8#; W(DUAL SENSOR TYPE *ELR),BLUE,TRIM8#
main73210-89189-06i198808-198908
BROWN,TRIM4#; W(DUAL SENSOR TYPE *ELR),BROWN,TRIM4#
main73210-89192-03i198808-198908
GRAY,TRIM1#
main73210-89192-04i198808-198908
BLUE,TRIM8#
main73210-89192-06i198808-198908
BROWN,TRIM4#
main73210-89200-03i198908-199208
GRAY,TRIM1#
main73210-89200-04i198908-199208
BLUE,TRIM8#
main73210-89200-06i198908-199108
BROWN,TRIM4#
main73210-89202-02i199008-199108
RED,TRIM3#
main73210-89202-03i198908-199108
GRAY,TRIM1#; W(*ELR),GRAY,TRIM1#
main73210-89202-04i198908-199108
BLUE,TRIM8#; W(*ELR),BLUE,TRIM8#
main73210-89202-06i198908-199108
BROWN,TRIM4#; W(*ELR),BROWN,TRIM4#
main73210-89203-03i199108-199208
GRAY,TRIM1#
main73210-89203-04i199108-199208
BLUE,TRIM8#
main73210-89203-06i198908-199108
BROWN,TRIM4#; W(DUAL SENSOR TYPE *ELR),BROWN,TRIM4#
main73210-89206-03i198908-199108
GRAY,TRIM1#
main73210-89206-04i198908-199108
BLUE,TRIM8#
main73210-89206-06i198908-199108
BROWN,TRIM4#
73220BELT ASSY, FRONT SEAT OUTER, LH
main73210-35060-B1i199108-199204
W(*ELR),GRAY,TRIM1#
main73210-35060-D0i199308-199408
W(*ELR),OAK,TRIM3#
main73210-35060-J1i199204-199408
W(*ELR),BLUE,TRIM8#
main73210-35110-B1i199204-199312
W(SEPARATE SEAT & *ELR),GRAY,TRIM1#
main73210-35110-D1i199108-199312
RED,TRIM3#
main73210-35110-J1i199204-199312
W(SEPARATE SEAT & *ELR),BLUE,TRIM8#
main73210-35111-B1i199312-199408
W(SEPARATE SEAT & *ELR),GRAY,TRIM1#
main73210-35111-D1i199312-199408
RED,TRIM3#
main73210-35111-J1i199312-199408
BLUE,TRIM8#
main73210-35160-B0i199208-199312
GRAY,TRIM1#; W(DUAL SENSOR TYPE *ELR),GRAY,TRIM1#
main73210-35160-J0i199208-199312
BLUE,TRIM8#; W(DUAL SENSOR TYPE *ELR),BLUE,TRIM8#
main73210-35161-B0i199312-199408
GRAY,TRIM1#; W(DUAL SENSOR TYPE *ELR),GRAY,TRIM1#
main73210-35161-J0i199312-199408
BLUE,TRIM8#; W(DUAL SENSOR TYPE *ELR),BLUE,TRIM8#
main73210-35210-B0i199408-199909
W(*ELR),GRAY,TRIM1#
main73210-35290-B0i199408-199605
GRAY,TRIM1#; W(*ELR) OR W(DUAL SENSOR TYPE *ELR),GRAY,TRIM1#; W(DUAL SENSOR TYPE *ELR),GRAY,TRIM1#
main73210-35291-B0i199605-200106
GRAY,TRIM1#
main73210-35330-B0i199408-199708
W(SEPARATE SEAT & *ELR),GRAY,TRIM1#
main73210-35330-J0i199408-199708
BLUE,TRIM8#
main73210-35330-K0i199408-199708
RED,TRIM3#
main73210-89184-03i198808-199108
W(*ELR),GRAY,TRIM1#
main73210-89184-04i198808-199108
W(*ELR),BLUE,TRIM8#
main73210-89184-06i198808-199108
W(*ELR),BROWN,TRIM4#
main73210-89185-03i198808-198901
GRAY,TRIM1#; W(DUAL SENSOR TYPE *ELR),GRAY,TRIM1#
main73210-89185-04i198808-198901
BLUE,TRIM8#; W(DUAL SENSOR TYPE *ELR),BLUE,TRIM8#
main73210-89185-06i198808-198901
BROWN,TRIM4#; W(DUAL SENSOR TYPE *ELR),BROWN,TRIM4#
main73210-89185-B0i198901-199208
MEDIUM GRAY,TRIM1#; W(DUAL SENSOR TYPE *ELR),MEDIUM GRAY,TRIM1#
main73210-89185-E0i198901-199108
BROWN,TRIM4#; W(DUAL SENSOR TYPE *ELR),BROWN,TRIM4#
main73210-89185-J0i198901-199208
MEDIUM BLUE,TRIM8#; W(DUAL SENSOR TYPE *ELR),MEDIUM BLUE,TRIM8#
main73210-89186-03i198808-199108
GRAY,TRIM1#
main73210-89186-04i198808-199108
BLUE,TRIM8#
main73210-89186-06i198808-199108
BROWN,TRIM4#
main73220-35040-B0i199108-199208
GRAY,TRIM1#
main73220-35040-J0i199108-199208
BLUE,TRIM8#
main73220-35041-B0i199301-199312
TURKEY SPEC,GRAY,TRIM1#
main73220-35041-J0i199208-199312
BLUE,TRIM8#
main73220-35042-B0i199312-199408
GRAY,TRIM1#; TURKEY SPEC,GRAY,TRIM1#
main73220-35042-J0i199312-199408
BLUE,TRIM8#; TURKEY SPEC,BLUE,TRIM8#
main73220-35050-B0i199108-199408
GRAY,TRIM1#
main73220-35050-J0i199108-199408
BLUE,TRIM8#
main73220-35060-B1i199108-199408
GRAY,TRIM1#; W(*ELR),GRAY,TRIM1#
main73220-35060-D1i199108-199408
RED,TRIM3#
main73220-35060-J1i199108-199408
BLUE,TRIM8#; W(*ELR),BLUE,TRIM8#
main73220-35120-B0i199208-199312
GRAY,TRIM1#
main73220-35120-J0i199208-199312
BLUE,TRIM8#
main73220-35121-B0i199312-199408
GRAY,TRIM1#
main73220-35121-J0i199312-199408
BLUE,TRIM8#
main73220-35140-B0i199208-199312
GRAY,TRIM1#; W(DUAL SENSOR TYPE *ELR),GRAY,TRIM1#
main73220-35140-J0i199208-199312
BLUE,TRIM8#; W(DUAL SENSOR TYPE *ELR),BLUE,TRIM8#
main73220-35141-B0i199312-199408
GRAY,TRIM1#; W(DUAL SENSOR TYPE *ELR),GRAY,TRIM1#
main73220-35141-J0i199312-199408
BLUE,TRIM8#; W(DUAL SENSOR TYPE *ELR),BLUE,TRIM8#
main73220-35150-B0i199408-199909
GRAY,TRIM1#; W(*ELR),GRAY,TRIM1#
main73220-35150-J0i199408-199708
BLUE,TRIM8#
main73220-35150-K0i199408-199708
RED,TRIM3#
main73220-35170-B0i199408-199511
GRAY,TRIM1#
main73220-35170-J0i199408-199511
BLUE,TRIM8#
main73220-35220-B0i199408-199605
GRAY,TRIM1#
main73220-35221-B0i199605-199708
GRAY,TRIM1#
main73220-35230-B0i199408-199605
GRAY,TRIM1#; W(*ELR) OR W(DUAL SENSOR TYPE *ELR),GRAY,TRIM1#; W(DUAL SENSOR TYPE *ELR),GRAY,TRIM1#
main73220-35231i200108-200412
main73220-35231-B0i199605-199909
W(DUAL SENSOR TYPE *ELR),GRAY,TRIM1#
main73220-35240-B0i199408-199511
GRAY,TRIM1#; TURKEY SPEC,GRAY,TRIM1#
main73220-35240-J0i199408-199511
BLUE,TRIM8#; TURKEY SPEC,BLUE,TRIM8#
main73220-89135-03i198808-198908
GRAY,TRIM1#; W(*ELR),GRAY,TRIM1#
main73220-89135-04i198808-198908
BLUE,TRIM8#; W(*ELR),BLUE,TRIM8#
main73220-89135-06i198808-198908
BROWN,TRIM4#; W(*ELR),BROWN,TRIM4#
main73220-89140-03i198808-198908
GRAY,TRIM1#
main73220-89140-04i198808-198908
BLUE,TRIM8#
main73220-89140-06i198808-198908
BROWN,TRIM4#
main73220-89142-03i198808-198908
GRAY,TRIM1#; W(DUAL SENSOR TYPE *ELR),GRAY,TRIM1#
main73220-89142-04i198808-198908
BLUE,TRIM8#; W(DUAL SENSOR TYPE *ELR),BLUE,TRIM8#
main73220-89142-06i198808-198908
BROWN,TRIM4#; W(DUAL SENSOR TYPE *ELR),BROWN,TRIM4#
main73220-89149-03i198908-199208
GRAY,TRIM1#
main73220-89149-04i198908-199208
BLUE,TRIM8#
main73220-89149-06i198908-199108
BROWN,TRIM4#
main73220-89151-02i199008-199108
RED,TRIM3#
main73220-89151-03i198908-199108
GRAY,TRIM1#; W(*ELR),GRAY,TRIM1#
main73220-89151-04i198908-199108
BLUE,TRIM8#; W(*ELR),BLUE,TRIM8#
main73220-89151-06i198908-199108
BROWN,TRIM4#; W(*ELR),BROWN,TRIM4#
main73220-89152-03i198908-199208
W(DUAL SENSOR TYPE *ELR),GRAY,TRIM1#
main73220-89152-04i198908-199208
W(DUAL SENSOR TYPE *ELR),BLUE,TRIM8#
main73220-89152-06i198908-199108
BROWN,TRIM4#; W(DUAL SENSOR TYPE *ELR),BROWN,TRIM4#
main73220-89155-03i198908-199108
GRAEY,TRIM1#
main73220-89155-04i198908-199108
BLUE,TRIM8#
main73220-89155-06i198908-199108
BROWN,TRIM4#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-35040-03i199008-199108
W(SEPARATE SEAT),GRAY,TRIM1#
main73230-35040-04i199008-199108
W(SEPARATE SEAT),BLUE,TRIM8#
main73230-35040-06i199008-199108
W(SEPARATE SEAT),BROWN,TRIM4#
main73230-35050-03i199008-199108
GRAY,TRIM1#
main73230-35050-04i199008-199108
BLUE,TRIM8#
main73230-35050-06i199008-199108
BROWN,TRIM4#
main73230-35060-03i199008-199108
GRAY,TRIM1#
main73230-35060-04i199008-199108
BLUE,TRIM8#
main73230-35060-06i199008-199108
BROWN,TRIM4#
main73230-35070-03i199008-199108
GRAY,TRIM1#; W(SEPARATE SEAT),GRAY,TRIM1#
main73230-35070-04i199008-199108
BLUE,TRIM8#; W(SEPARATE SEAT),BLUE,TRIM8#
main73230-35070-06i199008-199108
BROWN,TRIM4#; W(SEPARATE SEAT),BROWN,TRIM4#
main73230-35080-B0i199108-199204
W(*ELR),GRAY,TRIM1#
main73230-35080-J0i199204-199308
W(*ELR),BLUE,TRIM8#
main73230-35100-B0i199301-199511
TURKEY SPEC,GRAY,TRIM1#
main73230-35100-J0i199301-199511
TURKEY SPEC,BLUE,TRIM8#
main73230-35170-B1i199108-199203
W(SEPARATE SEAT),GRAY,TRIM1#
main73230-35170-D1i199203-199311
W(SEPARATE SEAT & *ELR),RED,TRIM3#
main73230-35170-J1i199203-199311
W(SEPARATE SEAT & *ELR),BLUE,TRIM8#
main73230-35171-B1i199311-199312
W(SEPARATE SEAT & *ELR),GRAY,TRIM1#
main73230-35171-D1i199311-199312
W(SEPARATE SEAT & *ELR),RED,TRIM3#
main73230-35171-J1i199311-199312
W(SEPARATE SEAT & *ELR),BLUE,TRIM8#
main73230-35172-B1i199312-199708
W(SEPARATE SEAT & *ELR),GRAY,TRIM1#
main73230-35172-D1i199312-199708
W(SEPARATE SEAT & *ELR),RED,TRIM3#
main73230-35172-J1i199312-199708
W(SEPARATE SEAT & *ELR),BLUE,TRIM8#
main73230-35180-B1i199108-199308
GRAY,TRIM1#; W(CENTER BELT & *ELR),GRAY,TRIM1#
main73230-35180-D1i199108-199308
RED,TRIM3#
main73230-35180-J1i199108-199308
BLUE,TRIM8#; W(CENTER BELT & *ELR),BLUE,TRIM8#
main73230-35190-B1i199108-199203
W(SEPARATE SEAT & *ELR),GRAY,TRIM1#; W(SEPARATE SEAT),GRAY,TRIM1#
main73230-35190-D1i199203-199308
W(SEPARATE SEAT & *ELR),RED,TRIM3#
main73230-35190-J1i199108-199203
W(SEPARATE SEAT & *ELR),BLUE,TRIM8#; W(SEPARATE SEAT),BLUE,TRIM8#
main73230-35200-B1i199108-199312
GRAY,TRIM1#
main73230-35200-D1i199108-199312
RED,TRIM3#
main73230-35200-J1i199108-199312
BLUE,TRIM8#
main73230-35201-B1i199312-199408
GRAY,TRIM1#
main73230-35201-D1i199312-199408
RED,TRIM3#
main73230-35201-J1i199312-199408
BLUE,TRIM8#
main73230-35210i200108-200412
main73230-35210-B0i199703-200106
W(SEPARATE SEAT & *ELR),GRAY,TRIM1#
main73230-35220-B0i199208-199909
W(DUAL SENSOR TYPE *ELR),GRAY,TRIM1#
main73230-35220-J0i199208-199408
W(DUAL SENSOR TYPE *ELR),BLUE,TRIM8#
main73230-35240-B0i199703-200106
W(*ELR),GRAY,TRIM1#
main73230-35240-J0i199208-199408
W(DUAL SENSOR TYPE *ELR),BLUE,TRIM8#
main73230-35250-B0i199303-199312
TURKEY SPEC & W(CENTER BELT & DUAL SENSOR TYPE *ELR),GRAY,TRIM1#
main73230-35250-J0i199303-199312
TURKEY SPEC & W(CENTER BELT & DUAL SENSOR TYPE *ELR),BLUE,TRIM8#
main73230-35251-B0i199312-199408
TURKEY SPEC & W(CENTER BELT & DUAL SENSOR TYPE *ELR),GRAY,TRIM1#
main73230-35251-J0i199312-199408
TURKEY SPEC & W(CENTER BELT & DUAL SENSOR TYPE *ELR),BLUE,TRIM8#
main73230-35310-B0i199308-199311
GRAY,TRIM1#; W(SEPARATE SEAT & *ELR),GRAY,TRIM1#
main73230-35310-D0i199308-199311
W(SEPARATE SEAT & *ELR),RED,TRIM3#
main73230-35310-J0i199308-199311
BLUE,TRIM8#; W(SEPARATE SEAT & *ELR),BLUE,TRIM8#
main73230-35311-B0i199405-199408
CHINA SPEC & W(SEPARATE SEAT & *ELR),GRAY,TRIM1#
main73230-35311-D0i199311-199408
W(SEPARATE SEAT & *ELR),RED,TRIM3#
main73230-35311-J0i199311-199408
BLUE,TRIM8#; W(SEPARATE SEAT & *ELR),BLUE,TRIM8#
main73230-35320-B0i199308-199408
GRAY,TRIM1#; W(CENTER BELT & *ELR),GRAY,TRIM1#
main73230-35320-D0i199308-199408
RED,TRIM3#
main73230-35320-J0i199308-199408
BLUE,TRIM8#; W(CENTER BELT & *ELR),BLUE,TRIM8#
main73230-35330-B0i199308-199408
W(*ELR),GRAY,TRIM1#
main73230-35330-J0i199308-199408
W(*ELR),BLUE,TRIM8#
main73230-35370-B0i199312-199408
GRAY,TRIM1#; W(CENTER BELT & DUAL SENSOR TYPE *ELR),GRAY,TRIM1#
main73230-35370-J0i199312-199408
BLUE,TRIM8#; W(CENTER BELT & DUAL SENSOR TYPE *ELR),BLUE,TRIM8#
main73230-35380-B0i199312-199408
W(SPLIT SEAT),GRAY,TRIM1#
main73230-35380-J0i199312-199408
W(SPLIT SEAT),BLUE,TRIM8#
main73230-35400-B0i199408-199909
GRAY,TRIM1#; W(SEPARATE SEAT & *ELR),GRAY,TRIM1#
main73230-35400-D0i199408-199708
W(SEPARATE SEAT & *ELR),RED,TRIM3#
main73230-35400-J0i199408-199511
BLUE,TRIM8#
main73230-35440-B0i199408-199708
GRAY,TRIM1#
main73230-35440-J0i199408-199708
BLUE,TRIM8#
main73230-35440-K0i199408-199708
RED,TRIM3#
main73230-35450-B0i199408-199909
W(*ELR),GRAY,TRIM1#
main73230-35520-B0i199408-199605
GRAY,TRIM1#; W(CENTER BELT & DUAL SENSOR TYPE *ELR),GRAY,TRIM1#
main73230-35521-B0i199605-199909
W(CENTER BELT & DUAL SENSOR TYPE *ELR),GRAY,TRIM1#
main73230-35530-B0i199408-199605
W(SPLIT SEAT),GRAY,TRIM1#
main73230-35531-B0i199605-199708
W(SPLIT SEAT),GRAY,TRIM1#
main73230-35540-B0i199703-200106
GRAY,TRIM1#
main73230-35550-B0i199408-199909
PAKISTAN SPEC & W(SEPARATE SEAT & DUAL SENSOR TYPE *ELR),GRAY,TRIM1#; W(SEPARATE SEAT & DUAL SENSOR TYPE *ELR),GRAY,TRIM1#
main73230-35550-J0i199408-199511
BLUE,TRIM8#
main73230-35560-B0i199408-199708
GRAY,TRIM1#
main73230-35560-J0i199408-199708
BLUE,TRIM8#
main73230-35560-K0i199408-199708
RED,TRIM3#
main73230-89161-03i198907-199008
GRAY,TRIM1#
main73230-89161-04i198808-199008
W(SEPARATE SEAT),BLUE,TRIM8#
main73230-89161-06i198907-199008
BROWN,TRIM4#
main73230-89162-03i198908-199408
GRAY,TRIM1#
main73230-89162-04i198808-198908
BLUE,TRIM8#
main73230-89162-06i198908-199108
BROWN,TRIM4#; W(SEPARATE SEAT),BROWN,TRIM4#
main73230-89163-03i198808-199312
W(SPLIT SEAT),GRAY,TRIM1#
main73230-89163-04i198808-199312
W(SPLIT SEAT),BLUE,TRIM8#
main73230-89163-06i198808-199108
W(SPLIT SEAT),BROWN,TRIM4#
main73230-89164-03i198808-199108
W(CENTER BELT & *ELR),GRAY,TRIM1#
main73230-89164-04i198808-199108
W(CENTER BELT & *ELR),BLUE,TRIM8#
main73230-89164-06i198808-199108
W(CENTER BELT & *ELR),BROWN,TRIM4#
main73230-89165-03i198808-199108
W(*ELR),GRAY,TRIM1#
main73230-89165-04i198808-199108
W(*ELR),BLUE,TRIM8#
main73230-89165-06i198808-199108
W(*ELR),BROWN,TRIM4#
main73230-89166-03i198808-199008
W(SEPARATE SEAT),GRAY,TRIM1#
main73230-89166-04i198808-199008
W(SEPARATE SEAT),BLUE,TRIM8#
main73230-89166-06i198808-199008
W(SEPARATE SEAT),BROWN,TRIM4#
main73230-89167-03i198808-199008
GRAY,TRIM1#
main73230-89167-04i198808-199008
BLUE,TRIM8#
main73230-89167-06i198808-199008
BROWN,TRIM4#
main73230-89169-03i198911-199108
NEW ZEALAND SPEC OR W(CENTER BELT & DUAL SENSOR TYPE *ELR),GRAY,TRIM1#; W(CENTER BELT & DUAL SENSOR TYPE *ELR),GRAY,TRIM1#
main73230-89169-04i198911-199108
NEW ZEALAND SPEC OR W(CENTER BELT & DUAL SENSOR TYPE *ELR),BLUE,TRIM8#; W(CENTER BELT & DUAL SENSOR TYPE *ELR),BLUE,TRIM8#
main73230-89169-06i198808-198911
W(CENTER BELT & DUAL SENSOR TYPE *ELR),BROWN,TRIM4#
main73230-89171-03i198808-198901
W(SEPARATE SEAT & DUAL SENSOR TYPE *ELR),GRAY,TRIM1#
main73230-89171-04i198808-198901
W(SEPARATE SEAT & DUAL SENSOR TYPE *ELR),BLUE,TRIM8#
main73230-89171-06i198808-198901
W(SEPARATE SEAT & DUAL SENSOR TYPE *ELR),BROWN,TRIM4#
main73230-89171-B1i198901-199108
W(SEPARATE SEAT & DUAL SENSOR TYPE *ELR),MEDIUM GRAY,TRIM1#
main73230-89171-E1i198901-199108
W(SEPARATE SEAT & DUAL SENSOR TYPE *ELR),BROWN,TRIM4#
main73230-89171-J1i198901-199108
W(SEPARATE SEAT & DUAL SENSOR TYPE *ELR),MEDIUM BLUE,TRIM8#
main73230-89173-03i198808-198901
W(DUAL SENSOR TYPE *ELR),GRAY,TRIM1#
main73230-89173-04i198808-198901
W(DUAL SENSOR TYPE *ELR),BLUE,TRIM8#
main73230-89173-06i198808-198901
W(DUAL SENSOR TYPE *ELR),BROWN,TRIM4#
main73230-89173-B0i198901-199208
W(DUAL SENSOR TYPE *ELR),MEDIUM GRAY,TRIM1#
main73230-89173-E0i198901-199108
W(DUAL SENSOR TYPE *ELR),BROWN,TRIM4#
main73230-89173-J0i198901-199208
W(DUAL SENSOR TYPE *ELR),MEDIUM BLUE,TRIM8#
main73230-89174-02i199008-199108
RED,TRIM3#
main73230-89174-03i199008-199108
GRAY,TRIM1#
main73230-89174-04i198904-199008
BLUE,TRIM8#
main73230-89174-06i198808-199108
W(SEPARATE SEAT & *ELR),BROWN,TRIM4#
main73230-89175-03i198808-199208
W(DUAL SENSOR TYPE *ELR),GRAY,TRIM1#
main73230-89175-04i198808-199208
W(DUAL SENSOR TYPE *ELR),BLUE,TRIM8#
main73230-89175-06i198808-199108
W(DUAL SENSOR TYPE *ELR),BROWN,TRIM4#
main73230-89176-03i198808-198908
GRAY,TRIM1#
main73230-89176-04i198808-198908
BLUE,TRIM8#
main73230-89176-06i198808-199108
W(CENTER BELT & *ELR),BROWN,TRIM4#
main73230-89182-03i198908-199008
GRAY,TRIM1#
main73230-89182-04i198908-199008
BLUE,TRIM8#
main73230-89182-06i198908-199008
BROWN,TRIM4#
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-35100-B0i199301-199511
TURKEY SPEC,GRAY,TRIM1#
main73230-35100-J0i199301-199511
TURKEY SPEC,BLUE,TRIM8#
main73230-35190-B1i199108-199308
GRAY,TRIM1#; W(SEPARATE SEAT & *ELR),GRAY,TRIM1#
main73230-35190-J1i199108-199308
BLUE,TRIM8#; W(SEPARATE SEAT & *ELR),BLUE,TRIM8#
main73230-35210i200108-200412
main73230-35210-B0i199703-200106
W(SEPARATE SEAT & *ELR),GRAY,TRIM1#
main73230-35310-B0i199308-199311
GRAY,TRIM1#; W(SEPARATE SEAT & *ELR),GRAY,TRIM1#
main73230-35310-J0i199308-199311
BLUE,TRIM8#; W(SEPARATE SEAT & *ELR),BLUE,TRIM8#
main73230-35311-B0i199311-199408
GRAY,TRIM1#; W(SEPARATE SEAT & *ELR),GRAY,TRIM1#
main73230-35311-J0i199311-199408
BLUE,TRIM8#; W(SEPARATE SEAT & *ELR),BLUE,TRIM8#
main73230-35400-B0i199408-199909
GRAY,TRIM1#; W(SEPARATE SEAT & *ELR),GRAY,TRIM1#
main73230-35400-J0i199408-199511
BLUE,TRIM8#
main73230-35550-B0i199408-199909
PAKISTAN SPEC & W(SEPARATE SEAT & DUAL SENSOR TYPE *ELR),GRAY,TRIM1#; W(SEPARATE SEAT & DUAL SENSOR TYPE *ELR),GRAY,TRIM1#
main73230-35550-J0i199408-199511
BLUE,TRIM8#
main73230-89162-03i198908-199408
GRAY,TRIM1#
main73230-89162-04i199108-199408
W(SEPARATE SEAT & DUAL SENSOR TYPE *ELR),BLUE,TRIM8#
main73230-89162-06i198908-199108
BROWN,TRIM4#; W(SEPARATE SEAT),BROWN,TRIM4#
main73230-89171-03i198808-198901
W(SEPARATE SEAT & DUAL SENSOR TYPE *ELR),GRAY,TRIM1#
main73230-89171-04i198808-198901
W(SEPARATE SEAT & DUAL SENSOR TYPE *ELR),BLUE,TRIM8#
main73230-89171-06i198808-198901
W(SEPARATE SEAT & DUAL SENSOR TYPE *ELR),BROWN,TRIM4#
main73230-89171-B1i198901-199108
W(SEPARATE SEAT & DUAL SENSOR TYPE *ELR),MEDIUM GRAY,TRIM1#
main73230-89171-E1i198901-199108
W(SEPARATE SEAT & DUAL SENSOR TYPE *ELR),BROWN,TRIM4#
main73230-89171-J1i198901-199108
W(SEPARATE SEAT & DUAL SENSOR TYPE *ELR),MEDIUM BLUE,TRIM8#
main73230-89174-02i199008-199108
RED,TRIM3#
main73230-89174-03i199008-199108
GRAY,TRIM1#
main73230-89174-04i198808-199108
W(SEPARATE SEAT & *ELR),BLUE,TRIM8#
main73230-89174-06i198808-199108
W(SEPARATE SEAT & *ELR),BROWN,TRIM4#
main73240-35010-03i199008-199108
W(SEPARATE SEAT),GRAY,TRIM1#
main73240-35010-04i199008-199108
W(SEPARATE SEAT),BLUE,TRIM8#
main73240-35010-06i199008-199108
W(SEPARATE SEAT),BROWN,TRIM4#
main73240-35020-03i199008-199108
GRAY,TRIM1#
main73240-35020-04i199008-199108
BLUE,TRIM8#
main73240-35020-06i199008-199108
BROWN,TRIM4#
main73240-35030-03i199008-199108
GRAY,TRIM1#
main73240-35030-04i199008-199108
BLUE,TRIM8#
main73240-35030-06i199008-199108
BROWN,TRIM4#
main73240-35040-03i199008-199108
GRAY,TRIM1#; W(SEPARATE SEAT),GRAY,TRIM1#
main73240-35040-04i199008-199108
BLUE,TRIM8#; W(SEPARATE SEAT),BLUE,TRIM8#
main73240-35040-06i199008-199108
BROWN,TRIM4#; W(SEPARATE SEAT),BROWN,TRIM4#
main73240-35050-B0i199208-199909
W(DUAL SENSOR TYPE *ELR),GRAY,TRIM1#
main73240-35050-J0i199208-199408
W(DUAL SENSOR TYPE *ELR),BLUE,TRIM8#
main73240-35060-B0i199703-200106
W(*ELR),GRAY,TRIM1#
main73240-35060-J0i199208-199408
W(DUAL SENSOR TYPE *ELR),BLUE,TRIM8#
main73240-35090-B2i199108-199308
W(*ELR),GRAY,TRIM1#
main73240-35090-J2i199108-199308
W(*ELR),BLUE,TRIM8#
main73240-35100-B1i199108-199308
W(CENTER BELT & *ELR),GRAY,TRIM1#
main73240-35100-J1i199108-199308
W(CENTER BELT & *ELR),BLUE,TRIM8#
main73240-35110-B1i199108-199308
GRAY,TRIM1#
main73240-35110-D1i199108-199308
RED,TRIM3#
main73240-35110-J1i199108-199308
BLUE,TRIM8#
main73240-35120-B1i199108-199308
GRAY,TRIM1#
main73240-35120-D1i199108-199203
W(SEPARATE SEAT),RED,TRIM3#
main73240-35120-J1i199108-199203
W(SEPARATE SEAT),BLUE,TRIM8#
main73240-35130-B1i199108-199203
W(SEPARATE SEAT),GRAY,TRIM1#
main73240-35130-D1i199203-199308
W(SEPARATE SEAT & *ELR),RED,TRIM3#
main73240-35130-J1i199203-199308
W(SEPARATE SEAT & *ELR),BLUE,TRIM8#
main73240-35140-B1i199108-199308
GRAY,TRIM1#
main73240-35140-D1i199108-199308
RED,TRIM3#
main73240-35140-J1i199108-199308
BLUE,TRIM8#
main73240-35150-B0i199204-199308
W(*ELR),GRAY,TRIM1#
main73240-35150-J0i199204-199308
W(*ELR),BLUE,TRIM8#
main73240-35190-B0i199308-199311
W(SEPARATE SEAT & *ELR),GRAY,TRIM1#
main73240-35190-D0i199308-199311
W(SEPARATE SEAT & *ELR),RED,TRIM3#
main73240-35190-J0i199308-199311
W(SEPARATE SEAT & *ELR),BLUE,TRIM8#
main73240-35191-B0i199311-199312
W(SEPARATE SEAT & *ELR),GRAY,TRIM1#
main73240-35191-D0i199311-199312
W(SEPARATE SEAT & *ELR),RED,TRIM3#
main73240-35191-J0i199311-199312
W(SEPARATE SEAT & *ELR),BLUE,TRIM8#
main73240-35192-B0i199312-199708
W(SEPARATE SEAT & *ELR),GRAY,TRIM1#
main73240-35192-D0i199312-199708
W(SEPARATE SEAT & *ELR),RED,TRIM3#
main73240-35192-J0i199312-199708
W(SEPARATE SEAT & *ELR),BLUE,TRIM8#
main73240-35200-B0i199308-199312
GRAY,TRIM1#
main73240-35200-D0i199308-199312
RED,TRIM3#
main73240-35200-J0i199308-199312
BLUE,TRIM8#
main73240-35201-B0i199312-199408
GRAY,TRIM1#
main73240-35201-D0i199312-199408
RED,TRIM3#
main73240-35201-J0i199312-199408
BLUE,TRIM8#
main73240-35210-B0i199308-199311
GRAY,TRIM1#; W(SEPARATE SEAT & *ELR),GRAY,TRIM1#
main73240-35210-D0i199308-199311
W(SEPARATE SEAT & *ELR),RED,TRIM3#
main73240-35210-J0i199308-199311
BLUE,TRIM8#; W(SEPARATE SEAT & *ELR),BLUE,TRIM8#
main73240-35211-B0i199311-199408
GRAY,TRIM1#; W(SEPARATE SEAT & *ELR),GRAY,TRIM1#
main73240-35211-D0i199311-199408
W(SEPARATE SEAT & *ELR),RED,TRIM3#
main73240-35211-J0i199311-199408
BLUE,TRIM8#; W(SEPARATE SEAT & *ELR),BLUE,TRIM8#
main73240-35220-B0i199308-199408
GRAY,TRIM1#
main73240-35220-D0i199308-199408
RED,TRIM3#
main73240-35220-J0i199308-199408
BLUE,TRIM8#
main73240-35230-B0i199308-199408
W(*ELR),GRAY,TRIM1#
main73240-35230-J0i199308-199408
W(*ELR),BLUE,TRIM8#
main73240-35250-B0i199308-199408
W(*ELR),GRAY,TRIM1#
main73240-35250-J0i199308-199408
W(*ELR),BLUE,TRIM8#
main73240-35260-B0i199308-199408
W(CENTER BELT & *ELR),GRAY,TRIM1#
main73240-35260-J0i199308-199408
W(CENTER BELT & *ELR),BLUE,TRIM8#
main73240-35300-B0i199408-199909
W(*ELR),GRAY,TRIM1#
main73240-35310-B0i199408-199909
W(CENTER BELT & *ELR),GRAY,TRIM1#
main73240-35320-B0i199408-199708
W(SEPARATE SEAT & *ELR),GRAY,TRIM1#
main73240-35320-D0i199408-199708
W(SEPARATE SEAT & *ELR),RED,TRIM3#
main73240-35320-J0i199408-199708
W(SEPARATE SEAT & *ELR),BLUE,TRIM8#
main73240-35330-B0i199408-199708
GRAY,TRIM1#
main73240-35330-J0i199408-199708
BLUE,TRIM8#
main73240-35330-K0i199408-199708
RED,TRIM3#
main73240-35340-B0i199408-199708
W(*ELR),GRAY,TRIM1#
main73240-35380-B0i199408-199708
W(CENTER BELT & *ELR) OR W(CENTER BELT & DUAL SENSOR TYPE *ELR),GRAY,TRIM1#
main73240-35390-B0i199408-199708
GRAY,TRIM1#
main73240-35390-J0i199408-199708
BLUE,TRIM8#
main73240-35390-K0i199408-199708
RED,TRIM3#
main73240-89148-03i198808-199008
GRAY,TRIM1#
main73240-89148-04i198808-199008
BLUE,TRIM8#
main73240-89148-06i198808-199008
BROWN,TRIM4#
main73240-89149-03i198808-199108
W(CENTER BELT & *ELR),GRAY,TRIM1#
main73240-89149-04i198808-199108
W(CENTER BELT & *ELR),BLUE,TRIM8#
main73240-89149-06i198808-199108
W(CENTER BELT & *ELR),BROWN,TRIM4#
main73240-89150-03i198808-199108
W(*ELR),GRAY,TRIM1#
main73240-89150-04i198808-199108
W(*ELR),BLUE,TRIM8#
main73240-89150-06i198808-199108
W(*ELR),BROWN,TRIM4#
main73240-89152-03i198911-199108
NEW ZERLAND SPEC OR W(CENTER BELT & DUAL SENSOR TYPE *ELR),GRAY,TRIM1#; W(CENTER BELT & DUAL SENSOR TYPE *ELR),GRAY,TRIM1#
main73240-89152-04i198911-199108
NEW ZERLAND SPEC OR W(CENTER BELT & DUAL SENSOR TYPE *ELR),BLUE,TRIM8#; W(CENTER BELT & DUAL SENSOR TYPE *ELR),BLUE,TRIM8#
main73240-89152-06i198808-198911
W(CENTER BELT & DUAL SENSOR TYPE *ELR),BROWN,TRIM4#
main73240-89153-03i198907-199008
GRAY,TRIM1#
main73240-89153-04i198808-199008
W(SEPARATE SEAT),BLUE,TRIM8#
main73240-89153-06i198808-199008
W(SEPARATE SEAT),BROWN,TRIM4#
main73240-89154-03i198808-198901
W(DUAL SENSOR TYPE *ELR),GRAY,TRIM1#
main73240-89154-04i198808-198901
W(DUAL SENSOR TYPE *ELR),BLUE,TRIM8#
main73240-89154-06i198808-198901
W(DUAL SENSOR TYPE *ELR),BROWN,TRIM4#
main73240-89154-B0i198901-199208
W(DUAL SENSOR TYPE *ELR),MEDIUM GRAY,TRIM1#
main73240-89154-E0i198901-199108
W(DUAL SENSOR TYPE *ELR),BROWN,TRIM4#
main73240-89154-J0i198901-199208
W(DUAL SENSOR TYPE *ELR),MEDIUM BLUE,TRIM8#
main73240-89156-03i198808-199008
W(SEPARATE SEAT),GRAY,TRIM1#
main73240-89156-04i198808-199008
W(SEPARATE SEAT),BLUE,TRIM8#
main73240-89156-06i198808-199008
W(SEPARATE SEAT),BROWN,TRIM4#
main73240-89159-03i198808-199108
W(CENTER BELT & *ELR),GRAY,TRIM1#
main73240-89159-04i198808-199108
W(CENTER BELT & *ELR),BLUE,TRIM8#
main73240-89159-06i198808-199108
W(CENTER BELT & *ELR),BROWN,TRIM4#
main73240-89162-03i198808-199208
W(DUAL SENSOR TYPE *ELR),GRAY,TRIM1#
main73240-89162-04i198808-199208
W(DUAL SENSOR TYPE *ELR),BLUE,TRIM8#
main73240-89162-06i198808-199108
W(DUAL SENSOR TYPE *ELR),BROWN,TRIM4#
main73240-89163-03i198808-198908
GRAY,TRIM1#
main73240-89163-04i198808-198908
BLUE,TRIM8#
main73240-89163-06i198808-198908
BROWN,TRIM4#
main73240-89165-03i198908-199008
GRAY,TRIM1#
main73240-89165-04i198908-199008
BLUE,TRIM8#
main73240-89165-06i198908-199008
BROWN,TRIM4#

6 parts on this diagram · 4 diagrams in section

SEAT BELT — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
