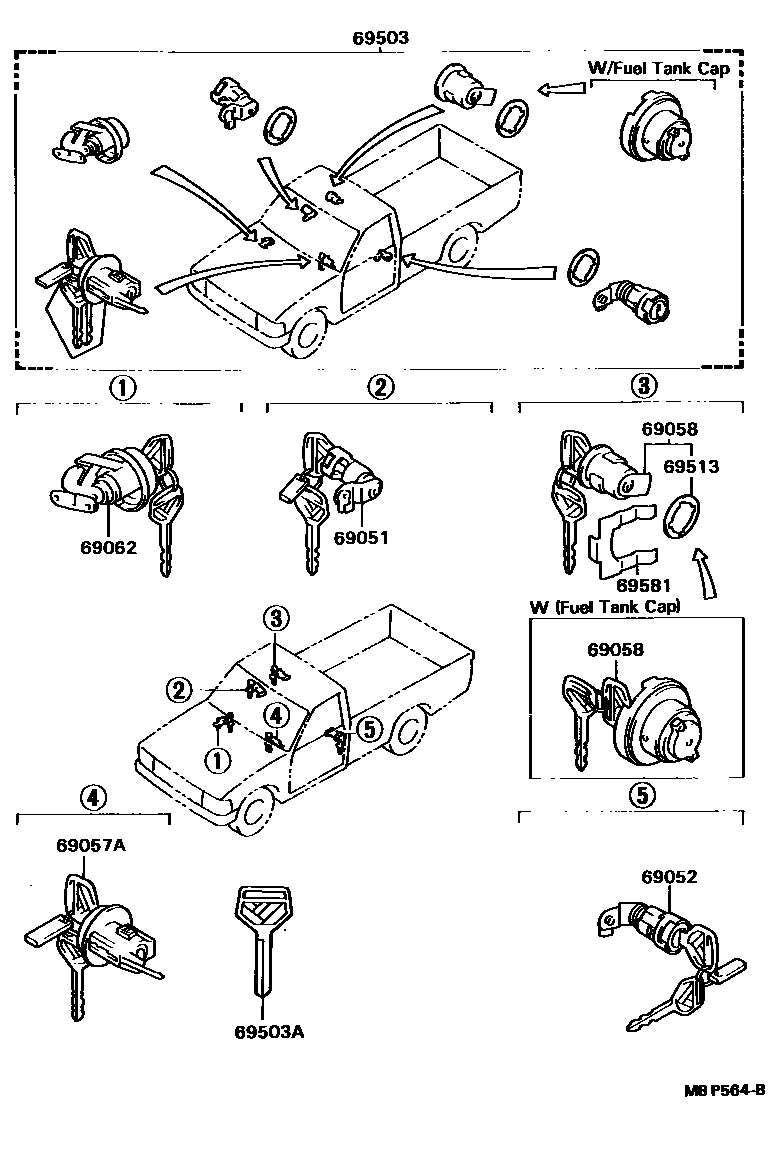

LOCK CYLINDER SET

0001 1 0002 1

69051CYLINDER & KEY SET, DOOR LOCK, RH

main69051-35030iKZN205,LN205200106

main69051-35040iLN10#,111,130,RN10#,110,130,VZN130..ARL199204-199308

main69051-35060iLN106..RHD..GEN..CBU199001-199010

VW BRAND

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-35030iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-199204

main69052-35031iKZN205,LN205200303

main69052-35040iLN10#,111,130,RN10#,110,130,VZN130..ARL199204-199308

main69052-35060iLN106..RHD..GEN..CBU199001-199010

VW BRAND

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-35010iLN106..RHD..GEN..CBU199001-199010

VW BRAND

main69057-35030iKZN205,LN205200106-200303

main69057-35031iKZN205,LN205200303

main69057-35040iLN13#,RN13#;LN10#,111,RN10#,110,VZN130..ARL199308-199812

main69057-89116iLN106,111,13#,RN105,110,13#,VZN130,YN106,13#198808-199108

69058CYLINDER & KEY SET, FUEL FILLER LID

main69058-35010iLN106..RHD..T1..GEN..CBU198910-199010

VW BRAND

main69058-35030iLN10#,111,RN105,YN106..T1..(GEN,V)..CBU199204-200106

main69058-35031iLN205..T1200303

main69058-35040iLN106,111,RN105,110..T1..ARL..CBU199204-199708

main69058-35070iRN10#,YN106..TW1;RN105,YN106..T1..IV3198808-199204

main69058-35080iKZN205,LN205..TW1200106-200303

main69058-35081iKZN205,LN205..TW1200303

main69058-35090iLN10#..TW1..ARL;LN106,111..ARL..IV3199204-199812

main69058-35100iLN106..RHD..TW1..GEN198910-199010

VW BRAND

main69058-35110iRN10#..TW1..ARL;RN105..ARL..IV3199204-199708

main69058-89114iLN106,111,RN105,110,YN106..T1..CBU198808-199108

69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-35010iLN10#,111,130,RN10#,110,130,VZN130..(DLX,SR5)..ARL199204-199308

main69056-35030iLN106,RN105..GEN,V;LN106,RN105..DLX..ARL;LN107,111,13#,RN106,110,13#,VZN130,YN106199108-199204

main69056-35031iKZN205,LN205..SR5,SRV200303

main69056-89104iLN106,YN106..GEN;LN106,111,13#,RN105,110,13#,VZN130,YN13#..DLX,SR5198808-199108

main69056-89105iLN106..RHD..GEN..CBU199001-199010

VW BRAND

69503CYLINDER SET, LOCK

main69005-35030iLN106,RN105..STD..ARL..CBU199204-199708

main69005-35050iLN10#,111,YN106..T1..GEN..CBU199204-200106

main69005-35051iLN205..T1200303

main69005-35090iLN130,RN130,VZN130..ARL199204-199308

main69005-35100iLN13#,RN13#..GEN; LN130,RN13#,VZN130..ARL,V199308-199511

W(GLOVE BOX KEY)

main69005-35120iLN111,RN105,110..T1..(DLX,SR5)..(ARL,V)199108-199204

main69005-35160iLN13#,RN13#,VZN130199108-199204

main69005-35190iLN106,111,YN106..T1..GEN..CBU198808-199909

W(FUEL LID OPENER)

main69005-35200iRN105..T1..V199204-199708

W(FUEL LID OPENER)

main69005-35210iYN106..T1..IV3;RN106,YN106..TW1..STD199204-199708

main69005-35220iLN106,111..T1..IV3;LN106..TW1..(DLX,STD)198808-199204

main69005-35221iLN205..TW1..DLX200303

main69005-35230iRN10#..SR5;RN105..GEN;RN105..TW1..V; YN106..TW1;YN106..T1..IV3;RN105..DLX..ARL198808-199204

W(GLOVE BOX KEY)

main69005-35240iKZN205,LN205..SR5,SRV200106-200303

main69005-35241iKZN205,LN205..SR5,SRV200303

main69005-35260iRN105..ARL..IV3;RN105..DLX..ARL199204-199708

main69005-35270iLN106..DLX;LN106..ARL..IV3199204-199708

main69005-35280iLN106..RHD..T1..GEN..CBU199001-199010

VW BRAND & W(FUEL LIDOPENER)

main69005-35300iLN106..RHD..TW1..GEN198910-199010

VW BRAND

main69005-35310iLN111,RN110..ARL..CBU199204-199708

main69005-35320iLN111,RN110..ARL..CBU199204-199708

W(FUEL LID OPENER)

main69005-35330iRN105..DLX..ARL; RN106..ARL199204-199708

W(GLOVE BOX KEY)

main69005-35340iLN106..DLX199204-199708

W(GLOVE BOX KEY)

main69005-35370iLN13#,RN13#..GEN199308-199511

main69005-89203iLN106,111,YN106..T1..GEN..CBU; LN111,RN105,110..T1..(DLX,SR5)..(ARL,V)198808-199108

W(GLOVE BOX KEY)

main69005-89204iLN106,111,RN105,YN106..T1..(DLX,STD)..(ARL,GEN)..CBU198808-199108

main69005-89227iLN135,YN135198904-199108

main69005-89229iLN130,RN13#,VZN130,YN130198907-199108

main69005-89232iLN106..RHD..T1..GEN..CBU198910-199010

VW BRAND

main69005-89235iLN106..RHD..T1..GEN..CBU199001-199010

VW BRAND & W(GLOVE BOX KEY)

main69005-89237iLN106..RHD..T1..GEN..CBU199001-199010

VW BRAND & W(GLOVE B0X KEY & FUEL LID OPENER)

main69005-89238iLN106..RHD..TW1..GEN199001-199010

VW BRAND & W(GLOVE BOX KEY)

69503AKEY, BLANK

main90999-00130iLN13#,RN105,13#..GEN,V;LN107,111,RN106,110..SR5199204-199308

MASTER KEY

main90999-00132iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-199204

MASTER KEY,W(*68)

main90999-00137iLN106,RN105..DLX..ARL;LN107..(DLX,SR5)..GEN;LN106,111,RN106,YN106..(DLX,STD)..GEN198808-200106

SUB KEY,W(GLOVE BOX KEY)

main90999-00149×2iLN130,RN130,VZN130..ARL199204-199308

MASTER KEY,W(*68)

main90999-00150iLN130,RN130,VZN130..ARL199204-199308

SUB KEY,W(*68)

main90999-00156iLN106..RHD..GEN..CBU198910-199010

MASTER KEY,W(*68),VW BRAND

main90999-00165iKZN205,LN205..SR5,SRV200303-200412

SUB KEY

main90999-00175iKZN205,LN205200303-200412

MASTER KEY,W(*68)

69513PAD, FUEL FILLER LID LOCK CYLINDER

main69513-32010iLN205..T1200106

69581RETAINER, FUEL FILLER LID CYLINDER

main69511-32010iLN10#,111,RN105,110,YN106..T1..CBU198808-200106

9 parts on this diagram · 2 diagrams in section
