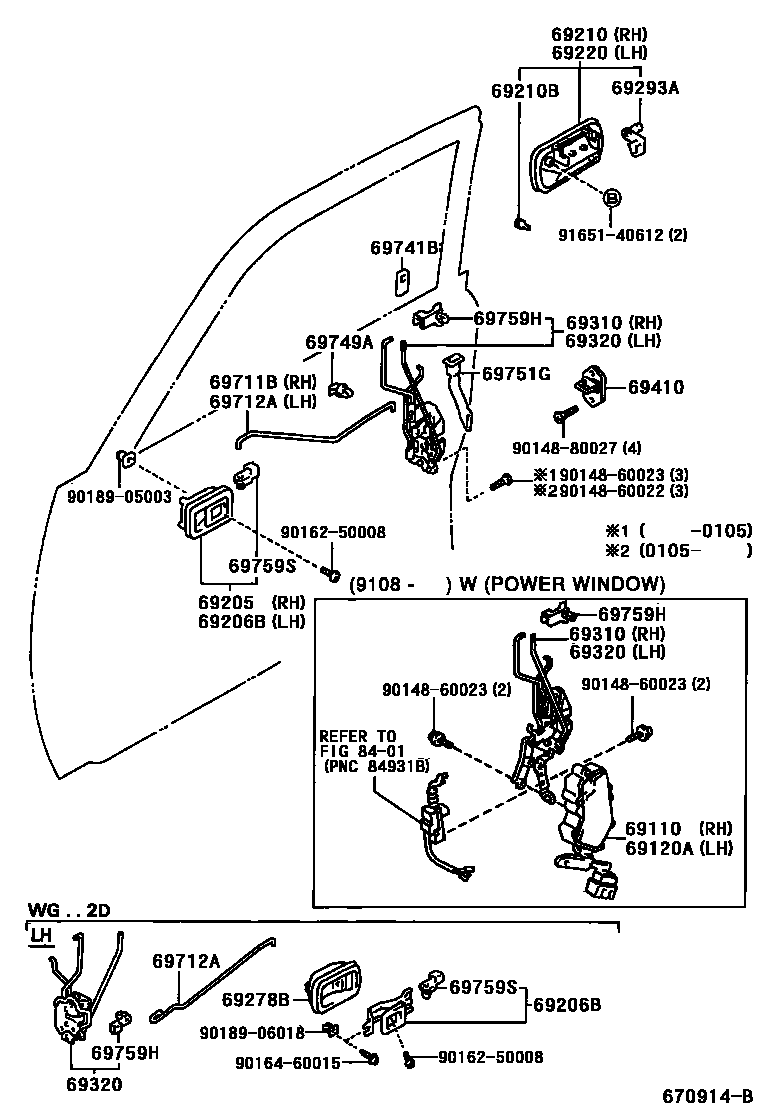

FRONT DOOR LOCK & HANDLE

69110ACTUATOR ASSY, FRONT DOOR LOCK, RH

main69110-35010iVZN130199108-199405

main69110-35020iLN13#,RN13#..LHD199108-200106

main69110-35030iVZN130199405-199511

69120AACTUATOR ASSY, FRONT DOOR LOCK, LH

main69120-35010iLN13#,RN13#..LHD199108-199405

main69120-35020iVZN130199108-199511

main69120-35030iRN135..LHD;LN107..TW1..SR5..GEN;LN106,13#,RN106,130,YN106..LHD..(4D,TW1)..(DLX,STD)199405-200106

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-89105-02iLN135,YN135199008-199108

RED,TRIM3#

sub69205-89105

sub69205-89107

main69205-89105-03iLN106,111,RN105,110,YN106198808-198901

GRAY,TRIM1#

sub69205-89105

sub69205-89107

main69205-89105-04iLN106,111,RN105,110,YN106198808-198901

BLUE,TRIM8#

sub69205-89105

sub69205-89107

main69205-89105-06iLN106,111,RN105,110,YN106198808-198901

BROWN,TRIM4#

sub69205-89105

sub69205-89107

main69205-89105-B0iRN106..CBR;RN106..STD..EFI;LN10#,111,13#,RN105,110,13#,VZN130,YN106,13#198901-200105

MEDIUM GRAY,TRIM1#

sub69205-89105

sub69205-89107

main69205-89105-D0iRN105..V199109-199708

RED,TRIM3#

sub69205-89105

sub69205-89107

main69205-89105-E0iLN106,111,13#,RN105,110,13#,VZN130,YN106,135198901-199108

BROWN,TRIM4#

sub69205-89105

sub69205-89107

main69205-89105-J0iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198901-199708

MEDIUM BLUE,TRIM8#

sub69205-89105

sub69205-89107

main69205-89107-B0iLN205..T1200105-200412

GRAY,TRIM1#

sub69205-89107

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69205-89106-03iLN130,RN130,VZN130,YN130..2D198908-199108

GRAY,TRIM1#,RR

sub69205-89106

main69205-89106-04iLN130,RN130,VZN130,YN130..2D198908-199108

BLUE,TRIM8#,RR

sub69205-89106

main69205-89106-06iLN130,RN130,VZN130,YN130..2D198908-199108

BROWN,TRIM4#,RR

sub69205-89106

main69206-89105-02iLN135,YN135199008-199108

RED,TRIM3#

sub69206-89105

sub69206-89107

main69206-89105-03iLN106,111,RN105,110,YN106198808-198901

GRAY,TRIM1#

sub69206-89105

sub69206-89107

main69206-89105-04iLN106,111,RN105,110,YN106198808-198901

BLUE,TRIM8#

sub69206-89105

sub69206-89107

main69206-89105-06iLN106,111,RN105,110,YN106198808-198901

BROWN,TRIM4#

sub69206-89105

sub69206-89107

main69206-89105-B0iLN130,RN130,VZN130,YN130..2D198908-199108

MEDIUM GRAY,TRIM1#,FR

sub69206-89105

sub69206-89107

main69206-89105-B0iRN106..CBR;RN106..STD..EFI;LN10#,111,13#,RN105,110,13#,VZN130,YN106,13#..4D,T1,TW1198901-199712

MEDIUM GRAY,TRIM1#

sub69206-89105

sub69206-89107

main69206-89105-D0iRN105..V199109-199708

RED,TRIM3#

sub69206-89105

sub69206-89107

main69206-89105-E0iLN130,RN130,VZN130,YN130..2D198908-199108

BROWN,TRIM4#,FR

sub69206-89105

sub69206-89107

main69206-89105-E0iLN106,111,13#,RN105,110,13#,VZN130,YN106,13#..4D,T1,TW1198901-199108

BROWN,TRIM4#

sub69206-89105

sub69206-89107

main69206-89105-J0iRN105..V;LN13#,RN13#,VZN130198901-199708

MEDIUM BLUE,TRIM8#

sub69206-89105

sub69206-89107

main69206-89105-J0iLN130,RN130,VZN130,YN130..2D198908-199108

MEDIUM BLUE,TRIM8#,FR

sub69206-89105

sub69206-89107

main69206-89107-B0iLN10#,RN106..TW1199712-200412

GRAY,TRIM1#

sub69206-89107

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-89110iLN106,111,135,RN105,110,135,YN106,135198808-200106

NO PAINT REQ.

main69210-89111iLN106,111,135,RN105,135,YN106,135..GEN,V198808-200106

PLATED

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-04014iKZN205,LN205198808-200106

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-89110iLN205..DLX198808-200106

NO PAINT REQ.

main69220-89111iVZN130;LN106,111,13#,RN105,13#,YN106..GEN,V198808-200106

PLATED

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69277-89110-03iLN130,RN130,VZN130,YN130..2D198908-199108

GRAY,TRIM1#

sub69277-89110

main69277-89110-04iLN130,RN130,VZN130,YN130..2D198908-199108

BLUE,TRIM8#

sub69277-89110

main69277-89110-06iLN130,RN130,VZN130,YN130..2D198908-199108

BROWN,TRIM4#

sub69277-89110

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12030iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-200106

RH

main69293-12040iKZN205,LN205198808-200106

LH

69310LOCK ASSY, FRONT DOOR, RH

main69310-35070iVZN130199108-199308

W(POWER WINDOW)

main69310-35080iLN13#,RN13#..LHD199108-200106

W(POWER WINDOW)

main69310-35110iLN106..RHD..GEN..IV3199404-199812

NEW ZEALAND SPEC

main69310-35110iRN105..T1..STD;LN106,111,RN110..T1..ARL199405-199708

main69310-35170iLN205..TW1..DLX199308-199812

sub69310-35180

main69310-35170iLN106..RHD..TW1..GEN199404-199909

NEW ZEALAND SPEC

sub69310-35180

main69310-35180iVZN130199308-199511

W(POWER WINDOW)

main69310-35180iKZN205,LN205..SR5,SRV200106

main69310-35190iLN13#,RN13#..LHD199308-199511

W(POWER WINDOW)

sub69310-35180

main69310-89118iLN106,111,130,RN105,110,130,VZN130,YN106,130..2D,T1198808-200106

main69310-89120iLN106,RN105,YN106..TW1198808-199108

main69310-89129iVZN130..4D199008-199108

W(POWER WINDOW)

main69310-89130iLN135,RN135,YN135..LHD198904-199108

W(POWER WINDOW)

main69310-89131iRN105..TW1..DLX;LN10#,RN106,YN106..TW1198906-200106

69320LOCK ASSY, FRONT DOOR, LH

main69320-35060iVZN130199108-199308

W(POWER WINDOW)

main69320-35070iLN13#,RN13#..LHD199108-200106

W(POWER WINDOW)

main69320-35100iLN205..T1199405-199708

main69320-35100iLN106..RHD..GEN..IV3199404-199812

NEW ZEALAND SPEC

main69320-35150iRN105..GEN..CBU;LN13#,RN13#,VZN130199308-199812

sub69320-35160

main69320-35150iLN106..RHD..TW1..GEN199404-199909

NEW ZEALAND SPEC

sub69320-35160

main69320-35160iVZN130199308-199511

W(POWER WINDOW)

main69320-35170iKZN205,LN205..SR5,SRV200106

main69320-35170iLN13#,RN13#..LHD199308-199511

W(POWER WINDOW)

main69320-89117iRN105..T1..V;LN10#,111,YN106..T1..GEN198808-200106

main69320-89119iLN106,RN105,YN106..TW1198808-199108

main69320-89121iLN130,RN130,VZN130,YN130..2D198908-199108

main69320-89126iVZN130..4D199008-199108

W(POWER WINDOW)

main69320-89127iLN135,RN135,YN135..LHD198904-199108

W(POWER WINDOW)

main69320-89128iLN10#,13#,RN10#,13#,VZN130,YN106..4D,TW1198906-200106

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-87001iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-200106

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-89104iLN10#,111,130,RN105,110,130,VZN130,YN106,130..2D,T1198808-200106

main69711-89105iLN10#,13#,RN10#,13#,VZN130,YN106,13#..4D,TW1198808-200106

main69711-89105iLN135,YN135..LHD198906-198908

W(POWER WINDOW)

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-89104iLN10#,111,RN105,110,YN106..T1198808-200106

main69712-89105iLN10#,13#,RN10#,13#,VZN130,YN106,13#..4D,TW1198808-200106

main69712-89105iLN106,RN105,135,YN106..4D,TW1198906-198908

W(POWER WINDOW)

main69712-89106iLN130,RN130,VZN130,YN130..2D198908-199108

69741BKNOB, FRONT DOOR LOCK CONTROL

main69741-89104-02iLN135,YN135199008-199108

RED,TRIM3#

sub69741-89104

sub69741-12040

main69741-89104-03iLN106,111,13#,RN105,110,13#,VZN130,YN106,13#199004-199108

GRAY,TRIM1#

sub69741-89104

sub69741-12040

main69741-89104-04iLN106,111,RN105,YN106..DLX,STD199004-199108

BLUE,TRIM8#

sub69741-89104

sub69741-12040

main69741-89104-06iLN106,111,RN105,YN106..DLX,STD199004-199108

BROWN,TRIM4#

sub69741-89104

sub69741-12040

main69741-89104-B0iLN10#,111,13#,RN10#,110,13#,VZN130,YN106199108-199206

GRAY,TRIM1#

sub69741-89104

sub69741-12040

main69741-89104-B1iKZN205,LN205199206-200412

GRAY,TRIM1#

sub69741-89104

sub69741-12040

main69741-89104-D3iRN105..V199108-199708

RED,TRIM3#

sub69741-89104

sub69741-12040

main69741-89104-J0iLN10#,111,13#,RN10#,110,13#,VZN130,YN106199108-199206

BLUE,TRIM8#

sub69741-89104

sub69741-12040

main69741-89104-J1iRN105..V;LN13#,RN13#,VZN130199206-199708

BLUE,TRIM8#

sub69741-89104

sub69741-12040

main69741-90K00-23iLN106,111,RN105,110,YN106198808-198901

MEDIUM GRAY,TRIM1#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-44iLN106,111,RN105,110,YN106198808-198901

BLUE,TRIM8#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-46iLN106,111,RN105,110,YN106198808-198901

BROWN,TRIM4#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-B1iLN106,111,RN105,110,135,YN106198901-199004

MEDIUM GRAY,TRIM1#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-B1iLN106,111,RN105,110,135,YN106198906-198908

W(POWER WINDOW),MEDIUM GRAY,TRIM1#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-E1iLN135,YN135..LHD198906-198908

W(POWER WINDOW),BROWN,TRIM4#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-E1iLN135,YN135..LHD198901-199004

BROWN,TRIM4#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-J1iLN106,111,RN105,110,135,YN106198906-198908

W(POWER WINDOW),MEDIUM BLUE,TRIM8#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

main69741-90K00-J1iLN135,YN135..LHD198901-199004

MEDIUM BLUE,TRIM8#

sub69741-90K00

sub69741-89102

sub69741-12040

sub69741-89104

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-89101iLN106,111,135,RN105,110,YN106,135198808-200106

69751GHOLDER, FRONT DOOR LOCK CONTROL KNOB

main69628-89102-B0iRN105..V199204-199708

MEDIUM GRAY,TRIM1#

sub69628-89102

main69628-89102-D0iRN105..V199204-199708

RED,TRIM3#

sub69628-89102

main69628-89102-J0iRN105..V199204-199708

MEDIUM BLUE,TRIM8#

sub69628-89102

main69751-89102-03iLN106,RN105,YN106..T1..STD198808-198901

GRAY,TRIM1#,RH

sub69751-89102

main69751-89102-04iLN106,RN105,YN106..T1..STD198808-198901

BLUE,TRIM8#,RH

sub69751-89102

main69751-89102-06iLN106,RN105,YN106..T1..STD198808-198901

BROWN,TRIM4#,RH

sub69751-89102

main69751-89102-B0iLN10#,RN105,YN106..T1..STD198901-200106

MEDIUM GRAY,TRIM1#,RH

sub69751-89102

main69751-89102-E0iLN106,RN105,YN106..T1..STD198901-199108

BROWN,TRIM4#,RH

sub69751-89102

main69751-89102-J0iLN106,RN105,YN106..T1..STD198901-199408

MEDIUM BLUE,TRIM8#,RH

sub69751-89102

main69751-89103iLN106,RN105,YN106..T1..STD198808-200106

DLX PACKAGE,RH

main69751-89103iLN205..T1198808-200412

RH

main69751-89106iLN106..LHD..TW1;RN10#,YN106..TW1..STD198808-200412

RH

main69751-89106iRN105,YN106..RHD..TW1..GEN198808-199708

DLX PACKAGE,RH

main69751-89107-03iLN106,YN106..TW1..GEN198808-199108

GRAY,TRIM1#,RH

sub69751-89107

main69751-89107-04iLN106,YN106..TW1..GEN198808-199108

BLUE,TRIM8#,RH

sub69751-89107

main69751-89107-06iLN106,YN106..TW1..GEN198808-199108

BROWN,TRIM4#,RH

sub69751-89107

main69751-89107-B0iLN106,RN10#,YN106..TW1..STD199108-199909

GRAY,TRIM1#,RH

sub69751-89107

main69751-89107-J0iLN106,RN10#,YN106..TW1..STD199108-199408

BLUE,TRIM8#,RH

sub69751-89107

main69752-89101-03iLN106,RN105,YN106..T1..STD198808-198901

GRAY,TRIM1#,LH

sub69752-89101

main69752-89101-04iLN106,RN105,YN106..T1..STD198808-198901

BLUE,TRIM8#,LH

sub69752-89101

main69752-89101-06iLN106,RN105,YN106..T1..STD198808-198901

BROWN,TRIM4#,LH

sub69752-89101

main69752-89101-B0iLN10#,RN105,YN106..T1..STD198901-200106

MEDIUM GRAY,TRIM1#,LH

sub69752-89101

main69752-89101-E0iLN106,RN105,YN106..T1..STD198901-199108

BROWN,TRIM4#,LH

sub69752-89101

main69752-89101-J0iLN106,RN105,YN106..T1..STD198901-199408

MEDIUM BLUE,TRIM8#,LH

sub69752-89101

main69752-89102iLN107,111,130,RN110,130,VZN130,YN130..(2D,T1)..(DLX,SR5)198808-200412

LH

main69752-89102iLN10#,RN105,YN106..T1..STD..GEN198808-200106

DLX PACKAGE,LH

main69752-89103iLN106..RHD..TW1;RN105..DLX..ARL;LN107,13#,RN106,13#,VZN130..DLX,SR5198808-199708

DLX PACKAGE,LH

main69752-89103iLN106..LHD..TW1;RN10#,YN106..TW1..STD198808-200412

LH

main69752-89104-03iLN106,YN106..TW1..GEN198808-199108

GRAY,TRIM1#,LH

sub69752-89104

main69752-89104-04iLN106,YN106..TW1..GEN198808-199108

BLUE,TRIM8#,LH

sub69752-89104

main69752-89104-06iLN106,YN106..TW1..GEN198808-199108

BROWN,TRIM4#,LH

sub69752-89104

main69752-89104-B0iLN106,RN10#,YN106..TW1..STD199108-199909

GRAY,TRIM1#,LH

sub69752-89104

main69752-89104-J0iLN106,RN105,YN106..TW1..GEN199108-199308

BLUE,TRIM8#,LH

sub69752-89104

69759HSNAP, DOOR LOCK CONTROL LINK, NO.2

main69759-20040iKZN205,LN205198808-200106

YELLOW

main69759-20040iLN135,RN135,YN135..LHD198906-198908

W(POWER WINDOW),YELLOW

main69759-20050iKZN205,LN205198808-200106

BROWN

main69759-20100iKZN205,LN205198808-200106

RED

main69759-20110iLN135,RN135,YN135..LHD198808-200106

BLACK

main69759-20110iLN135,RN135,YN135..LHD198906-198908

W(POWER WINDOW),BLACK

main69759-24010iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-200106

NATURAL

main69759-24020iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-200106

BLUE

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-20060iLN205..T1198808-200106

RH

main69759-20070iLN205..T1198808-200106

LH

8401

9014860022

main90148-60022

9014860023

main90148-60023

9014880027

main90148-80027

9016250008

main90162-50008

9016460015

main90164-60015

9018905003

main90189-05003

9018906018

main90189-06018

9165140612

main91651-40612

28 parts on this diagram · 1 diagram in section
