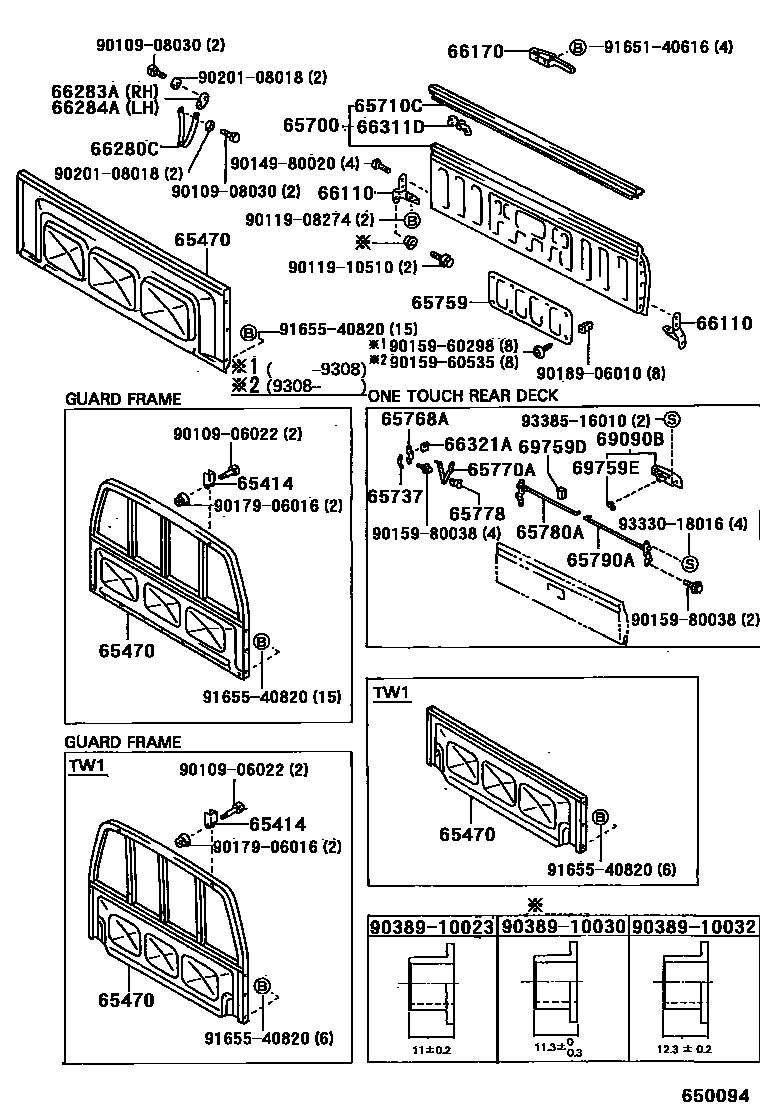

REAR BODY GUARD FRAME & TAIL GATE

0001 1 0002 1 0003 1

65414STOPPER, GUARD FRAME

main65414-89102×2iRN106..STD;LN10#,YN106..CBU;RN10#..(ARL,V)..CBU198808-200106

65470BOARD ASSY, HEADER

main65405-89104iLN106,111,RN105,110,YN106..T1..(ARL,GEN)..CBU198808-199612

main65470-35010iLN107..ARL199508-199812

NEW ZEALAND SPEC

main65470-35170iLN205..T1200106-200412

main65470-89137iLN10#,RN105,YN106..T1..(ARL,GEN)..CBU198808-200106

W(GUARD FRAME)

main65470-89139iLN107..ARL199508-199812

NEW ZEALAND SPEC & W(GUARD FRAME)

main65470-89142iLN107..ARL199511-199812

W(GUARD FRAME)

main65470-89143iLN106..LHD..TW1..CBU199206-199511

BRAZIL SPEC

main65471-35090iLN10#,111,RN105,110,YN106..T1..(ARL,GEN)..CBU199612-200106

65700GATE ASSY, REAR BODY TAIL

main65700-89146iLN106,RN105..ARL..CBU; LN106..LHD..CBU199401-199708

BRAZIL SPEC & W(TOYOTA MARK); W(TOYOTA MARK)

main65700-89147iLN107..GEN;LN106,RN105..ARL..CBU199401-200106

main65700-89148iLN107..ARL199508-199812

NEW ZEALAND SPEC

main65700-89149iLN106,RN10#,YN106..(DLX,STD)..(GEN,V)..CBU199401-199909

main65700-89151iLN107,RN110..ARL;LN111,RN106..(DLX,SR5)..CBU198808-199909

65710CRAIL ASSY, TAIL GATE TOP

main65710-89114iLN107..GEN;LN106,RN105..ARL..CBU199108-200106

main65710-89115iLN106,RN10#,YN106..(DLX,STD)..(GEN,V)..CBU198808-199909

65737STOP, TAIL GATE

main65737-35010×2iLN106,RN105..ARL..CBU;LN107,111,RN106,110..CBU199010-199109

main65737-35020×2iRN106..SR5;LN106..LHD..CBU;LN107,111,RN110..CBU;LN106,RN105..ARL..CBU199206-200106

main65737-89105×2iLN106..ARL..CBU;LN111,RN105,110..(ARL,GEN)..CBU198808-199010

65759COVER, TAIL GATE SERVICE HOLE

main65759-89102iLN107..ARL199508-199812

NEW ZEALAND SPEC

main65759-89105iLN107,RN110..ARL;LN111,RN106..(DLX,SR5)..CBU198808-199909

65768ASTRIKER, TAIL GATE LOCK

main65768-35010×2iRN106..SR5;LN106..LHD..CBU;LN107,111,RN110..CBU;LN106,RN105..ARL..CBU199206-200106

main65768-89102×2iLN106,RN105..ARL..CBU;LN107,111,RN106,110..CBU198808-199204

65770ASTAY ASSY, TAIL GATE

main65770-89103×2iLN106,RN105..ARL..CBU;LN107,111,RN106,110..CBU198808-199206

65778STOPPER, TAIL GATE STAY

main65778-89104×4iLN106..ARL..CBU;LN111,RN105,110..(ARL,GEN)..CBU198808-198901

main65778-89105×4iRN106..SR5;LN106..LHD..CBU;LN107,111,RN110..CBU;LN106,RN105..ARL..CBU199206-200106

65780ALOCK ASSY, TAIL GATE, RH

main65780-35010iLN106,RN105..ARL..CBU;LN107,111,RN106,110..CBU199204-199206

main65780-89105iLN106,RN105..ARL..CBU;LN107,111,RN106,110..CBU198808-199204

65790ALOCK ASSY, TAIL GATE, LH

main65790-35010iLN106,RN105..ARL..CBU199204-199206

main65790-35020iLN107,RN110..ARL;LN111,RN106..(DLX,SR5)..CBU199204-199909

main65790-89106iLN106,RN105..ARL..CBU198808-199204

main65790-89107iLN107,111,RN106,110..CBU198808-199204

66110HINGE ASSY, TAIL GATE

main66110-89107iLN106,111,RN105,110,YN106..CBU198808-198905

RH

main66110-89108iKZN205,LN205200106-200412

RH

main66120-89101iLN106,111,RN105,110,YN106..CBU198808-198905

LH

main66120-89102iKZN205,LN205200106-200412

LH

66170LATCH ASSY, REAR BODY TAIL GATE

main66170-89106×2iLN107..ARL199508-199812

NEW ZEALAND SPEC

66280CCHAIN ASSY, TAIL GATE

main66280-89106×2iLN107..ARL199508-199812

NEW ZEALAND SPEC

66283AHOOK, TAIL GATE CHAIN, RH

main66283-89102iLN106,RN10#,YN106..(DLX,STD)..(GEN,V)..CBU198808-199909

66284AHOOK, TAIL GATE CHAIN, LH

main66284-89101iLN107..ARL199508-199812

NEW ZEALAND SPEC

66311DHOOK, ROPE

main66311-89109×2iLN107..ARL199508-199812

NEW ZEALAND SPEC

66321ABUMPER, GATE RUBBER

main66321-35010×2iLN106,RN105..ARL..CBU;LN107,111,RN106,110..CBU199010-199109

main66321-35020×2iLN106,RN105..ARL..CBU;LN107,111,RN106,110..CBU199204-199206

main66321-89109×2iLN106..ARL..CBU;LN111,RN105,110..(ARL,GEN)..CBU198808-199010

69090BHANDLE ASSY, TAIL GATE

main69090-89101iLN106..LHD..CBU;LN107,111,RN110..CBU;LN106,RN10#..TW1..ARL199306-200106

CHROME PLATED PACKAGE

main69090-89102iRN106..SR5;LN106..LHD..CBU;LN107,111,RN110..CBU;LN106,RN105..ARL..CBU199206-200106

69759DSILENCER, TAIL GATE LOCK LINK

main69759-89108×2iKZN205,LN205200106

69759ESNAP, TAIL GATE LOCK LINK

main69759-20100iKZN205,LN205200106

RED

main69759-20110iKZN205,LN205200106

BLACK

9010906022

main90109-06022

9010908030

main90109-08030

9011908274

main90119-08274

9011910510

main90119-10510

9014980020

main90149-80020

9015960298

main90159-60298

9015960535

main90159-60535

9015980038

main90159-80038

9017906016

main90179-06016

9018906010

main90189-06010

9020108018

main90201-08018

9165140616

main91651-40616

9165540820

main91655-40820

9333018016

main93330-18016

9338516010

main93385-16010

36 parts on this diagram · 3 diagrams in section
