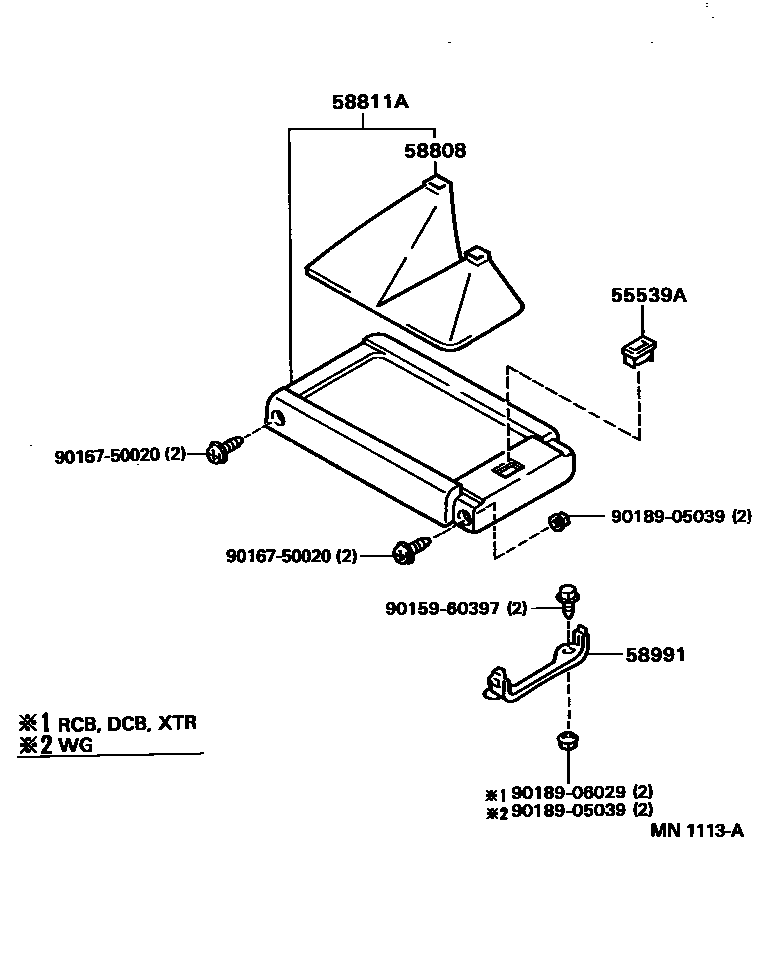

CONSOLE BOX & BRACKET

0001 1 0003 1 0004 1 0006 1

55539ACOVER, SPARE SWITCH HOLE

main55539-20020-12iLN135,YN135199008-199108

RED,TRIM3#

main55539-20020-24iVZN130..4FC199408-199511

BLUE,TRIM8#

main55539-20020-B0iKZN205,LN205..SR5,SRV200106-200412

MEDIUM GRAY,TRIM1#

main55539-20020-E0iRN105..TW1..ARL;LN106,111,13#,RN110,13#,VZN130,YN13#..DLX,SR5198811-199108

BROWN,TRIM4#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-34010-B0iLN111,13#,RN106,13#..LHD199208-199304

GRAY,TRIM1#

main58808-34010-J0iLN111,13#,RN106,13#..LHD199208-199304

BLUE,TRIM8#

main58808-34011-B0iLN111,13#,RN106,13#..LHD..(CBR,DSL)199304-199503

GRAY,TRIM1#

main58808-34011-J0iLN111,13#,RN106,13#..LHD..(CBR,DSL)199304-199408

BLUE,TRIM8#

main58808-34012-B0iLN107..SR5..GEN;LN111,13#,RN106,13#..LHD..(DLX,SR5)199503-200106

GRAY,TRIM1#

main58808-34012-J0iLN13#,RN13#..LHD199503-199511

BLUE,TRIM8#

main58808-35010-B0iRN105..DLX..ARL;LN106,13#,RN13#,VZN130..RHD..(4D,TW1)..5F199208-199304

GRAY,TRIM1#

main58808-35010-J0iRN105..DLX..ARL;LN106,13#,RN13#,VZN130..RHD..(4D,TW1)..5F199208-199304

BIUE,TRIM8#

main58808-35011-B0iLN106..RHD..TW1..GEN; LN111..IV3;LN106,13#,RN105,13#,VZN130..RHD..5F..(DLX,SR5)199408-199503

BLUE,TRIM1#; W(CUT PILE CARPET) OR PAKISTAN SPEC,BLUE,TRIM1#

main58808-35011-J0iLN13#,RN13#,VZN130..RHD..5F199408-199503

BLUE,TRIM8#

main58808-35012-B0iLN111..IV3;LN106,13#,RN105,13#,VZN130..RHD..5F..(DLX,SR5)199503-199708

GRAY,TRIM1#

main58808-35012-J0iLN13#,RN13#,VZN130..RHD..5F199503-199511

BLUE,TRIM8#

main58808-35020-B0iLN107,111,RN106,110..ARL; VZN130..5F199208-199304

GRAY,TRIM1#; SR LIMITED PACKAGE,GRAY,TRIM1#

main58808-35020-J0iLN107,111,RN106,110..ARL; VZN130..5F199208-199304

BIUE,TRIM8#; SR LIMITED PACKAGE,BIUE,TRIM8#

main58808-35021-B0iLN107,111,RN106,110..ARL..CBU; VZN130..5F199304-199503

GRAY,TRIM1#; SR LIMITED PACKAGE,GRAY,TRIM1#

main58808-35021-J0iLN111,RN110..ARL..CBU199308-199408

BLUE,TRIM8#

main58808-35022-B0iLN107,111,RN106,110..ARL..CBU199503-199812

GRAY,TRIM1#

main58808-35022-J0iVZN130..5F199503-199511

SR LIMITED PACKAGE,BLUE,TRIM8#

main58808-89115-02iLN135,YN135..LHD199008-199108

RED,TRIM3#

main58808-89115-03iLN111,13#,RN106,13#,YN135..LHD198808-199208

GRAY,TRIM1#

main58808-89115-04iLN111,13#,RN106,13#,YN135..LHD198808-199208

BLUE,TRIM8#

main58808-89115-06iLN111,135,RN135,YN135..LHD198808-199108

BROWN,TRIM4#

main58808-89116-02iLN135,YN135..RHD199008-199108

RED,TRIM3#

main58808-89116-03iVZN130..4D..5F;LN106,13#,RN105,13#,YN135..RHD..(DLX,SR5)199008-199201

GRAY,TRIM1#

main58808-89116-04iVZN130..4D..5F;LN106,13#,RN105,13#,YN135..RHD..(DLX,SR5)199008-199201

BLUE,TRIM8#

main58808-89116-06iLN106,111,135,RN105,110,YN135..RHD..(DLX,SR5)198808-198908

BROWN,TRIM4#

main58808-89117-03iLN107,111,RN106,110,VZN130..(2D,T1,TW1)..ARL; VZN130..4D..5F199008-199208

GRAY,TRIM1#; SR LIMITED PACKAGE,GRAY,TRIM1#

main58808-89117-04iLN107,111,RN106,110,VZN130..(2D,T1,TW1)..ARL; VZN130..4D..5F199008-199208

BLUE,TRIM8#; SR LIMITED PACKAGE,BLUE,TRIM8#

main58808-89117-06iLN111,RN110,VZN130..(2D,T1)..ARL; VZN130..4D..5F199008-199108

BROWN,TRIM4#; SR LIMITED PACKAGE,BROWN,TRIM4#

58811ABOX, CONSOLE, FRONT

main58802-34010-B0iLN111,13#,RN106,13#..LHD199208-199304

GRAY,TRIM1#

main58802-34010-J0iLN111,13#,RN106,13#..LHD199208-199304

BLUE,TRIM8#

main58802-34011-B0iLN111,13#,RN106,13#..LHD..(CBR,DSL)199304-199503

GRAY,TRIM1#

main58802-34011-J0iLN13#,RN13#..LHD199408-199503

BLUE,TRIM8#

main58802-34012-B0iLN107..SR5..GEN;LN111,13#,RN106,13#..LHD..(DLX,SR5)199503-200106

GRAY,TRIM1#

main58802-34012-J0iLN13#,RN13#..LHD199503-199511

BLUE,TRIM8#

main58802-35010-B0iRN105..DLX..ARL;LN106,13#,RN13#,VZN130..RHD..(4D,TW1)..5F199208-199304

GRAY,TRIM1#

main58802-35010-J0iRN105..DLX..ARL;LN106,13#,RN13#,VZN130..RHD..(4D,TW1)..5F199208-199304

BIUE,TRIM8#

main58802-35011-B0iLN106..RHD..TW1..GEN; LN111..IV3;LN106,13#,RN105,13#,VZN130..RHD..5F..(DLX,SR5)199408-199503

BLUE,TRIM1#; W(CUT PILE CARPET) OR PAKISTAN SPEC,BLUE,TRIM1#

main58802-35011-J0iLN13#,RN13#,VZN130..RHD..5F199408-199503

BLUE,TRIM8#

main58802-35012-B0iLN111..IV3;LN106,13#,RN105,13#,VZN130..RHD..5F..(DLX,SR5)199503-199708

GRAY,TRIM1#

main58802-35012-J0iLN13#,RN13#,VZN130..RHD..5F199503-199511

BLUE,TRIM8#

main58802-35020-B0iLN107,111,RN106,110..ARL; VZN130..5F199208-199304

GRAY,TRIM1#; SR LIMITED PACKAGE,GRAY,TRIM1#

main58802-35020-J0iLN107,111,RN106,110..ARL; VZN130..5F199208-199304

BIUE,TRIM8#; SR LIMITED PACKAGE,BIUE,TRIM8#

main58802-35021-B0iLN107,111,RN106,110..ARL..CBU; VZN130..5F199304-199503

GRAY,TRIM1#; SR LIMITED PACKAGE,GRAY,TRIM1#

main58802-35021-J0iVZN130..5F199304-199503

SR LIMITED PACKAGE,BLUE,TRIM8#

main58802-35022-B0iVZN130..5F199503-199511

SR LIMITED PACKAGE,GRAY,TRIM1#

main58802-35022-J0iVZN130..5F199503-199511

SR LIMITED PACKAGE,BLUE,TRIM8#

main58802-89115-02iLN135,YN135..LHD199008-199108

RED,TRIM3#

main58802-89115-03iLN111,13#,RN106,13#,YN135..LHD198808-199208

GRAY,TRIM1#

main58802-89115-04iLN111,13#,RN106,13#,YN135..LHD198808-199208

BLUE,TRIM8#

main58802-89115-06iLN111,135,RN135,YN135..LHD198808-199108

BROWN,TRIM4#

main58802-89116-02iLN135,YN135..RHD199008-199108

RED,TRIM3#

main58802-89116-03iLN106,111,135,RN105,110,YN135..RHD..(DLX,SR5)198808-198908

GRAY,TRIM1#

main58802-89116-04iRN105..DLX..ARL;LN106,13#,RN13#,VZN130..RHD..(4D,TW1)..5F199201-199208

BLUE,TRIM8#

main58802-89116-06iLN106,111,135,RN105,110,YN135..RHD..(DLX,SR5)198808-198908

BROWN,TRIM4#

main58802-89117-03iLN107,111,RN106,110,VZN130..(2D,T1,TW1)..ARL; VZN130..4D..5F199008-199208

GRAY,TRIM1#; SR LIMITED PACKAGE,GRAY,TRIM1#

main58802-89117-04iLN107,111,RN106,110,VZN130..(2D,T1,TW1)..ARL; VZN130..4D..5F199008-199208

BLUE,TRIM8#; SR LIMITED PACKAGE,BLUE,TRIM8#

main58802-89117-06iLN111,130,RN110,130..SR5198908-199008

BROWN,TRIM4#

main58811-89121-03iVZN130,YN130..4FC198908-199303

GRAY,TRIM1#

main58811-89121-04iVZN130,YN130..4FC198908-199303

BLUE,TRIM8#

main58811-89121-06iVZN130,YN130..4FC198908-199108

BROWN,TRIM4#

main58811-89121-R9iVZN130..4FC199303-199511

BLUE,TRIM8#

main58811-89121-S4iVZN130..4FC199303-199511

GRAY,TRIM1#

58991BRACKET, CONSOLE BOX MOUNTING, UPPER

main58991-89103iRN105..TW1..ARL;LN10#,111,13#,RN106,110,13#,VZN130,YN135..5F..(DLX,SR5)198808-199201

9015960397

main90159-60397

9016750020

main90167-50020

9018905039

main90189-05039

9018906029

main90189-06029

8 parts on this diagram · 4 diagrams in section
