EPC Data

FLOOR MAT & SILENCER PAD

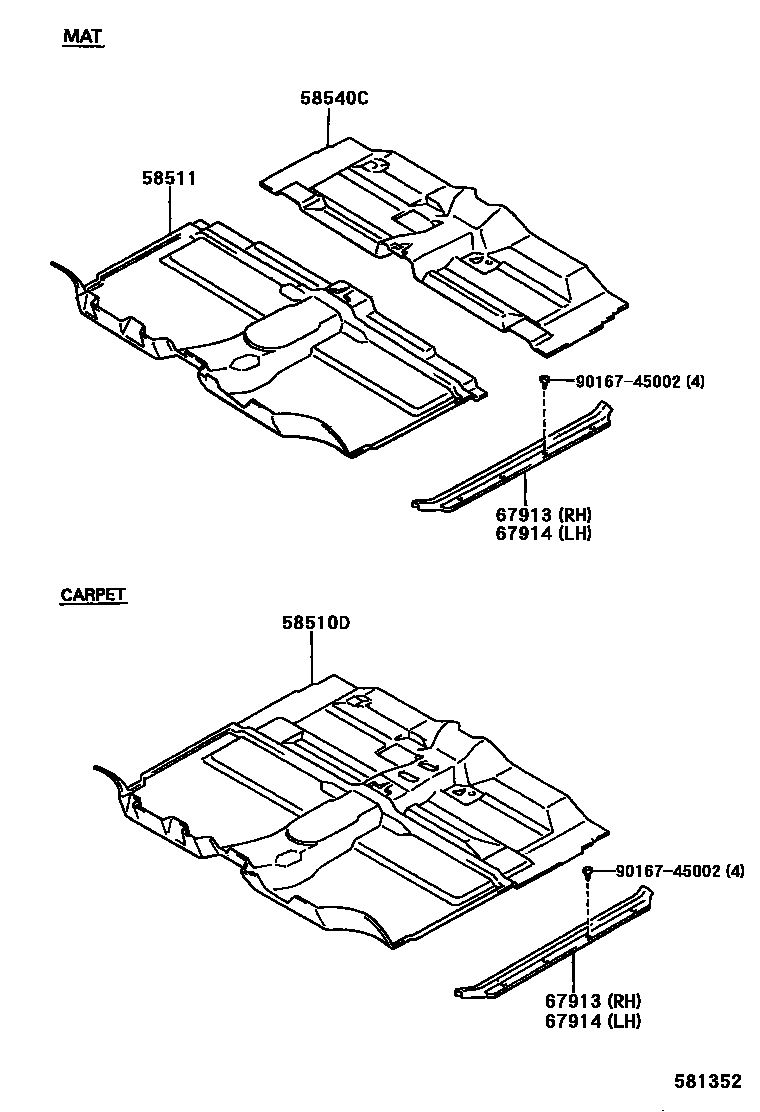

Parts diagram
58510DCARPET ASSY, FLOOR, FRONT
main58510-35220-B0i199108-199207
GRAY,TRIM1#
sub58510-3D280
main58510-35220-J0i199108-199207
BLUE,TRIM8#
sub58510-3D280
main58510-35370-B0i199108-199207
GRAY,TRIM1#
sub58510-3D130
main58510-35370-J0i199108-199207
BLUE,TRIM8#
sub58510-3D130
main58510-35440-B1i199108-199207
GRAY,TRIM1#
sub58510-35720
main58510-35440-B1i199108-199207
W(CUT PILE CARPET),GRAY,TRIM1#
sub58510-35720
main58510-35440-J1i199108-199207
BLUE,TRIM8#
sub58510-35720
main58510-35440-J1i199108-199207
W(CUT PILE CARPET),BLUE,TRIM8#
sub58510-35720
main58510-35450-B1i199108-199207
W(CUT PILE CARPET & AIR CONDITIONER),GRAY,TRIM1#
sub58510-35730
main58510-35450-B1i199108-199207
W(AIR CONDITIONER),GRAY,TRIM1#
sub58510-35730
main58510-35450-J1i199108-199207
W(CUT PILE CARPET & AIR CONDITIONER),BLUE,TRIM8#
sub58510-35730
main58510-35450-J1i199108-199207
W(AIR CONDITIONER),BLUE,TRIM8#
sub58510-35730
main58510-35560-B0i199201-199207
W(CUT PILE CARPET),GRAY,TRIM1#
sub58510-3D160
main58510-35560-J0i199201-199207
W(CUT PILE CARPET),BLUE,TRIM8#
sub58510-3D160
main58510-35660-B0i199207-199511
GRAY,TRIM1#
sub58510-3D370
main58510-35660-B0i199207-199511
W(CUT PILE CARPET),GRAY,TRIM1#
sub58510-3D370
main58510-35660-J0i199207-199511
BLUE,TRIM8#
sub58510-3D370
main58510-35660-J0i199207-199511
W(CUT PILE CARPET),BLUE,TRIM8#
sub58510-3D370
main58510-35670-B0i199207-199511
W(CUT PILE CARPET & AIR CONDITIONER),GRAY,TRIM1#
sub58510-3D370
main58510-35670-B0i199207-199511
W(AIR CONDITIONER),GRAY,TRIM1#
sub58510-3D370
main58510-35670-J0i199207-199511
W(CUT PILE CARPET & AIR CONDITIONER),BLUE,TRIM8#
sub58510-3D370
main58510-35670-J0i199207-199511
W(AIR CONDITIONER),BLUE,TRIM8#
sub58510-3D370
main58510-35720-B0i199207-199511
GRAY,TRIM1#
sub58510-35720
main58510-35720-B0i199207-199511
W(CUT PILE CARPET),GRAY,TRIM1#
sub58510-35720
main58510-35720-J0i199207-199511
BLUE,TRIM8#
sub58510-35720
main58510-35720-J0i199207-199511
W(CUT PILE CARPET),BLUE,TRIM8#
sub58510-35720
main58510-35730-B0i199207-199511
W(AIR CONDITIONER),GRAY,TRIM1#
sub58510-35720
main58510-35730-B0i199207-199511
W(CUT PILE CARPET & AIR CONDITIONER),GRAY,TRIM1#
sub58510-35720
main58510-35730-J0i199207-199511
W(CUT PILE CARPET & AIR CONDITIONER),BLUE,TRIM8#
sub58510-35720
main58510-35730-J0i199207-199511
W(AIR CONDITIONER),BLUE,TRIM8#
sub58510-35720
main58510-35760-B0i199303-199308
TURKEY SPEC & W(CUT PIL CARPET),GRAY,TRIM1#
sub58510-35760
main58510-35760-J0i199303-199308
TURKEY SPEC & W(CUT PIL CARPET),BLUE,TRIM8#
sub58510-35760
main58510-35770-B0i199303-199308
TURKEY SPEC & (CUT PILE CARPET & AIR CONDITIONER),GRAY,TRIM1#
sub58510-35760
main58510-35770-J0i199303-199308
TURKEY SPEC & (CUT PILE CARPET & AIR CONDITIONER),BLUE,TRIM8#
sub58510-35760
main58510-35890-B0i199703-200106
W(CUT PILE CARPET),GRAY,TRIM1#
sub58510-35890
main58510-3D040-B1i199703-200106
W(CUT PILE CARPET & SEPARATE SEAT),GRAY,TRIM1#
sub58510-3D040
main58510-3D110-B0i199703-200106
W(CUT PILE CARPET),GRAY,TRIM1#
sub58510-89451
main58510-3D130-B0i199207-200106
GRAY,TRIM1#
sub58510-3D120
main58510-3D130-J0i199207-199408
BLUE,TRIM8#
sub58510-3D120
main58510-3D140-B0i199207-199812
GRAY,TRIM1#
sub58510-3D150
main58510-3D140-B0i199207-199508
W(CUT PILE CARPET & SEPARATE SEAT),GRAY,TRIM1#
sub58510-3D150
main58510-3D140-B0i199508-199909
W(CUT PILE CARPET & FOOT REST & SEPARATE SEAT),GRAY,TRIM1#
sub58510-3D150
main58510-3D140-J0i199207-199408
W(CUT PILE CARPET & SEPARATE SEAT),BLUE,TRIM8#
sub58510-3D150
main58510-3D140-J0i199207-199408
BLUE,TRIM8#
sub58510-3D150
main58510-3D160-B0i199207-199508
W(CUT PILE CARPET),GRAY,TRIM1#
sub58510-3D160
main58510-3D160-B0i199508-199909
W(CUT PILE CARPET & FOOT REST),GRAY,TRIM1#
sub58510-3D160
main58510-3D160-J0i199207-199408
W(CUT PILE CARPET),BLUE,TRIM8#
sub58510-3D160
main58510-3D280-B0i199207-199708
GRAY,TRIM1#
sub58510-3D280
main58510-3D280-J0i199207-199408
BLUE,TRIM8#
sub58510-3D280
main58510-89341-03i198808-199108
GRAY,TRIM1#
sub58510-35220
main58510-89341-04i198808-199108
BLUE,TRIM8#
sub58510-35220
main58510-89341-06i198808-199108
BROWN,TRIM4#
sub58510-35220
main58510-89346-03i198808-199108
GRAY,TRIM1#
sub58510-35380
main58510-89346-04i198808-199108
BLUE,TRIM8#
sub58510-35380
main58510-89346-06i198808-199108
BROWN,TRIM4#
sub58510-35380
main58510-89411-02i199008-199108
W(CUT PILE CARPET),RED,TRIM3#
sub58510-35660
main58510-89411-03i198908-199207
GRAY,TRIM1#
sub58510-35660
main58510-89411-03i198904-199207
W(CUT PILE CARPET),GRAY,TRIM1#
sub58510-35660
main58510-89411-04i198908-199207
BLUE,TRIM8#
sub58510-35660
main58510-89411-04i198904-199207
W(CUT PILE CARPET),BLUE,TRIM8#
sub58510-35660
main58510-89411-06i198908-199108
BROWN,TRIM4#
sub58510-35660
main58510-89411-06i198904-199108
W(CUT PILE CARPET),BROWN,TRIM4#
sub58510-35660
main58510-89413-02i199008-199108
W(CUT PILE CARPET),RED,TRIM3#
main58510-89413-03i198904-199108
W(CUT PILE CARPET),GRAY,TRIM1#
main58510-89413-03i198907-199108
GRAY,TRIM1#
main58510-89413-04i198907-199108
BLUE,TRIM8#
main58510-89413-04i198904-199108
W(CUT PILE CARPET),BLUE,TRIM8#
main58510-89413-06i198907-199108
BROWN,TRIM4#
main58510-89413-06i198904-199108
W(CUT PILE CARPET),BROWN,TRIM4#
main58510-89414-03i198908-199108
GRAY,TRIM1#
sub58510-89429
main58510-89414-04i198908-199108
BLUE,TRIM8#
sub58510-89429
main58510-89414-06i198908-199108
BROWN,TRIM4#
sub58510-89429
main58510-89431-02i199008-199108
W(CUT PILE CARPET & AIR CONDITIONER),RED,TRIM3#
sub58510-89411
sub58510-35670
main58510-89431-03i198904-199207
W(CUT PILE CARPET & AIR CONDITIONER),GRAY,TRIM1#
sub58510-89411
sub58510-35670
main58510-89431-03i199008-199207
W(AIR CONDITIONER),GRAY,TRIM1#
sub58510-89411
sub58510-35670
main58510-89431-04i199008-199207
W(AIR CONDITIONER),BLUE,TRIM8#
sub58510-89411
sub58510-35670
main58510-89431-04i198904-199207
W(CUT PILE CARPET & AIR CONDITIONER),BLUE,TRIM8#
sub58510-89411
sub58510-35670
main58510-89431-06i199008-199108
W(AIR CONDITIONER),BROWN,TRIM4#
sub58510-89411
sub58510-35670
main58510-89431-06i198904-199108
W(CUT PILE CARPET & AIR CONDITIONER),BROWN,TRIM4#
sub58510-89411
sub58510-35670
main58510-89433-02i199008-199108
W(CUT PILE CARPET & AIR CONDITIONER),RED,TRIM3#
sub58510-89413
main58510-89433-03i198907-199108
W(AIR CONDITIONER),GRAY,TRIM1#
sub58510-89413
main58510-89433-03i198904-199108
W(CUT PILE CARPET & AIR CONDITIONER),GRAY,TRIM1#
sub58510-89413
main58510-89433-04i198907-199108
W(AIR CONDITIONER),BLUE,TRIM8#
sub58510-89413
main58510-89433-04i198904-199108
W(CUT PILE CARPET & AIR CONDITIONER),BLUE,TRIM8#
sub58510-89413
main58510-89433-06i198904-199108
W(CUT PILE CARPET & AIR CONDITIONER),BROWN,TRIM4#
sub58510-89413
main58510-89433-06i198907-199108
W(AIR CONDITIONER),BROWN,TRIM4#
sub58510-89413
main58510-89456-03i199008-199108
W(AIR CONDITIONER),GRAY,TRIM1#
main58510-89456-04i199008-199108
W(AIR CONDITIONER),BLUE,TRIM8#
main58510-89456-06i199008-199108
W(AIR CONDITIONER),BROWN,TRIM4#
58511MAT, FLOOR, FRONT
main58510-35140-B0i199108-200106
GRAY,TRIM1#
sub58510-35140
main58510-35140-J0i199108-199408
BLUE,TRIM8#
sub58510-35140
main58510-35280-B0i199108-199909
MALAYSIA SPEC,GRAY,TRIM1#
sub58510-89422
main58510-35280-B0i199408-199909
W(FOOT REST),GRAY,TRIM1#
sub58510-89422
main58510-35280-J0i199108-199408
MALAYSIA SPEC,BLUE,TRIM8#
sub58510-89422
main58510-89342-03i198808-199108
GRAY,TRIM1#
main58510-89342-04i198808-199108
BLUE,TRIM8#
main58510-89342-06i198808-199108
BROWN,TRIM4#
main58510-89348-03i198808-199108
GRAY,TRIM1#
main58510-89348-04i198808-199108
BLUE,TRIM8#
main58510-89348-06i198808-199108
BROWN,TRIM4#
main58510-89351-03i198808-198908
GRAY,TRIM1#
sub58510-89422
main58510-89351-03i198808-199909
W(SEPARATE SEAT),GRAY,TRIM1#
sub58510-89422
main58510-89351-04i198808-199408
W(SEPARATE SEAT),BLUE,TRIM8#
sub58510-89422
main58510-89351-04i198808-198908
BLUE,TRIM8#
sub58510-89422
main58510-89351-06i198808-199108
W(SEPARATE SEAT),BROWN,TRIM4#
sub58510-89422
main58510-89351-06i198808-198908
BROWN,TRIM4#
sub58510-89422
main58510-89352-03i199408-199909
PAKISTAN SPEC,GRAY,TRIM1#
sub58510-89421
main58510-89353-03i199408-199909
MALAYSIA SPEC & W(SEPARATE SEAT),GRAY,TRIM1#
sub58510-89422
main58510-89353-03i199408-199909
W(FOOT REST & SEPARATE SEAT),GRAY,TRIM1#
sub58510-89422
main58510-89356-02i199108-199708
RED,TRIM3#
sub58510-89373
main58510-89356-03i199108-200106
GRAY,TRIM1#
sub58510-89373
main58510-89356-04i199108-199708
BLUE,TRIM8#
sub58510-89373
main58510-89365-03i198808-199909
GRAY,TRIM1#
sub58510-89422
main58510-89365-04i198808-199408
BLUE,TRIM8#
sub58510-89422
main58510-89365-06i198808-199108
BROWN,TRIM4#
sub58510-89422
main58510-89367-03i198808-199708
W(SPLIT SEAT),GRAY,TRIM1#
sub58510-89422
main58510-89367-04i198808-199408
W(SPLIT SEAT),BLUE,TRIM8#
sub58510-89422
main58510-89367-06i198808-199108
W(SPLIT SEAT),BROWN,TRIM4#
sub58510-89422
main58510-89368-03i198808-199101
GRAY,TRIM1#
sub58510-89368
sub58510-89421
main58510-89368-04i198808-199101
BLUE,TRIM8#
sub58510-89368
sub58510-89421
main58510-89368-06i198808-199101
BROWN,TRIM4#
sub58510-89368
sub58510-89421
main58510-89368-B0i199408-199909
PAKISTAN SPEC & W(SEPARATE SEAT),MEDIUM GRAY,TRIM1#
sub58510-89368
sub58510-89421
main58510-89368-B0i199101-199708
MEDIUM GRAY,TRIM1#
sub58510-89368
sub58510-89421
main58510-89368-E0i199101-199108
BROWN,TRIM4#
sub58510-89368
sub58510-89421
main58510-89368-J0i199101-199408
BROWN,TRIM8#
sub58510-89368
sub58510-89421
main58510-89373-02i199108-199708
W(SEPARATE SEAT),RED,TRIM3#
main58510-89373-03i199108-200106
W(SEPARATE SEAT),GRAY,TRIM1#
main58510-89373-04i199108-199708
W(SEPARATE SEAT),BLUE,TRIM8#
main58510-89385-03i198808-199108
W(SEPARATE SEAT),GRAY,TRIM1#
main58510-89385-04i198808-199108
W(SEPARATE SEAT),BLUE,TRIM8#
main58510-89385-06i198808-199108
W(SEPARATE SEAT),BROWN,TRIM4#
main58510-89417-02i199008-199108
RED,TRIM3#
main58510-89417-03i198904-199511
GRAY,TRIM1#
main58510-89417-04i198904-199511
BLUE,TRIM8#
main58510-89417-06i198904-199108
BROWN,TRIM4#
main58510-89418-02i199008-199108
RED,TRIM3#
main58510-89418-03i198904-199511
GRAY,TRIM1#
main58510-89418-04i198904-199511
BLUE,TRIM8#
main58510-89418-06i198904-199108
BROWN,TRIM4#
main58510-89419-03i198908-199101
GRAY,TRIM1#
main58510-89419-04i198908-199101
BLUE,TRIM8#
main58510-89419-06i198908-199101
BROWN,TRIM4#
main58510-89439-02i199008-199108
W(AIR CONDITIONER),RED,TRIM3#
main58510-89439-03i198904-199511
W(AIR CONDITIONER),GRAY,TRIM1#
main58510-89439-04i198904-199511
W(AIR CONDITIONER),BLUE,TRIM8#
main58510-89439-06i198904-199108
W(AIR CONDITIONER),BROWN,TRIM4#
main58510-89440-02i199008-199108
W(AIR CONDITIONER),RED,TRIM3#
main58510-89440-03i198907-199511
W(AIR CONDITIONER),GRAY,TRIM1#
main58510-89440-04i198907-199511
W(AIR CONDITIONER),BLUE,TRIM8#
main58510-89440-06i198907-199108
W(AIR CONDITIONER),BROWN,TRIM4#
58540CMAT ASSY, FLOOR, REAR
main58540-35050-03i199008-199108
W(SEPARATE SEAT & FRONT SEAT BELT),GRAY,TRIM1#
main58540-35050-03i199008-199108
W(SEPARATE SEAT),GRAY,TRIM1#
main58540-35050-04i199008-199108
W(SEPARATE SEAT & FRONT SEAT BELT),BLUE,TRIM8#
main58540-35050-04i199008-199108
W(SEPARATE SEAT),BLUE,TRIM8#
main58540-35050-06i199008-199108
W(SEPARATE SEAT & FRONT SEAT BELT),BROWN,TRIM4#
main58540-35050-06i199008-199108
W(SEPARATE SEAT),BROWN,TRIM4#
main58540-35060-03i199008-199108
GRAY,TRIM1#
main58540-35060-04i199008-199108
BLUE,TRIM8#
main58540-35060-06i199008-199108
BROWN,TRIM4#
main58540-35070-B0i199108-200412
GRAY,TRIM1#
main58540-35070-D0i199108-199708
RED,TRIM3#
main58540-35070-J0i199108-199708
BLUE,TRIM8#
main58540-35080-B0i199108-199909
W(SEPARATE SEAT & FRONT SEAT BELT),GRAY,TRIM1#
main58540-35080-B0i199108-200106
W(SEPARATE SEAT),GRAY,TRIM1#
main58540-35080-D0i199108-199708
W(SEPARATE SEAT),RED,TRIM3#
main58540-35080-J0i199108-199408
W(SEPARATE SEAT & FRONT SEAT BELT),BLUE,TRIM8#
main58540-35080-J0i199108-199708
W(SEPARATE SEAT),BLUE,TRIM8#
main58540-35090-B0i199108-200106
GRAY,TRIM1#
sub58540-35090
main58540-35090-B0i199108-199909
W(FRONT SEAT BELT),GRAY,TRIM1#
sub58540-35090
main58540-35090-D0i199108-199708
RED,TRIM3#
sub58540-35090
main58540-35090-J0i199108-199408
W(FRONT SEAT BELT),BLUE,TRIM8#
sub58540-35090
main58540-35090-J0i199108-199708
BLUE,TRIM8#
sub58540-35090
main58540-35100-B0i199108-199909
W(SEPARATE SEAT & FRONT SEAT BELT),GRAY,TRIM1#
sub58540-35100
main58540-35100-B0i200106-200412
GRAY,TRIM1#
sub58540-35100
main58540-35100-B0i199108-200106
W(SEPARATE SEAT),GRAY,TRIM1#
sub58540-35100
main58540-35100-D0i199108-199708
W(SEPARATE SEAT),RED,TRIM3#
sub58540-35100
main58540-35100-J0i199108-199408
W(SEPARATE SEAT),BLUE,TRIM8#
sub58540-35100
main58540-35100-J0i199108-199408
W(SEPARATE SEAT & FRONT SEAT BELT),BLUE,TRIM8#
sub58540-35100
main58540-35110-B0i199108-199708
GRAY,TRIM1#
sub58540-35110
main58540-35110-B0i199408-199909
PAKISTAN SPEC & W(SEPARATE SEAT),GRAY,TRIM1#
sub58540-35110
main58540-35110-J0i199108-199408
BLUE,TRIM8#
sub58540-35110
main58540-89186-03i198808-199108
GRAY,TRIM1#
sub58540-35110
main58540-89186-04i198808-199108
BLUE,TRIM8#
sub58540-35110
main58540-89186-06i198808-199108
BROWN,TRIM4#
sub58540-35110
main58540-89189-03i198809-199108
W(SEPARATE SEAT),GRAY,TRIM1#
sub58540-35100
main58540-89189-03i198808-198809
GRAY,TRIM1#
sub58540-35100
main58540-89189-03i198808-199108
W(SEPARATE SEAT & FRONT SEAT BELT),GRAY,TRIM1#
sub58540-35100
main58540-89189-04i198808-198809
BLUE,TRIM8#
sub58540-35100
main58540-89189-04i198809-199108
W(SEPARATE SEAT),BLUE,TRIM8#
sub58540-35100
main58540-89189-04i198808-199108
W(SEPARATE SEAT & FRONT SEAT BELT),BLUE,TRIM8#
sub58540-35100
main58540-89189-06i198808-198809
BROWN,TRIM4#
sub58540-35100
main58540-89189-06i198808-199108
W(SEPARATE SEAT & FRONT SEAT BELT),BROWN,TRIM4#
sub58540-35100
main58540-89189-06i198809-199108
W(SEPARATE SEAT),BROWN,TRIM4#
sub58540-35100
main58540-89191-03i198808-199708
W(FRONT SEAT BELT & 3 POINT TYPE REAR SEAT BELT),GRAY,TRIM1#
main58540-89191-04i198808-199408
W(FRONT SEAT BELT & 3 POINT TYPE REAR SEAT BELT),BLUE,TRIM8#
main58540-89191-06i198808-199108
W(FRONT SEAT BELT & 3 POINT TYPE REAR SEAT BELT),BROWN,TRIM4#
main58540-89192-03i198808-199708
W(FRONT SEAT BELT),GRAY,TRIM1#
main58540-89192-04i198808-199408
W(FRONT SEAT BELT),BLUE,TRIM8#
main58540-89192-06i198808-199108
W(FRONT SEAT BELT),BROWN,TRIM4#
main58540-89193-03i198809-199108
W(FRONT SEAT BELT),GRAY,TRIM1#
sub58540-35090
main58540-89193-03i198809-199108
GRAY,TRIM1#
sub58540-35090
main58540-89193-04i198809-199108
W(FRONT SEAT BELT),BLUE,TRIM8#
sub58540-35090
main58540-89193-04i198809-199108
BLUE,TRIM8#
sub58540-35090
main58540-89193-06i198809-199108
W(FRONT SEAT BELT),BROWN,TRIM4#
sub58540-35090
main58540-89193-06i198809-199108
BROWN,TRIM4#
sub58540-35090
main58540-89194-03i198808-199708
GRAY,TRIM1#
sub58540-89194
main58540-89194-04i198808-199408
BLUE,TRIM8#
sub58540-89194
main58540-89194-06i198808-199108
BROWN,TRIM4#
sub58540-89194
main58540-89196-03i198808-199909
GRAY,TRIM1#
sub58540-89196
main58540-89196-04i198808-199408
BLUE,TRIM8#
sub58540-89196
main58540-89196-06i198808-199108
BROWN,TRIM4#
sub58540-89196
main58540-89197-03i198808-199909
W(SEPARATE SEAT),GRAY,TRIM1#
sub58540-89197
main58540-89197-04i198808-199408
W(SEPARATE SEAT),BLUE,TRIM8#
sub58540-89197
main58540-89197-06i198808-199108
W(SEPARATE SEAT),BROWN,TRIM4#
sub58540-89197
main58540-89198-03i198808-199008
GRAY,TRIM1#
sub58540-35060
main58540-89198-04i198808-199008
BLUE,TRIM8#
sub58540-35060
main58540-89198-06i198808-199008
BROWN,TRIM4#
sub58540-35060
main58540-89199-03i198808-199708
W(SPLIT SEAT),GRAY,TRIM1#
sub58540-89199
main58540-89199-04i198808-199408
W(SPLIT SEAT),BLUE,TRIM8#
sub58540-89199
main58540-89199-06i198808-199108
W(SPLIT SEAT),BROWN,TRIM4#
sub58540-89199
main58540-89200-03i198808-198908
GRAY,TRIM1#
sub58540-35050
main58540-89200-03i198808-198908
W(SEPARATE SEAT),GRAY,TRIM1#
sub58540-35050
main58540-89200-03i198808-198908
W(SEPARATE SEAT & FRONT SEAT BELT),GRAY,TRIM1#
sub58540-35050
main58540-89200-04i198808-198908
W(SEPARATE SEAT & FRONT SEAT BELT),BLUE,TRIM8#
sub58540-35050
main58540-89200-04i198808-198908
BLUE,TRIM8#
sub58540-35050
main58540-89200-04i198808-198908
W(SEPARATE SEAT),BLUE,TRIM8#
sub58540-35050
main58540-89200-06i198808-198908
BROWN,TRIM4#
sub58540-35050
main58540-89200-06i198808-198908
W(SEPARATE SEAT),BROWN,TRIM4#
sub58540-35050
main58540-89200-06i198808-198908
W(SEPARATE SEAT & FRONT SEAT BELT),BROWN,TRIM4#
sub58540-35050
main58540-89201-03i198808-199909
W(SEPARATE SEAT),GRAY,TRIM1#
sub58540-89201
main58540-89201-04i198808-199408
W(SEPARATE SEAT),BLUE,TRIM8#
sub58540-89201
main58540-89201-06i198808-199108
W(SEPARATE SEAT),BROWN,TRIM4#
sub58540-89201
main58540-89209-02i199008-199108
RED,TRIM3#
main58540-89209-03i198904-199511
GRAY,TRIM1#
main58540-89209-04i198904-199511
BLUE,TRIM8#
main58540-89209-06i198904-199108
BROWN,TRIM4#
67913PLATE, FRONT DOOR SCUFF, RH
main67913-89103-02i199108-199708
RED,TRIM3#
sub67913-89103
main67913-89103-03i198808-200106
GRAY,TRIM1#
sub67913-89103
main67913-89103-04i198808-199708
BLUE,TRIM8#
sub67913-89103
main67913-89103-06i198808-199108
BROWN,TRIM4#
sub67913-89103
main67913-89104-02i199108-199109
RED,TRIM3#
sub67913-89104
sub67913-89105
main67913-89104-03i198808-198901
GRAY,TRIM1#
sub67913-89104
sub67913-89105
main67913-89104-03i198808-198901
W(SPLIT SEAT),GRAY,TRIM1#
sub67913-89104
sub67913-89105
main67913-89104-04i198808-198901
W(SPLIT SEAT),BLUE,TRIM8#
sub67913-89104
sub67913-89105
main67913-89104-04i198808-198901
BLUE,TRIM8#
sub67913-89104
sub67913-89105
main67913-89104-06i198808-198901
W(SPLIT SEAT),BROWN,TRIM4#
sub67913-89104
sub67913-89105
main67913-89104-06i198808-198901
BROWN,TRIM4#
sub67913-89104
sub67913-89105
main67913-89104-B0i198901-200106
MEDIUM GRAY,TRIM1#
sub67913-89104
sub67913-89105
main67913-89104-B0i198901-198908
W(SPLIT SEAT),MEDIUM GRAY,TRIM1#
sub67913-89104
sub67913-89105
main67913-89104-D0i199109-199708
RED,TRIM3#
sub67913-89104
sub67913-89105
main67913-89104-E0i198901-198908
W(SPLIT SEAT),BROWN,TRIM4#
sub67913-89104
sub67913-89105
main67913-89104-E0i198901-199108
BROWN,TRIM4#
sub67913-89104
sub67913-89105
main67913-89104-J0i198901-199708
MEDIUM BLUE,TRIM8#
sub67913-89104
sub67913-89105
main67913-89104-J0i198901-198908
W(SPLIT SEAT),MEDIUM BLUE,TRIM8#
sub67913-89104
sub67913-89105
main67913-89105-02i199108-199109
W(SEPARATE SEAT),RED,TRIM3#
sub67913-89105
main67913-89105-03i198808-198901
W(SEPARATE SEAT),GRAY,TRIM1#
sub67913-89105
main67913-89105-03i198808-198901
GRAY,TRIM1#
sub67913-89105
main67913-89105-04i198808-198901
W(SEPARATE SEAT),BLUE,TRIM8#
sub67913-89105
main67913-89105-04i198808-198901
BLUE,TRIM8#
sub67913-89105
main67913-89105-06i198808-198901
W(SEPARATE SEAT),BROWN,TRIM4#
sub67913-89105
main67913-89105-06i198808-198901
BROWN,TRIM4#
sub67913-89105
main67913-89105-B0i198901-200106
W(SEPARATE SEAT),MEDIUM GRAY,TRIM1#
sub67913-89105
main67913-89105-B0i198901-199708
MEDIUM GRAY,TRIM1#
sub67913-89105
main67913-89105-D0i199109-199708
W(SEPARATE SEAT),RED,TRIM3#
sub67913-89105
main67913-89105-E0i198901-199108
BROWN,TRIM4#
sub67913-89105
main67913-89105-E0i198901-199108
W(SEPARATE SEAT),BROWN,TRIM4#
sub67913-89105
main67913-89105-J0i198901-199708
W(SEPARATE SEAT),MEDIUM BLUE,TRIM8#
sub67913-89105
main67913-89105-J0i198901-199408
MEDIUM BLUE,TRIM8#
sub67913-89105
main67913-89106-03i198908-199108
GRAY,TRIM1#
sub67913-89106
main67913-89106-04i198908-199108
BLUE,TRIM8#
sub67913-89106
main67913-89106-06i198908-199108
BROWN,TRIM4#
sub67913-89106
main67913-89107-02i199008-199108
RED,TRIM3#
sub67913-89107
main67913-89107-03i198904-199511
GRAY,TRIM1#
sub67913-89107
main67913-89107-04i198904-199511
BLUE,TRIM8#
sub67913-89107
main67913-89107-06i198904-199108
BROWN,TRIM4#
sub67913-89107
67914PLATE, FRONT DOOR SCUFF, LH
main67914-89102-02i199108-199708
RED,TRIM3#
sub67914-89102
main67914-89102-03i198808-200106
GRAY,TRIM1#
sub67914-89102
main67914-89102-04i198808-199708
BLUE,TRIM8#
sub67914-89102
main67914-89102-06i198808-199108
BROWN,TRIM4#
sub67914-89102
main67914-89103-02i199108-199109
RED,TRIM3#
sub67914-89103
sub67914-89104
main67914-89103-03i198808-198901
GRAY,TRIM1#
sub67914-89103
sub67914-89104
main67914-89103-03i198808-198901
W(SPLIT SEAT),GRAY,TRIM1#
sub67914-89103
sub67914-89104
main67914-89103-04i198808-198901
BLUE,TRIM8#
sub67914-89103
sub67914-89104
main67914-89103-04i198808-198901
W(SPLIT SEAT),BLUE,TRIM8#
sub67914-89103
sub67914-89104
main67914-89103-06i198808-198901
BROWN,TRIM4#
sub67914-89103
sub67914-89104
main67914-89103-06i198808-198901
W(SPLIT SEAT),BROWN,TRIM4#
sub67914-89103
sub67914-89104
main67914-89103-B0i198901-198908
W(SPLIT SEAT),MEDIUM GRAY,TRIM1#
sub67914-89103
sub67914-89104
main67914-89103-B0i198901-200106
MEDIUM GRAY,TRIM1#
sub67914-89103
sub67914-89104
main67914-89103-D0i199109-199708
RED,TRIM3#
sub67914-89103
sub67914-89104
main67914-89103-E0i198901-199108
BROWN,TRIM4#
sub67914-89103
sub67914-89104
main67914-89103-E0i198901-198908
W(SPLIT SEAT),BROWN,TRIM4#
sub67914-89103
sub67914-89104
main67914-89103-J0i198901-199708
MEDIUM BLUE,TRIM8#
sub67914-89103
sub67914-89104
main67914-89103-J0i198901-198908
W(SPLIT SEAT),MEDIUM BLUE,TRIM8#
sub67914-89103
sub67914-89104
main67914-89104-02i199108-199109
W(SEPARATE SEAT),RED,TRIM3#
sub67914-89104
main67914-89104-03i198808-198901
W(SEPARATE SEAT),GRAY,TRIM1#
sub67914-89104
main67914-89104-03i198808-198901
GRAY,TRIM1#
sub67914-89104
main67914-89104-04i198808-198901
W(SEPARATE SEAT),BLUE,TRIM8#
sub67914-89104
main67914-89104-04i198808-198901
BLUE,TRIM8#
sub67914-89104
main67914-89104-06i198808-198901
W(SEPARATE SEAT),BROWN,TRIM4#
sub67914-89104
main67914-89104-06i198808-198901
BROWN,TRIM4#
sub67914-89104
main67914-89104-B0i198901-200106
W(SEPARATE SEAT),MEDIUM GRAY,TRIM1#
sub67914-89104
main67914-89104-B0i198901-199708
MEDIUM GRAY,TRIM1#
sub67914-89104
main67914-89104-D0i199109-199708
W(SEPARATE SEAT),RED,TRIM3#
sub67914-89104
main67914-89104-E0i198901-199108
W(SEPARATE SEAT),BROWN,TRIM4#
sub67914-89104
main67914-89104-E0i198901-199108
BROWN,TRIM4#
sub67914-89104
main67914-89104-J0i198901-199708
W(SEPARATE SEAT),MEDIUM BLUE,TRIM8#
sub67914-89104
main67914-89104-J0i198901-199408
MEDIUM BLUE,TRIM8#
sub67914-89104
main67914-89105-03i198908-199108
GRAY,TRIM1#
sub67914-89105
main67914-89105-04i198908-199108
BLUE,TRIM8#
sub67914-89105
main67914-89105-06i198908-199108
BROWN,TRIM4#
sub67914-89105
main67914-89106-02i199008-199108
RED,TRIM3#
sub67914-89106
main67914-89106-03i198904-199511
GRAY,TRIM1#
sub67914-89106
main67914-89106-04i198904-199511
BLUE,TRIM8#
sub67914-89106
main67914-89106-06i198904-199108
BROWN,TRIM4#
sub67914-89106
9016745002
main90167-45002

6 parts on this diagram · 4 diagrams in section

FLOOR MAT & SILENCER PAD — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
