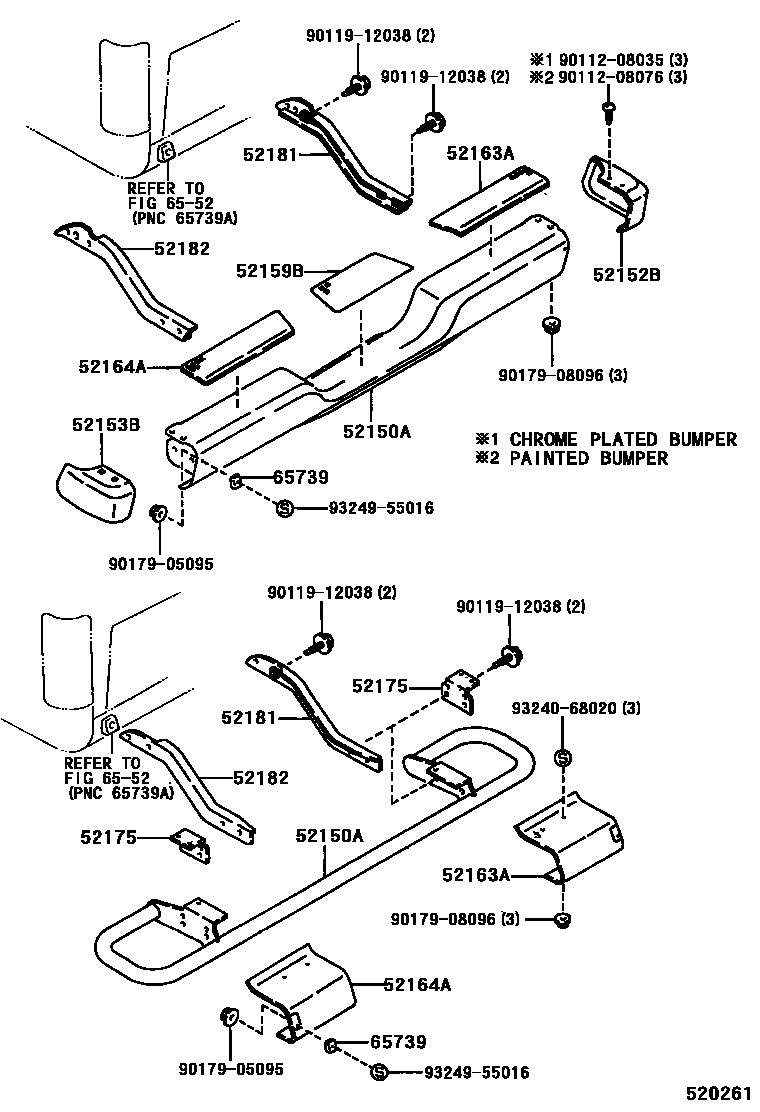

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0004 1

52150ABUMPER ASSY, REAR

main52105-35060-E0iVZN130199108-199308

PAINTED BUMPER,SILVER M.,27L

sub52105-35908

main52105-35060-F0iVZN130199108-199511

PAINTED BUMPER,BLUE GRAY M.,25T

sub52105-35908

main52105-35070-E0iLN13#,RN13#..GEN,V199108-199308

SILVER M.,27L

sub52105-35909

main52105-35070-F0iLN13#,RN13#..GEN,V199108-199511

BLUE GRAY M.,25T

sub52105-35909

main52105-35080-E0iVZN130199108-199308

SILVER M.,27L

sub52105-35910

main52105-35080-F0iVZN130199108-199511

BLUE GRAY M.,25T

sub52105-35910

main52105-35090iLN13#,RN13#..GEN199108-199511

sub52105-35911

main52105-35100iLN130,RN130,VZN130..ARL199108-199511

sub52105-35912

main52105-35110iVZN130199108-199511

PAINTED BUMPER

sub52105-35913

main52105-35150iRN135..V199411-199511

CHROME PLATED BUMPER

main52105-89116iLN135,YN135199008-199108

main52105-89117iLN13#,RN13#..GEN199108-199411

CHROME PLATED BUMPER

main52105-89118iLN130,RN130,VZN130199008-199108

sub52105-35905

main52105-89120-03iRN135199008-199108

SILVER.M,27L

main52105-89120-13iRN135199008-199108

D.GRAY.M,28L

main52105-89121-03iRN130,VZN130..SR5199008-199108

SILVER.M,27L

sub52105-35906

main52105-89121-13iRN130,VZN130..SR5199008-199108

D.GRAY.M,28L

sub52105-35906

main52105-95111iRN105..V;LN107..ARL199508-199812

W(REAR BUMPER = PIPE TYPE)

main52150-35010iRN106..STD;LN10#,111,YN106..GEN199108-200106

W(STEP BUMPER)

main52150-89108iLN107;LN106,111,RN10#,YN106..(DLX,STD)..(GEN,V)199508-200106

W(CHROME PLATED STEP BUMPER)

main52150-89113iRN105..V;LN111,RN110..ARL198808-199108

52152BEXTENSION, REAR BUMPER, RH

main52106-35020iLN13#,RN13#,VZN130..ARL,GEN199108-199511

sub52106-35902

main52106-35030-E0iVZN130;LN13#,RN13#..GEN,V199108-199308

SILVER M.,27L

main52106-35030-F0iVZN130;LN13#,RN13#..GEN,V199411-199511

BLUE GRAY M.,25T

main52106-89105iLN135,RN135,YN135198904-198908

main52106-89106iRN135..V198908-199511

main52106-89107-03iLN130,RN13#,VZN130,YN130..SR5198907-199108

SILVER.M,27L

main52106-89107-13iLN130,RN13#,VZN130,YN130..SR5198907-199108

D.GRAY.M,28L

main52152-35010iRN106..SR5..GEN;RN105..(GEN,V)..CBU;LN111,RN110..ARL..CBU199108-199909

main52152-89104iLN10#,111..GEN;YN106..LHD..IV3;RN10#,YN106..(DLX,STD)..(GEN,V)..CBU199008-200106

W(CHROME PLATED STEP BUMPER)

main52152-89112iRN105..V;LN111,RN110..ARL198808-199108

52153BEXTENSION, REAR BUMPER, LH

main52107-35010iLN13#,RN13#,VZN130..ARL,GEN199108-199511

sub52107-35902

main52107-35020-E0iVZN130;LN13#,RN13#..GEN,V199108-199308

SILVER M.,27L

main52107-35020-F0iVZN130199408-199411

BLUE GRAY M.,25T

main52107-89103iLN13#,RN130,VZN130,YN13#198908-199108

main52107-89104iLN135,YN135198908-199108

CHROME PLATED PACKAGE

main52107-89105-03iLN130,RN13#,VZN130,YN130..SR5198907-199108

SILVER.M,27L

main52107-89105-13iLN130,RN13#,VZN130,YN130..SR5198907-199108

D.GRAY.M,28L

main52153-35010iRN106..STD;LN10#,111,YN106..GEN199108-200106

W(STEP BUMPER)

main52153-89104iLN106,111,RN105,YN106..(GEN,V)..CBU198808-199008

W(CHROME PLATED STEP BUMPER)

main52153-89112iLN106,111,YN106..GEN..CBU198808-199008

W(STEP BUMPER)

52159BPLATE, REAR BUMPER

main52159-35030iKZN205,LN205200106

main52159-89102iLN106,RN10#..(GEN,V)..CBU;LN107,111,RN110,YN106..CBU199508-200106

main52159-89106iLN13#,RN13#,VZN130,YN13#198904-199511

52163APLATE, REAR BUMPER, RH

main52163-35030iKZN205,LN205200106

main52163-89101iLN106,111,YN106..GEN..IV3199208-199812

W(CHROME PLATED STEP BUMPER)

main52163-89103iLN10#,RN10#..ARL..CBU198808-199508

W(REAR BUMPER = PIPE TYPE)

52164APLATE, REAR BUMPER, LH

main52164-35030iKZN205,LN205200106

main52164-89101iLN111,RN110,YN106..CBU;LN106,RN105..(GEN,V)..CBU198808-199008

main52164-89102iLN106,RN10#..ARL..CBU199508-199708

52175BRACKET, REAR BUMPER ARM MOUNTING

main52175-95110×2iLN10#,RN10#..(ARL,V)..CBU198808-199812

52181ARM, REAR BUMPER, RH

main52181-89117iLN107;LN106,RN10#,YN106..GEN,V199508-200106

main52181-89118iLN111,RN110..CBU198808-199008

main52181-89120iLN10#,RN10#..ARL..CBU198808-199508

W(REAR BUMPER = PIPE TYPE)

52182ARM, REAR BUMPER, LH

main52182-89114iYN106..LHD..IV3;LN106,RN106..GEN;RN105,YN106..(GEN,V)..CBU199008-199508

main52182-89115iLN111..GEN..IV3;LN111,RN110..CBU199008-199708

main52182-89117iRN105..V;LN107..ARL199508-199812

W(REAR BUMPER = PIPE TYPE)

6552

65739BUMPER, TAIL GATE

main65739-89101×2iLN10#,RN10#..(ARL,V)..CBU198808-199812

9011208035

main90112-08035

9011208076

main90112-08076

9011912038

main90119-12038

9017905095

main90179-05095

9017908096

main90179-08096

9324068020

main93240-68020

9324955016

main93249-55016

18 parts on this diagram · 3 diagrams in section
