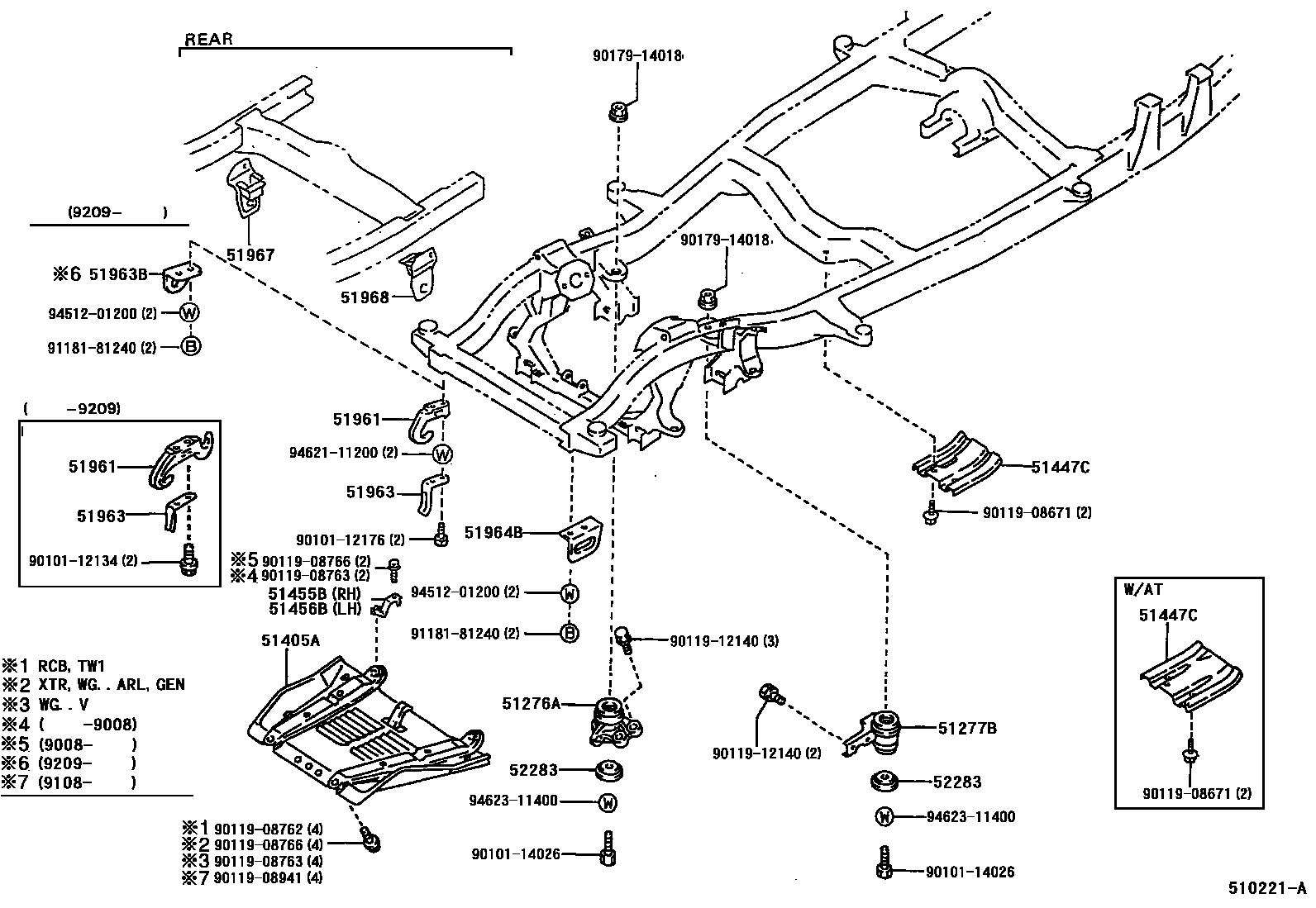

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51276ABRACKET, DIFFERENTIAL SUPPORT

main51250-35010iLN107,111,13#,RN106,110,13#,VZN130,YN13#198808-199603

main51250-35011iLN107,111,RN106,110199603-200106

51277BBRACKET ASSY, DIFFERENTIAL SUPPORT, LH

main51260-35020iLN107,111,13#,RN106,110,13#,VZN130,YN13#198808-199603

main51260-35021iLN107,111,RN106,110199603-200106

51405ACOVER SUB-ASSY, ENGINE UNDER, NO.1

main51405-35020iLN106,RN105,YN106..LHD198808-198903

main51405-35021iLN106,RN105,YN106..LHD198903-199708

main51405-35062iKZN205,LN205200106

main51441-35120iLN106,RN105,YN106..RHD198808-198903

main51441-35121iLN106,RN105,YN106..RHD198903-199909

main51441-35140iRN135..V198907-199511

main51441-35150iLN107,111,13#,RN106,110,13#,VZN130,YN13#..ARL,GEN198808-200106

51447CPROTECTOR, TRANSFER CASE

main51447-35020iLN205..DLX200202

main51447-35031iLN13#,RN13#;LN107,111,RN106,110,VZN130..ARL199108-199812

main51447-35040iKZN205200111-200202

51455BBRACKET, ENGINE UNDER COVER, REAR RH

main51455-35020iRN135199008-199108

main51455-35021iRN135..V199108-199511

51456BBRACKET, ENGINE UNDER COVER, REAR LH

main51456-35020iRN135199008-199108

main51456-35021iRN135..V199108-199511

51961HOOK, NO.1

main51961-35020iLN10#,111,13#,RN10#,110,13#,VZN130,YN106199209-200106

main51961-35030iLN107,111,13#,RN106,110,13#,VZN130,YN13#198808-199209

51963STOPPER, HOOK WIRE

main51963-35080iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-200106

51963BHOOK, TRANSPORT, FRONT RH

main51963-35070iLN107,111,13#,RN106,110,13#,VZN130199209-200106

51964BHOOK, TRANSPORT, FRONT LH

main51964-35050iLN107,111,13#,RN106,110,13#,VZN130,YN13#198808-200106

51967HOOK, TRANSPORT, REAR

main51967-35010iLN130,RN130,VZN130,YN130198908-199511

51968SPACER, HOOK

main51968-35010iLN130,RN130,VZN130,YN130198908-199511

52283STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER

main52283-35010iLN107,111,13#,RN106,110,13#,VZN130,YN13#198808-199603

main52283-35011iLN107,111,RN106,110199603-200106

9010112134

main90101-12134

9010112176

main90101-12176

9010114026

main90101-14026

9011908671

main90119-08671

9011908762

main90119-08762

9011908763

main90119-08763

9011908766

main90119-08766

9011908941

main90119-08941

9011912140

main90119-12140

9017914018

main90179-14018

9118181240

main91181-81240

9451201200

main94512-01200

9462111200

main94621-11200

9462311400

main94623-11400

27 parts on this diagram · 2 diagrams in section
