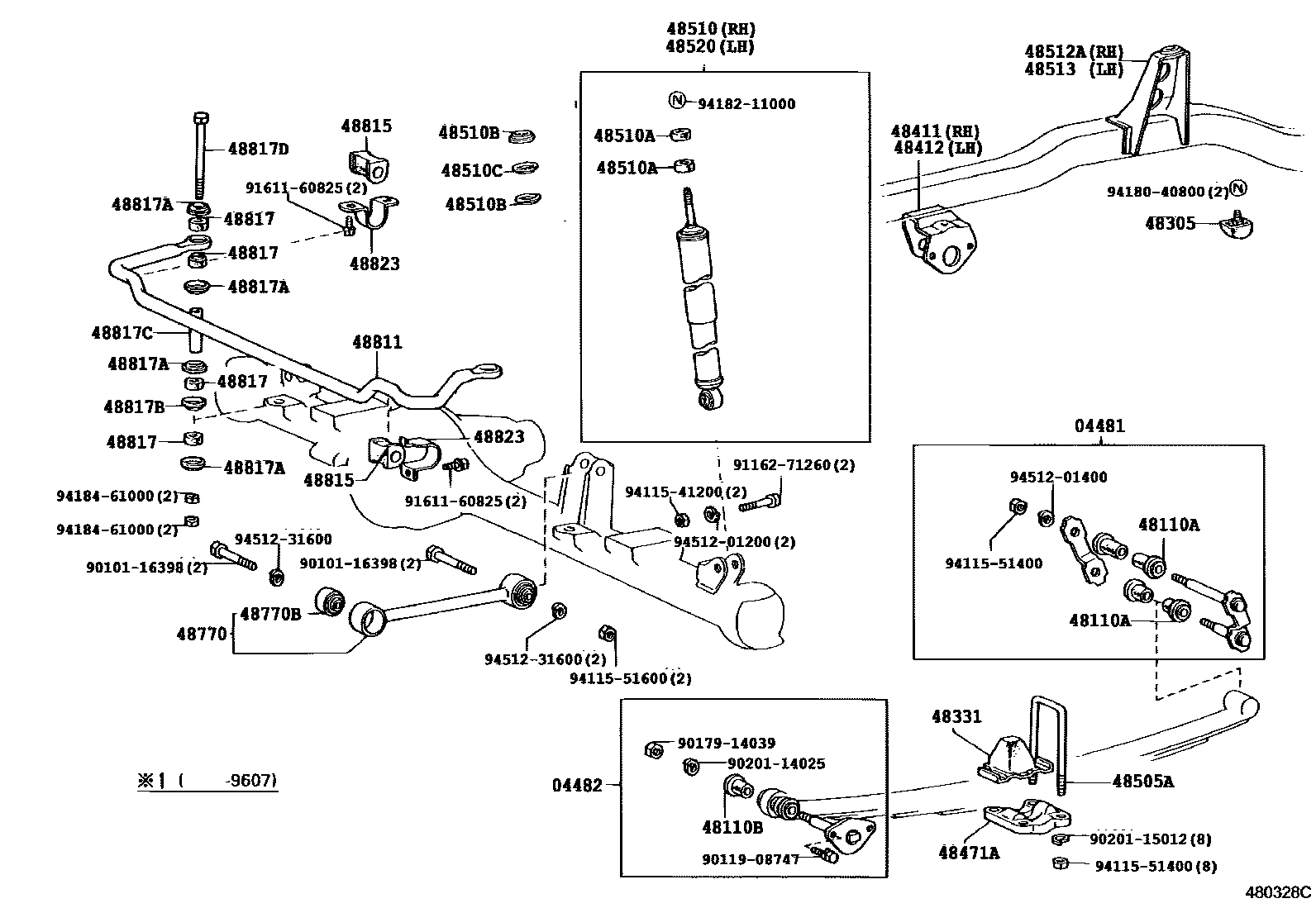

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 1 0006 1

04481SHACKLE KIT, FRONT SPRING

main04481-35040iLN106,RN105,YN106198808-199108

main04481-35050×2iLN106,RN105,YN106199108-199909

04482PIN KIT, FRONT SPRING

main04482-35030×2iLN106,RN105,YN106198808-199108

main04484-35060×2iLN106,RN105,YN106199108-199909

48110SPRING ASSY, FRONT, RH

main48110-35210iLN106..LHD198808-199708

5-LEAF

main48110-35220iRN105,YN106..LHD198808-199708

5-LEAF

main48110-35230iLN106..RHD198808-199909

5-LEAF

main48110-35240iRN105,YN106..RHD198808-199708

5-LEAF

48110ABUSH(FOR FRONT SPRING SHACKLE)

main90385-18007×4iLN106,RN105,YN106198808-199909

L=56

main90385-18046×4iLN106,RN105,YN106198808-199909

L=36

48110BBUSH(FOR FRONT SPRING PIN)

main90385-18046×4iLN106,RN105,YN106198808-199909

48305BUMPER SUB-ASSY, FRONT SPRING, NO.2

main48305-27010×2iLN106,RN105,YN106198808-199909

main48305-35020×2iLN107,111,13#,RN106,110,13#,VZN130,YN13#198808-200106

48331BUMPER, FRONT SPRING, NO.1

main48304-35100iLN106,RN105,YN106198808-199909

RH

main48304-35110iLN106,RN105,YN106198808-199909

LH

48411BRACKET, FRONT SPRING(FOR FRONT RH)

main48411-35040iLN106,RN105,YN106198808-199909

48412BRACKET, FRONT SPRING(FOR FRONT LH)

main48411-35040iLN106,RN105,YN106198808-199909

48471ASEAT, FRONT SPRING SUPPORT

main48471-35010iLN106,RN105,YN106198808-199909

RH

main48472-35020iLN106,RN105,YN106198808-199909

LH

48505ABOLT, U(FOR FRONT SPRING)

main90117-14008×2iLN106,RN105,YN106198808-199909

L=155

main90117-14011×2iLN106,RN105,YN106198808-199909

L=190

48510ABSORBER ASSY, SHOCK, FRONT RH

main48511-39635iLN111,RN110198808-198810

main48511-39636iLN111,RN110198810-198904

main48511-39637iLN107,111,RN106,110199607-199807

main48511-39655iRN105..V198808-199607

main48511-39656iRN105..V199607-199708

main48511-39665iRN105..ARL;LN106,YN106198808-199607

main48511-39666iRN105..ARL;LN106,YN106199607-199909

main48511-39765iLN13#,RN13#,YN135..GEN,V198904-199511

main48511-39815iLN107,111,RN106,110198904-199607

main48511-80001iLN106..RHD..TW1..GEN;LN106..RHD..GEN..IV3; RN105..GEN199108-199607

NEW ZEALAND SPEC

main48511-80003iLN130,RN130,VZN130,YN130..ARL198908-199511

main48511-80026iLN106..RHD..TW1..GEN;LN106..RHD..GEN..IV3199607-199806

NEW ZEALAND SPEC

main48511-80062iLN107,RN106199807-200106

MARK 48511-3D180

main48511-80065iKZN205,LN205200106-200401

MARK 48511-3D101

main48511-80111iKZN205,LN205200401

MARK 48511-3D101

48510ACUSHION, FRONT SHOCK ABSORBER

main90948-01003×2iKZN205,LN205200106

L=15

main90948-01045×2iLN107,111,13#,RN106,110,13#,VZN130,YN13#198904-200106

L=21

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02002×4iLN106,111,RN105,110,YN106198808-198904

main90948-02131×4iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198904-200106

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02087×2iLN106,111,RN105,110,YN106198808-198810

main90948-02119×2iKZN205,LN205200106

48512ABRACKET, FRONT SHOCK ABSORBER, UPPER RH

main48501-35020iLN106,RN105,YN106199008-199909

main48512-35040iLN106,RN105,YN106198808-199008

48513BRACKET, FRONT SHOCK ABSORBER, UPPER LH

main48502-35020iLN106,RN105,YN106199008-199909

main48512-35040iLN106,RN105,YN106198808-199008

48520ABSORBER ASSY, SHOCK, FRONT LH

main48511-39635iLN111,RN110198808-198810

main48511-39636iLN111,RN110198810-198904

main48511-39637iLN107,111,RN106,110199607-199807

main48511-39655iRN105..V198808-199607

main48511-39656iRN105..V199607-199708

main48511-39665iRN105..ARL;LN106,YN106198808-199607

main48511-39666iRN105..ARL;LN106,YN106199607-199909

main48511-39765iLN13#,RN13#,YN135..GEN,V198904-199511

main48511-39815iLN107,111,RN106,110198904-199607

main48511-80001iLN106..RHD..TW1..GEN;LN106..RHD..GEN..IV3; RN105..GEN199108-199607

NEW ZEALAND SPEC

main48511-80003iLN130,RN130,VZN130,YN130..ARL198908-199511

main48511-80026iRN105..GEN199607-199708

main48511-80062iLN107,RN106199807-200106

MARK 48511-3D180

main48511-80065iKZN205,LN205200106-200401

MARK 48511-3D101

48770ROD SUB-ASSY, TORQUE

main48760-35020iLN106,RN105,YN106198808-199909

48770BBUSH, TORQUE ROD

main48725-35010×2iLN106,RN105,YN106198808-199909

48811BAR, STABILIZER, FRONT

main48811-35091iLN106,YN106..LHD198808-199708

main48811-35320iLN111,RN110198808-199708

main48811-35330iLN107,RN106199108-200106

main48811-35350iLN13#,RN13#,VZN130199108-199511

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-14160×2iLN107,13#,RN106,13#,VZN130,YN13#198904-200106

main48815-20030×2iLN106,YN106..LHD198808-199708

main48815-24020×2iLN111,RN110198808-199708

48817CUSHION, FRONT STABILIZER

main90948-01002×8iLN111,135,RN110,YN135;LN106,RN135,YN106..LHD198808-199108

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02004×8iLN111,135,RN110,YN135;LN106,RN135,YN106..LHD198808-199108

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02034×2iLN106,YN106..LHD;LN107,111,13#,RN106,110,13#,VZN130,YN13#198808-200106

48817CCOLLAR(FOR STABILIZER BAR)

main90440-14003×2iLN111,135,RN110,YN135;LN106,RN135,YN106..LHD198808-199108

48817DBOLT(FOR FRONT STABILIZER)

main90101-10140×2iLN106,YN106..LHD198808-199708

48823COVER, STABILIZER LINK(FOR FRONT)

main48823-35030×2iLN106,YN106..LHD198808-199708

9010116398

main90101-16398

9011908747

main90119-08747

9017914039

main90179-14039

9020114025

main90201-14025

9020115012

main90201-15012

9116271260

main91162-71260

9161160825

main91611-60825

9411541200

main94115-41200

9411551400

main94115-51400

9411551600

main94115-51600

9418040800

main94180-40800

9418211000

main94182-11000

9418461000

main94184-61000

9451201200

main94512-01200

9451201400

main94512-01400

9451231600

main94512-31600

44 parts on this diagram · 5 diagrams in section
