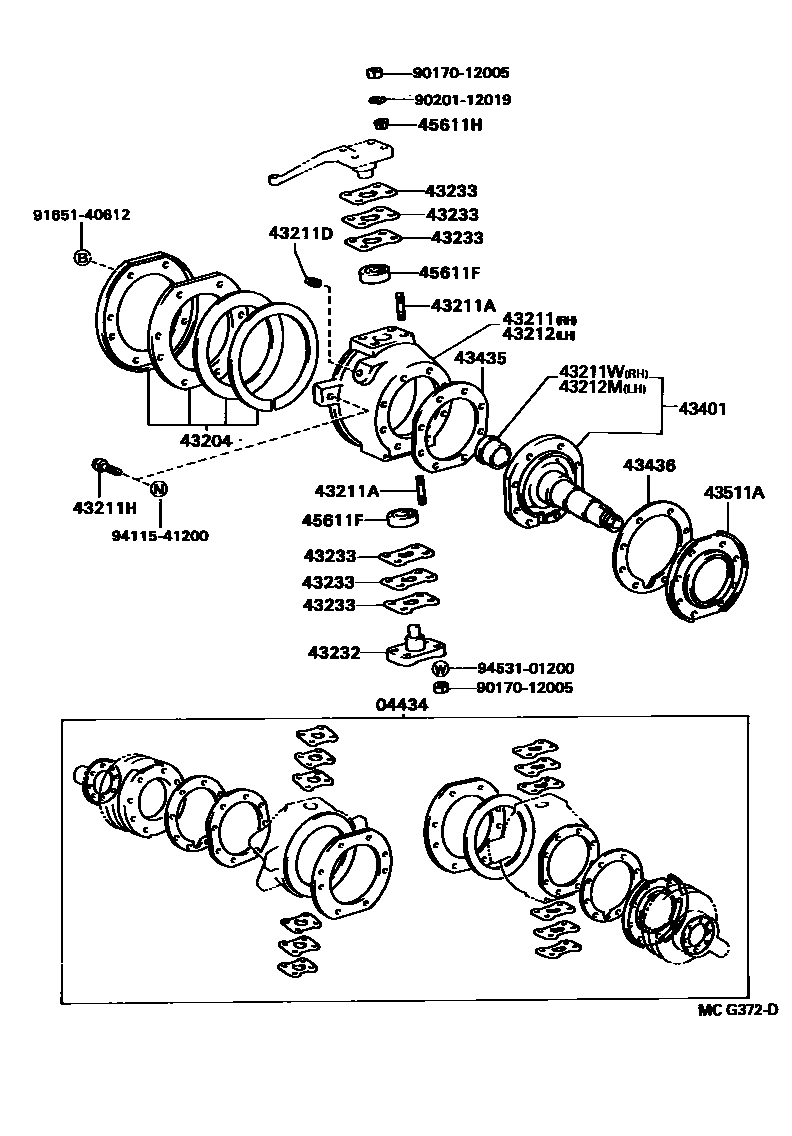

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1 0003 1

04434GASKET KIT, FRONT AXLE OVERHAUL

main04434-60012iLN106,RN105,YN106198808-199506

main04434-60015iLN106,RN105,YN106199506-199909

43204SEAL SUB-ASSY, STEERING KNUCKLE OIL

main43204-60020×2iLN106,RN105,YN106198808-199909

43211KNUCKLE, STEERING, RH

main43201-35040iLN107,111,13#,RN106,110,13#,VZN130,YN13#198808-199406

main43211-35090iLN106,RN105,YN106198808-199909

43211ABOLT, STUD (FOR STEERING SET)

main90116-12007×16iLN106,RN105,YN106198808-199909

sub90126-12005

43211DPLUG (FOR STEERING KNUCKLE)

main90345-53020×2iLN106,RN105,YN106198808-199909

43211HBOLT, ROUND HEXAGON

main90106-12022×4iLN106,RN105,YN106198808-199909

43211WBUSH (FOR STEERING KNUCKLE RH)

main90381-30003iLN107,111,13#,RN106,110,13#,VZN130,YN13#198808-200106

OUTER

main90381-30006iLN107,111,13#,RN106,110,13#,VZN130,YN13#198907-199905

INNER

main90381-32001iKZN205,LN205200106

INNER

main90381-33001iLN106,RN105,YN106198808-199002

main90381-33002iLN106,RN105,YN106199002-199909

main90999-70068iLN111,135,RN110,YN135198808-198907

INNER

sub90999-70069

43212KNUCKLE, STEERING, LH

main43202-35030iLN107,111,13#,RN106,110,13#,VZN130,YN13#198808-199406

main43212-35050iLN106,RN105,YN106198808-199909

43212MBUSH (FOR STEERING KNUCKLE LH)

main90381-30003iKZN205,LN205200106

OUTER

main90381-30006iLN107,111,13#,RN106,110,13#,VZN130,YN13#198907-199905

INNER

main90381-32001iKZN205,LN205200106

INNER

main90381-33001iLN106,RN105,YN106198808-199002

main90381-33002iLN106,RN105,YN106199002-199909

main90999-70068iLN111,135,RN110,YN135198808-198907

INNER

sub90999-70069

43232CAP, STEERING KNUCKLE BEARING

main43232-35010×2iLN106,RN105,YN106198808-199909

43233SHIM, STEERING KNUCKLE ADJUST, NO.1

main43233-60011iLN106,RN105,YN106198808-199909

T=0.20

main43234-60011iLN106,RN105,YN106198808-199909

T=0.50

main43235-60010iLN106,RN105,YN106198808-199909

T=1.0

main43236-60010iLN106,RN105,YN106198808-199909

T=0.1

43401SPINDLE SUB-ASSY, STEERING KNUCKLE

main43401-60012×2iLN106,RN105,YN106198808-199002

main43401-60060×2iLN106,RN105,YN106199002-199909

43435GASKET, KNUCKLE SPINDLE

main43435-60011×2iLN106,RN105,YN106198808-199909

43436GASKET, KNUCKLE SPINDLE OIL RETAINER

main43436-60011×2iLN106,RN105,YN106198808-199909

43511ASEAL, DUST (FOR FRONT AXLE HUB)

main90313-93011×2iLN106,RN105,YN106198808-199909

45611FBEARING(FOR STEERING KNUCKLE ARM)

main90366-17001×4iLN106,RN105,YN106198808-199909

sub90366-17007

45611HDOWEL, SPLIT(FOR STEERING KNUCKLE ARM)

main42323-60020×8iLN106,RN105,YN106198808-199909

9017012005

main90170-12005

9020112019

main90201-12019

9165140612

main91651-40612

9411541200

main94115-41200

9453101200

main94531-01200

22 parts on this diagram · 3 diagrams in section
