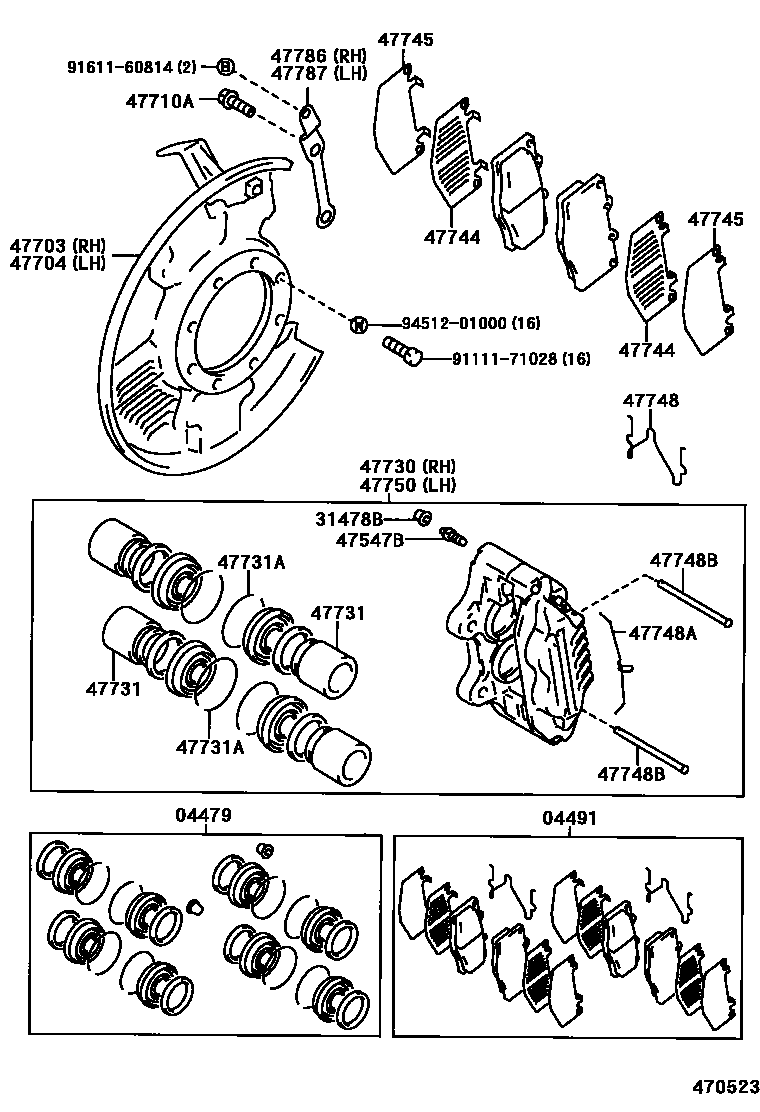

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-35010iLN130,RN130..GEN;LN10#,111,135,RN10#,110,135,YN106198808-200002

main04479-60020iLN130,RN130,VZN130..ARL199108-199511

04491PAD KIT, DISC BRAKE, FRONT

main04491-35160iLN106,111,13#,RN105,110,13#,VZN130,YN106,13#198808-199505

main04491-35170iLN106,111,13#,RN10#,13#,YN106..GEN,V199108-199405

main04491-35240iLN130,RN130,VZN130..ARL199108-199505

main04491-35241iLN130,RN130,VZN130..ARL199309-199408

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-200002

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20030iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-200002

47703COVER SUB-ASSY, DISC BRAKE DUST, FRONT RH

main47703-35050iLN106,RN105,YN106198808-199909

main47703-35060iLN111,13#,RN110,13#,VZN130,YN13#198808-199106

main47703-35061iLN107,111,13#,RN106,110,13#,VZN130,YN135199106-199308

main47703-35062iLN107,111,13#,RN106,110,13#,VZN130199308-200412

47704COVER SUB-ASSY, DISC BRAKE DUST, FRONT LH

main47704-35050iLN106,RN105,YN106198808-199909

main47704-35060iLN111,13#,RN110,13#,VZN130,YN13#198808-199106

main47704-35061iLN107,111,13#,RN106,110,13#,VZN130,YN135199106-199308

main47704-35062iLN107,111,13#,RN106,110,13#,VZN130199308-200412

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90101-12144iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-200412

*12-1.25PX38-23

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-35080iLN130,RN130..GEN;LN10#,111,135,RN10#,110,135,YN106198808-200002

main47730-35090iLN130,RN130,VZN130..ARL199108-199511

47731PISTON, FRONT DISC BRAKE

main47731-35010iLN106,111,13#,RN105,110,13#,VZN130,YN106,13#198808-200002

main47731-60010iLN130,RN130,VZN130..ARL199108-199511

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-48044iLN106,RN106198808-200002

main90522-50003iLN130,RN130,VZN130..ARL199108-199511

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-35020iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-200002

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-35020iLN10#,111,13#,RN10#,110,13#,VZN130,YN106198808-200002

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-60010iLN106,111,13#,RN105,110,13#,VZN130,YN106,13#198808-200002

main47748-60030iLN130,RN130,VZN130..ARL199108-199511

47748ACLIP(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90468-12015iLN10#,RN106198808-200002

main90468-12019iLN130,RN130,VZN130..ARL199108-199511

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main90240-06014iLN130,RN130,VZN130..ARL199108-199511

main90240-06158iLN130,RN130..GEN;LN10#,111,135,RN10#,110,135,YN106198808-200002

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-35080iLN106,RN106198808-200002

main47750-35090iLN130,RN130,VZN130..ARL199108-199511

47786REINFORCEMENT, DUST COVER, RH

main47786-60020iLN106,RN105,YN106198808-199909

47787REINFORCEMENT, DUST COVER, LH

main47787-60020iLN106,RN105,YN106198808-199909

9111171028

main91111-71028

9161160814

main91611-60814

9451201000

main94512-01000

21 parts on this diagram · 3 diagrams in section
