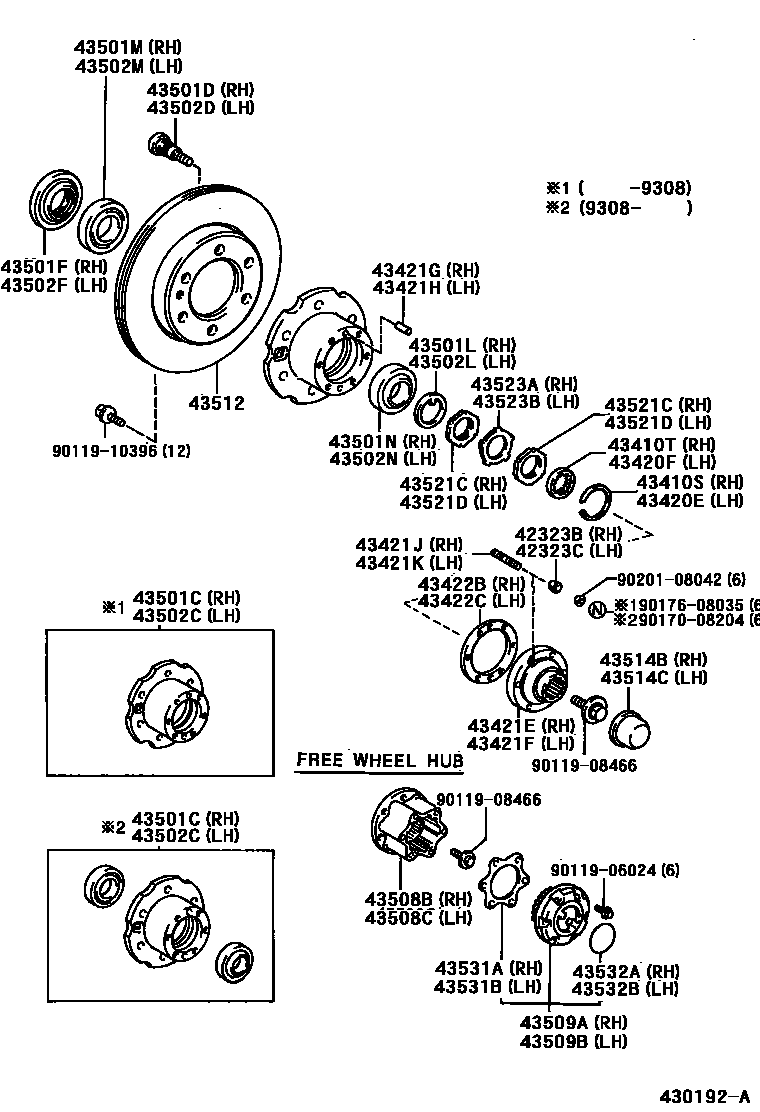

FRONT AXLE HUB

0001 1 0002 1

42323BWASHER, CONE (FOR FRONT AXLE SHAFT RH)

main42323-60010×6iLN111..ARL;LN111..GEN..CBU;LN10#,13#,RN10#,110,13#,VZN130,YN106199406-200106

42323CWASHER, CONE (FOR FRONT AXLE SHAFT LH)

main42323-60010×6iKZN205,LN205200106

43410SRING, SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-27023iLN107,111,13#,RN106,110,13#,VZN130,YN13#198808-199406

T=1.5

main90520-31001iLN106,RN105,YN106198808-199909

43410TSPACER (FOR FRONT DRIVE SHAFT RH)

main90560-27005iKZN205,LN205200106

T=2.0

main90560-27010iLN107,111,13#,RN106,110,13#,VZN130,YN13#198808-200106

T=1.8

main90560-27011iLN107,111,13#,RN106,110,13#,VZN130,YN13#198808-200106

T=2.25

43420ERING, SNAP (FOR FRONT DRIVE SHAFT LH)

main90520-27023iKZN205,LN205200106

T=1.5

main90520-31001iLN106,RN105,YN106198808-199909

43420FSPACER (FOR FRONT DRIVE SHAFT LH)

main90560-27005iLN107,111,13#,RN106,110,13#,VZN130,YN13#198808-199406

T=2.0

main90560-27010iLN107,111,13#,RN106,110,13#,VZN130,YN13#198808-200106

T=1.8

main90560-27011iKZN205,LN205200106

T=2.25

43421EFLANGE, FRONT AXLE OUTER SHAFT, RH

main43421-35010iRN106..ARL;RN106..EFI;LN130,RN130..GEN;LN107,111,135,RN110,135..CBU199406-199510

main43421-60013iLN106,RN105,YN106..GEN,V199108-199909

43421FFLANGE, FRONT AXLE OUTER SHAFT, LH

main43421-35010iRN106,VZN130..(2D,TW1)..ARL;LN107,111,135,RN110,135,YN135;LN130,RN106,130..(DLX,STD)..GEN199008-199402

main43421-60013iRN105..DLX,SR5;LN106,YN106..GEN198808-199108

43421GPIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE RH)

main90250-07057×2iKZN205,LN205..DLX,SR5200106

43421HPIN, STRAIGHT (FOR FRONT AXLE OUTER SHAFT FLANGE LH)

main90250-07057×2iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-199406

43421JBOLT, STUD (FOR FRONT AXLE OUTER SHAFT FLANGE RH)

main90116-08325×6iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-199406

43421KBOLT, STUD (FOR FRONT AXLE OUTER SHAFT FLANGE LH)

main90116-08325×6iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-199406

43422BGASKET, FRONT AXLE OUTER SHAFT FLANGE, RH

main43422-60010iLN10#,111,13#,RN10#,110,13#,VZN130,YN106199506-200106

main43422-60020iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-199406

43422CGASKET, FRONT AXLE OUTER SHAFT FLANGE, LH

main43422-60010iLN10#,111,13#,RN10#,110,13#,VZN130,YN106199506-200106

main43422-60020iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-199406

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-39095iLN106,RN105,YN106199108-199909

main43502-60020iLN106,RN105,YN106198808-199108

main43503-29015iKZN205..SR5; KZN205..SRV200108

W(ABS)

main43511-35100iLN107,111,13#,RN106,110,13#,VZN130199108-199308

main43511-35905iLN111,13#,RN110,13#,VZN130,YN13#198808-199108

main43511-39015iKZN205,LN205..DLX,SR5200106

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×6iLN111..ARL;LN111..GEN..CBU;LN107,13#,RN106,110,13#,VZN130199406-200106

main90942-02053×6iLN106,RN105,YN106198808-199909

43501FSEAL, OIL (FOR FRONT AXLE HUB RH)

main90311-62001iLN106,RN105,YN106198808-199909

main90311-66001iLN107,111,13#,RN106,110,13#,VZN130,YN13#198808-199406

main90311-66003iLN107,111,13#,RN106,110,13#,VZN130199509-200106

43501LWASHER, CLAW (FOR FRONT AXLE HUB RH)

main90214-42030iLN111..ARL;LN111..GEN..CBU;LN10#,13#,RN10#,110,13#,VZN130,YN106199406-200106

43501MBEARING (FOR FRONT AXLE HUB INNER RH)

main90080-36064iLN107,111,13#,RN106,110,13#,VZN130199308-199406

main90368-49084iLN106,111,13#,RN105,110,13#,VZN130,YN106,13#198808-199108

43501NBEARING (FOR FRONT AXLE HUB OUTER RH)

main90080-36067iLN10#,111,13#,RN10#,110,13#,VZN130,YN106199408-200106

main90368-45087iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-199308

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-39095iLN106,RN105,YN106199108-199909

main43502-60020iLN106,RN105,YN106198808-199108

main43503-29015iKZN205..SR5; KZN205..SRV200108

W(ABS)

main43511-35100iLN107,111,13#,RN106,110,13#,VZN130199108-199308

main43511-35905iLN111,13#,RN110,13#,VZN130,YN13#198808-199108

main43511-39015iKZN205,LN205..DLX,SR5200106

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×6iLN111..ARL;LN111..GEN..CBU;LN107,13#,RN106,110,13#,VZN130199406-200106

main90942-02053×6iLN106,RN105,YN106198808-199909

43502FSEAL, OIL (FOR FRONT AXLE HUB LH)

main90311-62001iLN106,RN105,YN106198808-199909

main90311-66001iLN107,111,13#,RN106,110,13#,VZN130,YN13#198808-199406

main90311-66003iLN107,111,13#,RN106,110,13#,VZN130199509-200106

43502LWASHER, CLAW (FOR FRONT AXLE HUB LH)

main90214-42030iLN111..ARL;LN111..GEN..CBU;LN10#,13#,RN10#,110,13#,VZN130,YN106199406-200106

43502MBEARING (FOR FRONT AXLE HUB INNER LH)

main90080-36064iLN107,111,13#,RN106,110,13#,VZN130199308-199406

main90368-49084iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-199308

43502NBEARING (FOR FRONT AXLE HUB OUTER LH)

main90080-36067iLN111..ARL;LN111..GEN..CBU;LN107,13#,RN106,110,13#,VZN130199406-199408

main90368-45087iLN106,RN105,YN106199308-199408

43508BBODY SUB-ASSY, FREE WHEEL HUB, RH

main43508-35010iRN130;LN130,VZN130..ARL;LN111,135,RN106,135..GEN199308-199402

main43508-35050iLN107;LN111,RN106..DLX,STD; LN111..IV3;RN106..SR5..GEN199612-199703

W(MECHANICAL FREE WHEEL HUB)

43508CBODY SUB-ASSY, FREE WHEEL HUB, LH

main43508-35010iLN111,13#,RN130,YN135..DLX198808-199008

main43508-35050iLN107;LN111,RN106..DLX,STD; LN111..IV3;RN106..SR5..GEN199612-199703

W(MECHANICAL FREE WHEEL HUB)

43509COVER SUB-ASSY, FREE WHEEL HUB

main43509-35022×2iLN106,RN105,YN106..ARL,GEN199108-199406

43509ACOVER SUB-ASSY, FREE WHEEL HUB, RH

main43509-35030iLN111,13#,RN130,YN135..DLX198808-199008

43509BCOVER SUB-ASSY, FREE WHEEL HUB, LH

main43509-35030iRN130;RN106..GEN;VZN130..4D;LN111,13#,RN135,YN135..DLX199008-199308

43512DISC, FRONT

main43512-35170×2iLN106,RN105,YN106198808-199909

main43512-35190×2iLN111,13#,RN110,13#,VZN130,YN13#198808-199108

main43512-35200×2iLN130,RN130,VZN130..ARL199108-199511

43514BCAP, FRONT AXLE HUB GREASE, RH

main43423-35010iKZN205,LN205..SR5,SRV200202

43514CCAP, FRONT AXLE HUB GREASE, LH

main43423-35010iLN130,RN130..SR5;LN111,RN105,110,YN130..DLX,SR5;LN106,135,RN135,YN106,135..GEN,V198808-199008

43521CNUT, FRONT WHEEL ADJUSTING, RH

main43521-60011×2iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-199406

43521DNUT, FRONT WHEEL ADJUSTING, LH

main43521-60011×2iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-199406

43523AWASHER, FRONT WHEEL ADJUSTING LOCK, RH

main90215-42025iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-199406

43523BWASHER, FRONT WHEEL ADJUSTING LOCK, LH

main90215-42025iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-199406

43531AGASKET, FREE WHEEL HUB, RH

main43531-60010iLN111,130,RN130..DLX;LN106,135,RN105,YN106,135..ARL,GEN198808-199008

43531BGASKET, FREE WHEEL HUB, LH

main43531-60010iLN111,130,RN130..DLX;LN106,135,RN105,YN106,135..ARL,GEN198808-199008

43532ARING, FREE WHEEL HUB, RH

main43532-60010iLN111,130,RN130..DLX;LN106,135,RN105,YN106,135..ARL,GEN198808-199008

43532BRING, FREE WHEEL HUB, LH

main43532-60010iLN111,130,RN130..DLX;LN106,135,RN105,YN106,135..ARL,GEN198808-199008

9011906024

main90119-06024

9011908466

main90119-08466

9011910396

main90119-10396

9017008204

main90170-08204

9017608035

main90176-08035

9020108042

main90201-08042

48 parts on this diagram · 2 diagrams in section
