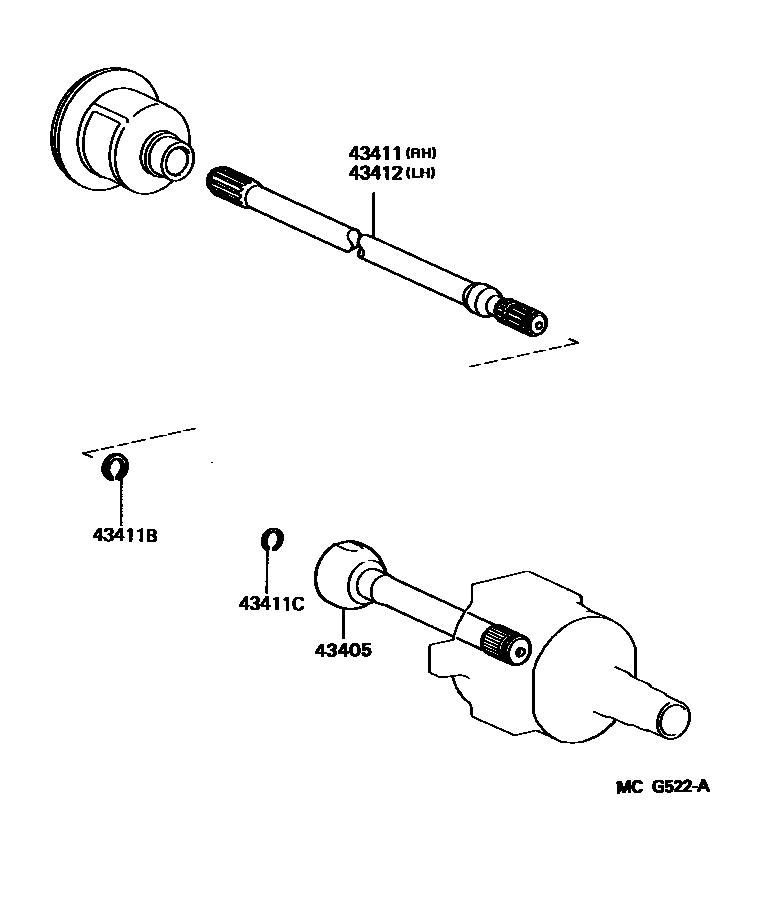

FRONT DRIVE SHAFT

0001 1 0002 1

43405SHAFT SUB-ASSY, FRONT AXLE OUTER

main43405-60016iLN106,RN105,YN106198808-199909

43411SHAFT, FRONT AXLE, INNER RH

main43411-35010iLN106,RN105,YN106198808-199909

43411BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)

main90520-28036iLN106,RN105,YN106198808-199909

main90520-29028iLN107,111,13#,RN106,110,13#,VZN130,YN13#198808-199909

43411CRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT OUTER)

main90520-27091iLN106,RN105,YN106198808-199909

43412SHAFT, FRONT AXLE, INNER LH

main43412-35010iLN106,RN105,YN106198808-199909

5 parts on this diagram · 2 diagrams in section
