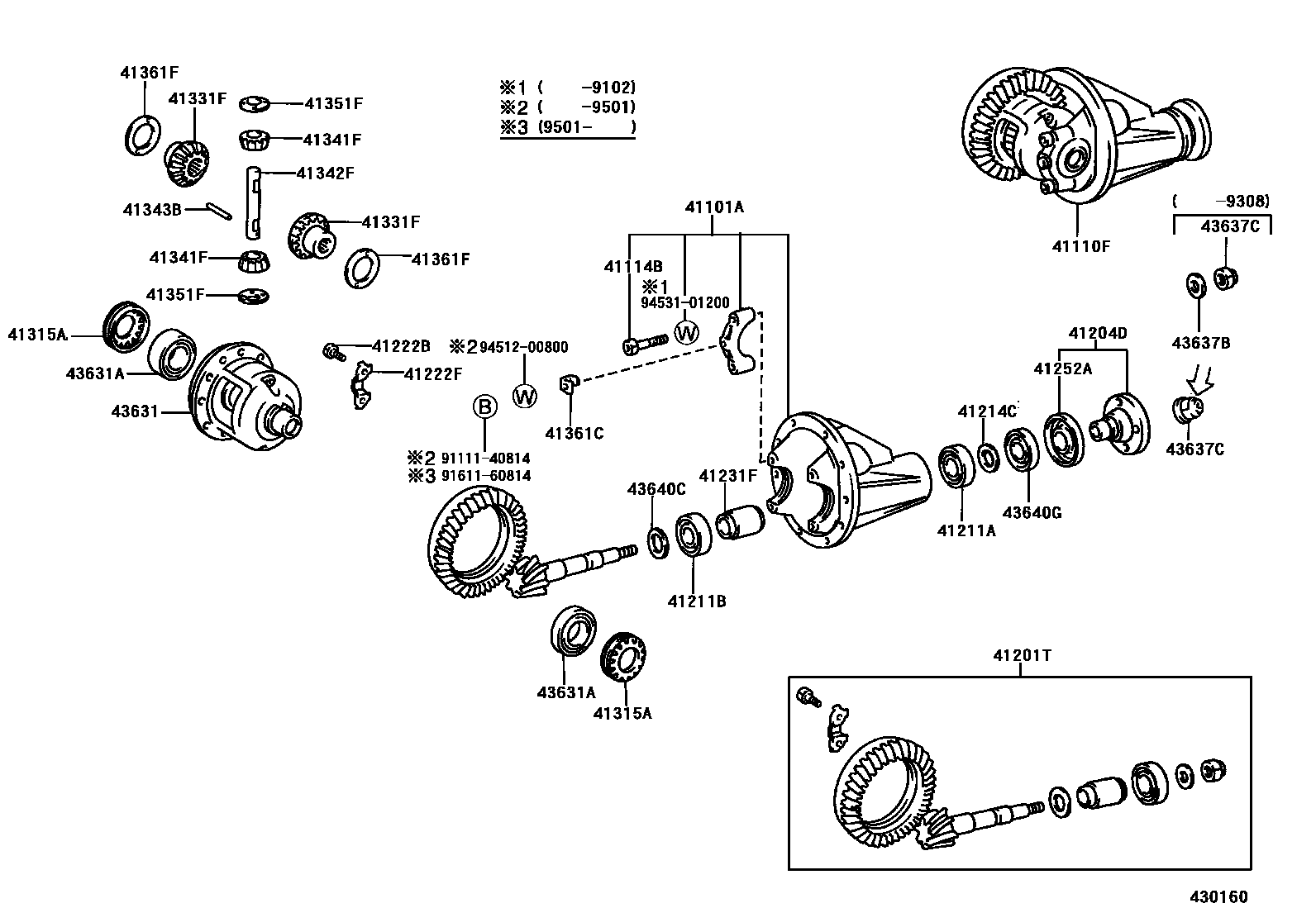

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1 0005 1A.D.D 0009 1 0011 1 0012 1 0013 1 0014 1 0015 1 0016 1 0017 1 0018 1 0019 1

41101ACARRIER SUB-ASSY, DIFFERENTIAL, FRONT

main41101-35030iLN106198808-198905

main41101-35031iLN106198905-199908

main41101-35040iRN105,YN106198808-198905

main41101-35041iRN105,YN106198905-199708

main41101-35060iLN107,111,13#,RN106,110,13#,VZN130,YN13#198808-200106

41110FCARRIER ASSY, DIFFERENTIAL, FRONT

main41110-35083iRN105,YN106198808-198905

*FGR=39:8=4.875

main41110-35084iRN105,YN106198905-199708

*FGR=39:8=4.875

main41110-35211iLN106..ARL198808-198905

*FGR=43:10=4.300

main41110-35212iLN106..ARL198905-199607

*FGR=43:10=4.300

main41110-35221iLN106..GEN198808-198905

*FGR=41:9=4.555

main41110-35222iLN106..GEN198905-199607

*FGR=41:9=4.555

main41110-35360iLN111..ARL..IV3;LN130..DLX..ARL;RN106,VZN130..(4D,TW1)..5F..EFI198908-199607

*FGR=43:10=4.300

main41110-35370iVZN130..4FC;LN111,13#..GEN198808-199508

*FGR=41:9=4.555

main41110-35380iRN13#,YN135;RN106..CBR..GEN;RN106..SR5..EFI199008-199909

*FGR=39:8=4.875

main41110-35450iLN111..ARL198808-198908

*FGR=43:10=4.300

main41110-35460iLN205..SR5200202-200412

*FGR=41:9=4.555

main41110-35470iYN130198908-199008

*FGR=39:8=4.875

main41110-35510iVZN130..2D;LN107,111,130..SR5..CBU198908-199607

*FGR=43:10=4.300

main41110-35520iLN107,111..ARL..CBU199607-199612

*FGR=41:9=4.555,W(A.D.D)

main41110-35530iRN106,110..ARL199008-199612

*FGR=39:8=4.875

main41110-3D300iKZN205200108-200412

*FGR=41:11=3.727

41114BBOLT, FRONT DIFFERENTIAL BEARING CAP

main90105-12053×4iKZN205,LN205200106-200412

41201TFINAL GEAR KIT, DIFFERENTIAL, FRONT

main41201-29526iLN106..ARL198808-199607

*FGR=43:10=4.300

main41201-29536iLN106..GEN198808-199607

*FGR=41:9=4.556

main41201-30151iKZN205200108-200412

*FGR=41:11

main41201-39696iRN105,YN106198808-199003

*FGR=39:8=4.875

main41201-39697iRN105,YN106199003-199708

*FGR=39:8=4.875

main41201-39725iRN106..EFI199607-199708

*FGR=43:10=4.300

main41201-39735iLN111,135..GEN198808-198908

*FGR=41:9=4.556

main41201-39736iLN111,130..GEN;LN107,135,VZN130199508-199607

*FGR=41:9=4.556

main41201-39745iRN110,13#,YN13#198808-199108

*FGR=39:8=4.875

main41201-80015iLN205200106-200412

*FGR=41:9=4.556

main41201-80107iKZN205200204-200412

*FGR=41:11=3.727

41204DFLANGE SUB-ASSY, FRONT DRIVE PINION COMPANION, FRONT

main41204-35040iLN106,RN105,YN106198808-199908

main41204-35050iLN107,111,13#,RN106,110,13#,VZN130,YN13#198808-200106

41211ABEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION FRONT)

main90366-30022iLN111,130..ARL;LN10#,RN10#,110,13#,VZN130,YN106199108-199208

main90366-30078iKZN205,LN205200206-200412

41211BBEARING, TAPERED ROLLER (FOR FRONT DRIVE PINION REAR)

main90366-35023iKZN205,LN205200106-200412

main90366-35044iLN10#199908-200106

W(LSD)

41214CSLINGER, FRONT DIFFERENTIAL DRIVE PINION OIL

main41214-26010iLN10#199908-200106

W(LSD)

main41214-30021iLN107,RN106199805-200011

main41214-35020iKZN205,LN205200106-200412

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90101-11353×10iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-200106

41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-35020×5iLN106,RN105,YN106198808-199908

main41222-35030×5iKZN205,LN205200106-200412

41231FSPACER, FRONT DIFFERENTIAL DRIVE PINION BEARING

main41231-22010iKZN205,LN205200106-200412

main41231-40011iLN10#199908-200106

W(LSD)

41252ADEFLECTOR, DUST (FOR FRONT DIFFERENTIAL)

main41252-30010iLN107,111,13#,RN106,110,13#,VZN130,YN13#198808-200106

main41252-35010iLN106,RN105,YN106198808-199303

main41252-35020iLN106,RN105,YN106199303-199908

41315ANUT, FRONT DIFFERENTIAL BEARING ADJUSTING

main41315-35010×2iLN106,RN105,YN106198808-199909

41331FGEAR, FRONT DIFFERENTIAL SIDE

main41331-14040×2iLN107,111,13#,RN106,110,13#,VZN130,YN13#198808-200005

main41331-35011×2iLN106,RN105,YN106198808-199908

41341FPINION, FRONT DIFFERENTIAL

main41341-30020×2iLN107,111,13#,RN106,110,13#,VZN130,YN13#198808-200005

main41341-35020×2iLN106,RN105,YN106198808-199908

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-22020iLN107,111,13#,RN106,110,13#,VZN130,YN13#198808-200005

main41342-22021iLN107200005-200106

main41342-39610iLN106,RN105,YN106198808-199908

41343BPIN, FRONT DIFFERENTIAL PINION SHAFT

main90250-06085iLN106,RN105,YN106198808-199909

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-30052×2iLN106,RN105,YN106198808-199908

main41351-30060×2iKZN205,LN205200106-200412

41361CLOCK, FRONT DIFFERENTIAL BEARING ADJUSTING NUT

main41316-30010×2iLN106,RN105,YN106198808-199305

main41316-35010×2iLN106,RN105,YN106199305-199909

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-30040×2iKZN205,LN205200106-200412

T=1.0

main41361-30050×2iLN107,111,13#,RN106,110,13#,VZN130,YN13#198808-200106

T=1.1

main41361-30060×2iKZN205,LN205200106-200412

T=1.2

main41361-30070×2iLN107,111,13#,RN106,110,13#,VZN130,YN13#198808-200106

T=1.3

main41361-30080×2iKZN205,LN205200106-200412

T=1.4

main41361-30090×2iLN107,111,13#,RN106,110,13#,VZN130,YN13#198808-200106

T=1.5

main41361-30100×2iLN107,111,13#,RN106,110,13#,VZN130,YN13#198808-200106

T=1.6

main41361-40021×2iLN107199908-200106

T=1.6,W(LSD)

main41362-40021×2iLN10#,RN106..DSL,EFI199908-200106

T=1.7

main41363-40021×2iRN106..SR5..EFI;LN106,RN105,YN106198808-199908

T=1.8

43631CASE, FRONT AXLE DIFFERENTIAL

main41311-22060iRN135;LN111,13#,RN130,YN135..DLX198808-199008

main41311-35060iLN205..SR5200202-200412

main41311-40020iLN106,RN105,YN106198808-199908

43631ABEARING, FRONT AXLE DIFFERENTIAL

main90364-33009×2iLN107,111,RN106,110,VZN130..ARL199008-199308

INNER

main90368-45066×2iLN106,RN105,YN106198808-198809

main90368-50006×2iLN13#,RN13#..LHD..GEN;LN107,111,RN106,110,VZN130..ARL..CBU199308-199812

OUTER

43637BWASHER, PLATE (FOR FRONT AXLE DRIVE PINION)

main90201-18485iLN107,111,13#,RN106,110,13#,VZN130,YN13#198808-199308

main90201-20005iLN106,RN105,YN106198808-199308

43637CNUT, CASTLE (FOR FRONT AXLE DRIVE PINION)

main90179-18001iLN107,111,13#,RN106,110,13#,VZN130,YN13#198808-199308

main90179-18020iLN107,111,13#,RN106,110,13#,VZN130199308-200106

main90179-20001iLN106,RN105,YN106198808-199308

main90179-20018iLN106,RN105,YN106199308-199908

43640CSPACER OR WASHER, FRONT AXLE DRIVE PINION THRUST

main90201-35396iKZN205,LN205200106-200412

T=2.36,MARK 05

main90201-35397iLN107,111,13#,RN106,110,13#,VZN130,YN13#198808-200106

T=2.39,MARK 06

main90201-35398iKZN205,LN205200106-200412

T=2.42,MARK 07

main90201-35399iLN107,111,13#,RN106,110,13#,VZN130,YN13#198808-200106

T=2.43,MARK 08

main90201-35400iLN107,111,13#,RN106,110,13#,VZN130,YN13#198808-200106

T=2.48,MARK 09

main90201-35401iKZN205,LN205200106-200412

T=2.51,MARK 10

main90201-35402iLN107,111,13#,RN106,110,13#,VZN130,YN13#198808-200106

T=2.54,MARK 11

main90201-35403iLN107,111,13#,RN106,110,13#,VZN130,YN13#198808-200106

T=2.57,MARK 12

main90201-35404iKZN205,LN205200106-200412

T=2.60,MARK 13

main90201-35434iLN107,111,13#,RN106,110,13#,VZN130,YN13#198808-199309

T=2.24,MARK 01

main90201-35435iLN107,111,13#,RN106,110,13#,VZN130,YN13#198808-199309

T=2.27,MARK 02

main90201-35436iLN107,111,13#,RN106,110,13#,VZN130,YN13#198808-199309

T=2.30,MARK 03

main90201-35437iLN107,111,13#,RN106,110,13#,VZN130,YN13#198808-199309

T=2.33,MARK 04

main90201-35438iKZN205,LN205200106-200412

T=2.63,MARK 14

main90201-35439iKZN205,LN205200106-200412

T=2.66,MARK 15

main90201-35440iLN107,111,13#,RN106,110,13#,VZN130,YN13#198808-200106

T=2.69,MARK 16

main90201-35441iLN107,111,13#,RN106,110,13#,VZN130,YN13#198808-200106

T=2.72,MARK 17

main90201-35497iRN106..SR5..EFI;LN106,RN105,YN106198808-199908

OD=47,T=1.70

main90201-35498iRN106..SR5..EFI;LN106,RN105,YN106198808-199908

OD=47,T=1.73

main90201-35499iLN10#,RN106..DSL,EFI199908-200106

OD=47,T=1.76

main90201-35500iRN106..SR5..EFI;LN106,RN105,YN106198808-199908

OD=47,T=1.79

main90201-35501iRN106..SR5..EFI;LN106,RN105,YN106198808-199908

OD=47,T=1.82

main90201-35502iLN10#,RN106..DSL,EFI199908-200106

OD=47,T=1.85

main90201-35503iLN10#,RN106..DSL,EFI199908-200106

OD=47,T=1.88

main90201-35504iLN10#,RN106..DSL,EFI199908-200106

OD=47,T=1.91

main90201-35505iLN10#,RN106..DSL,EFI199908-200106

OD=47,T=1.94

main90201-35506iLN10#,RN106..DSL,EFI199908-200106

OD=47,T=1.97

main90201-35507iLN10#,RN106..DSL,EFI199908-200106

OD=47,T=2.00

main90201-35508iRN106..SR5..EFI;LN106,RN105,YN106198808-199908

OD=47,T=2.03

main90201-35509iRN106..SR5..EFI;LN106,RN105,YN106198808-199908

OD=47,T=2.06

main90201-35510iRN106..SR5..EFI;LN106,RN105,YN106198808-199908

OD=47,T=2.09

main90201-35511iLN10#,RN106..DSL,EFI199908-200106

OD=47,T=2.12

main90201-35512iLN10#,RN106..DSL,EFI199908-200106

OD=47,T=2.15

main90201-35513iLN10#,RN106..DSL,EFI199908-200106

OD=47,T=2.18

main90201-35514iLN10#,RN106..DSL,EFI199908-200106

OD=47,T=2.21

main90201-35515iKZN205,LN205200106-200412

OD=47,T=2.24,MARK 01

main90201-35516iLN106,RN105,YN106198808-199309

OD=47,T=2.27,MARK 02

main90201-35517iKZN205,LN205200106-200412

OD=47,T=2.30,MARK 03

main90201-35518iLN10#,111,13#,RN10#,110,13#,VZN130,YN106199309-200106

OD=47,T=2.33,MARK 04

43640GSEAL, TYPE T OIL (FOR FRONT AXLE DIFFERENTIAL CARRIER)

main90311-38035iLN106,RN105,YN106198808-199601

main90311-38047iKZN205,LN205200106-200412

main90311-38134iLN107,111,13#,RN106,110,13#,VZN130,YN13#198808-199601

9111140814

main91111-40814

9161160814

main91611-60814

9451200800

main94512-00800

9453101200

main94531-01200
