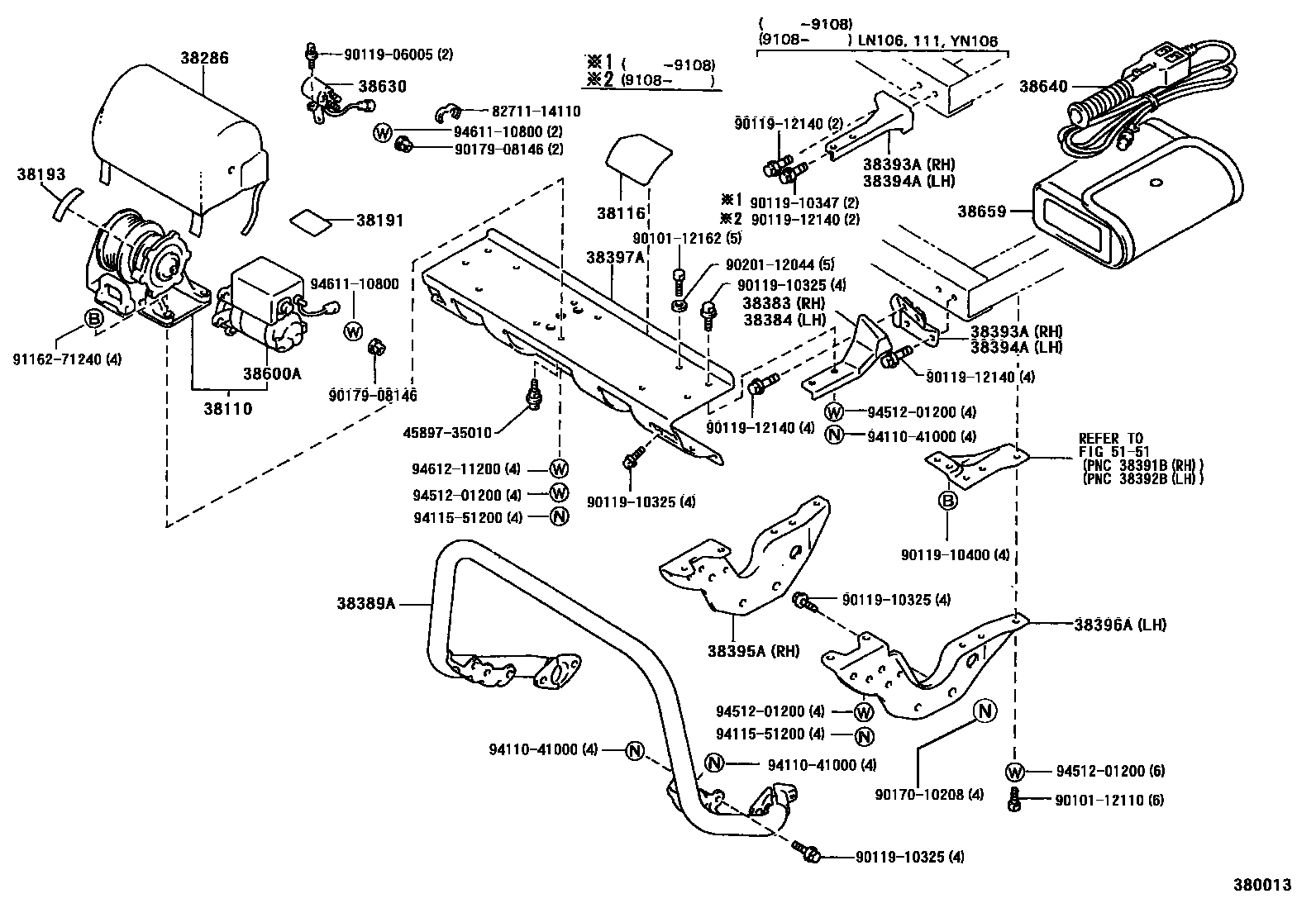

WINCH

0001 1 0002 1 0003 1

38110WINCH ASSY

main38110-35020iLN111,135,YN135..GEN;LN106,YN106..GEN..CBU198808-199008

main38110-35030iLN106,111,13#,RN106,YN106..(DLX,STD)..GEN..CBU199108-199408

38116COVER, WINCH

main74594-35020iLN111,135,YN135..GEN;LN106,YN106..GEN..CBU198808-199008

main74594-35040iLN106,111,YN106..GEN..CBU199703-199909

38191PLATE, WINCH CAUTION, NO.1

main38191-35020iLN111,135,YN135..GEN;LN106,YN106..GEN..CBU198808-199008

main38191-35040iLN106,111,YN106..GEN..CBU199703-199909

38193PLATE, WINCH CAUTION, NO.3

main38193-60010iLN111,135,YN135..GEN;LN106,YN106..GEN..CBU198808-199008

main38193-60040iLN106,111,YN106..GEN..CBU199512-199909

38286COVER, WINCH

main38286-35020iLN106,111,YN106..GEN..CBU199408-199909

main38286-35030iLN13#,YN135..GEN198904-199511

38383SUPPORT, WINCH HOOK HOLDER BRACKET, NO.1

main38383-35010iLN13#..GEN199108-199511

38384SUPPORT, WINCH HOOK HOLDER BRACKET, NO.2

main38384-35010iLN13#..GEN199108-199511

38389ABUMPER, WINCH LOWER GUARD

main38389-35030iLN111..GEN;LN106,YN106..GEN..CBU198808-199108

main38389-35040iLN135,YN135198904-199108

main38389-35050iLN13#..GEN199108-199511

main38389-35060iLN106,111,RN106,YN106..(DLX,STD)..GEN..CBU199108-199408

38393ABAR, WINCH SIDE STRUT, RH

main38393-35030iLN106,YN106..GEN..CBU198808-199108

main38393-35040iLN111,135,YN135..GEN198808-199108

main38393-35050iLN106,YN106..GEN..CBU199108-199909

main38393-35060iLN111,RN106..(DSL,EFI)..GEN..CBU199108-199408

main38393-35070iLN13#..GEN199108-199511

38394ABAR, WINCH SIDE STRUT, LH

main38394-35030iLN106,YN106..GEN..CBU198808-199108

main38394-35040iLN111,135,YN135..GEN198808-199108

main38394-35050iLN106,YN106..GEN..CBU199108-199909

main38394-35060iLN111..GEN199408-199708

main38394-35070iLN13#..GEN199108-199511

38395ASTAY, WINCH LOWER, RH

main38395-35030iLN106,YN106..GEN..CBU198808-199909

main38395-35040iLN111,135,YN135..GEN198808-199008

main38395-35050iLN111,RN106..(DSL,EFI)..GEN..CBU199108-199408

main38395-35060iLN13#..GEN199108-199511

38396ASTAY, WINCH LOWER, LH

main38396-35030iLN106,YN106..GEN..CBU198808-199909

main38396-35040iLN111,135,YN135..GEN198808-199008

main38396-35050iLN111,135,YN135..GEN199008-199108

main38396-35060iLN13#..GEN199108-199511

38397ABASE, WINCH UPPER

main38397-35020iLN111,135,YN135..GEN;LN106,YN106..GEN..CBU198808-199008

main38397-35030iLN111,135,YN135..GEN;LN106,YN106..GEN..CBU199008-199108

main38397-35040iLN106,111,13#,RN106,YN106..(DLX,STD)..GEN..CBU199108-199408

38600AMOTOR ASSY, W/MAGNET SWITCH, WINCH

main38600-35010iLN106,111,13#,RN106,YN106,135..(DLX,STD)..GEN..CBU199008-199408

38630SWITCH ASSY, MAGNET, NO.1

main38630-35030iLN111,135,YN135..GEN;LN106,YN106..GEN..CBU198808-199008

main38630-35031iLN106,111,13#,YN106..GEN..CBU199108-199308

38640SWITCH ASSY, WINCH CONTROL

main38640-35010iLN111,135,YN135..GEN;LN106,YN106..GEN..CBU198808-199008

38659COVER, WINCH CONTROL SWITCH

main38659-60010iLN111,135,YN135..GEN;LN106,YN106..GEN..CBU198808-199008

5151FRAME

→ Go to FIG 51-51

4589735010BOLT, STEERING LOCK SET

main45897-35010

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

9010112110

main90101-12110

9010112162

main90101-12162

9011906005

main90119-06005

9011910325

main90119-10325

9011910347

main90119-10347

9011910400

main90119-10400

9011912140

main90119-12140

9017010208

main90170-10208

9017908146

main90179-08146

9020112044

main90201-12044

9116271240

main91162-71240

9411041000

main94110-41000

9411551200

main94115-51200

9451201200

main94512-01200

9461110800

main94611-10800

9461211200

main94612-11200

36 parts on this diagram · 3 diagrams in section
