TRANSFER GEAR

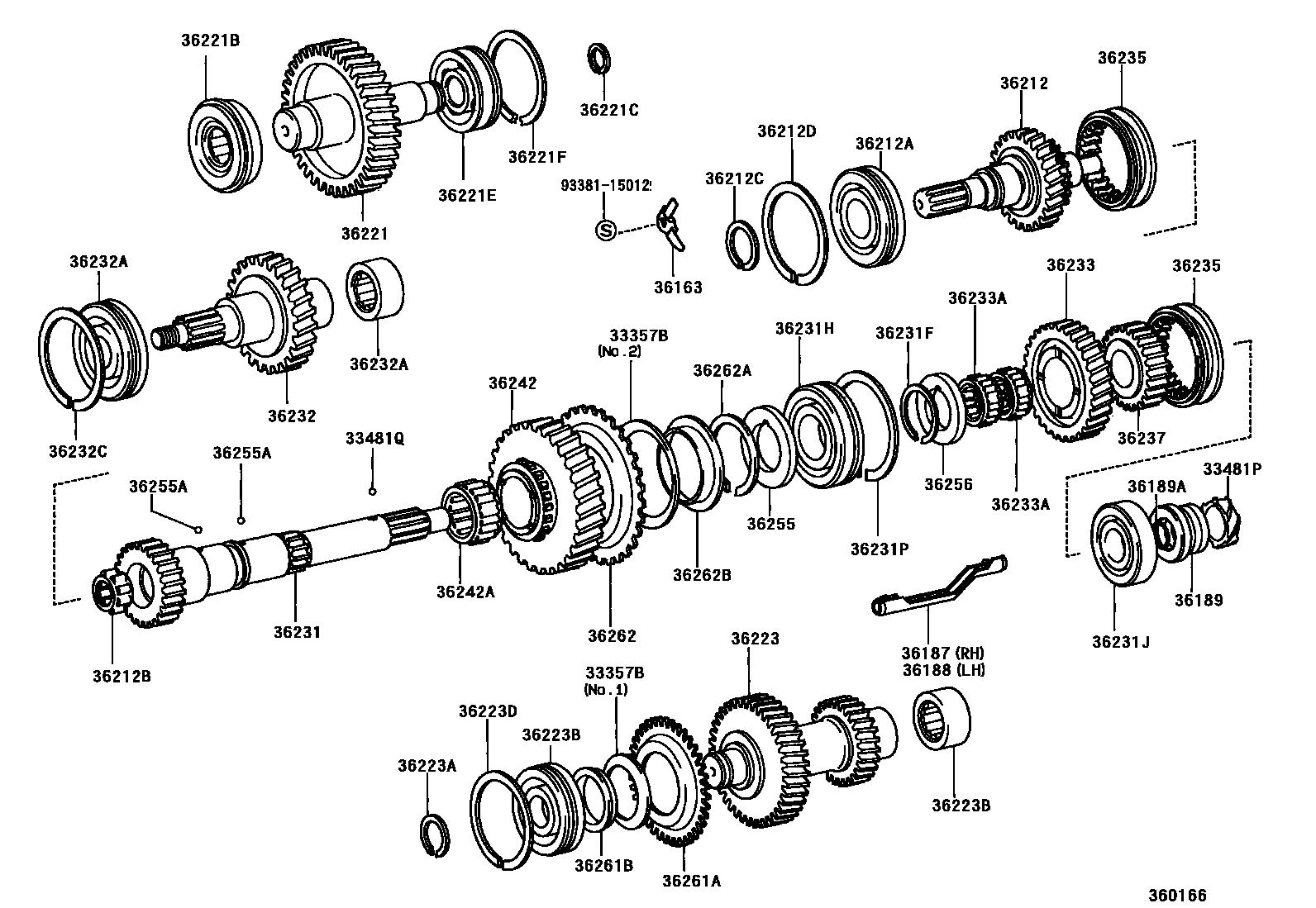

Parts diagram
33357BSPRING, SUB GEAR THRUST
main33357-35010i198808-200106
NO.1
main33357-35021i200106-200202
NO.2
33481PGEAR, SPEEDOMETER DRIVE (FOR TRANSFER)
main33481-20070i199108-199909
N=5,MARK 5X17-19
main33481-22010i199508-199812
N=6,MARK 6X18-20,NEW ZEALAND SPEC
main33481-35110i198808-199403
N=11
main33481-35111i199403-199606
N=11
main33481-35120i198808-199008
N=8
main33481-35121i199403-199708
N=8
main33481-35150i198904-199403
N=10
main33481-35151i199403-199511
N=10
main33481-35200i200108-200412
N=11
33481QKEY OR BALL, SPEEDOMETER DRIVE GEAR (FOR TRANSFER)
main90360-05012i200202-200412
main90360-06004×2i200106-200202
36163STOPPER, TRANSFER FRONT BEARING
main36163-35010i200106-200410
36187PIPE, TRANSFER OIL SUPPLY, RH
main36187-35010i199508-199812
NEW ZEALAND SPEC
36188PIPE, TRANSFER OIL SUPPLY, LH
main36188-35010i199508-199812
NEW ZEALAND SPEC
36189SCREW, TRANSFER OIL PUMP
main36189-35010i199508-199812
NEW ZEALAND SPEC
36189ARING, O (FOR TRANSFER OIL PUMP SCREW)
main96711-24028i199508-199812
NEW ZEALAND SPEC
36212GEAR, TRANSFER INPUT
main36212-35012i198808-200106
36212ABEARING, RADIAL BALL (FOR TRANSFER INPUT GEAR)
main90363-35009i199508-199812
NEW ZEALAND SPEC
36212BBEARING, NEEDLE ROLLER (FOR TRANSFER INPUT GEAR)
main90364-19006i200106-200202
main90364-19043i198808-199208
36212CRING, SHAFT SNAP (FOR TRANSFER INPUT GEAR)
main90520-33168i200106-200410
T=2.05,MARK 1
main90520-33170i198808-200106
T=2.15,MARK 3
main90520-33172i200106-200410
T=2.25,MARK 5
36212DRING, SHAFT SNAP (FOR TRANSFER INPUT BEARING)
main90520-72001i199008-199708
T=1.45,MARK 1
main90520-72002i199008-199708
T=1.50,MARK 2
main90520-72003i198808-199008
T=1.55,MARK 3
main90520-72004i198808-199008
T=1.60,MARK 4
main90520-72005i200111-200412
T=1.65,MARK 5
main90520-76001×2i200106-200410
T=1.65
36221GEAR, TRANSFER IDLER
main36221-35010i199508-199812
NEW ZEALAND SPEC
36221BBEARING (FOR TRANSFER IDLER GEAR)
main90365-38001i199508-199812
NEW ZEALAND SPEC
36221CRING, SHAFT SNAP (FOR TRANSFER IDLER GEAR)
main90520-28242i199508-199812
T=1.50-1.55,MARK A,NEW ZEALAND SPEC
main90520-28243i200106-200202
T=1.60-1.65,MARK B
36221EBEARING, RADIAL BALL (FOR TRANSFER IDLER GEAR)
main90363-30012i198808-200106
36221FRING, SHAFT SNAP (FOR TRANSFER IDLER GEAR BEARING)
main90520-68193i199508-199812
NEW ZEALAND SPEC
36223GEAR, TRANSFER COUNTER
main36223-35011i200106-200202
36223ARING, SHAFT SNAP (FOR TRANSFER COUNTER GEAR)
main90520-30215i199508-199812
T=2.10,MARK 1,NEW ZEALAND SPEC
main90520-30217i200106-200410
T=2.20,MARK 3
36223BBEARING (FOR TRANSFER COUNTER GEAR)
main90363-32006i199508-199812
NEW ZEALAND SPEC,FR
main90369-45001i199508-199812
NEW ZEALAND SPEC,RR
36223DRING, SHAFT SNAP (FOR TRANSFER COUNTER GEAR BEARING)
main90520-71221i199508-199812
NEW ZEALAND SPEC
36231SHAFT, TRANSFER OUTPUT, REAR
main36202-35010i198808-198908
main36202-35011i199312-199403
W(*ADD)
main36202-35012i199403-199511
W(*ADD)
main36202-35020i199008-199312
SR LIMITED PACKAGE
main36202-35021i199312-199403
SR LIMITED PACKAGE
main36202-35022i199403-199601
main36202-35030i200202-200412
main36202-35040i199601-199708
main36231-35011i200106-200202
main36231-35021i198904-199403
main36231-35022i199403-199511
36231FRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT)
main90520-36250i198808-200106
T=2.40-2.45
main90520-36251i200106-200202
T=2.45-2.50
main90520-36252i200106-200202
T=2.50-2.55
main90520-36253i198808-200106
T=2.55-2.60
main90520-36254i198808-200106
T=2.60-2.65
main90520-36255i198808-200106
T=2.65-2.70
main90520-71221i199008-199708
T=1.65,ID=71.1
36231HBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT FRONT)
main90363-40007i199508-199812
NEW ZEALAND SPEC
36231JBEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR)
main90363-28004i198808-200106
main90363-32006i200202-200412
36231PRING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT FRONT BEARING)
main90520-86001i198808-200106
36232GEAR, TRANSFER FRONT DRIVE
main36232-35011i200106-200202
36232ABEARING (FOR TRANSFER FRONT DRIVE GEAR)
main90363-30014i199508-199812
NEW ZEALAND SPEC,FR
main90369-45001i198808-200106
RR
36232CRING, SHAFT SNAP (FOR TRANSFER FRONT DRIVE GEAR BEARING)
main90520-76001i198808-200106
36233GEAR, TRANSFER DRIVE
main36233-35010i199508-199812
NEW ZEALAND SPEC
36233ABEARING, NEEDLE ROLLER (FOR TRANSFER DRIVE GEAR)
main90364-35001×2i199508-199812
NEW ZEALAND SPEC
36235SLEEVE, TRANSFER HIGH & LOW CLUTCH
main36235-35010×2i200106-200410
main36235-35021i200202-200412
36237HUB, TRANSFER CLUTCH
main36237-35010i200106-200410
main36237-35020i199008-199412
main36237-35030i200202-200412
36242GEAR, TRANSFER LOW
main36242-35011i200106-200202
36242ABEARING, NEEDLE ROLLER (FOR TRANSFER LOW GEAR)
main90364-45002i199508-199812
NEW ZEALAND SPEC
36255SPACER, TRANSFER OUTPUT SHAFT, NO.1
main36255-35010i200106-200202
main36255-35020i200202-200412
36255ABALL (FOR TRANSFER OUTPUT SHAFT SPACER)
main90360-05012×2i199008-199601
main90360-06004×2i198808-200106
36256SPACER, TRANSFER OUTPUT SHAFT, NO.2
main36256-35010i199508-199812
NEW ZEALAND SPEC
36261ASUB-GEAR, TRANSFER, NO.1
main36261-35011i198808-200106
36261BSPACER (FOR TRANSFER SUB-GEAR NO.1
main90560-38002i199508-199812
NEW ZEALAND SPEC
36262SUB-GEAR, TRANSFER, NO.2
main36262-35011i200106-200202
36262ARING, SNAP (FOR TRANSFER SUB-GEAR NO.2
main90520-59003i198808-200106
36262BSPACER (FOR TRANSFER SUB-GEAR NO.2)
main90561-63002i200106-200410
9338115012
main93381-15012

45 parts on this diagram · 6 diagrams in section
