TRANSFER ASSEMBLY & GASKET KIT

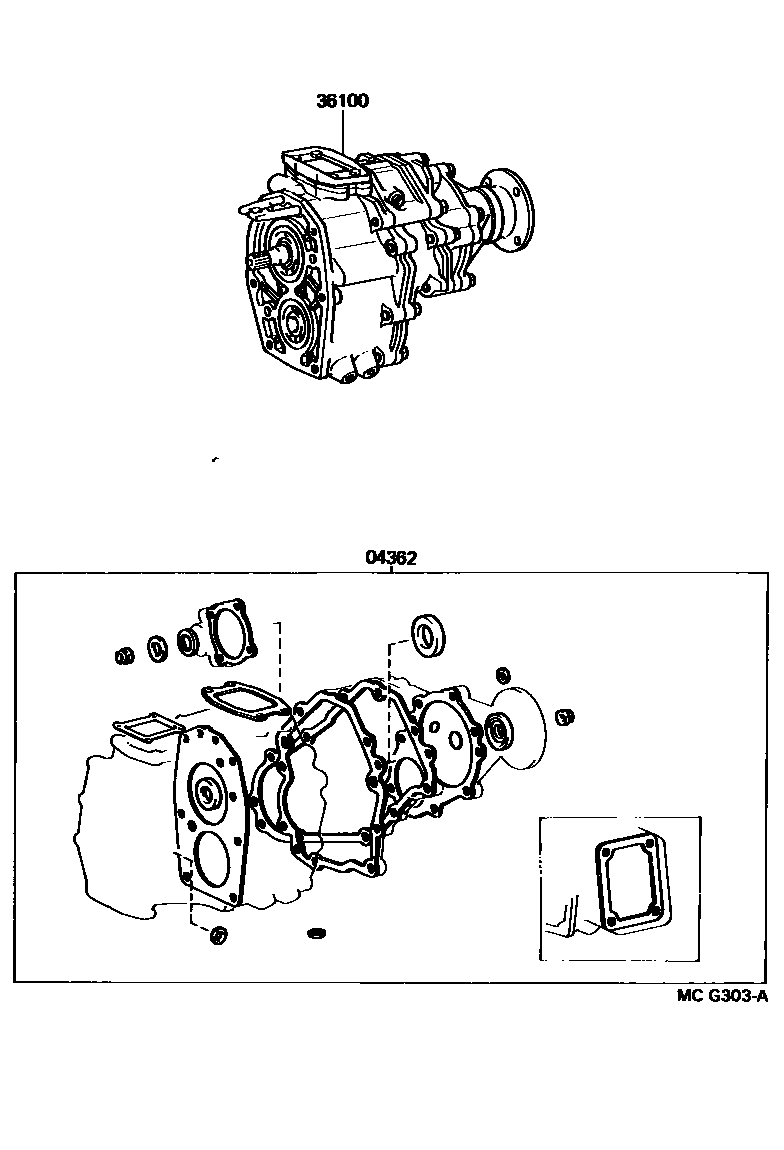

Parts diagram

04362GASKET KIT, TRANSFER OVERHAUL

main04362-35020i198908-199511

main04362-35030i199008-199511

main04362-35040i198808-199401

main04362-35041i200106-200412

main04362-35050i199008-199601

main04362-35060i199601-199708

main04362-35061i200202-200412

36100TRANSFER ASSY

main36100-35280i199008-199108

main36100-35300i198808-198908

main36100-35310i198808-198908

main36100-35330i198808-199008

main36100-35331i200106-200202

main36100-35340i198908-199008

main36100-35341i199108-199708

main36100-35370i198808-199108

W(PTO TAKE OUT MOUTH)

main36100-35371i199108-199408

W(PTO TAKE OUT MOUTH)

main36100-35390i198908-199008

main36100-35391i199008-199108

main36100-35410i198908-199008

main36100-35411i199008-199108

main36100-35430i198904-199108

main36100-35440i198904-199108

main36100-35470i198908-199108

main36100-35510i199008-199108

SR LIMITTED PACKAGE

main36100-35530i199108-199511

main36100-35570i199108-199511

SR LIMITTED PACKAGE

main36100-35670i199108-199511

main36100-35690i199108-199511

main36100-35700i199108-199511

main36100-35720i199108-199601

main36100-35750i199108-199601

main36100-35761i199508-199708

W(PTO TAKE OUT MOUTH)

main36100-35810i199308-199511

W(*ADD)

main36100-35820i199308-199511

W(*ADD)

main36100-35870i199601-199606

main36100-3D010i199601-199708

main36100-3D020i199606-199708

main36100-3D120i200202-200412

main36100-3D310i200108-200412

W(ABS)

main36100-3D330i200108-200412

2 parts on this diagram · 4 diagrams in section
