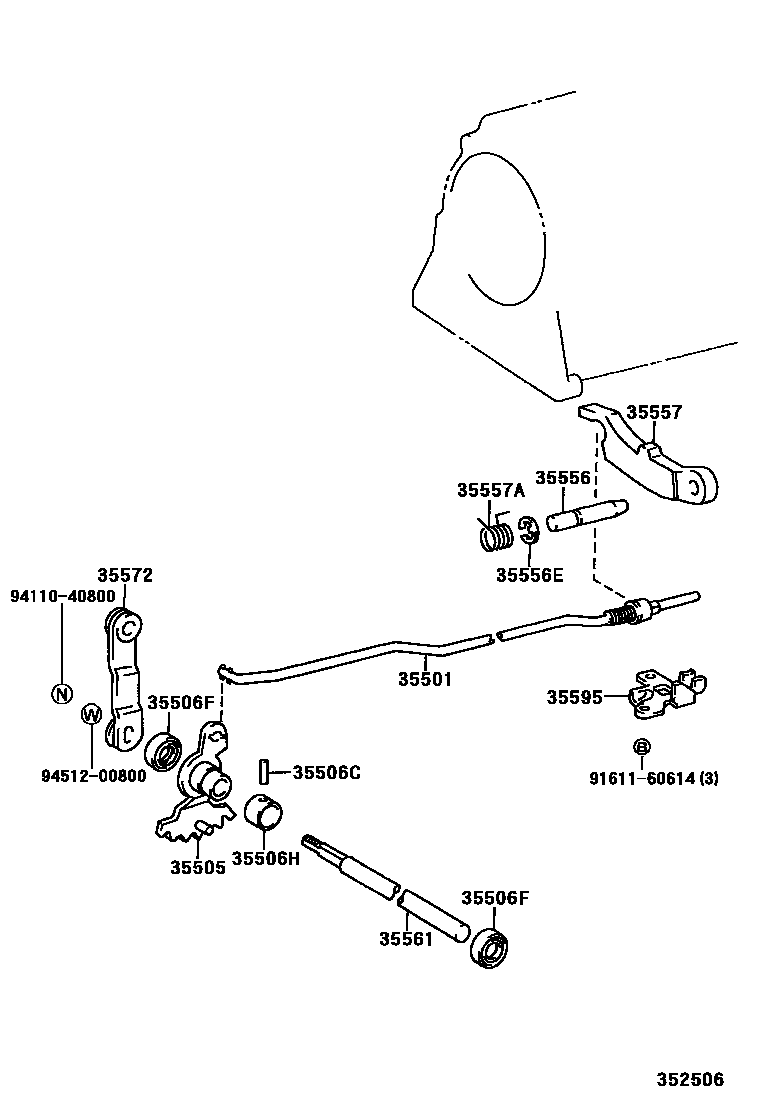

THROTTLE LINK & VALVE LEVER (ATM)

0001 1 0002 1 0003 1

35501ROD SUB-ASSY, PARKING LOCK

main35501-35010iVZN130,YN130..4FC198908-199511

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-30020iVZN130,YN130..4FC198908-199511

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iVZN130,YN130..4FC198908-199511

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002×2iVZN130,YN130..4FC198908-199511

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20006iVZN130,YN130..4FC198908-199511

35556SHAFT, PARKING LOCK PAWL

main35556-30020iVZN130,YN130..4FC198908-199511

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iVZN130,YN130..4FC198908-199511

35557PAWL, PARKING LOCK

main35557-35030iVZN130,YN130..4FC198908-199511

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21002iVZN130,YN130..4FC198908-199511

35561SHAFT, MANUAL VALVE LEVER

main35561-30070iVZN130,YN130..4FC198908-199511

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-30060iYN130198908-199008

main35572-35020iVZN130..4FC199008-199511

35595BRACKET, PARKING LOCK PAWL

main35595-35010iVZN130,YN130..4FC198908-199511

9161160614

main91611-60614

9411040800

main94110-40800

9451200800

main94512-00800

15 parts on this diagram · 3 diagrams in section
