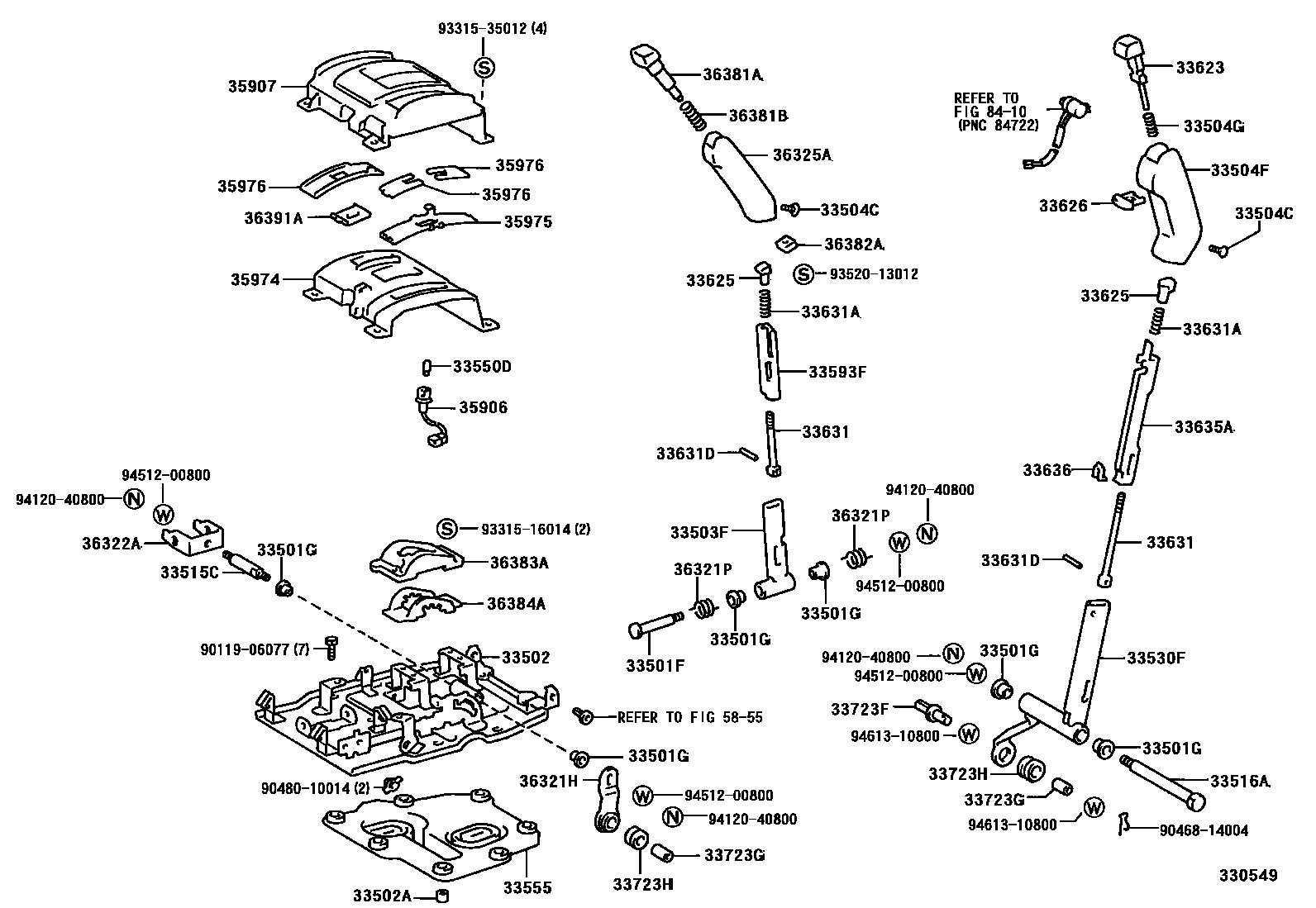

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

33501FSHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT)

main33511-35120iVZN130,YN130..4FC198908-199511

33501GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)

main90385-11003×6iVZN130,YN130..4FC198908-199511

33502PLATE SUB-ASSY, SHIFT LEVER

main33502-35190iVZN130,YN130..4FC198908-199511

33502ACOLLAR (FOR FLOOR SHIFT SETTING)

main90387-06065×6iVZN130,YN130..4FC198908-199511

OD=8.8

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33503-35060iVZN130,YN130..4FC198908-199511

33504CSCREW (FOR SHIFT LEVER KNOB SETTING)

main90159-40109×4iVZN130,YN130..4FC198908-199511

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12180-B0iLN205200106-200412

MEDIUM GRAY,TRIM1#

main33504-14050-01iLN106,111,130,RN105,130,YN106..(DLX,STD)..(ARL,GEN); LN135,YN135199008-199108

BLACK,TRIM1#,3#,4#,8#; BLACK,TRIM1#,4#,8#

main33504-14050-10iLN13#,RN13#..GEN199408-199511

BLUE,TRIM8#

main33504-14050-33iLN106,111,13#,RN13#,YN106..GEN199108-199109

GRAY,TRIM1#

main33504-14050-42iRN105..V199204-199708

POLYPROPYLENE,RED,TRIM3#

main33504-14050-S4iRN105..V199204-199708

POLYPROPYLENE,MEDIUM GRAY,TRIM1#

main33504-35030-02iLN135,YN135199008-199108

URETHANE,RED,TRIM3#

main33504-35030-03iLN106,111,RN105,110..DLX,SR5; LN106,RN105,YN106..STD198808-198901

GRAY,TRIM1#; URETHANE,GRAY,TRIM1#

main33504-35030-04iLN106,111,RN105,110..DLX,SR5; LN106,RN105,YN106..STD198808-198901

BLUE,TRIM8#; URETHANE,BLUE,TRIM8#

main33504-35030-06iLN106,111,13#,RN105,130,YN106,135..(DLX,STD)..(ARL,GEN); RN105..V;LN106,111,RN105,110,13#,VZN130..5F..SR5199008-199108

BROWN,TRIM4#; URETHANE,BROWN,TRIM4#

main33504-35030-B0iLN106,RN105,YN106..STD;LN13#,RN130,YN135..DLX; LN130,RN130..SR5;LN106,111,RN105,110,135..DLX,SR5198901-199008

MEDIUM GRAY,TRIM1#; URETHANE,MEDIUM GRAY,TRIM1#

main33504-35030-J0iLN106,111,13#,RN105,130,YN106,135..(DLX,STD)..(ARL,GEN); RN105..V;LN106,111,RN105,110,13#,VZN130..5F..SR5199008-199108

MEDIUM BLUE,TRIM8#; URETHANE,MEDIUM BLUE,TRIM8#

main33542-35060-03iVZN130,YN130..4FC198908-199511

GRAY,TRIM1#

main33542-35060-04iVZN130,YN130..4FC198908-199511

BLUE,TRIM8#

main33542-35060-06iVZN130,YN130..4FC198908-199108

SABLE,TRIM4#

33504GSPRING, COMPRESSION (FOR SHIFT LEVER KNOB)

main90501-07009iVZN130,YN130..4FC198908-199511

33515CSHAFT, CONTROL, NO.2

main33515-35010iVZN130,YN130..4FC198908-199511

33516ASHAFT, CONTROL, NO.3

main33516-35010iVZN130,YN130..4FC198908-199511

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33055-35020iYN130198908-199008

main33055-35040iVZN130..4FC199008-199511

main33530-35180iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,135..RHD..5F198808-199909

main33530-35190iLN106,111,13#,RN10#,13#,YN106,135..LHD198808-199203

main33530-35191iLN10#,111,13#,RN10#,13#,YN106..LHD199203-200106

main33530-35230iKZN205200108-200111

main33530-35610iKZN205200111

33550DBULB, POSITION INDICATOR LAMP

main90981-11018iVZN130,YN130..4FC198908-199511

12V 1.2W W/O SOCKET

33555BOOT, SHIFT LEVER

main33555-35080iVZN130,YN130..4FC198908-199511

main33555-60030iKZN205,LN205200106

33593FHOLDER, SPRING (FOR FLOOR SHIFT)

main33593-35010iVZN130,YN130..4FC198908-199511

33623BUTTON, SHIFT LEVER KNOB

main33623-35020-03iVZN130,YN130..4FC198908-199511

GRAY,TRIM1#

main33623-35020-04iVZN130,YN130..4FC198908-199511

BLUE,TRIM8#

main33623-35020-06iVZN130,YN130..4FC198908-199108

BROWN,TRIM4#

33625SLEEVE, SHIFT LEVER KNOB

main33625-35020iVZN130,YN130..4FC198908-199511

TRANSFER SIDE

main33625-35040iVZN130,YN130..4FC198908-199511

TRANSMISSION SIDE

33626STOPPER, SHIFT LEVER BUTTON

main33626-35020-03iVZN130,YN130..4FC198908-199511

GRAY,TRIM1#

main33626-35020-04iVZN130,YN130..4FC198908-199511

BLUE,TRIM8#

main33626-35020-06iVZN130,YN130..4FC198908-199108

BROWN,TRIM4#

33631ROD, DETENT

main33631-12080iVZN130,YN130..4FC198908-199511

TRANSMISSION SIDE

main33631-35030iVZN130,YN130..4FC198908-199511

TRANSFER SIDE

33631ASPRING, COMPRESSION (FOR DETENT ROD)

main90501-07005iVZN130,YN130..4FC198908-199511

TRANSFER SIDE

main90501-07074iVZN130,YN130..4FC198908-199511

TRANSMISSION SIDE

33631DPIN, GROOVED (FOR DETENT ROD)

main90256-04001×2iVZN130,YN130..4FC198908-199511

33635AGUIDE, WIRE, NO.1 (FOR SHIFT LEVER)

main33635-35040iVZN130,YN130..4FC198908-199511

33636GUIDE, WIRE, NO.2 (FOR SHIFT LEVER)

main33636-35010iVZN130,YN130..4FC198908-199511

33723FSWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)

main33723-22010iVZN130,YN130..4FC198908-199511

33723GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)

main90389-08005×2iVZN130,YN130..4FC198908-199511

33723HGROMMET (FOR FLOOR SHIFT CONTROL SHAFT)

main90480-17177×2iVZN130,YN130..4FC198908-199511

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-35051iVZN130,YN130..4FC198908-199511

35907HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)

main35907-35110iVZN130,YN130..4FC198908-199511

35974HOUSING, POSITION INDICATOR, LOWER

main35974-35020iVZN130,YN130..4FC198908-199511

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-35060iVZN130,YN130..4FC198908-199511

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-35020×2iYN130198908-199008

TRANSMISSION SIDE

main35976-35030iVZN130,YN130..4FC198908-199511

TRANSFER SIDE

36321HLEVER, TRANSFER SHIFT

main36321-35050iVZN130,YN130..4FC198908-199511

36321PSPRING (FOR TRANSFER SHIFT LEVER)

main90508-26068iVZN130,YN130..4FC198908-199511

FR

main90508-26069iVZN130,YN130..4FC198908-199511

RR

36322ALEVER, TRANSFER SHIFT, NO.2

main36322-35010iVZN130,YN130..4FC198908-199511

36325AKNOB, LEVER, NO.2

main36325-35040-03iVZN130,YN130..4FC198908-199511

GRAY,TRIM1#

main36325-35040-04iVZN130,YN130..4FC198908-199511

BLUE,TRIM8#

main36325-35040-06iVZN130,YN130..4FC198908-199108

SABLE,TRIM4#

36381ABUTTON, TRANSFER SHIFT LEVER KNOB

main36381-35020-03iVZN130,YN130..4FC198908-199511

GRAY,TRIM1#

main36381-35020-04iVZN130,YN130..4FC198908-199511

BLUE,TRIM8#

main36381-35020-06iVZN130,YN130..4FC198908-199108

BROWN,TRIM4#

36381BSPRING, COMPRESSION (FOR SHIFT LEVER KNOB)

main90501-08068iVZN130,YN130..4FC198908-199511

36382ASTOPPER, TRANSFER SHIFT LEVER BUTTON

main36382-35010iVZN130,YN130..4FC198908-199511

36383ASUPPORT, TRANSFER DETENT BLOCK

main36383-35040iVZN130,YN130..4FC198908-199511

36384ABLOCK, TRANSFER DETENT

main36384-35020iVZN130,YN130..4FC198908-199511

36391ACOVER, TRANSFER SLIDE

main36391-35020iVZN130,YN130..4FC198908-199511

5855CONSOLE BOX & BRACKET

→ Go to FIG 58-55

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9011906077

main90119-06077

9046814004

main90468-14004

9048010014

main90480-10014

9331516014

main93315-16014

9331535012

main93315-35012

9352013012

main93520-13012

9412040800

main94120-40800

9451200800

main94512-00800

9461310800

main94613-10800

51 parts on this diagram · 7 diagrams in section
