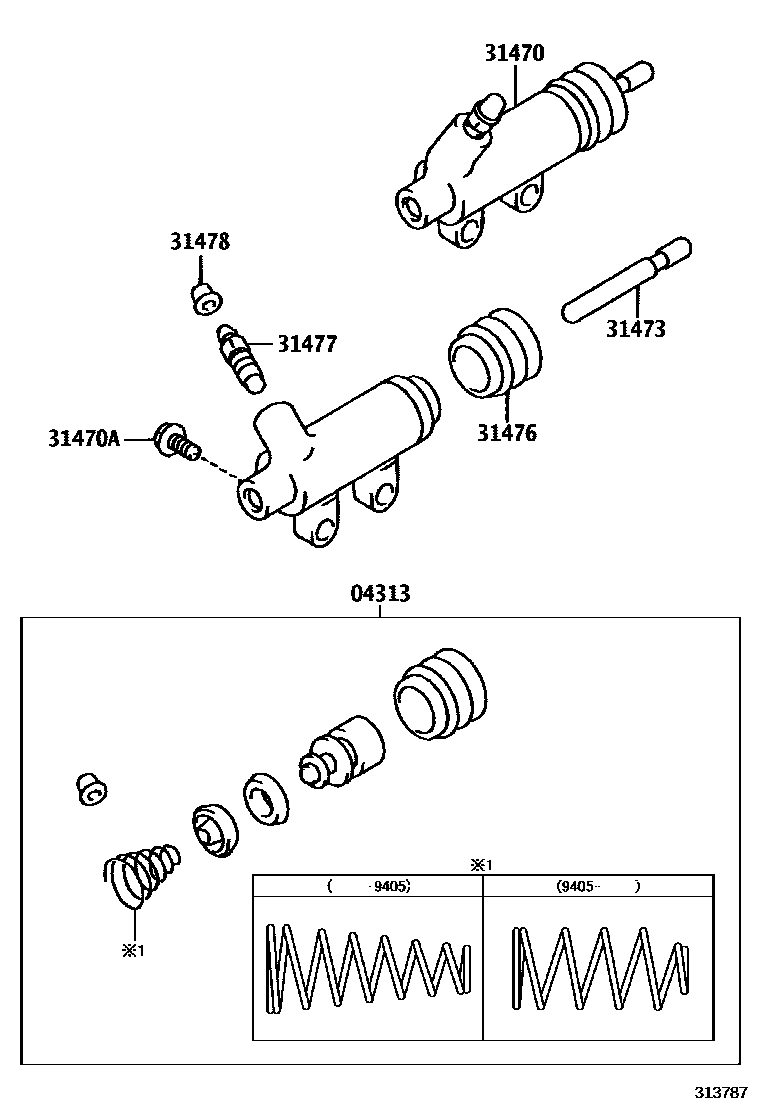

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-12030iLN10#,111,13#199110-199405

main04313-17010iLN10#,111,13#,VZN130..5F199405-199908

main04313-22030iRN10#,110,13#,YN106199110-199908

main04313-35060iKZN205200108-200412

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-22150iRN10#,110,13#,YN106199110-199908

main31470-30221iLN10#,111,13#198808-199405

main31470-30222iLN205200106-200412

main31470-30260iRN10#,110,13#,YN106,135198808-199110

main31470-35100iVZN130..5F199008-199511

main31470-35140iKZN205200108-200412

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60820×2iVZN130..5F199008-199501

*8-1.25PX20-20

main91611-60825×2iLN10#,111,13#,RN10#,110,13#,YN106,135198808-199908

*8-1.25PX25-25

main91611-B0825×2iLN205200106-200412

*8-1.25PX25-25

main91611-G0820×2iKZN205200108-200412

*8-1.25PX20-20

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iLN10#,111,13#199110-199405

main31473-32010iKZN205200108-200412

main31473-35050iRN10#,110,13#,VZN130,YN106..5F199110-199405

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,135..5F198808-199908

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,135..5F198808-199908

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iLN10#,111,13#,RN10#,110,13#,VZN130,YN106,135..5F198808-199908

7 parts on this diagram · 2 diagrams in section
