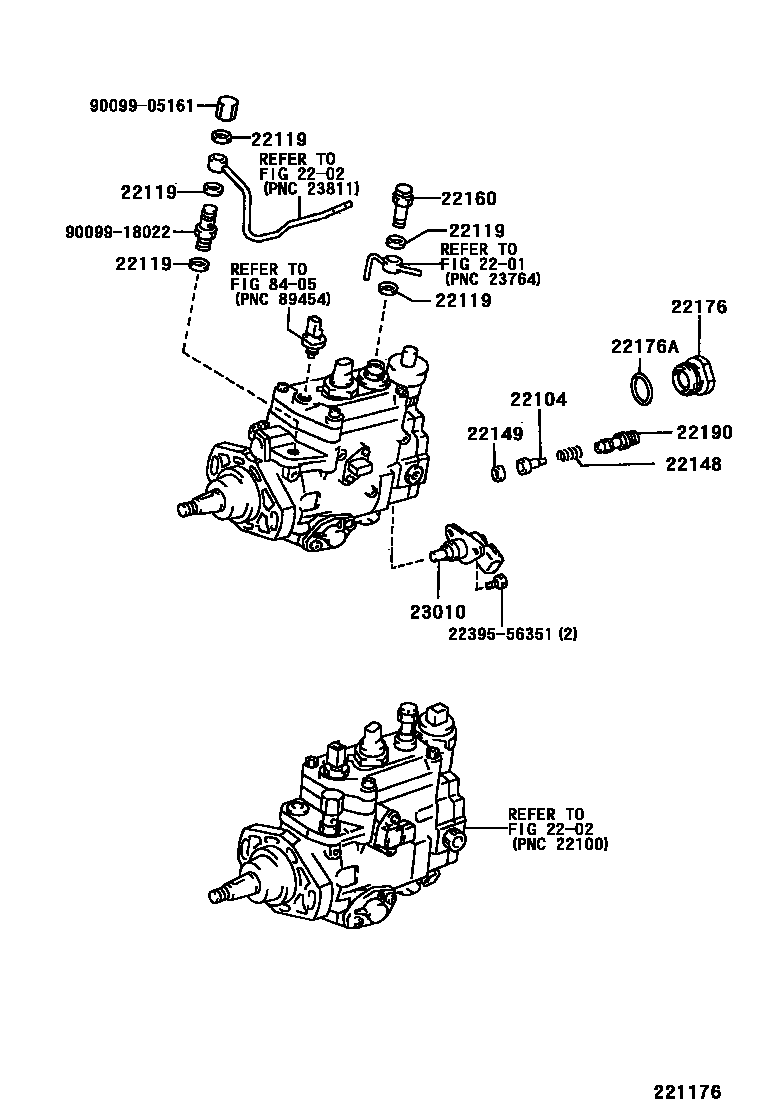

INJECTION PUMP BODY

0001 1 0002 1 0003 1W(THAILAND SPEC) 0004 1 0005 1 0006 1W(HIGH ALTITUDE COMPENSATOR) 0007 1W(HIGH ALTITUDE COMPENSATOR) 0008 1W(HIGH ALTITUDE COMPENSATOR) 0009 1W(HIGH ALTITUDE COMPENSATOR) 0010 1W(HIGH ALTITUDE COMPENSATOR)

2201INJECTION NOZZLE

→ Go to FIG 22-01

2202INJECTION PUMP ASSEMBLY

→ Go to FIG 22-02

22104VALVE SUB-ASSY, INJECTION PUMP DELIVERY

main22104-5B640×4i5L..LN205200106-200412

main22104-64010×4i3L..LN106,111,13#198808-199005

main22104-67100×4i1KZTE..KZN205200108-200412

main22104-6A290×4i3L..LN10#,111,13#199005-200106

22119WASHER, AIR BLEEDER NIPPLE

main90201-12109×5i5L..LN205200106-200412

22148SPRING, DELIVERY VALVE

main22148-54010×4i3L..LN10#,111,13#198808-200106

22149GASKET, DELIVERY VALVE

main22149-54010×4i3L..LN106,111,13#198808-199005

main22149-56351×4i3L..LN10#,111,13#199005-200106

22160SCREW SUB-ASSY, OVERFLOW

main22160-64010i3L..LN10#,111,13#198808-200106

main22160-67100i1KZTE..KZN205200108-200412

22176PLUG, DISTRIBUTIVE HEAD

main22176-54020i3L..LN10#,111,13#198808-200106

main22176-54640i1KZTE..KZN205200108-200412

22176ARING, O(FOR DISTRIBUTIVE HEAD PLUG)

main22193-54772i1KZTE..KZN205200108-200412

main90099-14052i3L..LN10#,111,13#198808-199608

22190VALVE SUB-ASSY, SNUBBER

main22190-5B640×4i5L..LN205200106-200412

main22190-6A680×4i1KZTE..KZN205200108-200412

23010VALVE ASSY, TIMING CONTROL

main23010-67010i1KZTE..KZN205200108-200412

8405ELECTRONIC CONTROLED DIESEL (ECD)

→ Go to FIG 84-05

2239556351BOLT, SOCKET(FOR INJECTION PUMP GOVERNOR COVER)

main22395-56351

9009905161

main90099-05161

9009918022

main90099-18022

15 parts on this diagram · 10 diagrams in section
