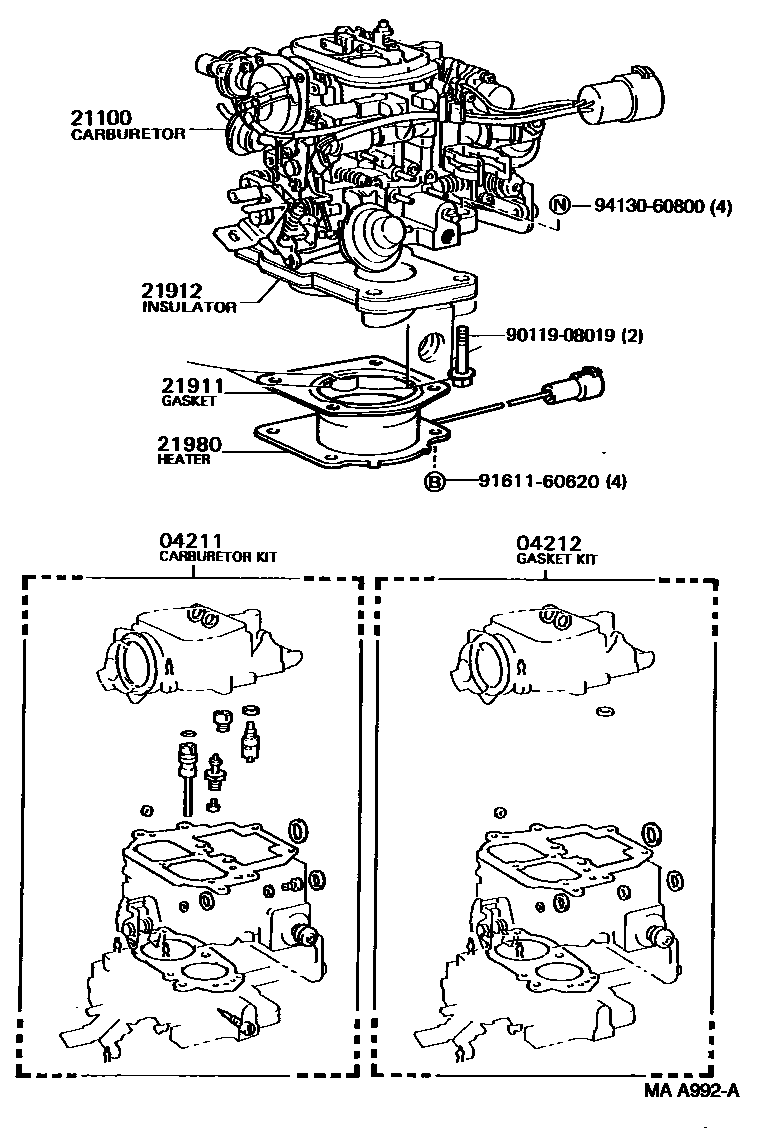

CARBURETOR ASSEMBLY

0001 1 0002 1

04211CARBURETOR KIT

main04211-35430i22R..RN110198808-198812

main04211-35431i22R..RN110,130..ARL198812-199208

main04211-35432i22R..RN110,130..ARL199208-199708

main04211-35450i22R..RN105..ARL198808-198812

main04211-35451i22R..RN10#..RHD198812-199208

main04211-35452i22R..RN10#..RHD199208-199708

main04211-35460i22R..RN105..V198808-198812

main04211-35461i22R..RN10#,13#..(DLX,SR5)..(GEN,V)198812-199208

main04211-35462i22R..RN135;22R..RN10#,130..LHD199208-199909

main04211-72270i4Y..YN106..RHD..T1199401-199612

THAILAND SPEC

main04211-73240i4Y..YN106,135198808-198911

main04211-73300i4Y..YN106,135198911-199708

04212GASKET KIT, CARBURETOR

main04212-35042i22R..RN10#,135;22R..RN130..GEN199208-199909

main04212-35420i22R..RN110198808-198812

main04212-35421i22R..RN110,130..ARL198812-199208

main04212-35422i22R..RN110,130..ARL199208-199708

main04212-35430i22R..RN105198808-198812

main04212-35431i22R..RN10#,135;22R..RN130..GEN198812-199208

main04212-73071i4Y..YN106,135198808-199708

21100CARBURETOR ASSY

main21100-35520i22R..RN110,130..ARL198808-199708

main21100-35540i22R..RN10#..RHD198808-199708

main21100-35550i22R..RN106..STD199508-199708

CHINA SPEC

main21100-35570i22R..RN106,13#..LHD..GEN199108-199909

main21100-35580i22R..RN135..RHD199108-199511

main21100-72340i4Y..YN106..RHD..T1199401-199612

THAILAND SPEC

main21100-73350i4Y..YN106,135198808-198911

main21100-73400i4Y..YN106,135198911-199708

21911GASKET, CARBURETOR

main21995-35020i22R..RN10#,110,130..RHD198808-199405

21912INSULATOR, CARBURETOR HEAT

main21912-35030i22R..RN105,110,130..ARL198808-198910

main21912-35040i22R..RN10#,135;22R..RN130..GEN199405-199909

main21912-35050i22R..RN110,130..ARL199405-199708

main21912-37030i22R..RN105,135..V198808-198910

main21912-71020i4Y..YN106,135198808-198912

main21912-71021i4Y..YN106,135198912-199108

main21912-73020i4Y..YN106199108-199708

21980HEATER ASSY, COLD MIXTURE

main21980-35010i22R..RN10#,110,130..RHD198808-199405

9011908019

main90119-08019

9161160620

main91611-60620

9413060800

main94130-60800

9 parts on this diagram · 2 diagrams in section
