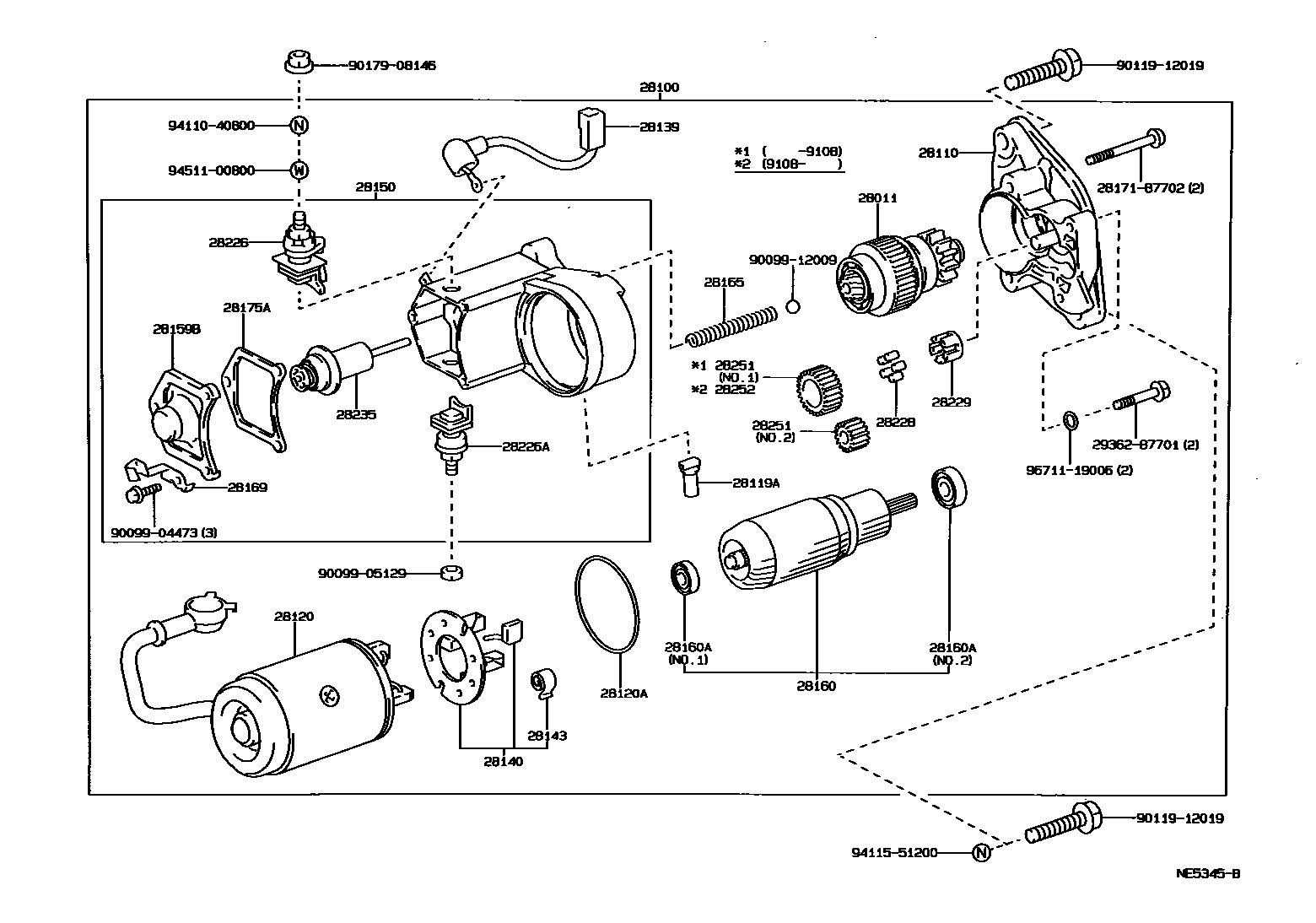

STARTER

0001 112V 2.0KW 0002 112V 2.0KW 0003 112V 1.0KW 0004 112V 1.0KW 0006 112V 1.0KW 0008 112V 1.4KW 0010 112V 2.2KW 0011 112V 2.2KW

28011CLUTCH SUB-ASSY, STARTER

main28011-26042i22R,4Y#..RN105,110,13#,YN106,13#198808-199108

main28011-35030i22R,3VZE..RN10#,110,13#,VZN130199108-199909

main28011-54070i3L..LN10#,111,13#198808-199308

main28011-54260i5L..LN205200106

main28011-54380i3L..LN10#,111,13#199308-200106

main28011-67030i1KZTE..KZN205200108

28100STARTER ASSY

main28100-34080i22R..RN105,110,13#198808-199108

12V 1.0KW

main28100-35030i22R..RN10#,110,13#199108-199308

12V 1.0KW

main28100-35080i22R..RN10#,110,13#199308-199909

12V 1.0KW

main28100-35100i22RE..RN106199401-199909

12V 1.0KW

main28100-54070i3L..LN106,111,13#198808-199008

12V 2.0KW

main28100-54170i3L..LN10#,111,13#199008-199308

12V 2.0KW

main28100-54260i5L..LN205200106

12V 2.2KW

main28100-54380i3L..LN10#,111,13#199308-200106

12V 2.0KW

main28100-65010i3VZE..VZN130..5F199008-199308

12V 1.0KW

main28100-65020i3VZE..VZN130..4FC199008-199308

12V 1.4KW

main28100-65080i3VZE..VZN130..5F199308-199511

12V 1.0KW

main28100-65090i3VZE..VZN130..4FC199308-199511

12V 1.4KW

main28100-67050i1KZTE..KZN205200108

12V 2.2KW

main28100-72080i4Y..YN106,135198808-199308

12V 1.0KW

main28100-72090i4YE..YN130198908-199008

12V 1.4KW

main28100-72140i4Y..YN106199308-199708

12V 1.0KW

28110HOUSING ASSY, STARTER DRIVE

main28110-34080i22R#..RN10#,110,13#198808-199909

main28110-54380i3L..LN10#,111,13#199308-200106

main28110-65010i3VZE..VZN130..5F199008-199511

main28110-65020i3VZE..VZN130..4FC199008-199511

main28110-67050i1KZTE..KZN205200108

main28110-72010i4Y..YN106,135198808-199708

main28110-72020i4YE..YN130198908-199008

main28115-54070i3L..LN10#,111,13#198808-199308

main28115-54260i5L..LN205200106

28119ACOVER, STARTER END FRAME

main28199-46080i3L..LN10#,111,13#199104-199308

main28199-74110i3L..LN10#,111,13#199308-200106

main28199-77090i3L..LN106,111,13#198808-199104

28120YOKE ASSY, STARTER

main28120-15090i3VZE,4YE..VZN130,YN130..4FC198908-199511

main28120-26071×2i22R..RN105,110,13#; 3VZE,4Y..VZN130,YN106,135..5F198808-199108

main28120-54070i3L..LN10#,111,13#198808-199308

main28120-54260i5L..LN205200106

main28120-54380i3L..LN10#,111,13#199308-200106

main28120-64040i1KZTE..KZN205200108

28120ARING, O(FOR STARTER YOKE)

main90099-14058i3L..LN10#,111,13#198808-199308

main90099-14064×2i3VZE,4YE..VZN130,YN130..4FC198908-199308

main90099-64040i1KZTE,5L..KZN205,LN205200106

28139WIRE, LEAD, NO.1(FOR STARTER)

main28139-54070i3L..LN106,111,13#198808-199008

main28139-54100i3L..LN106,111,13#199008-199108

main28139-54170i3L..LN10#,111,13#199108-199308

main28139-54171i5L..LN205200106

main28139-54380i3L..LN10#,111,13#199308-200106

28140HOLDER ASSY, STARTER BRUSH

main28140-15090i4YE..YN130198908-199008

main28140-26070i22RE,4Y..RN106,YN106199108-199909

main28140-54070i3L..LN10#,111,13#198808-199308

main28140-54380i3L..LN10#,111,13#199308-200106

main28140-64040i1KZTE,5L..KZN205,LN205200106

main28140-65010i22R,3VZE..RN10#,110,13#,VZN130..5F199108-199909

main28140-65020i3VZE..VZN130..4FC199008-199511

28143SPRING, STARTER BRUSH

main28143-54380×4i3L..LN10#,111,13#199308-200106

main90099-17112×4i3VZE,4Y..VZN130,YN106..5F199108-199308

main90099-17115×4i1KZTE,5L..KZN205,LN205200106

28150SWITCH ASSY, MAGNET STARTER

main28150-34060i22R..RN105,110,13#199010-199108

main28150-34080i22R..RN105,110,13#198808-199010

main28150-35031i22R..RN10#,110,13#199108-199308

main28150-35080i22R..RN10#,110,13#199308-199909

main28150-54070i3L..LN106,111,13#198808-199104

main28150-54181i3L..LN10#,111,13#199104-199308

main28150-54330i5L..LN205200106

main28150-54380i3L..LN10#,111,13#199308-200106

main28150-65011i3VZE..VZN130..5F199008-199308

main28150-65021i3VZE..VZN130..4FC199008-199308

main28150-65080i3VZE..VZN130..5F199308-199511

main28150-65090i3VZE..VZN130..4FC199308-199511

main28150-67050i1KZTE..KZN205200108

main28150-72080i4Y..YN106,135198808-199308

main28150-72090i4YE..YN130198908-199008

main28150-72140i4Y..YN106199308-199708

main28150-72150i22RE..RN106199401-199909

28159BCOVER, MAGNET SWITCH

main28159-10040i22R,3VZE,4Y#..RN10#,110,13#,VZN130,YN106,13#198808-199308

main28159-54170i3L..LN10#,111,13#198808-199308

main28159-54380i3L..LN10#,111,13#199308-200106

28160ARMATURE ASSY, STARTER

main28160-15090i3VZE..VZN130..4FC199108-199511

main28160-15091i3VZE,4YE..VZN130,YN130..4FC198908-199108

main28160-26070i22R,4Y..RN105,110,135,YN106,135198808-198908

main28160-26071i22R#,3VZE,4Y..RN10#,110,13#,VZN130,YN106,135..5F198908-199909

main28160-54070i3L..LN106,111,135198808-198908

main28160-54071i3L..LN10#,111,13#198908-199308

main28160-54380i3L..LN10#,111,13#199308-200106

main28160-64041i1KZTE,5L..KZN205,LN205200106

28160ABEARING, STARTER ARMATURE

main28253-45020i22R#,3VZE,4Y..RN10#,110,13#,VZN130,YN106,135..5F198808-199909

NO.1

main28253-54070i1KZTE,5L..KZN205,LN205200106

main90099-10113i22R#,3VZE,4Y..RN10#,110,13#,VZN130,YN106,135..5F198808-199909

NO.2

main90099-10131i3L..LN10#,111,13#198808-199308

NO.2

main90099-10143i3VZE,4YE..VZN130,YN130..4FC198908-199511

NO.2

main90099-10144i3VZE,4YE..VZN130,YN130..4FC198908-199511

NO.1

main90099-10197i3L..LN10#,111,13#199308-200106

NO.2

main90099-10208i3L..LN10#,111,13#199308-200106

NO.1

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-26040i22R,3L,4Y#..LN106,111,13#,RN105,110,13#,YN106,13#198808-199008

main28165-76070i3L..LN10#,111,13#199308-200106

28169CLAMP, STARTER MOTOR LEAD WIRE

main28169-10040i22R#,3VZE,4Y#..RN10#,110,13#,VZN130,YN106,13#198808-199909

main28169-54070i3L..LN10#,111,13#198808-199308

main28169-54260i5L..LN205200106

main28169-54380i3L..LN10#,111,13#199308-200106

28175AGASKET, MAGNET SWITCH COVER

main28175-10040i22R#,3VZE..RN10#,110,13#,VZN130199308-199909

main28175-54380i3L..LN10#,111,13#199308-200106

28226STARTER KIT, BATTERY TERMINAL

main28226-54080i3L..LN10#,111,13#199008-199308

main28226-54330i1KZTE,5L..KZN205,LN205200106-200412

main28226-54380i3L..LN10#,111,13#199308-200106

main28226-70040i22R#,3VZE,4Y..RN10#,110,13#,VZN130,YN106199308-199909

main28226-72080i22R,3VZE,4YE..RN105,110,13#,VZN130,YN130198808-199108

28226ASTARTER KIT, MOTOR TERMINAL

main28226-72010i22R,3L,3VZE,4YE..LN106,111,13#,RN105,110,13#,VZN130,YN130198808-199108

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040×5i22R#,3L,3VZE,4Y#..LN10#,111,13#,RN10#,110,13#,VZN130,YN106,13#198808-200106

28229RETAINER, STARTER IDLE GEAR

main28229-26040i22R,3L,3VZE,4Y..LN10#,111,13#,RN10#,110,13#,VZN130,YN106,135199008-199308

main28229-74070i3L..LN10#,111,13#199308-200106

28235PLUNGER, MAGNET SWITCH

main28235-35080i1KZTE,5L..KZN205,LN205200106

main28235-54380i3L..LN10#,111,13#199308-200106

28251PINION, STARTER DRIVE

main28251-15090i3VZE..VZN130..4FC199108-199511

main28251-54070i1KZTE,5L..KZN205,LN205200106

main28254-45020i3VZE,4YE..VZN130,YN130..4FC198908-199108

NO.1

main28254-54070i3L..LN106,111,13#198808-199108

NO.1

main28254-54380i3L..LN10#,111,13#199308-200106

28252GEAR, STARTER IDLE

main28254-45020i22R#,3VZE,4Y..RN10#,110,13#,VZN130,YN106199108-199909

main28254-54070i3L..LN10#,111,13#199108-199308

main28254-64040i1KZTE,5L..KZN205,LN205200106

main28254-64130i3L..LN10#,111,13#199308-200106

2817187702BOLT, STARTER

main28171-87702

2936287701

main29362-87701

9009904473

main90099-04473

9009905129

main90099-05129

9009912009

main90099-12009

9011912019

main90119-12019

9017908146

main90179-08146

9411040800

main94110-40800

9411551200

main94115-51200

9451100800

main94511-00800

9671119006

main96711-19006

34 parts on this diagram · 8 diagrams in section
