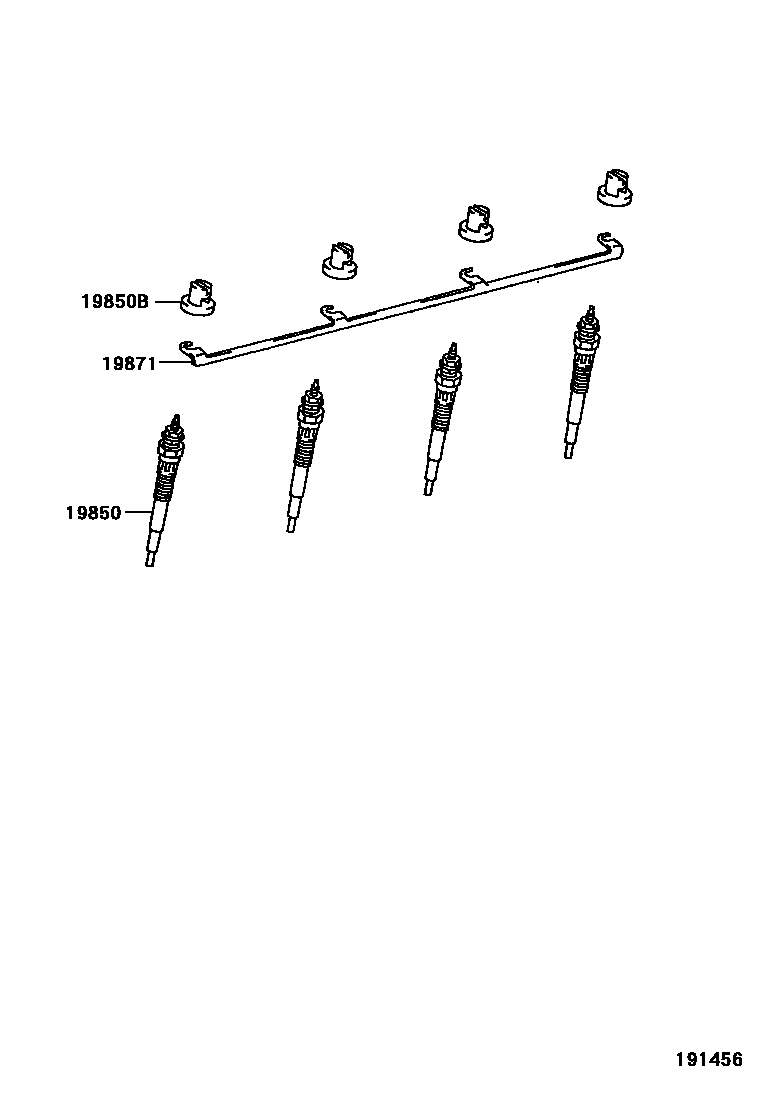

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

19850PLUG ASSY, GLOW

main19850-54090i3L..LN107..ARL;3L..LN106,111,13#198808-199901

*BV-GV=12V-11V

main19850-54110i3L..LN106,130..LHD..CBU199508-199609

*BV-GV=12V-11V,BRAZIL SPEC

sub19850-54130

main19850-54120i3L..LN106199901-199909

*BV-GV=12V-11V

main19850-54120i3L..LN111..ARL..CBU199612-199708

*BV-GV=12V-11V,THAILAND SPEC

main19850-54130i3L..LN106..LHD..CBU199609-199708

*BV-GV=12V-11V,BRAZIL SPEC

main19850-54130i3L..LN107..GEN199703-200412

*BV-GV=12V-11V

main19850-67030i1KZTE..KZN205200108-200412

*BV-GV=12V-11V

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-04024i1KZTE..KZN205200108-200412

19871CONNECTOR, GLOW PLUG NO.1

main19871-54020i3L..LN107..ARL;3L..LN106,111,13#198808-199909

main19871-54040i3L..LN107..GEN199703-200412

main19871-54040i3L..LN106,130..LHD..CBU199508-199708

BRAZIL SPEC

main19871-67030i1KZTE..KZN205200108-200412

3 parts on this diagram · 9 diagrams in section
