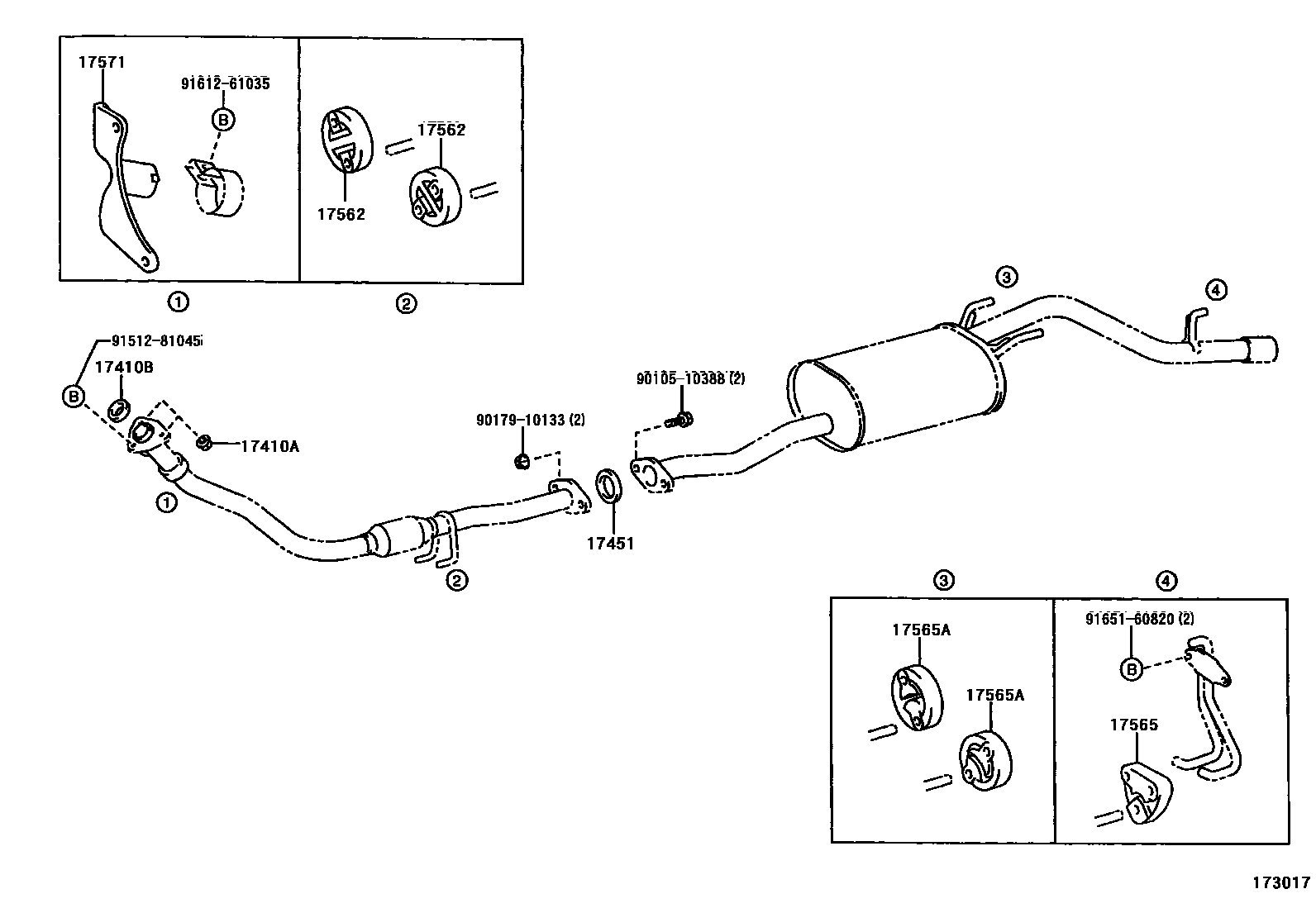

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-08020i22RE..RN106199401-199909

(L)

main17410-35310i22RE..RN106199401-199909

(J)

main17410-35450i22R..RN105198808-199001

main17410-35451i22R..RN105199001-199008

main17410-35452i22R..RN105199008-199708

main17410-35460i22R..RN110198808-198904

main17410-35510i22R..RN106199108-199909

main17410-35631i3L..LN13#198904-198909

main17410-35632i3L..LN13#198909-199511

main17410-35640i4YE..YN130198908-199008

main17410-35650i22R..RN110,130198904-199001

main17410-35651i22R..RN110,130199001-199009

main17410-35652i22R..RN110,130..ARL199009-199708

main17410-35660i22R..RN13#..GEN,V198907-199511

main17410-35670i4Y..YN135198904-199108

main17410-35690i3VZE..VZN130199008-199511

main17410-54720i3L..LN106..GEN198808-199008

main17410-54721i3L..LN106199201-199909

main17410-54730i3L..LN106..ARL198808-198909

main17410-54731i3L..LN106..ARL198909-199201

main17410-54750i3L..LN111..GEN198808-199008

main17410-54751i3L..LN111..GEN199008-199708

main17410-54760i3L..LN111..ARL198808-198909

main17410-54761i3L..LN111..ARL198909-199108

main17410-5B030i3L..LN106..RHD..TW1..GEN;3L..LN106..RHD..GEN..IV3199108-199909

NEW ZEALAND SPEC

main17410-5B080i3L..LN107199108-199201

main17410-5B100i3L..LN111..ARL199108-199201

main17410-5B101i3L..LN111..ARL199201-199708

main17410-5B130i3L..LN107199201-200106

main17410-73420i4Y..YN106198808-199708

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070×3i5L..LN205200106

17410BGASKET, EXHAUST PIPE

main90917-06038×2i22R#,4Y#..RN10#,110,13#,YN106,13#198808-199505

main90917-06041i3L,3VZE..LN10#,111,13#,VZN130198808-199505

main90917-06064×2i22R#,4Y..RN10#,110,13#,YN106199505-199909

main90917-06066i3L,3VZE..LN10#,111,13#,VZN130199505-200106

main90917-06067i1KZTE..KZN205200108

17451GASKET, EXHAUST PIPE

main90917-06025i22R,4Y..RN105,135,YN106,135198808-199001

main90917-06041i22RE,3VZE,4YE..RN106,VZN130,YN130198908-199909

FRONT

main90917-06044i22R..RN130..GEN;22R,4Y..RN10#,135,YN106,135199001-199909

main90917-06045×2i22R..RN110; 3L..LN106,111198808-198809

main90917-06046i1KZTE,5L..KZN205,LN205200106

main90917-06047i3VZE,4YE..VZN130,YN130198908-199104

REAR

17562SUPPORT, EXHAUST PIPE, NO.2

main17565-74290×2i1KZTE,5L..KZN205,LN205200106

17565SUPPORT, EXHAUST PIPE, NO.5

main17566-35030i1KZTE,5L..KZN205,LN205200106

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-35010×2i1KZTE,5L..KZN205,LN205200106

17571BRACKET, EXHAUST PIPE SUPPORT, NO.1

main17571-54430i1KZTE..KZN205200108

main17571-54560i5L..LN205200106

9010510388

main90105-10388

9017910133

main90179-10133

9151281045

main91512-81045

9161261035

main91612-61035

9165160820

main91651-60820

13 parts on this diagram · 10 diagrams in section
