V-BELT

0001 1 0002 1

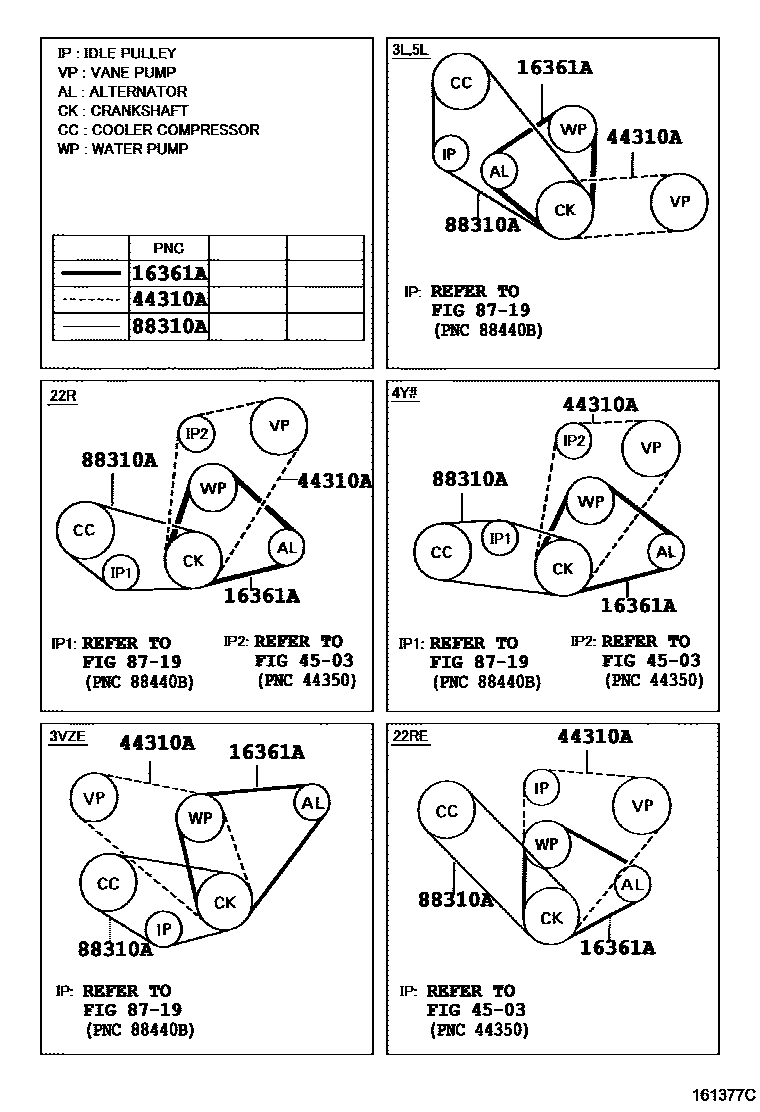

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02194i3VZE..VZN130199008-199208

main90916-02209i3L..LN10#,111,13#198808-199604

main90916-02211i5L..LN205200106-200412

main90916-02384i3VZE..VZN130199208-199511

main90916-02385i1KZTE..KZN205200108-200412

main99331-10870i22R#..RN10#,110,13#198808-199909

main99364-50830i4Y..YN106,135198808-199011

main99364-70830i4Y..YN106,135199011-199402

main99364-80830i4Y..YN106199402-199408

main99365-50820i4YE..YN130198908-199008

main99365-80820i4Y..YN106199408-199708

44310ABELT, V(FOR VANE PUMP)

main90916-02196iVZN130199008-199511

main99332-00830iLN10#,111,13#..RHD198808-199909

main99332-01055iYN106,13#198808-199708

main99332-10865iLN106,111,13#..LHD199108-199511

L=865,BANDO

main99332-11110iRN10#,110199511-199909

main99332-11120iRN10#,110,13#198808-199511

main99332-60865iLN106,111,135..LHD198808-199108

BANDO

4503POWER STEERING TUBE

→ Go to FIG 45-03

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90916-02390iKZN205200108

L=1165

main99322-00860iRN105,110,130..ARL198808-199108

main99332-00870iYN106,135198808-199108

main99332-01260iLN130198908-199008

L=1260

main99332-01265iLN130199008-199108

L=1265

main99332-10855iYN106199408-199708

main99332-10860iRN10#,110,130..ARL199108-199308

main99332-10865iRN105..V198808-199008

main99332-10870iYN106199108-199408

L=870

main99332-10890iVZN130199008-199511

main99332-11205iLN106..LHD..CBU199408-199708

W(POWER STEERING)

main99332-11260iLN106,111..LHD; LN106,135..RHD..GEN199108-199408

W/O(POWER STEERING)

main99332-11265iLN10#,111,130..ARL199108-199812

5 parts on this diagram · 2 diagrams in section
