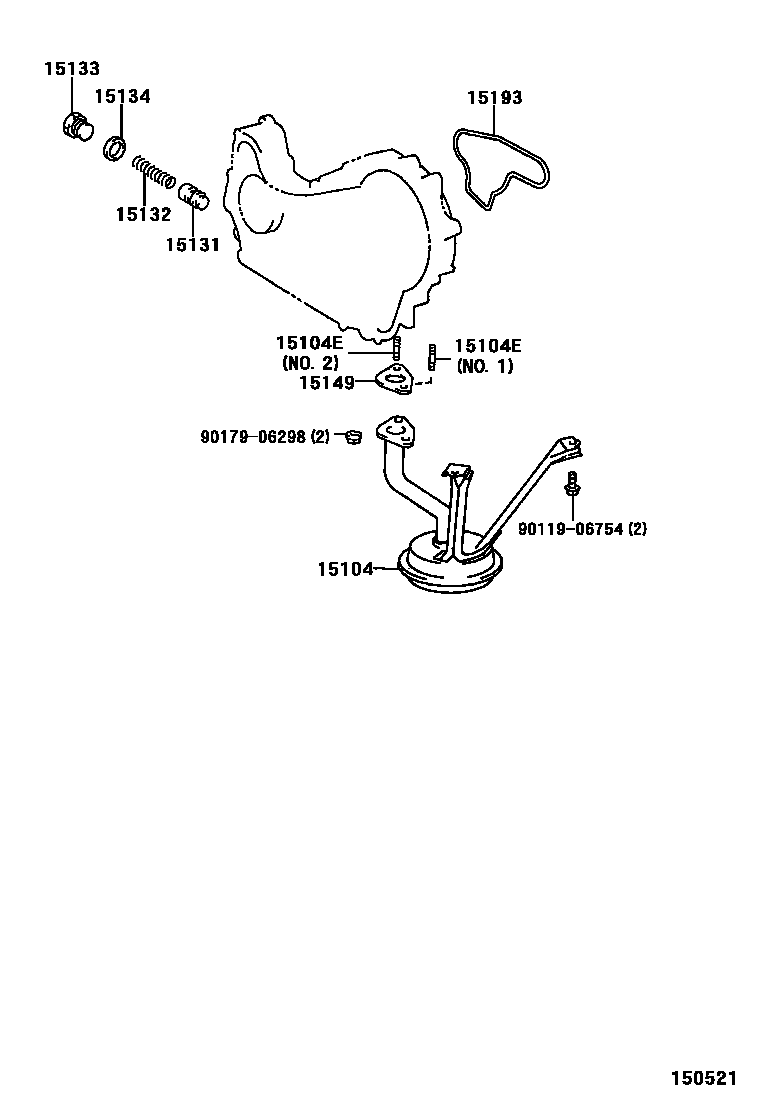

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

15104STRAINER SUB-ASSY, OIL

main15104-35010i22R#..RN10#,110,13#198808-199909

main15104-54130i3L..LN107..ARL;3L..LN106,111,13#198808-199909

main15104-54170i3L..LN107..GEN199703-200106

main15104-65010i3VZE..VZN130199008-199511

main15104-67050i1KZTE..KZN205200108-200412

main15104-71020i4Y#..YN106,13#198808-199708

15104EBOLT, STUD(FOR OIL STRAINER)

main90116-06140i1KZTE..KZN205200108-200412

NO.1

main92122-40816×2i3L..LN10#,111,13#198808-200106

main92122-60650i1KZTE..KZN205200108-200412

NO.2

main92122-80816×2i5L..LN205200208-200412

15131VALVE, OIL PUMP RELIEF

main15131-24010i4Y#..YN106,13#198808-199708

main15131-38030i22R#..RN10#,110,13#198808-199909

main15131-46040i1KZTE..KZN205200108-200412

main15131-54010i3L..LN10#,111,13#198808-200106

15132SPRING, OIL PUMP RELIEF VALVE

main15132-17010i1KZTE..KZN205200108-200412

main15132-40010i4Y#..YN106,13#198808-199708

main15132-46010i22R#..RN10#,110,13#198808-199909

main15132-54010i5L..LN205200106-200412

main15132-65020i3VZE..VZN130199008-199511

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i1KZTE..KZN205200108-200412

main15133-20010i22R#..RN10#,110,13#198808-199909

main15133-24010i3VZE..VZN130199008-199511

main15133-54010i3L..LN10#,111,13#198808-200106

15134GASKET, OIL PUMP RELIEF VALVE

main15134-20010i22R#..RN10#,110,13#198808-199909

main15134-67020i1KZTE..KZN205200108-200412

15149GASKET, OIL STRAINER FLANGE

main15149-67010i1KZTE..KZN205200108-200412

15193GASKET, OIL PUMP

main15193-67011i1KZTE..KZN205200108-200412

9011906754

main90119-06754

9017906298

main90179-06298

10 parts on this diagram · 6 diagrams in section
