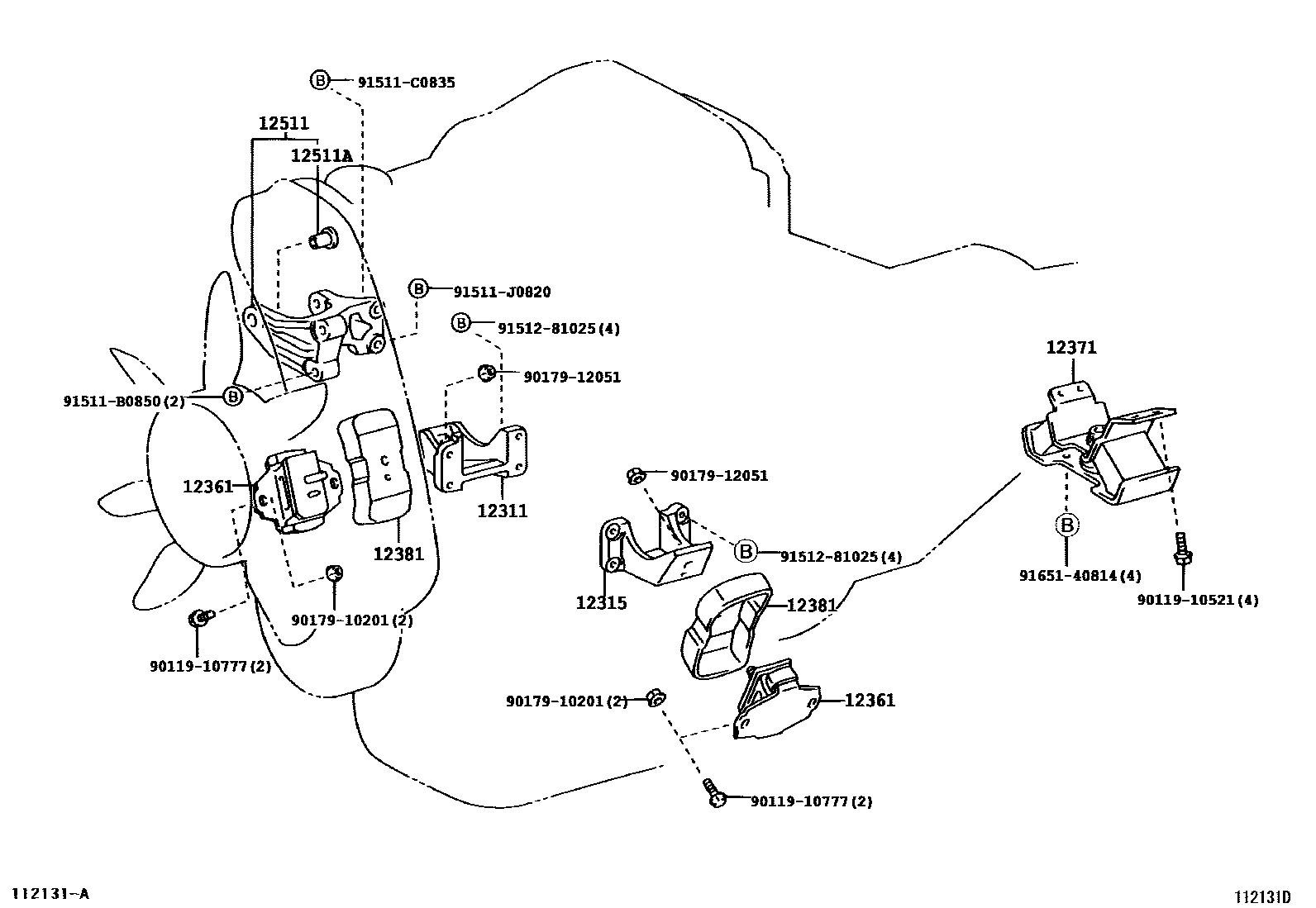

MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12301-35190i22R..RN105,110,13#198808-199002

main12301-35210i22R#..RN10#,110,13#199002-199909

main12311-54090i3L..LN106,111,13#198808-199008

main12311-54091i3L..LN135..RHD;3L..LN106,111..GEN199505-199909

main12311-54181i3L..LN10#,111,130..ARL199108-199812

main12311-65020i3VZE..VZN130199008-199511

main12311-67021i1KZTE..KZN205200108-200412

main12311-73011i4Y#..YN106,13#198808-199708

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12302-35070i22R..RN105,110,13#198808-199002

main12302-35120i22R#..RN10#,110,13#199002-199909

main12312-54021i5L..LN205200106-200412

main12315-65020i3VZE..VZN130199008-199511

main12315-67011i1KZTE..KZN205200108-200412

main12315-73010i4Y..YN106,135198808-199708

main12315-73020i4YE..YN130198908-199008

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-35050×2i4Y..YN106198808-198904

main12361-54120×2i3L..LN106,111,13#198808-199001

main12361-54121×2i3L..LN10#,111,13#199001-199905

main12361-65010×2i3VZE..VZN130199008-199511

main12361-67020×2i1KZTE..KZN205200108

main12361-73040×2i4Y..YN106,135198904-199708

main12362-73021i4YE..YN130198908-199008

LH

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-35050i22R..RN105;22R#..RN106..GEN199208-199909

main12371-54060i5L..LN205200106-200202

main12371-65010i3VZE..VZN130..5F199008-199112

main12371-65020i4YE..YN130198908-199008

main12371-65050i3VZE..VZN130..4FC199008-199112

main12371-65100i3VZE..VZN130..5F199201-199511

main12371-65130i3VZE..VZN130..4FC199112-199511

12381STABILIZER, ENGINE MOUNTING

main12381-54020×2i3L..LN106,111,13#198808-199008

main12381-54060×2i3L..LN10#,111,130..ARL199108-199812

main12381-54100×2i5L..LN205200106

main12381-65011×2i3VZE..VZN130199008-199205

main12381-65020×2i3VZE..VZN130199205-199207

main12381-65030×2i3VZE..VZN130199207-199511

main12381-67010×2i1KZTE..KZN205200108

main12381-73010×2i4Y#..YN106,13#198808-199004

main12381-73040i4Y#..YN106,13#199004-199108

12511BRACKET, ALTERNATOR, NO.1

main12501-73011i4Y..YN106199408-199708

main12511-35010i22R..RN10#,13#..(DLX,SR5)..(GEN,V)199108-199408

main12511-35030i22RE..RN106;22R..RN10#,110,130..RHD199108-199408

main12511-65010i3VZE..VZN130199008-199208

main12511-65011i3VZE..VZN130199208-199511

main12511-67020i1KZTE..KZN205200108-200412

main12511-71010i4Y..YN106,135198808-199408

12511ABUSH, ALTERNATOR BRACKET

main90389-10039i1KZTE..KZN205200108-200412

9011910521

main90119-10521

9011910777

main90119-10777

9017910201

main90179-10201

9017912051

main90179-12051

91511B0850

main91511-B0850

91511C0835

main91511-C0835

91511J0820

main91511-J0820

9151281025

main91512-81025

9165140814

main91651-40814

16 parts on this diagram · 6 diagrams in section
