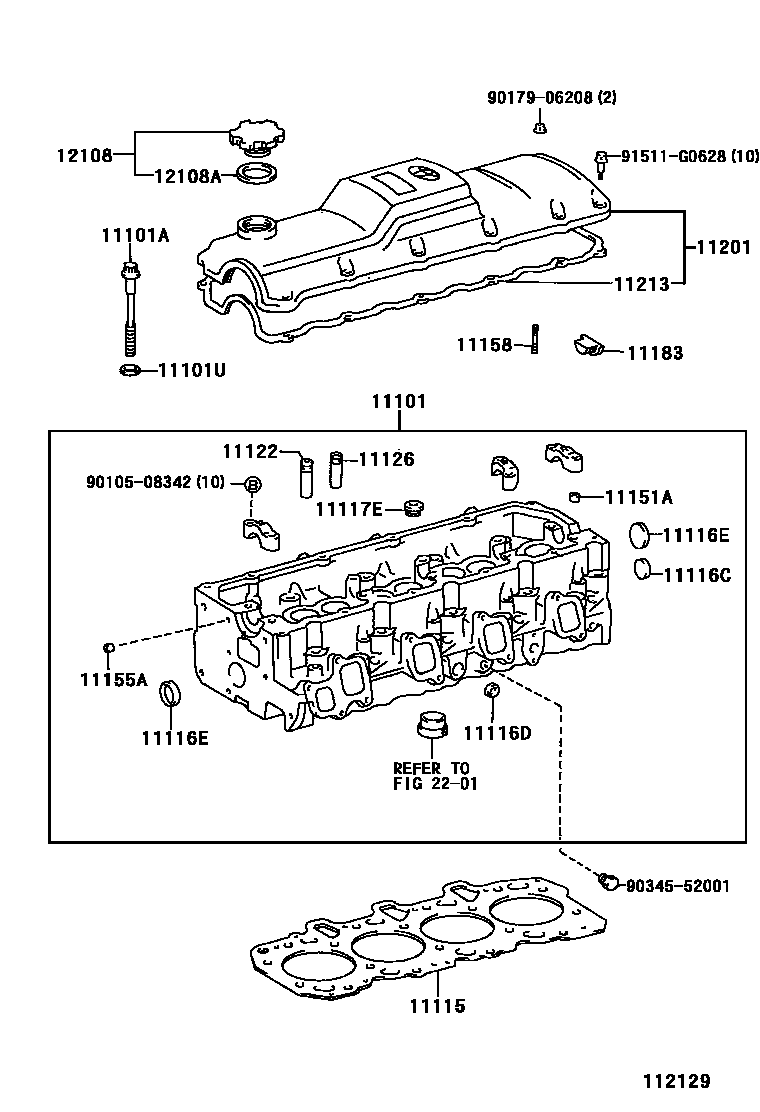

CYLINDER HEAD

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

11101HEAD SUB-ASSY, CYLINDER

main11101-35050i22R..RN110,130..ARL198808-199708

main11101-35060i22R#..RN10#,135;22R..RN130..GEN198808-199909

sub11101-35080

main11101-35080i22R..RN10#199607-199909

main11101-35080i22R..RN105,135..V199401-199607

OMAN SPEC

main11101-54130i3L..LN10#,111,13#198808-199206

sub11101-54131

main11101-54131i3L..LN10#,111,13#199206-200106

main11101-54150i5L..LN205200106-200412

main11101-65010i3VZE..VZN130199008-199205

RH

sub11101-65011

main11101-65011i3VZE..VZN130199205-199511

RH

main11101-69175i1KZTE..KZN205200108

main11101-73010i4Y..YN106..RHD..T1199401-199612

THAILAND SPEC

main11101-73020i4Y#..YN106,13#198808-199212

main11101-73021i4Y..YN106199212-199708

main11102-65010i3VZE..VZN130199008-199108

LH

sub11102-65021

main11102-65020i3VZE..VZN130199108-199205

LH

sub11102-65021

main11102-65021i3VZE..VZN130199205-199511

LH

11101ABOLT(FOR CYLINDER HEAD SET)

main90105-12056i4Y#..YN106,13#198808-199708

main90105-12092i22R#..RN10#,110,13#198808-199909

main90910-02075i3VZE..VZN130199008-199511

main90910-02080i3L..LN10#,111,13#198808-200412

NO.1

main90910-02081i3L..LN10#,111,13#198808-200412

NO.2

main90910-02112i1KZTE..KZN205200108-200412

11101USPACER(FOR CYLINDER HEAD SET BOLT)

main90560-13023i1KZTE..KZN205200108-200412

11115GASKET, CYLINDER HEAD

main11115-35020i22R..RN105,135198808-199102

sub11115-35021

main11115-35021i22R..RN10#,135;22R..RN130..GEN199102-199310

sub11115-35022

main11115-35022i22R..RN10#,135;22R..RN130..GEN199310-199909

main11115-35060i22RE..RN106;22R..RN110,130..ARL198808-199909

main11115-54070-B0i3L..LN10#,111,13#198808-199111

MARK B,MARK B,REFER R/M

sub11115-54070

sub11115-54071

main11115-54070-D0i3L..LN10#,111,13#198808-199111

MARK D,MARK D,REFER R/M

sub11115-54070

sub11115-54071

main11115-54070-F0i3L..LN10#,111,13#198808-199111

MARK F,MARK F,REFER R/M

sub11115-54070

sub11115-54071

main11115-54071-B0i3L..LN10#,111,13#199111-199207

MARK B,MARK B,REFER R/M

sub11115-54072

main11115-54071-D0i3L..LN10#,111,13#199111-199207

MARK D,MARK D,REFER R/M

sub11115-54072

main11115-54071-F0i3L..LN10#,111,13#199111-199207

MARK F,MARK F,REFER R/M

sub11115-54072

main11115-54072-B0i3L..LN10#,111,13#199207-199603

MARK B,MARK B,REFER R/M

sub11115-54073

main11115-54072-D0i3L..LN10#,111,13#199207-199603

MARK D,MARK D,REFER R/M

sub11115-54073

main11115-54072-F0i3L..LN10#,111,13#199207-199603

MARK F,MARK F,REFER R/M

sub11115-54073

main11115-54073-B0i3L..LN10#,111199603-200106

MARK B,MARK B,REFER R/M

main11115-54073-D0i3L..LN10#,111199603-200106

MARK D,MARK D,REFER R/M

main11115-54073-F0i3L..LN10#,111199603-200106

MARK F,MARK F,REFER R/M

main11115-54121-B0i5L..LN205200106-200112

MARK B,MARK B,REFER R/M

sub11115-54130

main11115-54121-D0i5L..LN205200106-200112

MARK D,MARK D,REFER R/M

sub11115-54130

main11115-54121-F0i5L..LN205200106-200112

MARK F,MARK F,REFER R/M

sub11115-54130

main11115-54130-B0i5L..LN205200112-200412

MARK B,MARK B,REFER R/M

sub11115-54130

main11115-54130-D0i5L..LN205200112-200412

MARK D,MARK D,REFER R/M

sub11115-54130

main11115-54130-F0i5L..LN205200112-200412

MARK F,MARK F,REFER R/M

sub11115-54130

main11115-65030i3VZE..VZN130199008-199403

sub11115-65031

main11115-65031i3VZE..VZN130199403-199511

sub11115-65032

main11115-67040-01i1KZTE..KZN205200108-200409

MARK 1

sub11115-67050

main11115-67040-05i1KZTE..KZN205200108-200412

MARK 5

sub11115-67050

main11115-67050-01i1KZTE..KZN205200409-200412

MARK 1

main11115-67050-03i1KZTE..KZN205200108-200412

MARK 3

main11115-73010i4Y#..YN106,13#198808-199008

sub11115-73030

main11115-73030i4Y..YN106,135199008-199708

11116GASKET, CYLINDER HEAD, NO.2

main11116-65030i3VZE..VZN130199008-199403

sub11116-65031

main11116-65031i3VZE..VZN130199403-199511

sub11116-65032

11116CPLUG, TIGHT, NO.3

main96411-43000i3L..LN10#,111,13#198808-199805

main96411-63000i5L..LN205199305-200412

11116DPLUG, TIGHT, NO.4

main96411-44500i3L..LN10#,111,13#198808-199805

main96411-62000i1KZTE..KZN205200108-200412

main96411-64500i3L..LN10#,111,13#199305-200412

11116EPLUG, TIGHT, NO.5

main96411-63500i1KZTE..KZN205200108-200412

11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1

main90341-20002i4Y#..YN106,13#198808-199708

main90341-20008i3VZE..VZN130199008-199408

main90341-22008i1KZTE..KZN205200108-200412

11122BUSH, INTAKE VALVE GUIDE

main11122-35020i22R#..RN10#,110,13#198808-199909

STD

main11122-54020i3L..LN10#,111,13#198808-200412

STD

sub11122-17020

main11122-65020i3VZE..VZN130199008-199511

STD

main11122-67020i1KZTE..KZN205200108

STD

main11122-71020i4Y#..YN106,13#198808-199708

STD

main11123-35020i22R#..RN10#,110,13#198808-199909

O/S 0.05

main11123-54020i5L..LN205198808-200412

O/S 0.05

sub11123-17020

main11123-65020i3VZE..VZN130199008-199511

O/S 0.05

main11123-67020i1KZTE..KZN205200108

O/S 0.05

main11123-71020i4Y#..YN106,13#198808-199708

O/S 0.05

11126BUSH, EXHAUST VALVE GUIDE

main11122-38021i22R#..RN10#,110,13#198808-199909

STD

main11122-54020i3L..LN10#,111,13#198808-200412

STD

sub11122-17020

main11122-65020i3VZE..VZN130199008-199511

STD

main11122-67020i1KZTE..KZN205200108

STD

main11123-38021i22R#..RN10#,110,13#198808-199909

O/S 0.05

main11123-54020i5L..LN205198808-200412

O/S 0.05

sub11123-17020

main11123-65020i3VZE..VZN130199008-199511

O/S 0.05

main11123-67020i1KZTE..KZN205200108

O/S 0.05

main11126-71020i4Y#..YN106,13#198808-199708

STD

main11127-71020i4Y#..YN106,13#198808-199708

O/S 0.05

11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)

main90253-11021i5L..LN205198808-200412

L=8,OD=11

11155APIN, RING W/HEAD

main90253-10004i1KZTE..KZN205200108-200412

main90253-11021i3VZE..VZN130199008-199511

11158BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER)

main90116-06089i3L..LN10#,111,13#198808-199505

S=9 & 9,L=26

main90116-06149i1KZTE..KZN205200108-200412

S=9 & 16,L=37

main92122-80616i5L..LN205199505-200412

S=9 & 9,L=25

11183PLUG, SEMICIRCULAR

main11183-38010i22R#..RN10#,110,13#198808-199909

main11183-54020i3L..LN10#,111,13#198808-200412

main11183-67020i1KZTE..KZN205200108-200412

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-35031i22R..RN10#,110,13#198808-199208

sub11201-35032

main11201-35032i22R#..RN10#,110,13#199208-199909

main11201-65020i3VZE..VZN130199008-199108

NO.1

sub11201-65030

main11201-65030i3VZE..VZN130199108-199511

NO.1

main11201-71011i4Y..YN106199208-199512

sub11201-71012

main11201-71012i4Y..YN106199512-199708

main11201-79035i4Y#..YN106,13#198808-199208

sub11201-71011

sub11213-71020

sub90210-09001

main11202-65040i3VZE..VZN130199008-199108

NO.2

sub11202-65050

main11202-65050i3VZE..VZN130199108-199511

NO.2

main11210-54031i3L..LN10#,111,130..ARL199208-199704

sub11210-54032

main11210-54032i3L..LN10#,111..ARL199704-199812

main11210-54040i3L..LN10#,111,13#198808-199203

sub11210-54041

main11210-54041i3L..LN107..ARL199508-199704

NEW ZEALAND SPEC

sub11210-54042

main11210-54041i3L..LN10#,111,13#199203-199704

sub11210-54042

main11210-54042i3L..LN107..ARL199704-199812

NEW ZEALAND SPEC

main11210-54042i3L..LN10#,111..GEN199704-200412

main11210-67010i1KZTE..KZN205200108-200412

11213GASKET, CYLINDER HEAD COVER

main11213-35010i22R#..RN10#,110,13#198808-199909

main11213-54050i3L..LN10#,111,13#198808-200412

main11213-65010i3VZE..VZN130199008-199511

main11213-67010i1KZTE..KZN205200108-200412

main11213-71020i4Y#..YN106,13#198808-199708

12108CAP SUB-ASSY, OIL FILLER

main12180-13030i22R..RN105,110,13#198808-199003

sub12180-55010

main12180-55010i3VZE..VZN130199308-200412

main12180-61010i4Y#..YN106,13#198808-199003

sub12180-70020

main12180-62010i22R..RN105,110,13#199003-199107

sub12180-62011

main12180-62011i22R..RN10#,110,13#199107-199312

sub12180-65011

main12180-65010i3VZE..VZN130199008-199107

sub12180-65011

main12180-65011i22R#..RN10#,110,13#199107-199909

main12180-70020i5L..LN205198808-200312

main12180-73010i4Y..YN106,135199011-199103

sub12180-73011

main12180-73011i4Y..YN106,135199103-200412

main12180-75010i4Y#..YN106,13#199003-199011

sub12180-73011

12108AGASKET(FOR OIL FILLER CAP)

main12195-70010i5L..LN205198808-200312

main12195-71020i4Y#..YN106,13#198808-199003

main12195-73010i5L..LN205199011-200412

main90430-37004i1KZTE..KZN205199008-200412

main90430-37140i22R#..RN10#,110,13#198808-199909

2201

9010508342

main90105-08342

9017906208

main90179-06208

9034552001

main90345-52001

91511G0628

main91511-G0628

24 parts on this diagram · 7 diagrams in section
